Plan 64509SC
EXCLUSIVE
One-level Craftsman Plan with Optional Lower Level
Heated S.F.
2,703
Beds
3-7
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

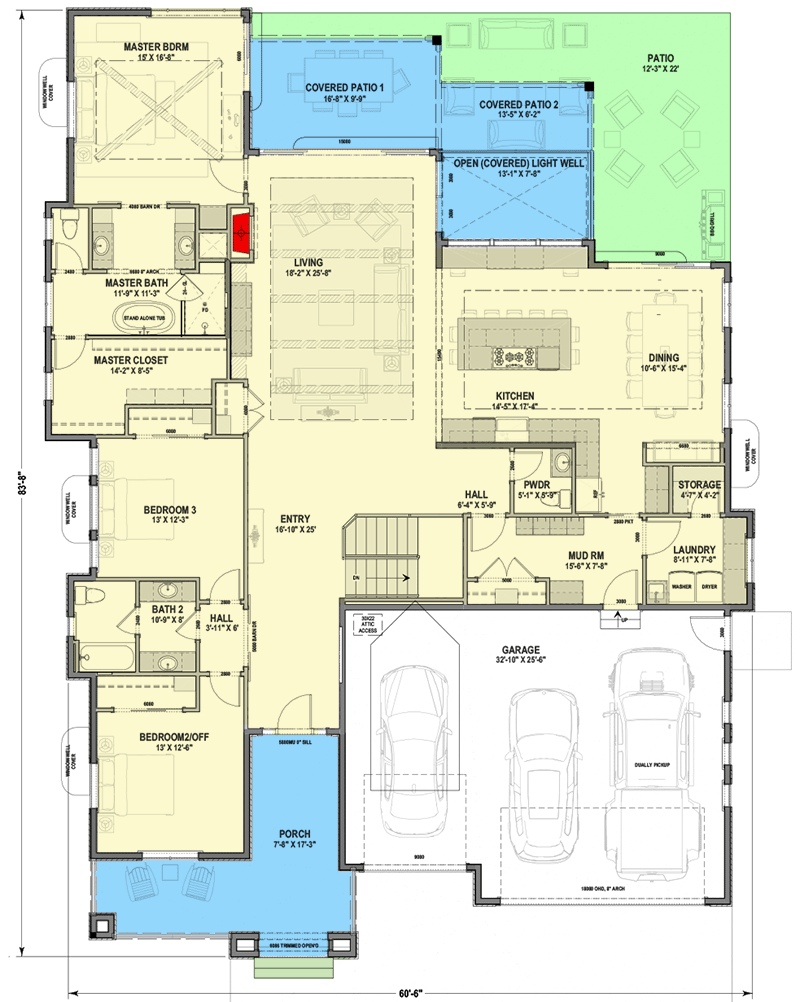

One-level Craftsman Plan with Optional Lower Level - 64509SC floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

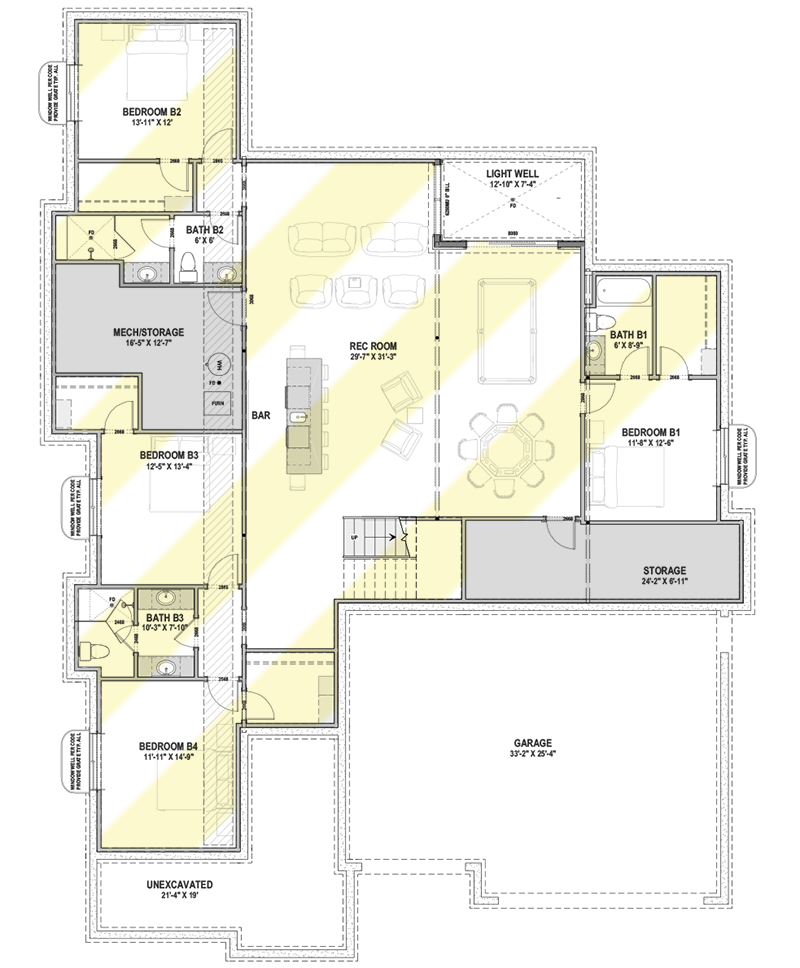

One-level Craftsman Plan with Optional Lower Level - 64509SC floor plan - Optional Lower Level
Plan Details
  • The smart layout of this one-level, Craftsman home plan features an open and inviting gathering space that extends outdoors onto a large, partially-covered patio.
  • The kitchen hosts a massive cooktop island with seating for nine (yes, nine!) along with plenty of cabinet space for storage.
  • A sizable mudroom greets you when entering from the 3-car garage and includes built-in cubbies, while bordered by a powder bath and laundry room.
  • The master bedroom is privately situated towards the rear of the home, and boasts a 5-fixture ensuite with a toilet room and walk-in closet. Bedrooms 2 and 3 are located to the left of the foyer, separated by a compartmentalized bath with two sinks.
  • The optional lower level gives you an additional 2,407 sq ft of living space and includes a large recreation room and four bedrooms; bringing the total bedroom count to seven.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

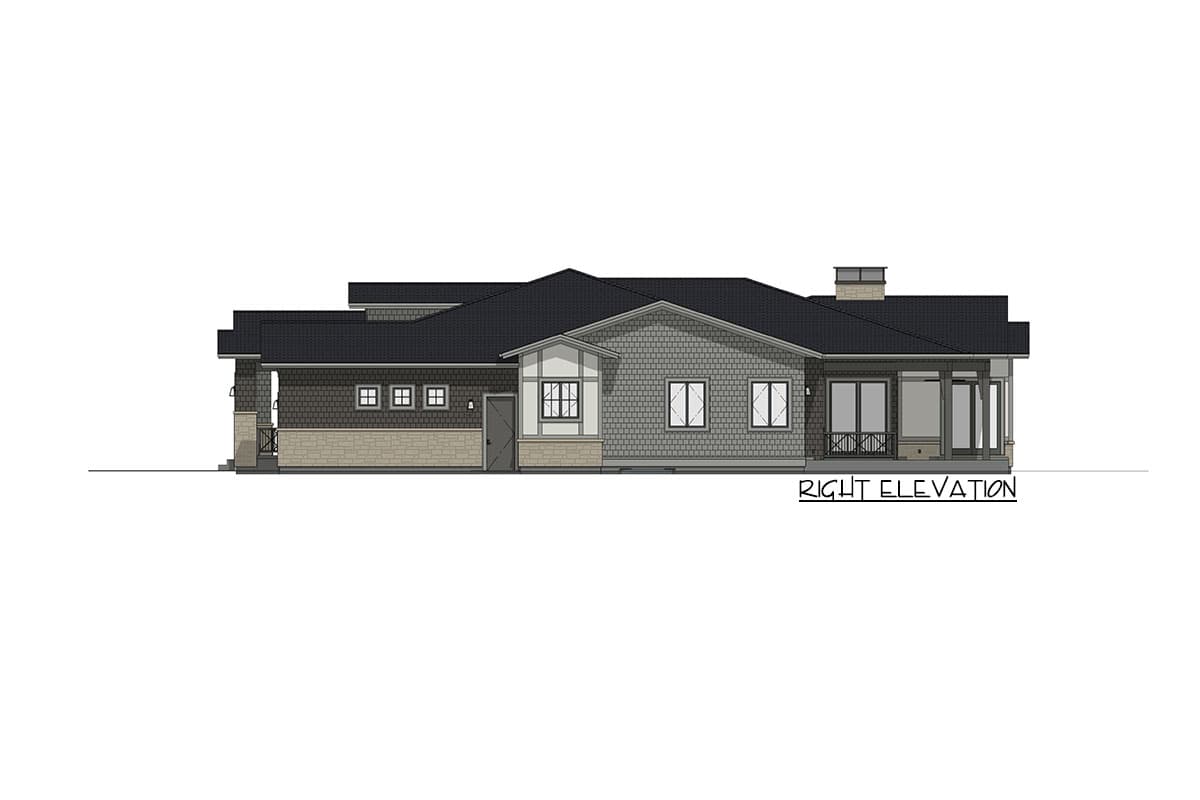

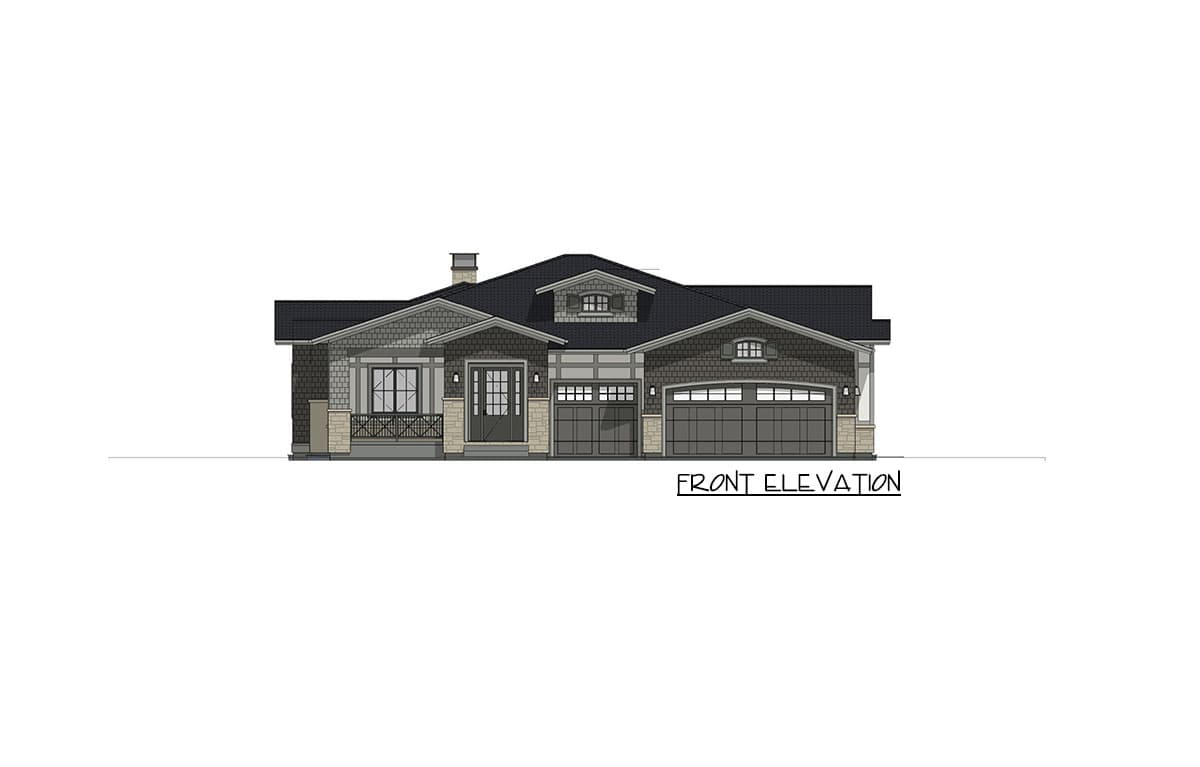

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

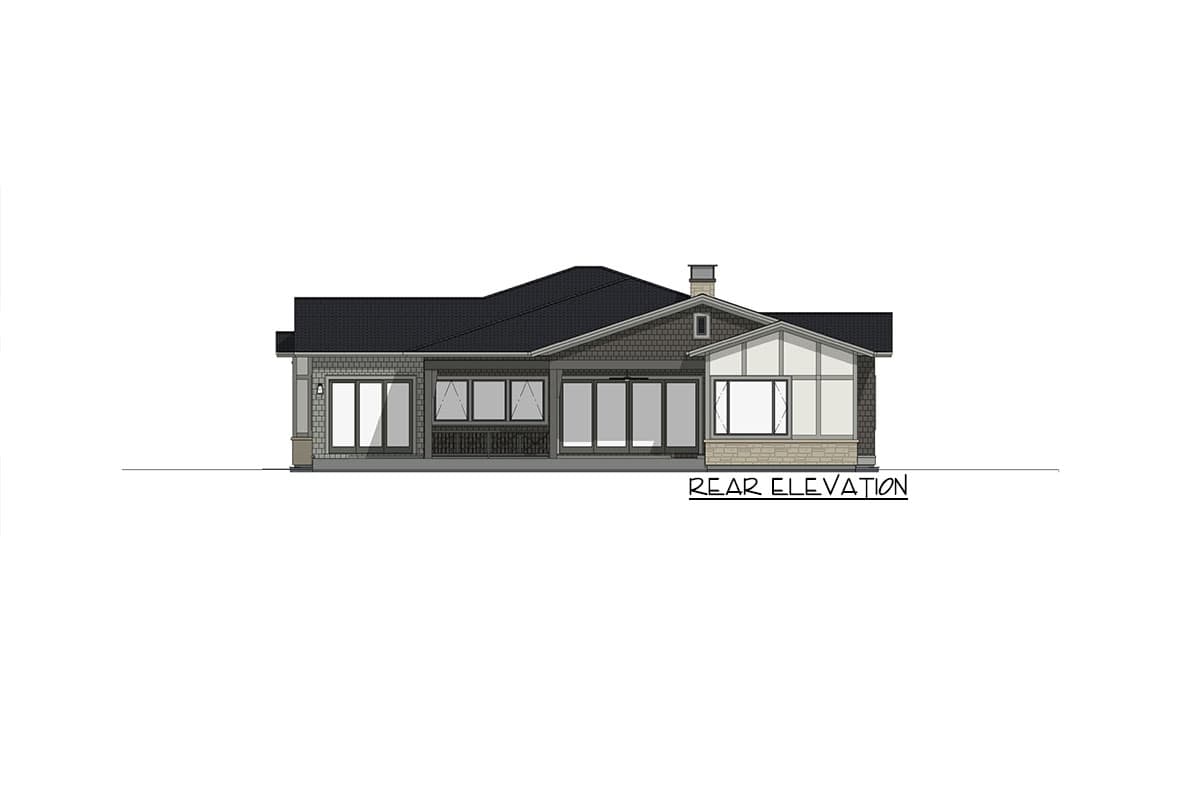

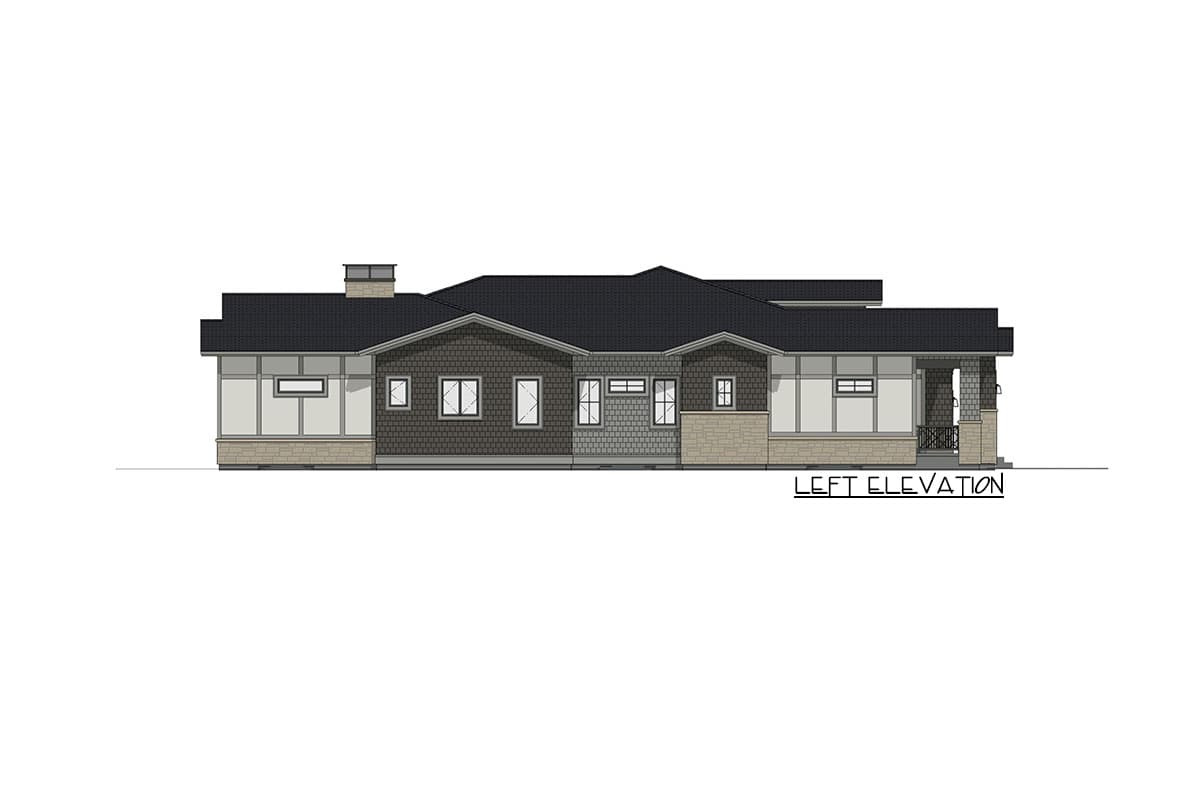

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Craftsman Plan with Optional Lower Level

  • 2,703

    Heated s.f.

  • 3-7

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,703 sq. ft.
  • 1st Floor: 2,703 sq. ft.

Dimensions

  • Width: 60' 6"
  • Depth: 83' 8"
  • Max ridge height: 20' 3"

Beds/Baths

  • Bedrooms: 3, 4, 5, 6, or 7
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 858 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
