Plan 82103KA

One Level European House Plan

1,775 3 2 1 2
Pageloader

One Level European House Plan

Plan 82103KA

  • 1,775

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Live all on one floor in this handsome 3 bed European house that comes in two exteriors.
  • The covered entry welcomes you into the great room with french doors leading to the covered lanai in back.
  • The kitchen has an island and an angled countertop giving you views into the great room and dining room.
  • Split bedrooms separate the master suite from the family bedrooms.
  • The master suite has views to the back, his-and-hers vanities and walk-in closets plus a big corner soaking tub.
  • Related Plan: Get an alternate exterior with house plan 82102KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

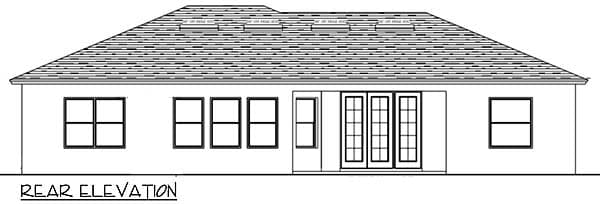

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

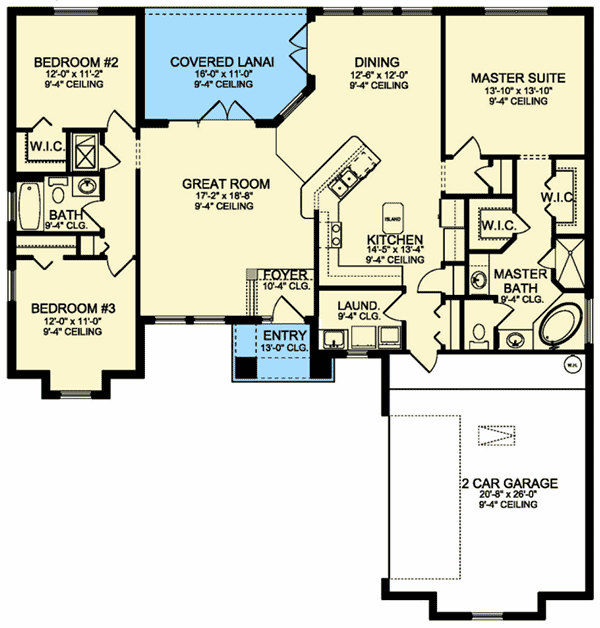

Floor Plan

Plan details



One Level European House Plan

  • 1,775

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,005
  • 8 Sets $1,080
  • PDF - single-use $1,215
  • CAD $1,215
  • View all purchase option online

About This Plan

  • Live all on one floor in this handsome 3 bed European house that comes in two exteriors.
  • The covered entry welcomes you into the great room with french doors leading to the covered lanai in back.
  • The kitchen has an island and an angled countertop giving you views into the great room and dining room.
  • Split bedrooms separate the master suite from the family bedrooms.
  • The master suite has views to the back, his-and-hers vanities and walk-in closets plus a big corner soaking tub.
  • Related Plan: Get an alternate exterior with house plan 82102KA.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,775 sq. ft.
  • 1st Floor: 1,775 sq. ft.
  • Porch, Front: 28 sq. ft.
  • Porch, Rear: 234 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 57' 4"
  • Depth: 60' 0"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 4"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

  • European
  • Mediterranean

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
  • Split Bedrooms
