Plan 82215KA

One Level European House Plan

Pageloader

One Level European House Plan

Plan 82215KA

  • 2,065

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • With its beautiful arched transom window and lovely hip roof, this European house plan has a lot of appeal.
  • Coffered ceilings top the living room and dining room, blended together in one open space.
  • Enjoy the view from the kitchen sink that is positioned to see all the way out to the vaulted rear lanai.
  • The master bedroom offers an elegant tray ceiling and a spacious master bathroom.
  • Two bedrooms and a study lie all the way across the house.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

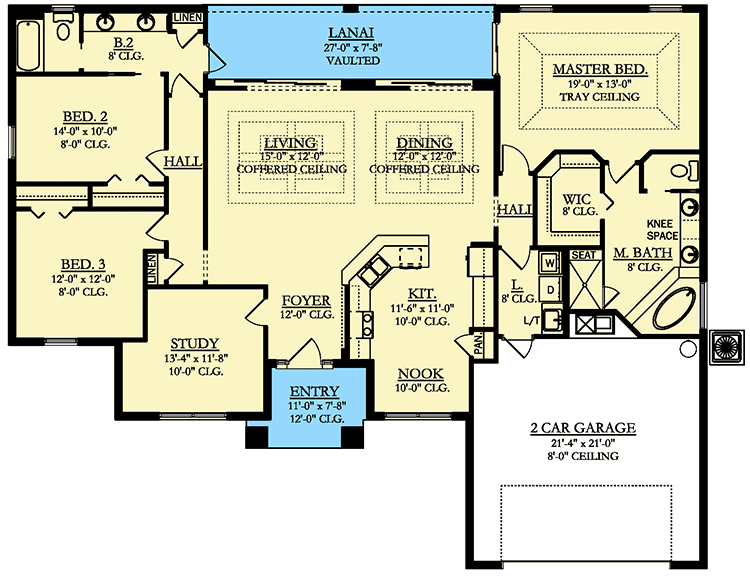

Floor Plan

Plan details



One Level European House Plan

  • 2,065

    Heated s.f.

  • 3 - 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,475
  • PDF - single-use $1,765
  • CAD $1,765
  • CAD - multi-use $7,375
  • PDF - multi-use $7,375
  • View all purchase option online

About This Plan

  • With its beautiful arched transom window and lovely hip roof, this European house plan has a lot of appeal.
  • Coffered ceilings top the living room and dining room, blended together in one open space.
  • Enjoy the view from the kitchen sink that is positioned to see all the way out to the vaulted rear lanai.
  • The master bedroom offers an elegant tray ceiling and a spacious master bathroom.
  • Two bedrooms and a study lie all the way across the house.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,065 sq. ft.
  • 1st Floor: 2,065 sq. ft.
  • Porch, Front: 75 sq. ft.
  • Porch, Rear: 206 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 65' 8"
  • Depth: 53' 0"
  • Max ridge height: 19' 4"

Garage

  • Type: Attached
  • Area: 493 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
