One Level European House Plan with Options

Plan 42493DB

  • 2,290

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • Choose from two bedrooms and a den or three bedrooms in this one floor European house plan.
  • The open floor plan makes it easy to be with your family while cooking.
  • With the sink facing the great room and eating nook, you have terrific views including the screened porch in back.
  • There's an outdoor storage/garden center for all your lawn and gardening equipment.
  • Even the garage entrance is well laid out with a large walk-in coat closet and a pet center.
  • The spacious master suite occupies the whole right wing of the house and boasts a lovely tray ceiling and two large walk-in closets.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

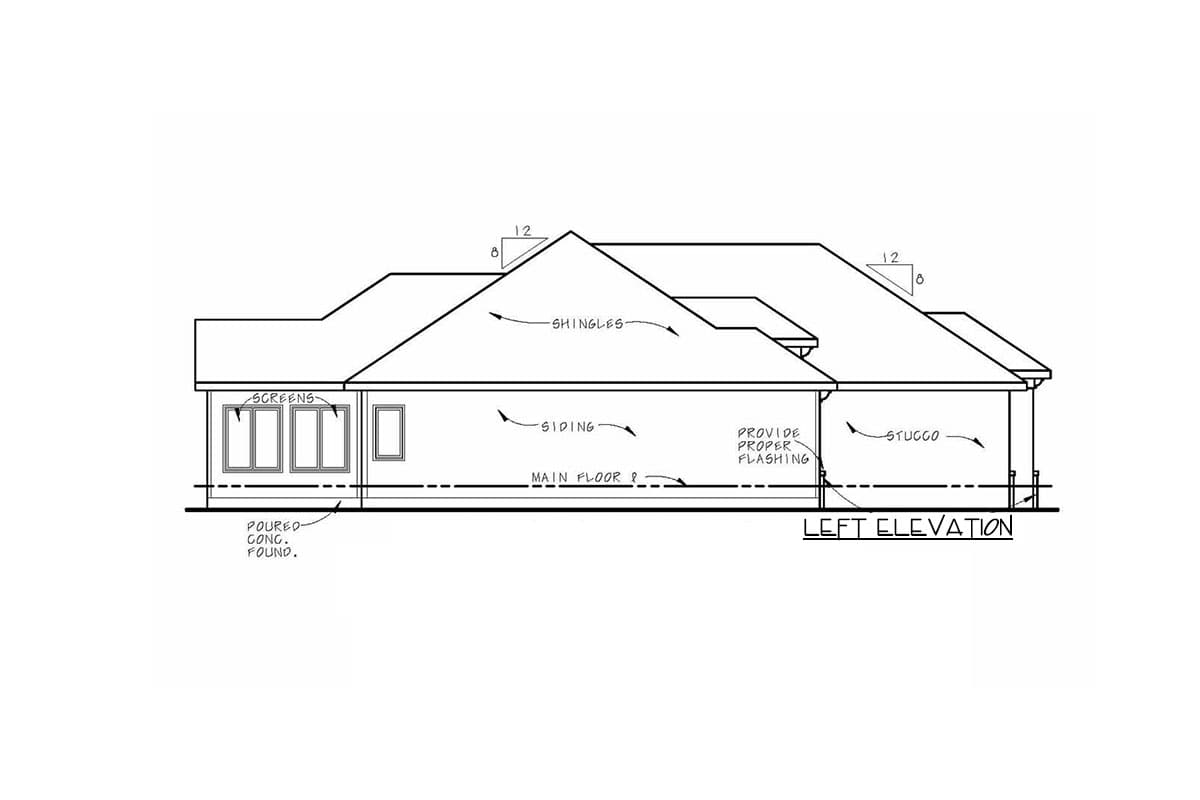

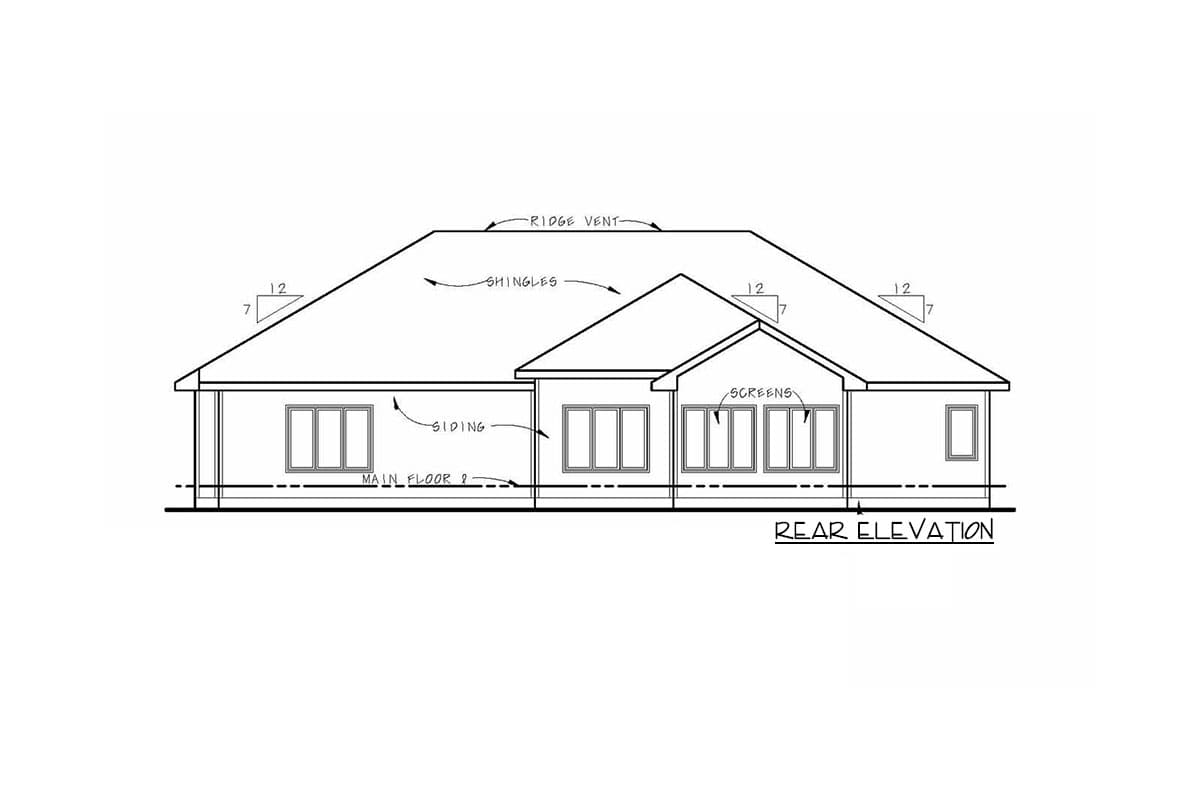

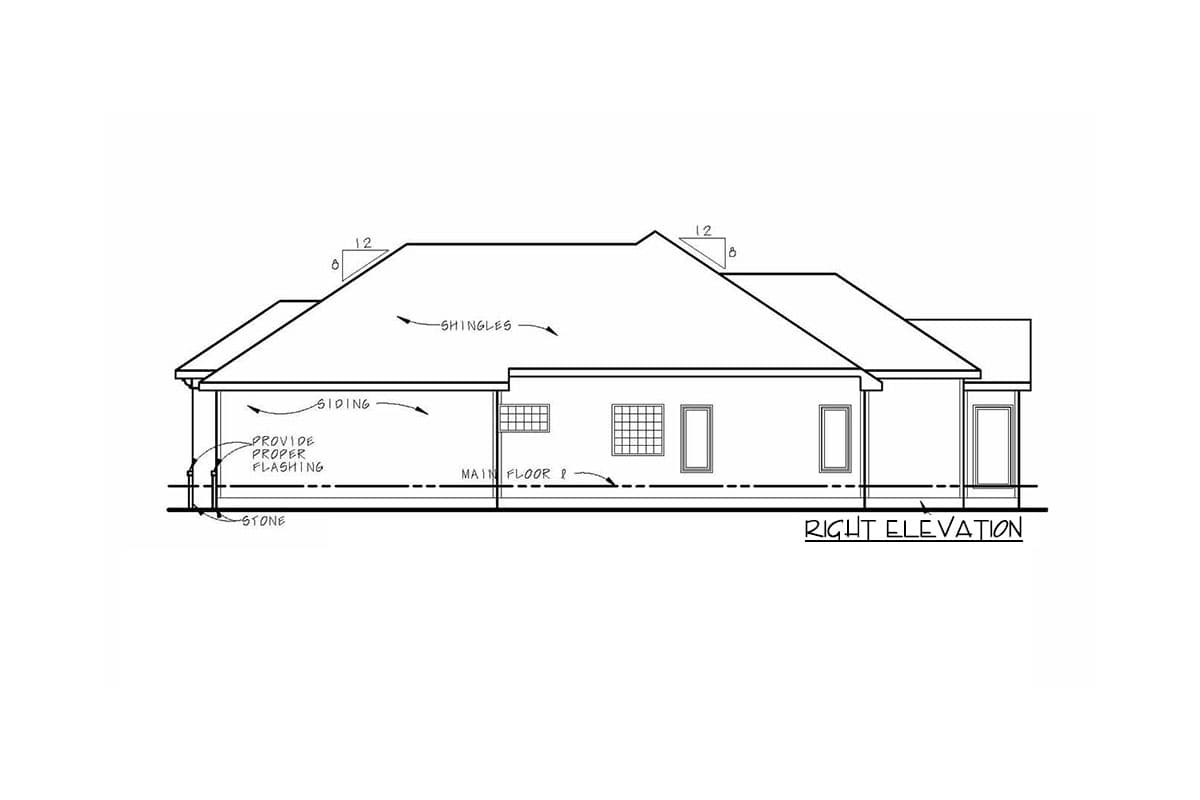

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

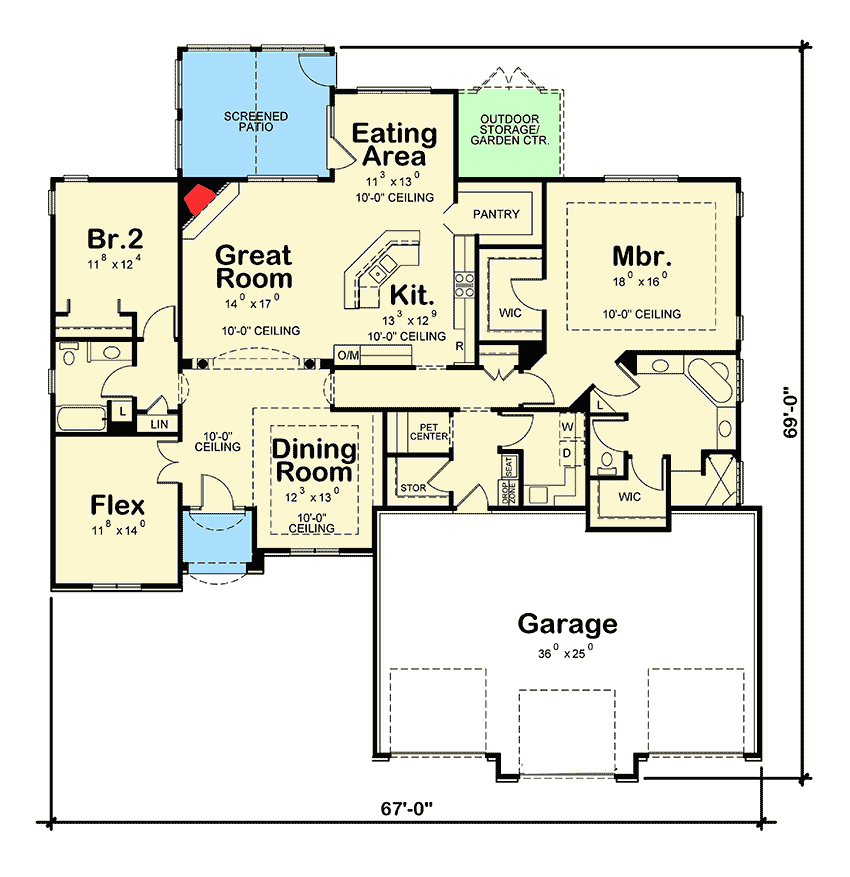

Floor Plan

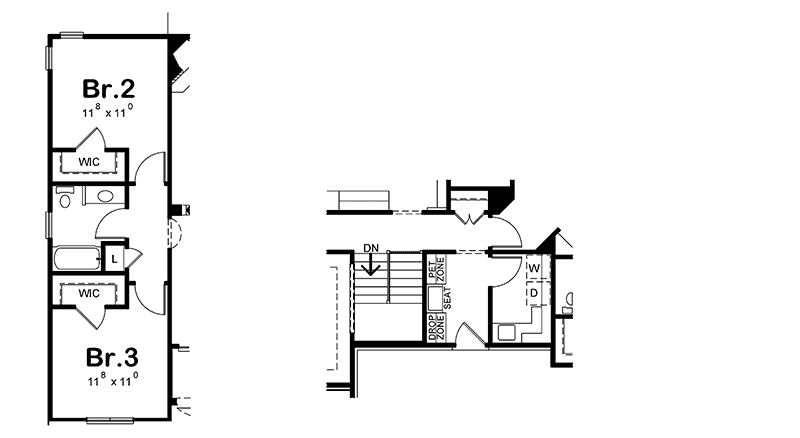

Optional First Floor

Pinit white
One Level European House Plan with Options - 42493DB floor plan - Optional First Floor

Plan details



One Level European House Plan with Options

  • 2,290

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,005
  • 5 Sets $1,130
  • 8 Sets $1,200
  • PDF - multi-use $1,505
  • CAD $1,759
  • CAD - multi-use $2,259
  • View all purchase option online

About This Plan

  • Choose from two bedrooms and a den or three bedrooms in this one floor European house plan.
  • The open floor plan makes it easy to be with your family while cooking.
  • With the sink facing the great room and eating nook, you have terrific views including the screened porch in back.
  • There's an outdoor storage/garden center for all your lawn and gardening equipment.
  • Even the garage entrance is well laid out with a large walk-in coat closet and a pet center.
  • The spacious master suite occupies the whole right wing of the house and boasts a lovely tray ceiling and two large walk-in closets.

Floor Plans

  • Main Level

  • Optional First Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,290 sq. ft.
  • 1st Floor: 2,290 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 69' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 884 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

  • European
  • Tuscan

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
  • Split Bedrooms
