One-level Hill Country House Plan with Game / Media Room

Plan 36644TX

  • 4,440

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • This one-level, Hill Country house plan offers elegant luxury inside and out, showcasing hip rooflines, stone trim, peaked roofs, and a covered entryway.
  • As you enter the 14’ high foyer, your eyes are immediately drawn to the openness of this floor plan. To the left is the quiet study with vaulted ceiling and built-ins. To the right are two family bedrooms, each with private baths and walk-in closets, across the hall from a guest suite.
  • Centrally located is the 14’ high family room with built-ins that flank the dramatic fireplace, and a wall of windows that peer out to the outdoor lounge with fireplace and grill. The gourmet kitchen features a freestanding center island, state-of-the-art appliances, and a built-in pantry with shelving.
  • Tucked behind the family bedrooms, discover a sizable game room leads to a quiet and dark media room, ideal for movie nights.
  • The utility room is accessible through the master suite wardrobe, and also leads to the garages. The master suite boasts a 12-foot step trey ceiling, private master patio, and a luxurious master bath with his and hers vanities, large spa tub, separate shower, and large wardrobe with built-ins and center island.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

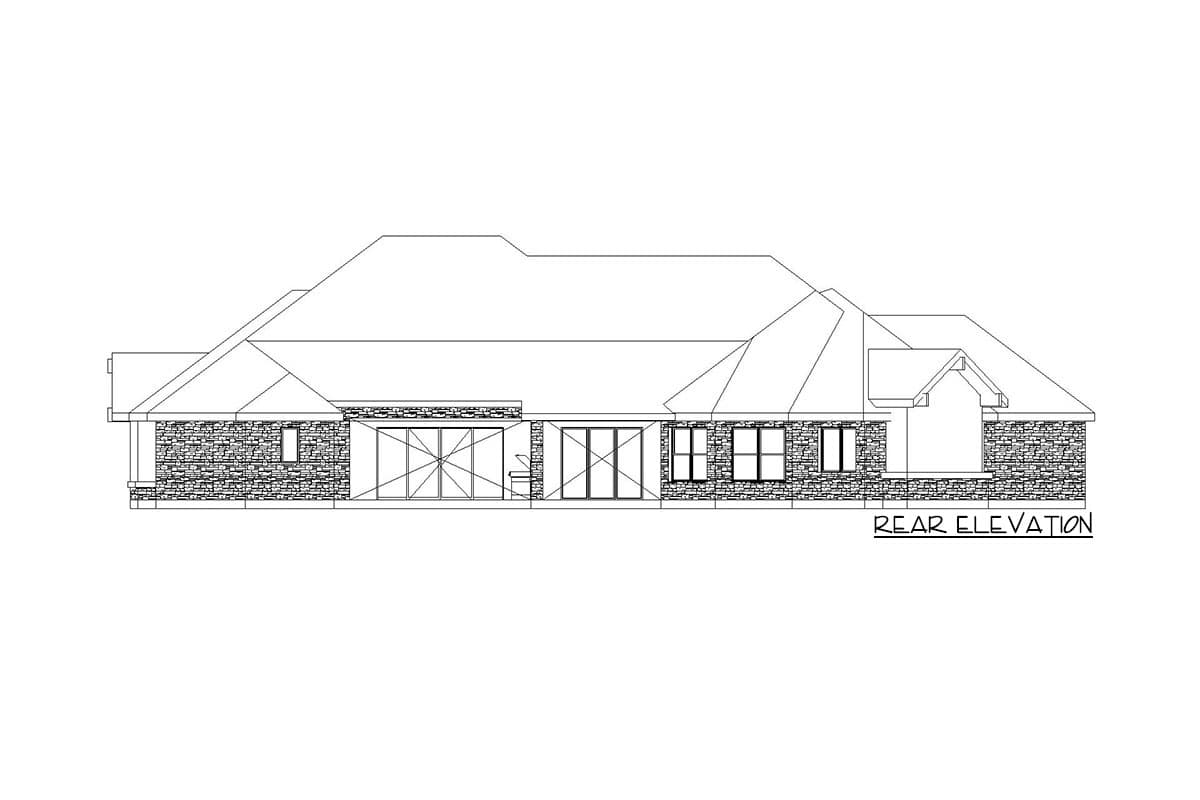

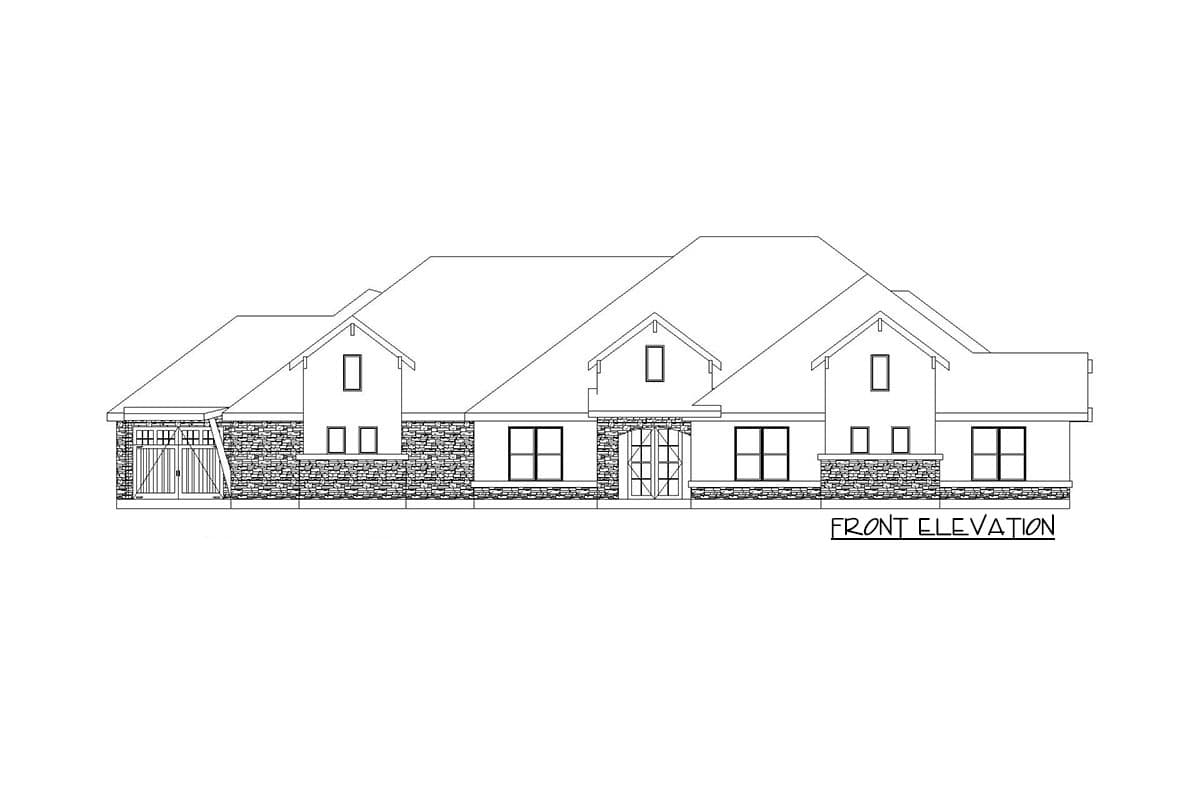

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

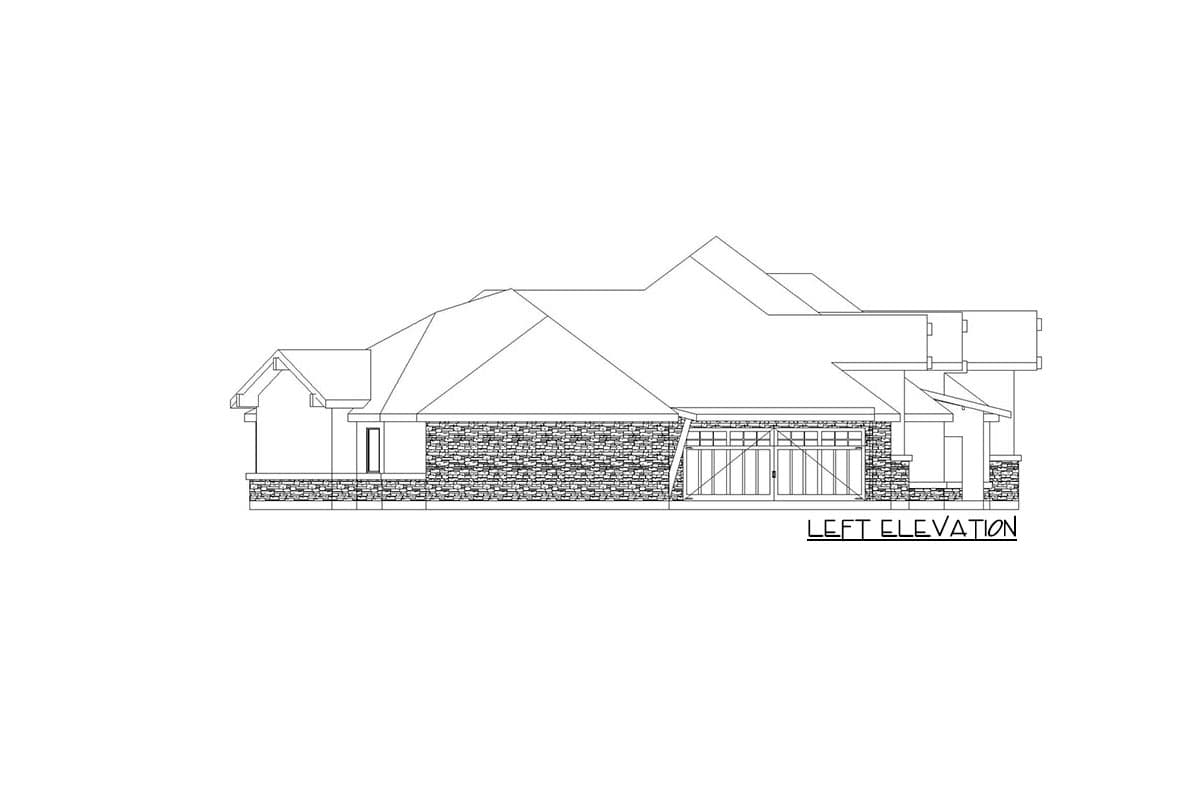

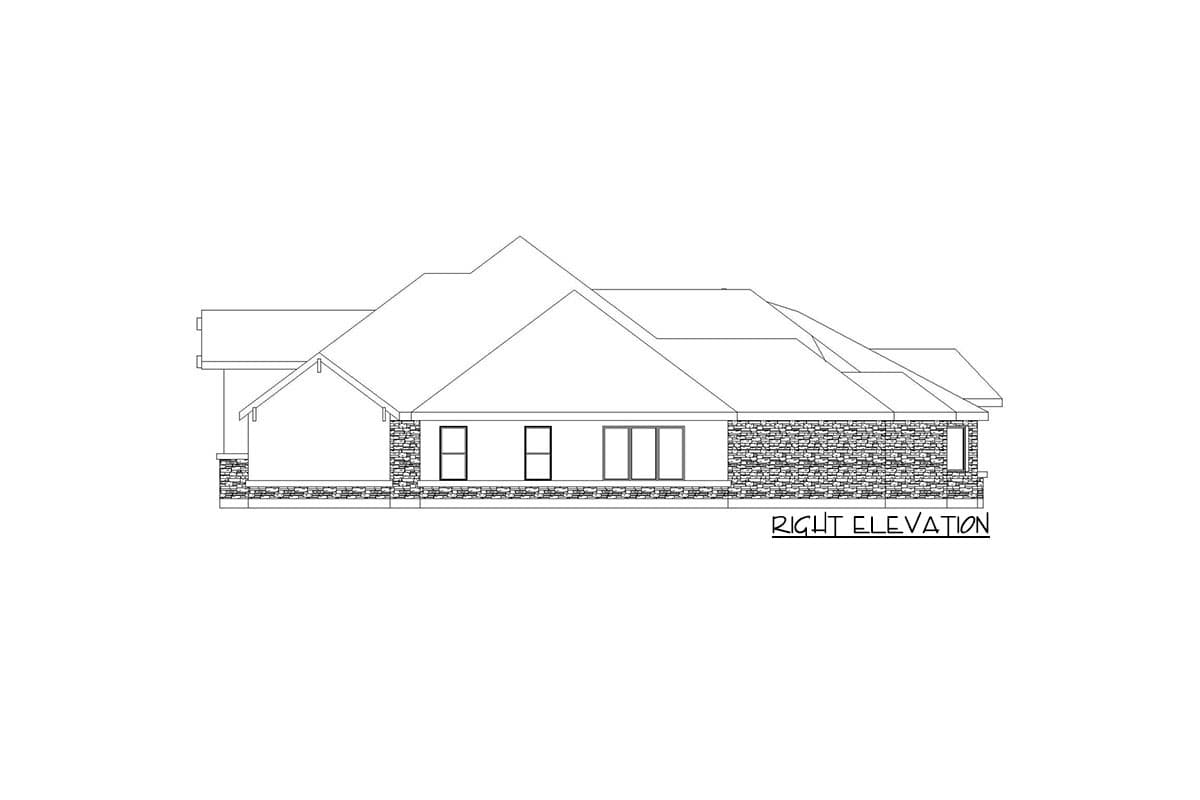

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-level Hill Country House Plan with Game / Media Room - 36644TX floor plan - Main Level

One-level Hill Country House Plan with Game / Media Room

  • 4,440

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

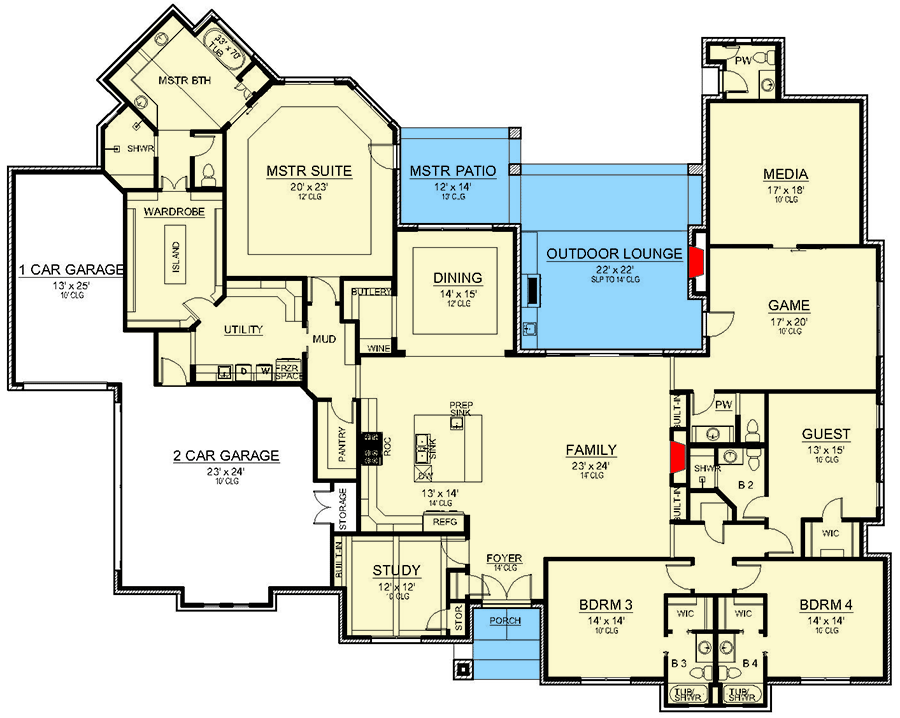

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 4,440 sq. ft.
  • 1st Floor: 4,440 sq. ft.

Dimensions

  • Width: 105' 0"
  • Depth: 84' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1022 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
