Plan 430077LY

One-level Home Plan with Guest Casita

Heated S.F.
3,113
Beds
3 - 4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 430077LY

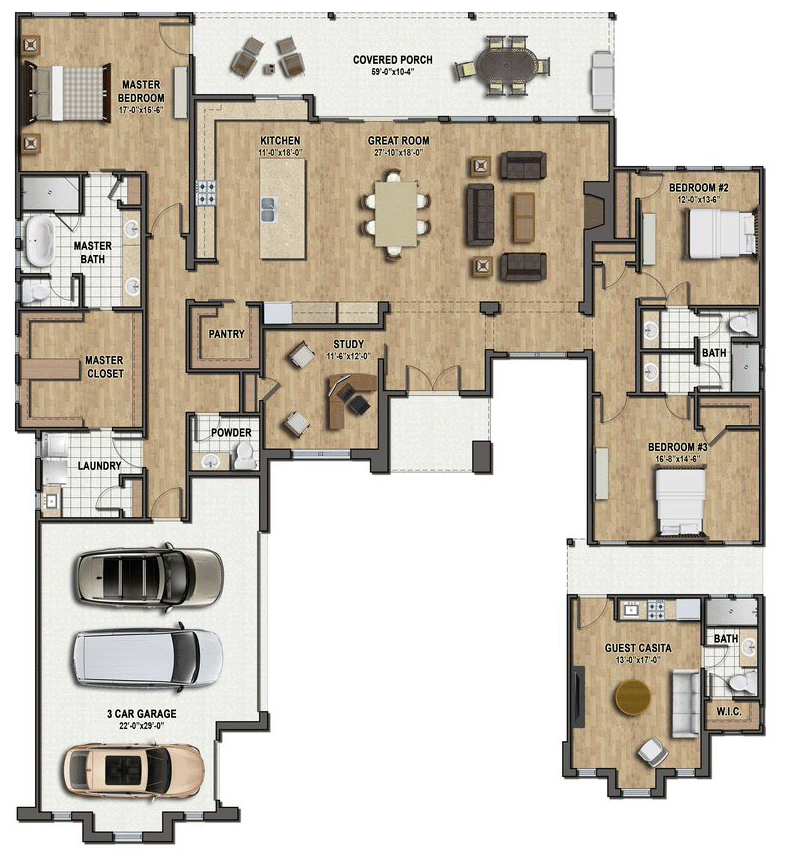

Main Level
Main Level

Plan 430077LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 430077LY: One-level Home Plan with Guest Casita - Floor Plan - Main Level - European, New American, Ranch, Transitional

Plan Details

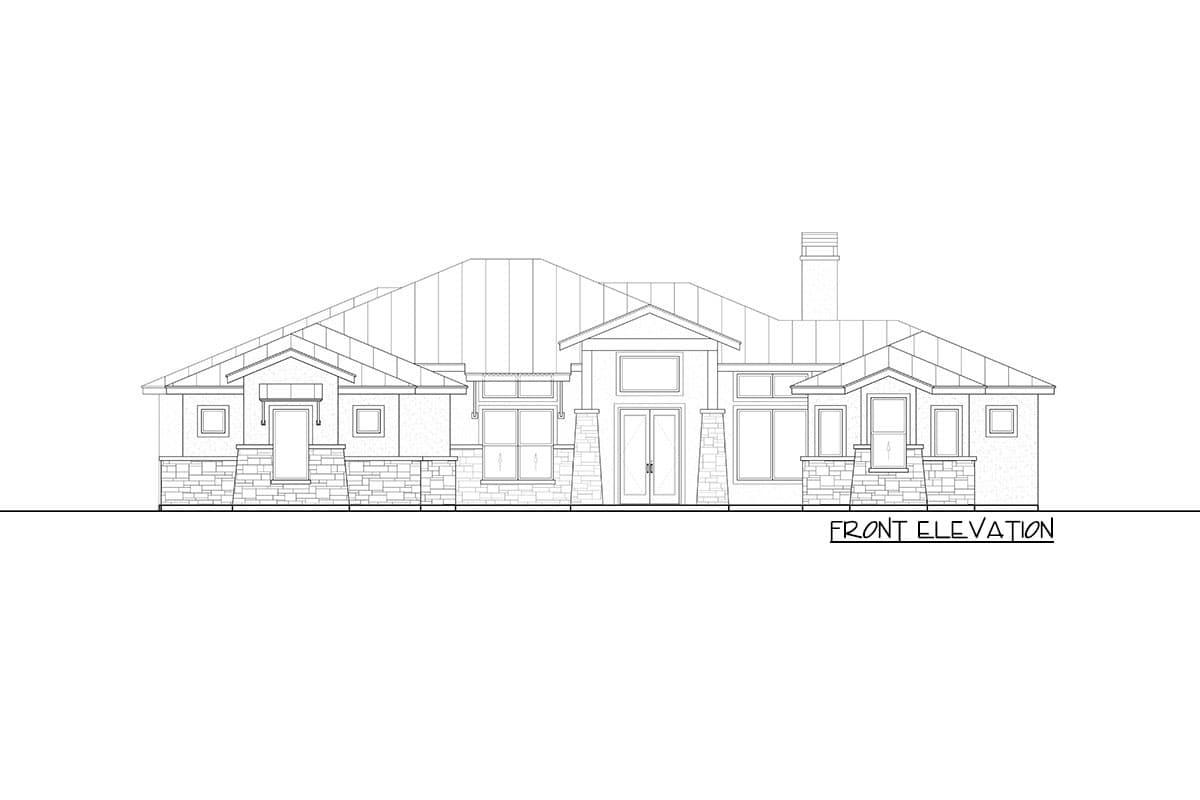

  • A stucco and stone facade adds texture to this exclusive, one-level home plan, topped by a ribbed metal roof for a modern appeal.
  • The center of this design is where you'll find the great room, kitchen, and dining areas drenched in natural lighting and providing access to a lengthy rear porch.
  • An oversized kitchen island offers plenty of workspace, while a nearby walk-in pantry lends space for large appliances and canned foods.
  • In line with the 3-car garage, discover the master bedroom, paired with a 5-fixture bathroom and pass-thru closet that conveniently connects to the laundry room.
  • Two family bedrooms share a Jack-and-Jill bath on the right side of the home, and a guest casita includes a full bath and is attached by a covered porch.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan

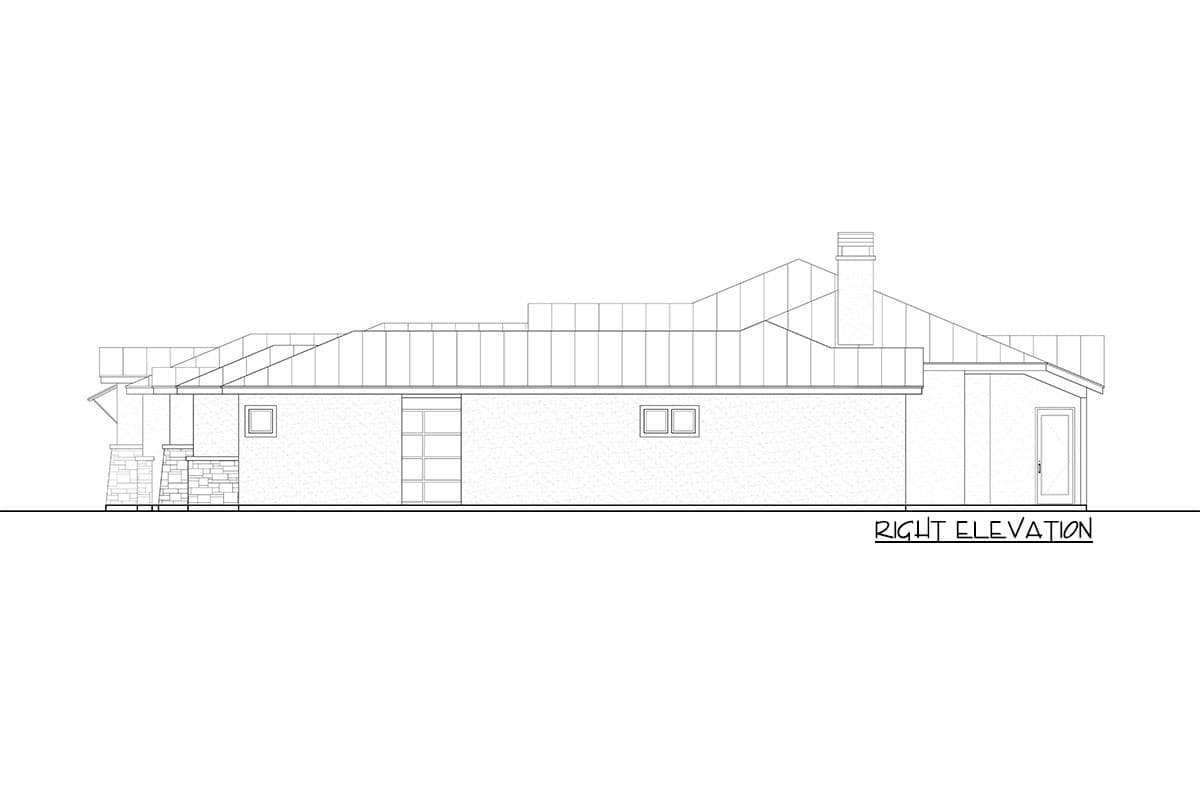

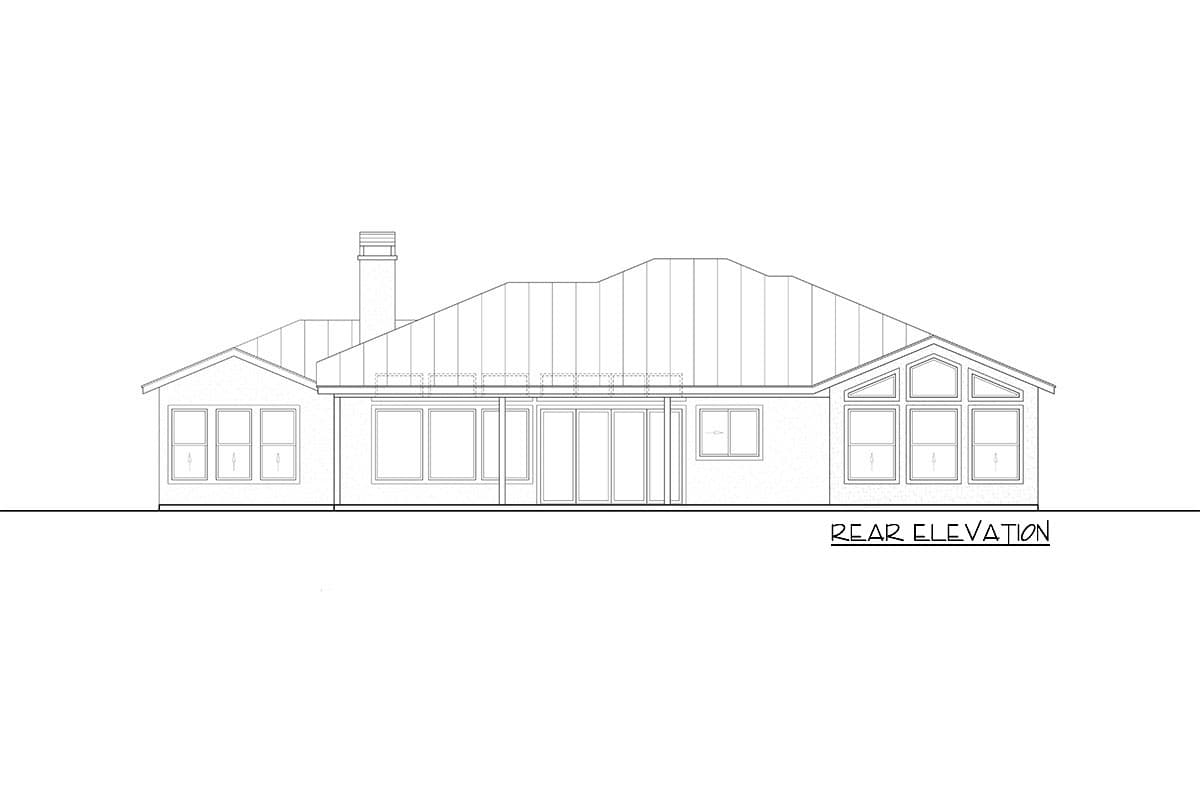

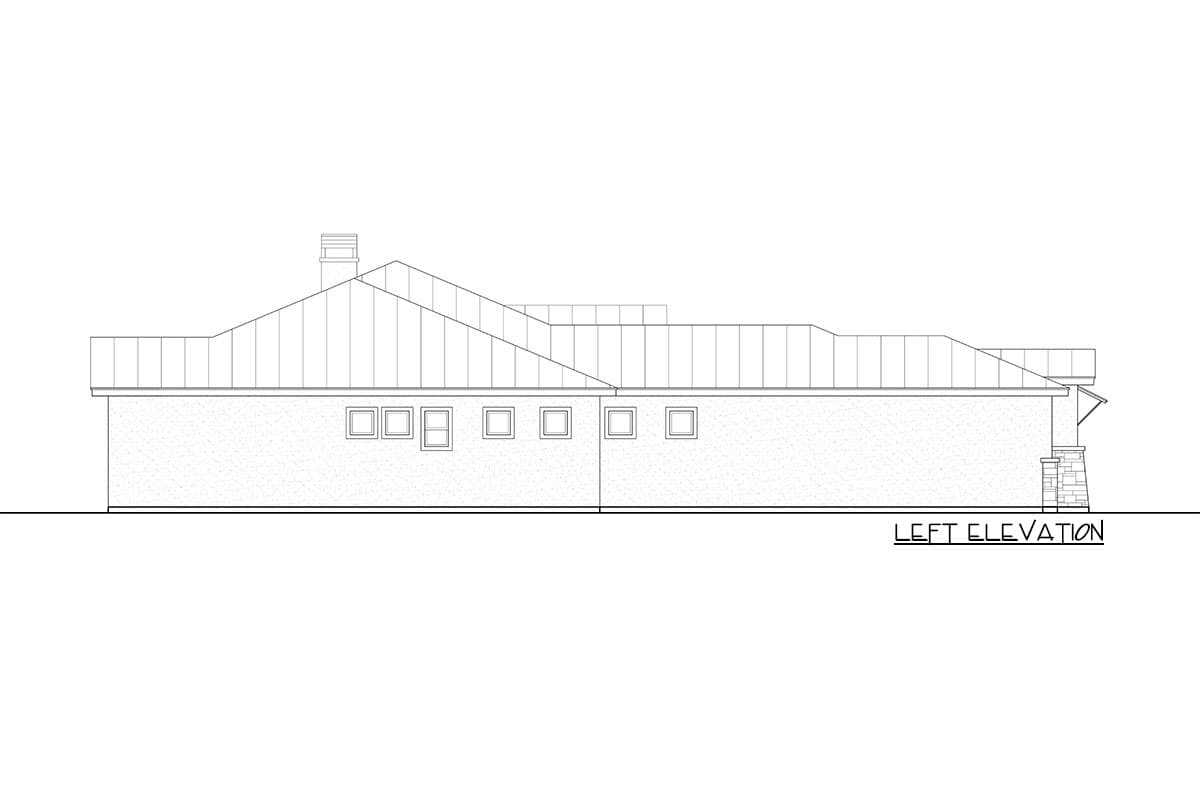

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,113 sq. ft.

1st Floor

3,113 sq. ft.

Porch, Front

99 sq. ft.

Porch, Rear

408 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

83' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

712 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

New American

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,113 sq. ft.

1st Floor

3,113 sq. ft.

Porch, Front

99 sq. ft.

Porch, Rear

408 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

75' 0"

Depth

83' 2"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

712 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

5 on 12

Architectural Style

European

New American

Ranch

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor
