Plan 280080JWD
One-Level House Plan with Open Layout
Heated S.F.
2,304
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Families will enjoy all of the open, shared living spaces in this traditional, one-level house plan, complete with a 3-car garage.
  • Step inside, and discover a quiet den to the right of the foyer, which could double as a home office. The great room seamlessly flows into the eat-in kitchen, and a rear patio provides an outdoor space to grill and dine.
  • A second family room offers a sizable space to connect with friends and family, which is adjacent the combined mud / laundry room that leads to the garage.
  • The bedrooms occupy the left side of the home, with the largest reserved for the homeowner. The 5-fixture, master bathroom includes a separate tub and shower, as well as a walk-in closet.
  • Two similarly-sized bedrooms reside down the hall, and share a bath with two vanities and a separate tub and shower room.
What's Included

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Level House Plan with Open Layout

  • 2,304

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

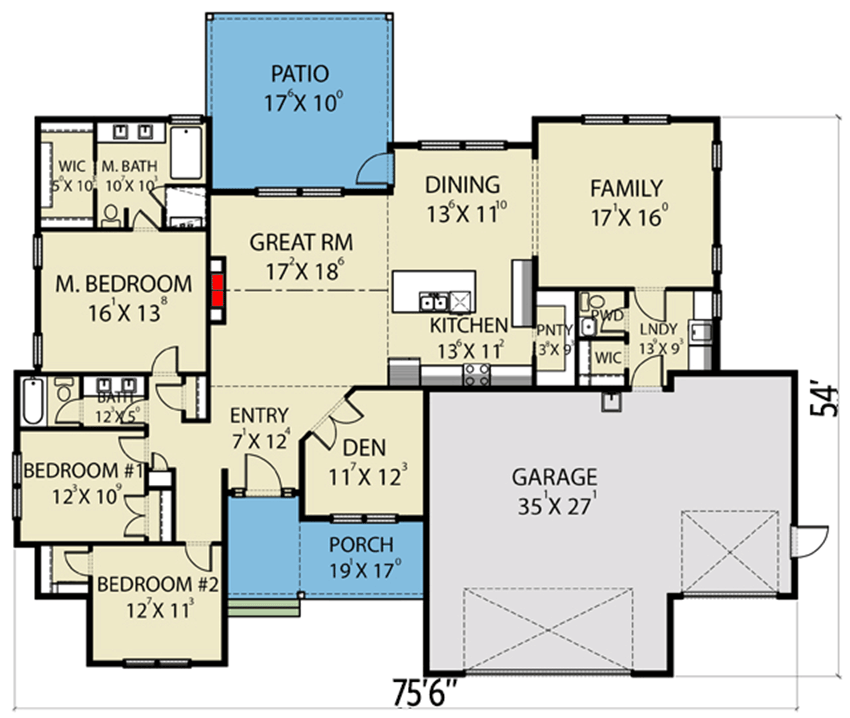

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,304 sq. ft.
  • 1st Floor: 2,304 sq. ft.

Dimensions

  • Width: 75' 0"
  • Depth: 54' 0"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 916 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
