One Level Living

Plan 48330FM

  • 2,532

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Forget climbing stairs - enjoy living all on one level with this elegant European home plan.
  • An open floor plan groups together the great room, kitchen and breakfast nook all with beamed ceilings.
  • Should you care to dine formally, a large dining room is just steps away from the kitchen.
  • Tucked in the rear of the house, the private master suite boasts a five-sided sitting room with vaulted ceiling and a huge walk-in closet that opens to the laundry room for convenience.
  • On the other side of the house, two bedrooms share a bath.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

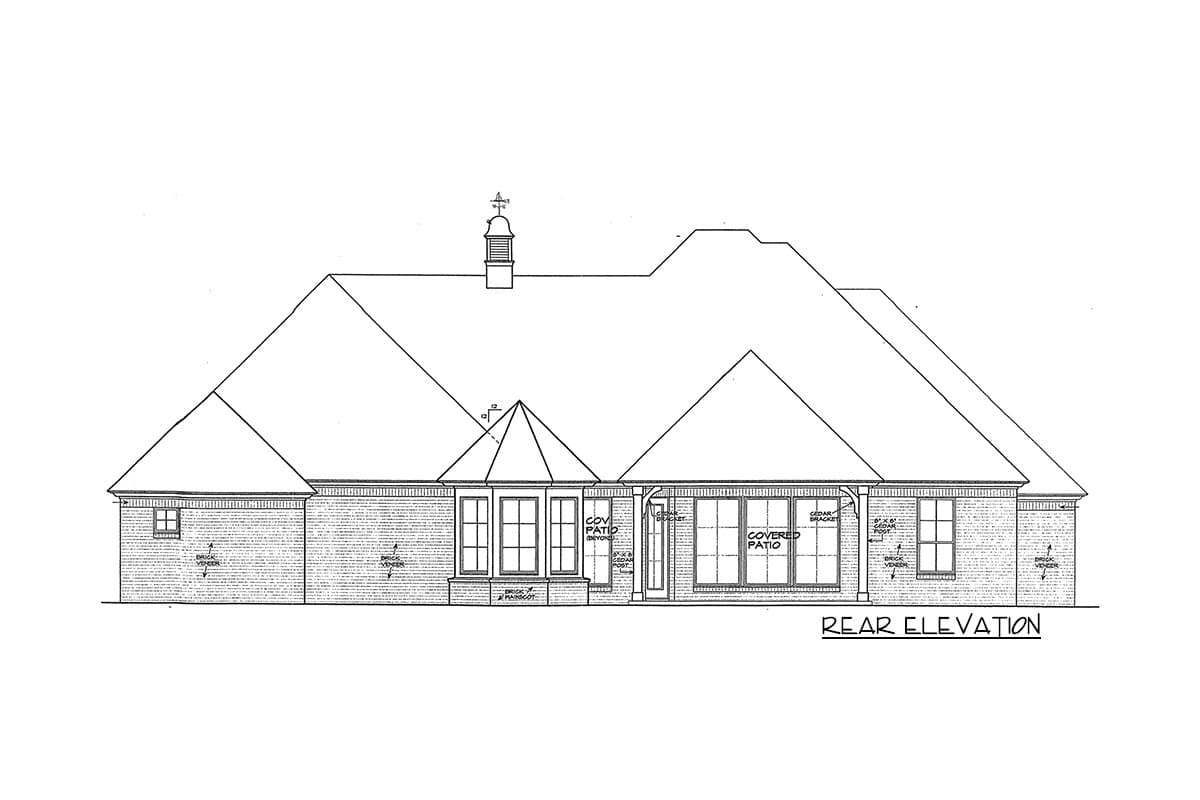

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

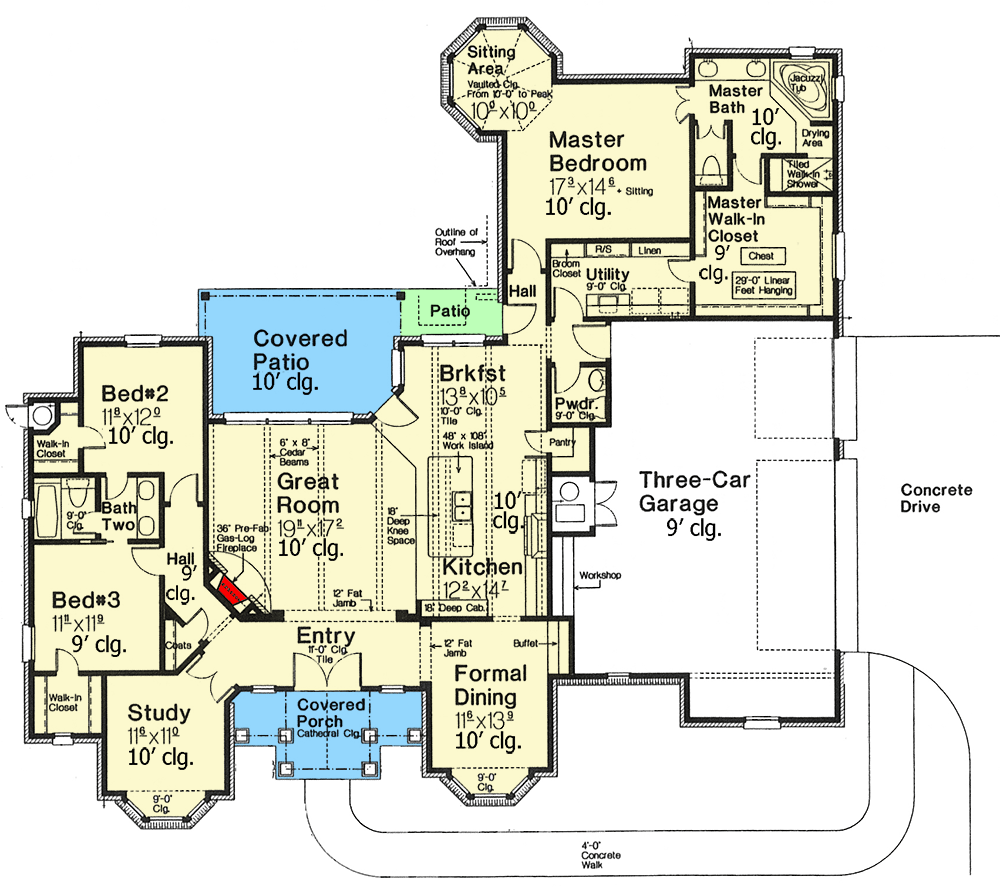

One Level Living - 48330FM floor plan - Main Level

One Level Living

  • 2,532

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,532 sq. ft.
  • 1st Floor: 2,532 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 72' 5"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 837 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 2"
