Plan 89793AH

  • 1,884

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • Shake siding, stone accents and strong wooden columns define the character of this Craftsmanl ranch home plan.
  • In just under 1,900 square feet, you'll be amazed at the extra amenities you'll find in this home.
  • To your right, the formal dining area is defined by a column that further defines the great room area directly ahead, where two more columns pull the entire plan together.
  • The kitchen and nook area also features a separate computer area for the kids to do their homework.
  • The master suite, complete with large walk-in closet and direct access to the laundry room, lies to the right behind the garage.
  • Two additional bedrooms with full bath can be found on the opposite side of the home for maximum privacy.
  • A three-stall garage completes the home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Floor Plan

Plan details



One Level Living

  • 1,884

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $930
  • 8 Sets $980
  • Reproducible Set $1,165
  • PDF - single-use $1,165
  • CAD $1,850
  • View all purchase option online

About This Plan

  • Shake siding, stone accents and strong wooden columns define the character of this Craftsmanl ranch home plan.
  • In just under 1,900 square feet, you'll be amazed at the extra amenities you'll find in this home.
  • To your right, the formal dining area is defined by a column that further defines the great room area directly ahead, where two more columns pull the entire plan together.
  • The kitchen and nook area also features a separate computer area for the kids to do their homework.
  • The master suite, complete with large walk-in closet and direct access to the laundry room, lies to the right behind the garage.
  • Two additional bedrooms with full bath can be found on the opposite side of the home for maximum privacy.
  • A three-stall garage completes the home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

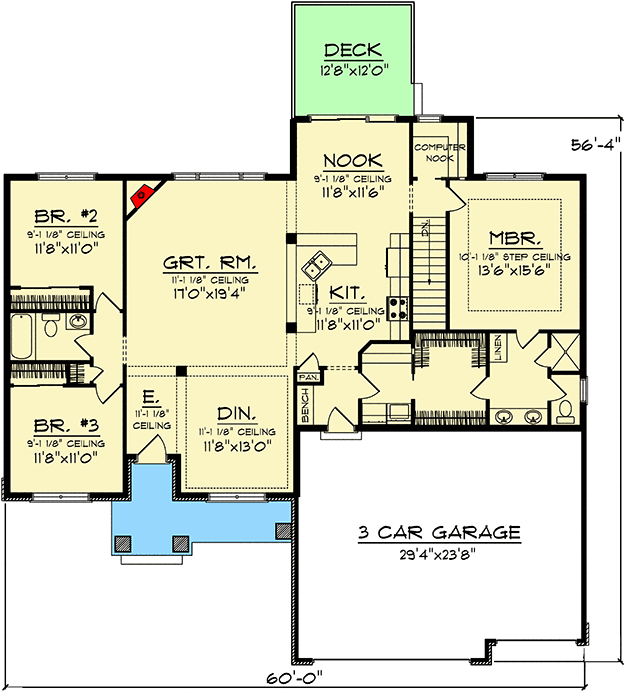

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,884 sq. ft.
  • 1st Floor: 1,884 sq. ft.
  • Deck: 152 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 56' 4"
  • Max ridge height: 22' 4"

Garage

  • Type: Attached
  • Area: 700 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest
  • Ranch

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF
  • Split Bedrooms
