Plan 370009SEN

One-level Mountain Craftsman House Plan with Optional Lower Level

Heated S.F.
2,681
Beds
2 - 3
Baths
2.5
Stories
1
Cars
3

Floor Plan

Plan 370009SEN

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 370009SEN

M-F 9am-5pm EST |

1-203-761-8500

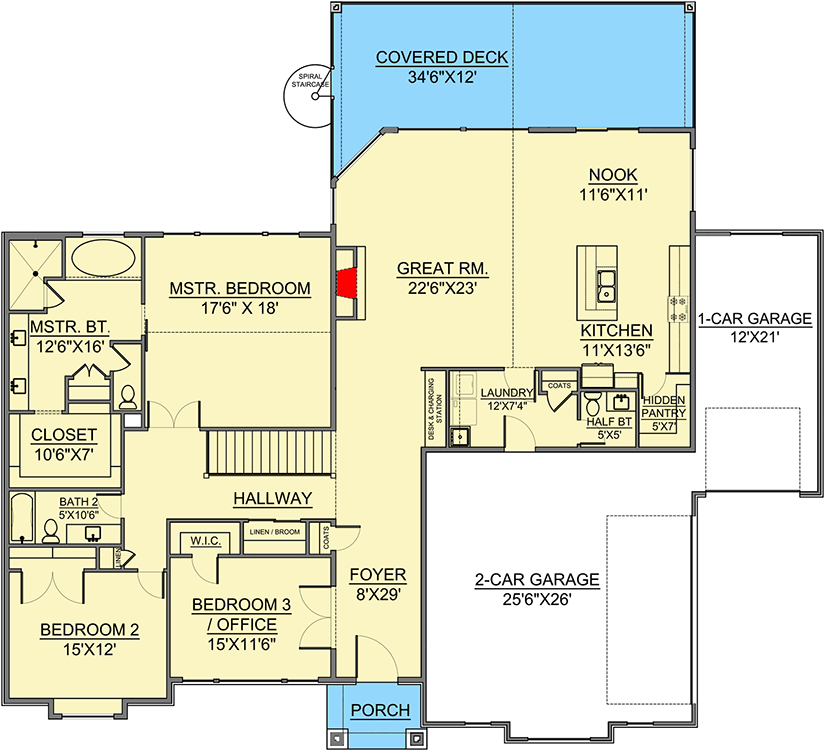

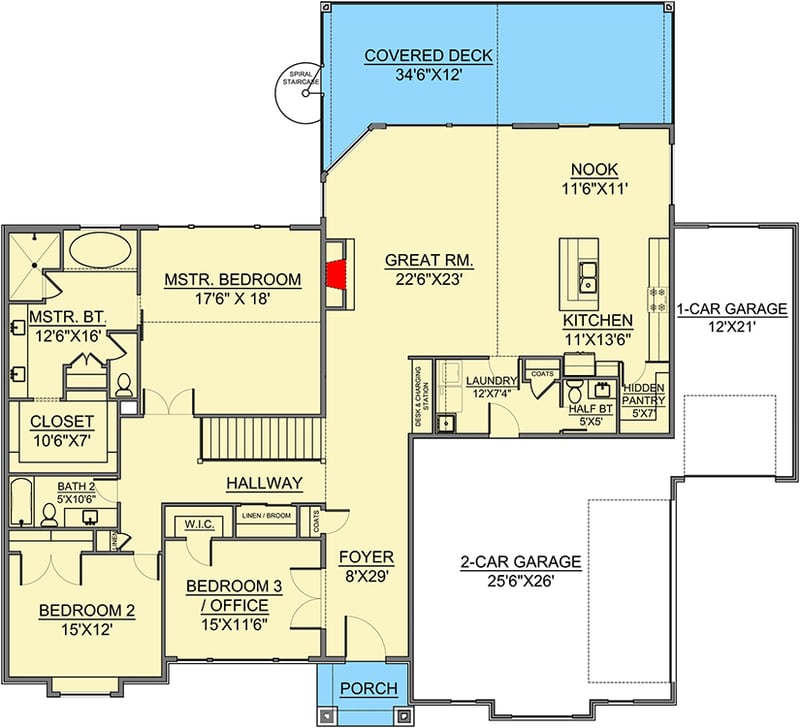

Main Level

Plan 370009SEN: One-level Mountain Craftsman House Plan with Optional Lower Level - Floor Plan - Main Level - Country, Craftsman, Mountain, Northwest, Ranch

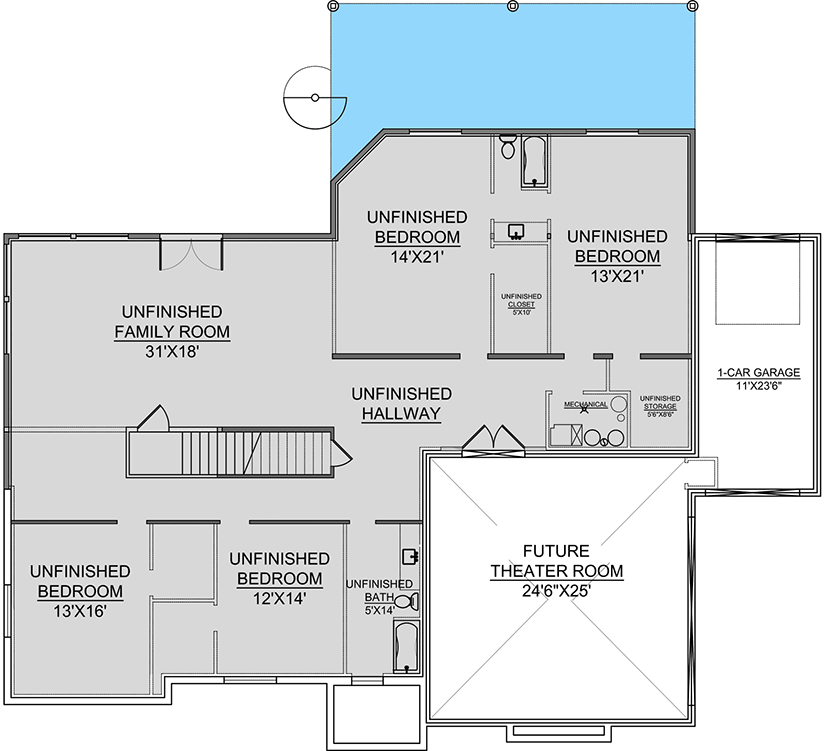

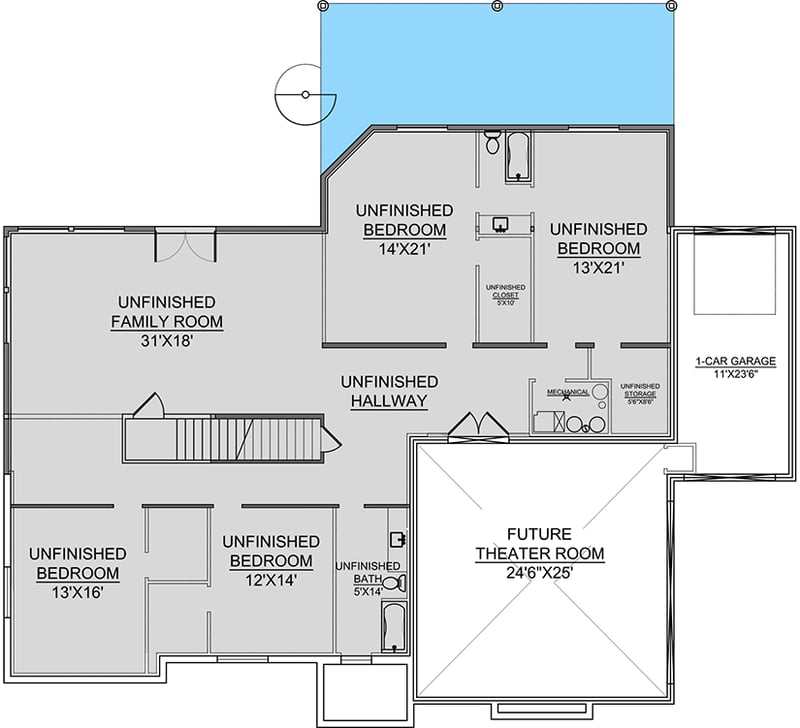

Optional Lower Level

Plan 370009SEN: One-level Mountain Craftsman House Plan with Optional Lower Level - Floor Plan - Optional Lower Level - Country, Craftsman, Mountain, Northwest, Ranch

Plan Details

  • Craftsman detailing on the exterior of this one-level mountain home plan contributes to the great curb appeal, while metal roof accents complete the design.
  • The heart of the home resides behind the 3-car garage in an open format. Large windows allow natural light to permeate the living space, and a sliding door invites you to enjoy the spacious covered deck with a spiral staircase leading to the patio below.
  • The kitchen features a good-sized prep island and a walk-in pantry is tucked away in the corner providing dry storage space. The adjacent mud / laundry room includes a half bath for added convenience.
  • Retreat to the master bedroom and discover a vaulted ceiling and rear-facing views. A barn door grants access to the sizable 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3, located across the hall, share a full bath. Utilize one bedroom as an office for the work-at-home resident if desired.
  • The expansive lower-level design increases living space by 3,287 sq. ft. and includes a family room, 4 bedrooms (two share a Jack-and-Jill bath), and a large theater room.

What's Included

  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,681 sq. ft.

Lower Level

27 sq. ft.

1st Floor

2,654 sq. ft.

Optional Lower Level

3,287 sq. ft.

Porch, Combined

56 sq. ft.

Deck

430 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 0"

Depth

70' 7"

Max Ridge Height

25' 7"

Garage

Type

Attached

Area

1294 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 6"

First Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Mountain

Northwest

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,681 sq. ft.

Lower Level

27 sq. ft.

1st Floor

2,654 sq. ft.

Optional Lower Level

3,287 sq. ft.

Porch, Combined

56 sq. ft.

Deck

430 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 0"

Depth

70' 7"

Max Ridge Height

25' 7"

Garage

Type

Attached

Area

1294 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9' 6"

First Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Mountain

Northwest

Ranch

Special Features

Bedrooms - Clustered

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
