One-level Ranch Plan Under 1,500 Square Feet
Heated S.F.
1,421
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • The traditional exterior of this one-level Ranch plan is elevated by stone and shake accents, while inside you will find 3 bedrooms and 2 bathrooms.
  • A spacious foyer greets you once past the threshold and a nearby closet is perfect for coats, shoes, and bags.
  • The vaulted great room hosts a corner fireplace and sliding doors off the dining area lead to the back yard. A window above the double-bowl sink provides rearward views in the kitchen and a nearby pantry increases storage space.
  • The bedrooms are clustered along the right side of the home, with the largest reserved for the homeowner. The master bathroom includes a double-sink vanity and toilet room.
  • Two garage bays offer entry from the front and opens into the laundry room.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

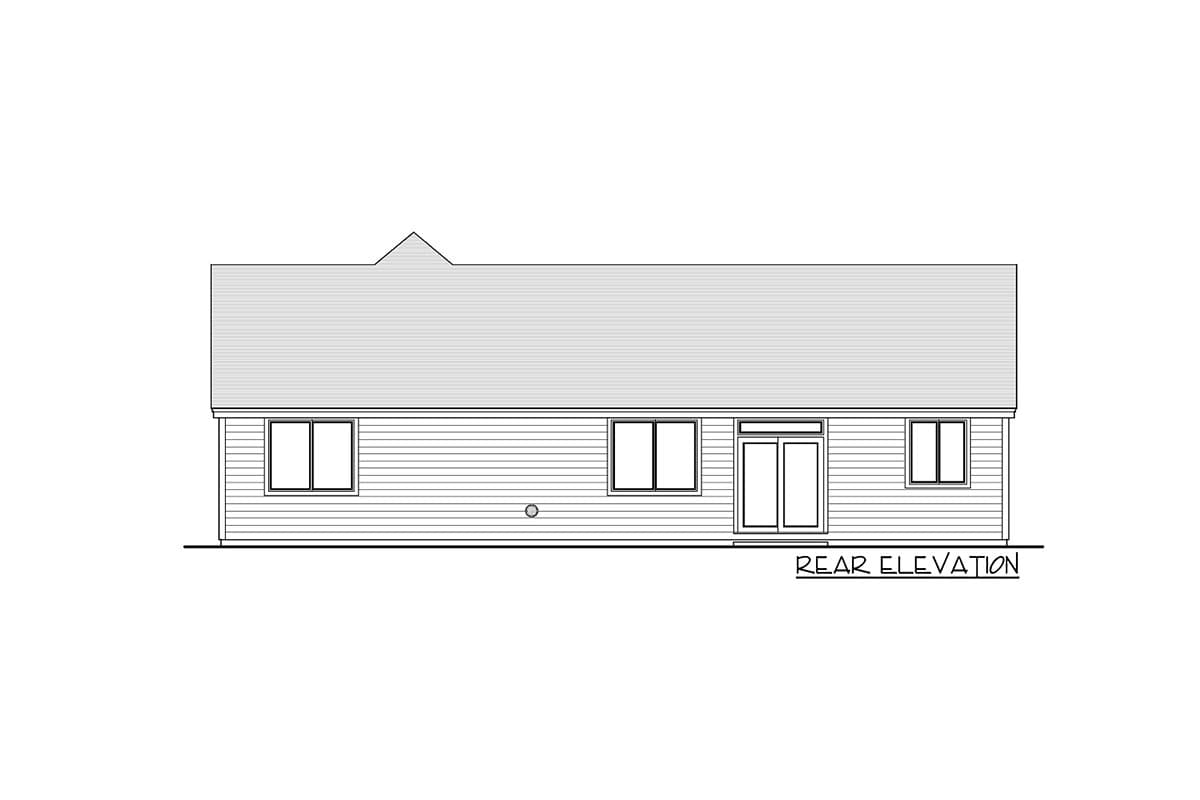

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-level Ranch Plan Under 1,500 Square Feet

  • 1,421

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

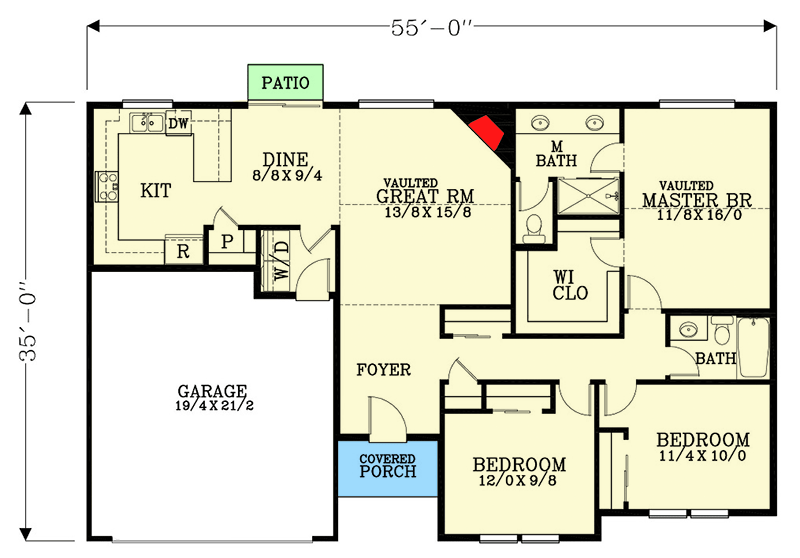

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,421 sq. ft.
  • 1st Floor: 1,421 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 35' 0"
  • Max ridge height: 21' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
