One-Level Southern House Plan

Plan 83913JW

  • 1,588

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This beautiful, southern house plan features brick and horizontal siding on the exterior, along with board and batten beneath the front porch. The smart interior layout includes an open floor plan and a private, master bedroom separated from the others.
  • When entering the home, the family room greets you with a fireplace as a focal point. The kitchen's L-shaped cabinets provide ample storage and a central island offers additional workspace.
  • Windows near the breakfast nook overlook the back porch, which extends to a patio for more outdoor enjoyment.
  • Retreat to your quiet, master bedroom which features large windows and a master bathroom with a freestanding tub, shower enclosure, dual sinks and a walk-in closet with access to the laundry room.
  • A large storage room in the 2-car garage helps maintain order and built-in lockers in the mudroom organizes everyday living.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

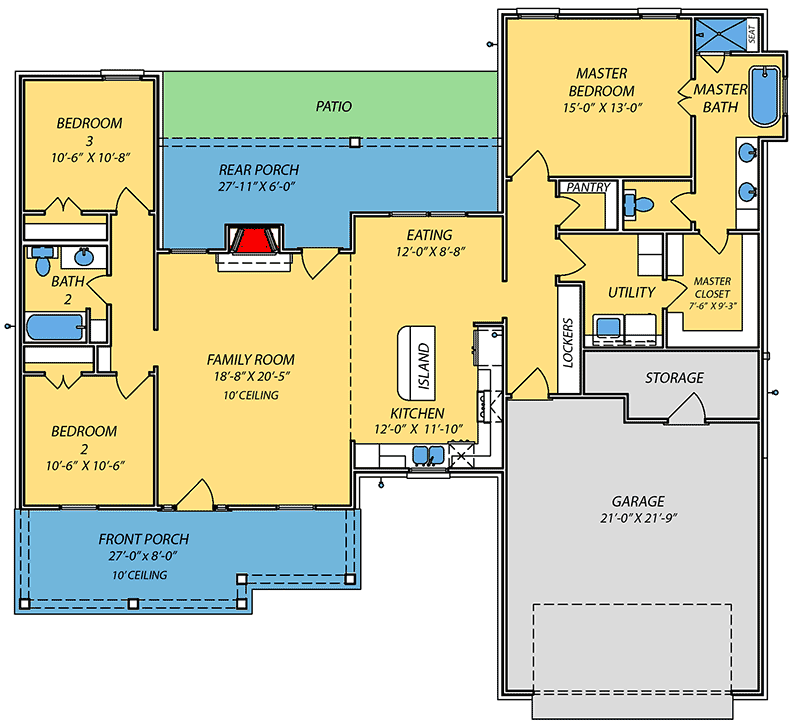

One-Level Southern House Plan - 83913JW floor plan - Main Level
