One-level Traditional Home Plan with Covered Patio and Split-bedroom Layout

Plan 36660TX

  • 2,098

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • At just under 2,100 square feet of living space, this one-level, Traditional home plan holds three bedrooms, an eat-in kitchen, and a rear covered patio.
  • Step inside to find two family bedrooms to the right of the foyer, separated by a Jack-and-Jill bathroom.
  • A vaulted ceiling makes the family room feel even bigger and is centered above a fireplace surrounded by built-ins.
  • The kitchen presents an elongated island and a walk-in pantry, while the adjoining dining room is beautifully framed by a coffered ceiling.
  • The master suite is privately tucked towards the rear of the design, and includes a 4-fixture bathroom and a walk-in closet.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

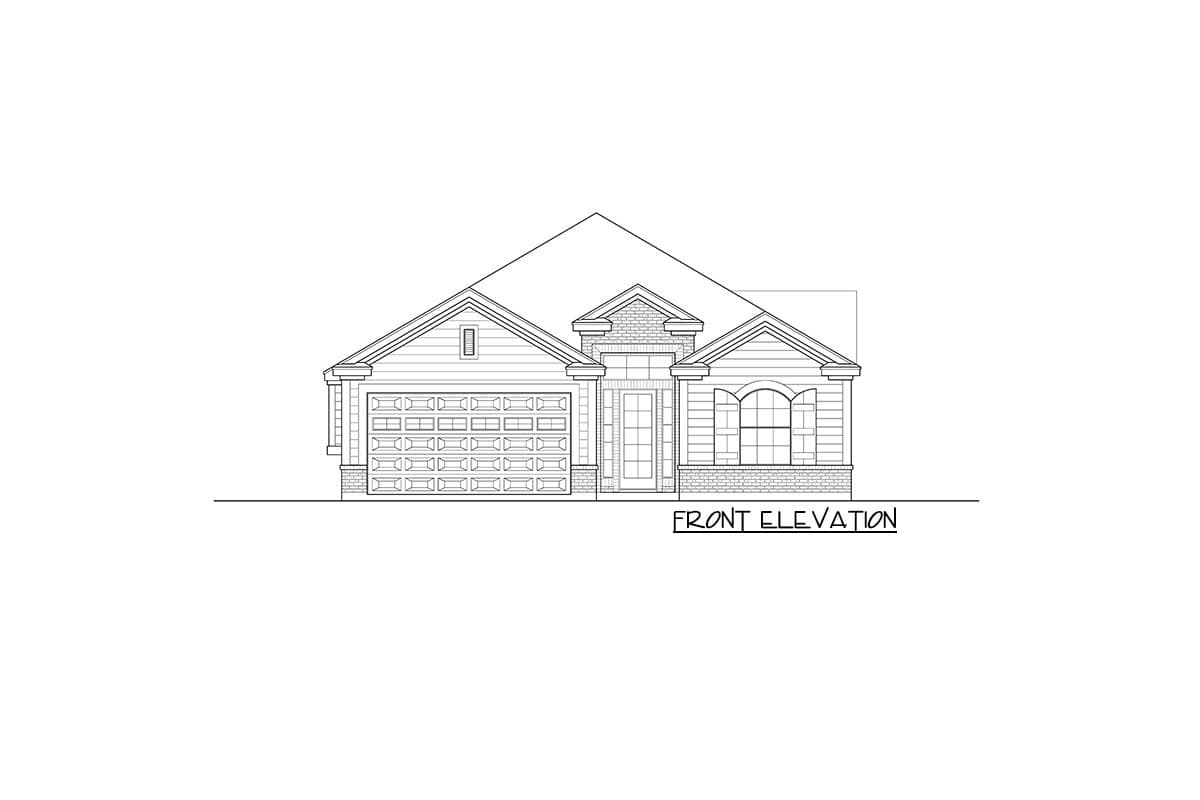

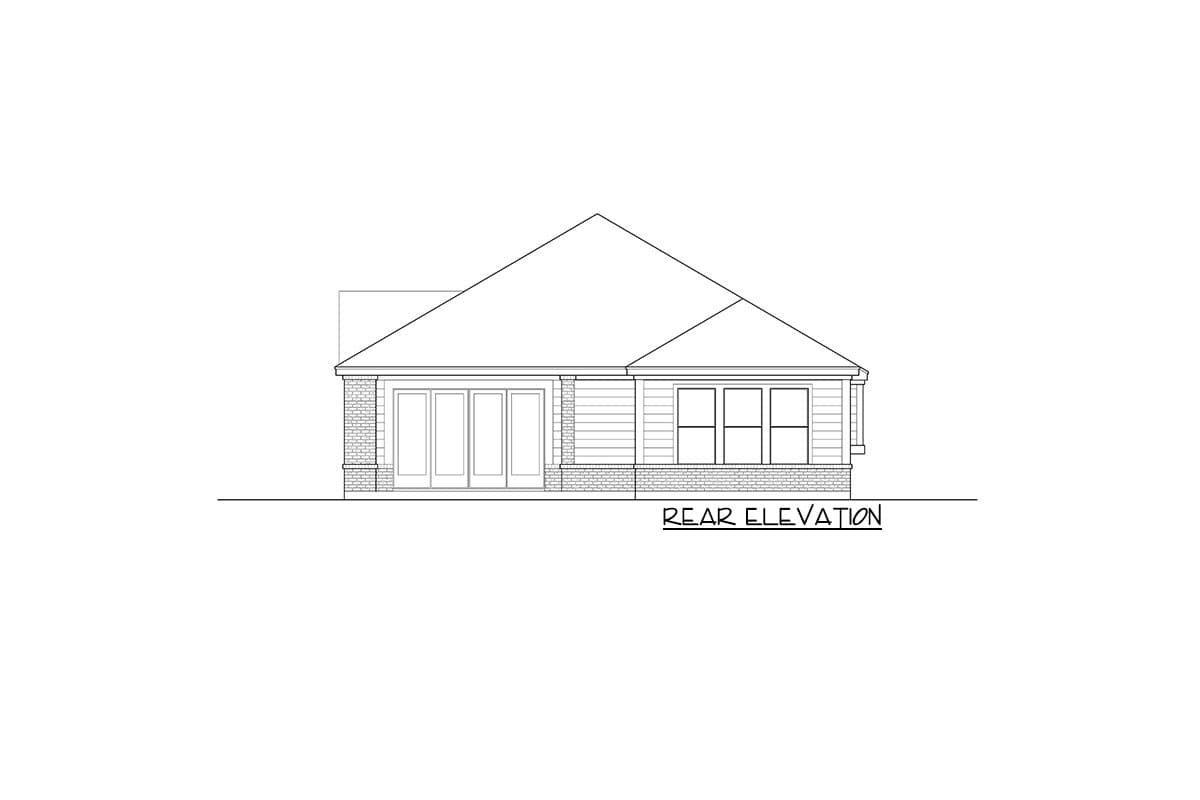

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

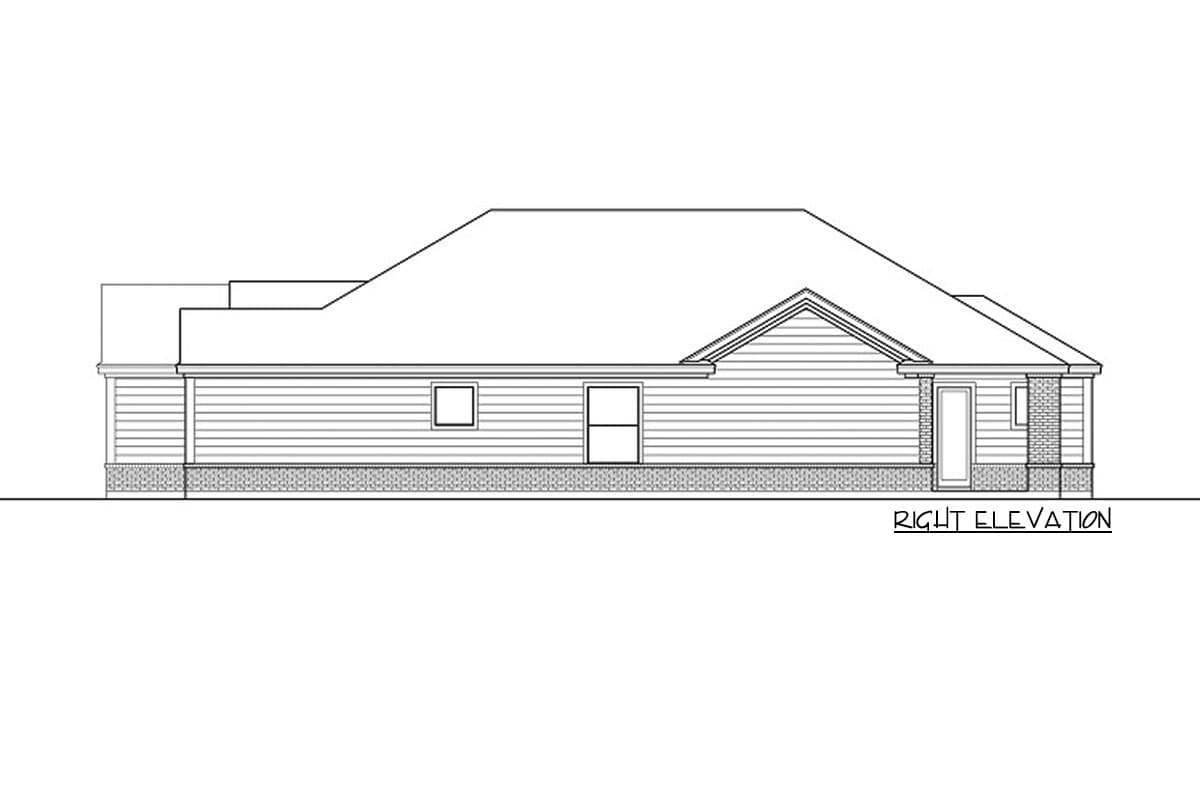

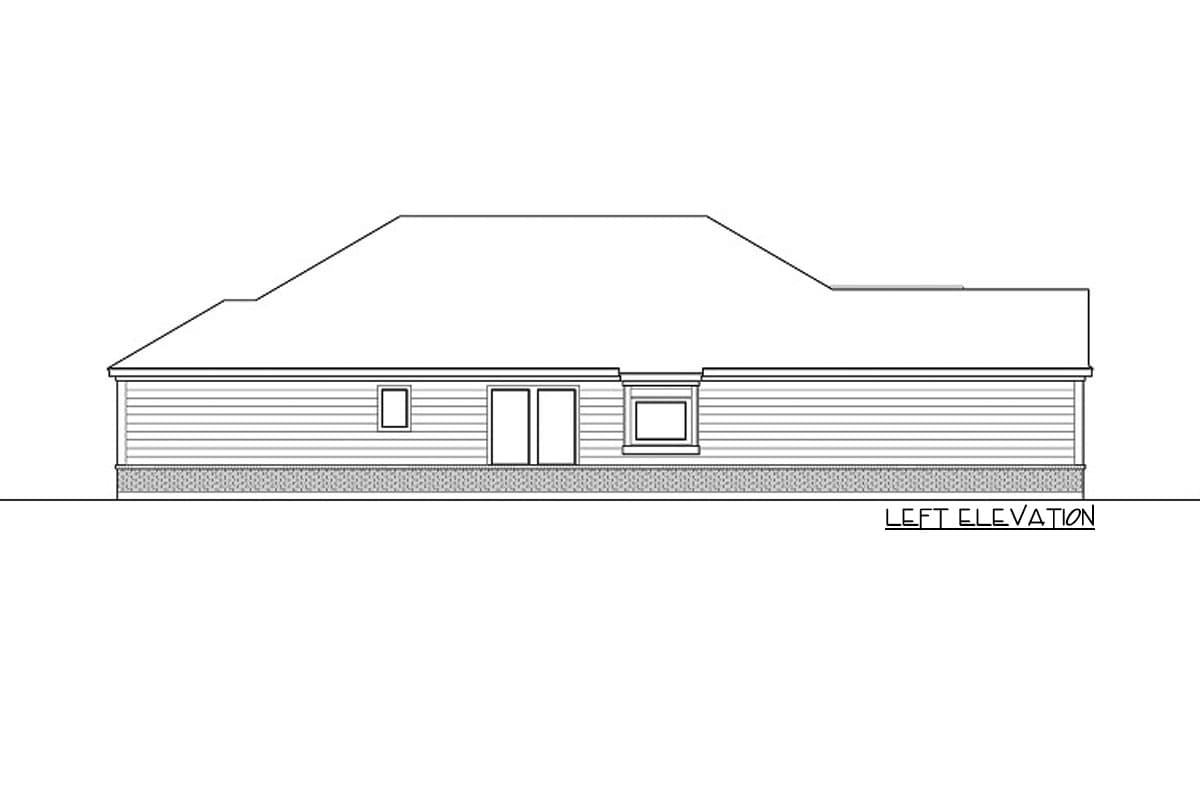

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

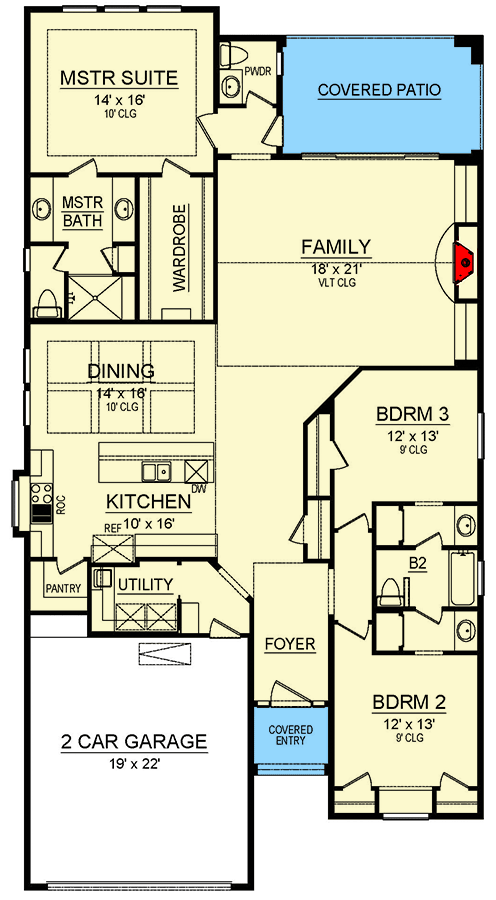

One-level Traditional Home Plan with Covered Patio and Split-bedroom Layout - 36660TX floor plan - Main Level

One-level Traditional Home Plan with Covered Patio and Split-bedroom Layout

  • 2,098

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,098 sq. ft.
  • 1st Floor: 2,098 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 77' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 427 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
