Plan 39268ST One Level Traditional House Plan

1,953 3 2 1 2
Print
Compare
...

One Level Traditional House Plan

Plan 39268ST

  • 1,953

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Elegant arched windows create great curb appeal for this one level Traditional house plan.
  • Two interior columns mark the entrance to the spacious great room that has a sloped ceiling.
  • You can dine in the formal dining room or the large bayed breakfast nook.
  • Bedrooms are all in the right wing of the home with the master suite set in back.
  • A lovely tray ceiling tops the master bedroom and one of the front-facing bedrooms has a sloped ceiling.

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

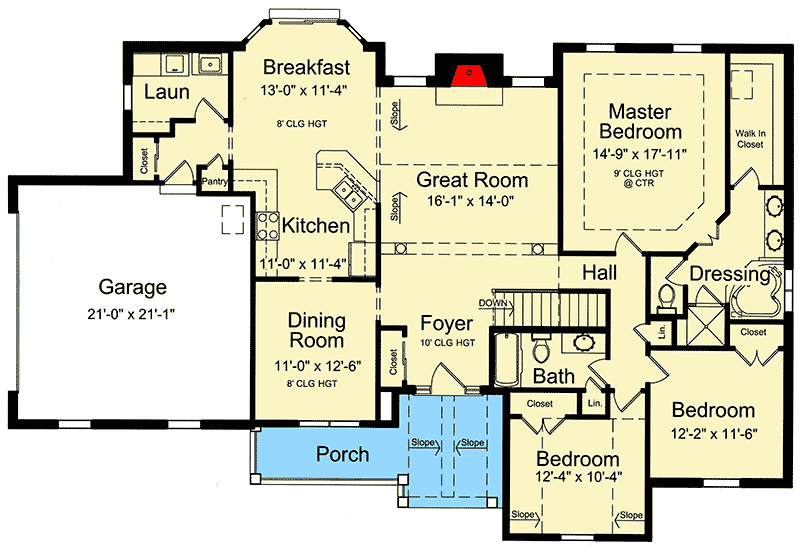

One Level Traditional House Plan - 39268ST floor plan - Main Level

Basement Unfinished

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Level Traditional House Plan - 39268ST floor plan - Basement Unfinished

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,953 sq. ft.
  • 1st Floor: 1,953 sq. ft.
  • Porch, Front: 165 sq. ft.
  • Basement Unfinished: 1,953 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 6"
  • Depth: 46' 4"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 434 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features



One Level Traditional House Plan

  • 1,953

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $695
  • PDF - Single-Build $895
  • 5 Sets + PDF $950
  • PDF - Unlimited Build $1,245
  • CAD - Unlimited Build $1,350
  • View all purchase option online

About This Plan

  • Elegant arched windows create great curb appeal for this one level Traditional house plan.
  • Two interior columns mark the entrance to the spacious great room that has a sloped ceiling.
  • You can dine in the formal dining room or the large bayed breakfast nook.
  • Bedrooms are all in the right wing of the home with the master suite set in back.
  • A lovely tray ceiling tops the master bedroom and one of the front-facing bedrooms has a sloped ceiling.

Floor Plans

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,953 sq. ft.
  • 1st Floor: 1,953 sq. ft.
  • Porch, Front: 165 sq. ft.
  • Basement Unfinished: 1,953 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 6"
  • Depth: 46' 4"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 434 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Plan 39268ST
View this and more for this plan by visiting www.architechtecturaldesigns.com/39268ST
|
Need Help? 800-854-7852
|
