Plan 93149EL One-Level Transitional Tudor House Plan with Bonus Room and Covered Veranda

2,172 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-Level Transitional Tudor House Plan with Bonus Room and Covered Veranda

Plan 93149EL

  • 2,172

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Flared eaves and an arched entry make this one-level Transitional Tudor house plan stand out amongst the others. The 2,172 square foot design delivers 3 bedrooms and 2.5 baths.
  • Utilize the bonus room, nestled behind french doors, as an office, study, or media room, while the remaining shared living spaces are open to one another to encourage family time.
  • An island in the kitchen increases space for meal prep and a walk-in pantry is accessible from the mudroom. Lined with windows, the dining space provides access to the covered veranda.
  • Find peace and quiet in the owner's suite, which is located next to the laundry room. The ensuite features a separate tub and shower, toilet room, and sizable walk-in closet.
  • Each of the secondary bedrooms include a walk-in closet with easy access to a compartmentalized bath.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

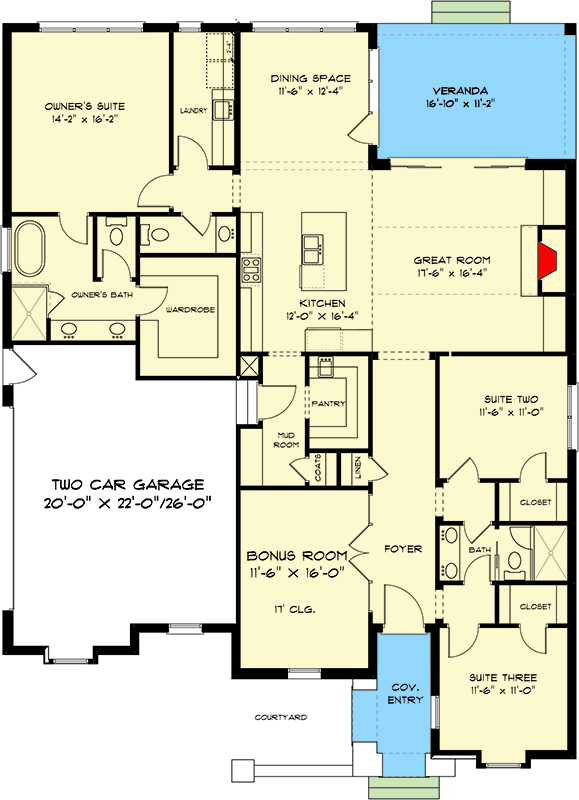

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

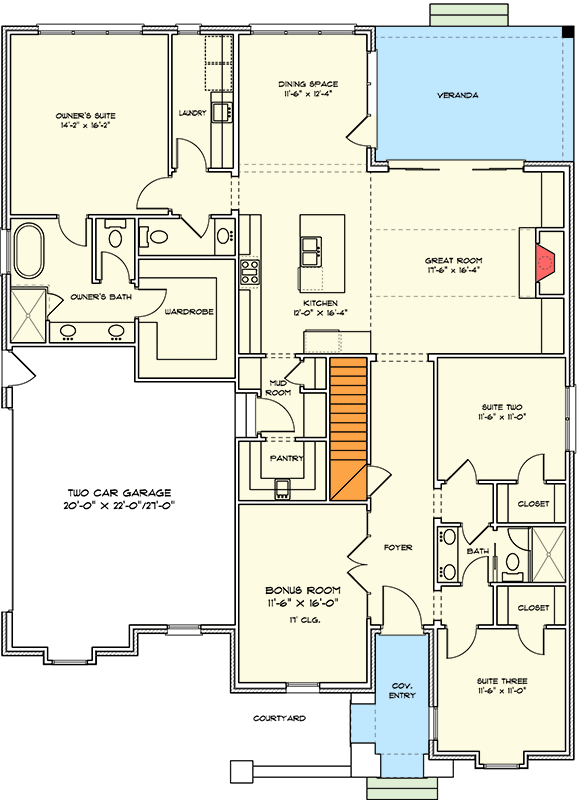

One-Level Transitional Tudor House Plan with Bonus Room and Covered Veranda - 93149EL floor plan - Main Level

Main Level- Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-Level Transitional Tudor House Plan with Bonus Room and Covered Veranda - 93149EL floor plan - Main Level- Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,172 sq. ft.
  • 1st Floor: 2,172 sq. ft.
  • Porch, Rear: 217 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 0"
  • Depth: 71' 5"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

One-Level Transitional Tudor House Plan with Bonus Room and Covered Veranda

  • 2,172

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,400
  • CAD+PDF - Single-Build $2,600
  • PDF - Unlimited Build $3,250
  • CAD - Unlimited Build $3,450
  • View all purchase option online

About This Plan

  • Flared eaves and an arched entry make this one-level Transitional Tudor house plan stand out amongst the others. The 2,172 square foot design delivers 3 bedrooms and 2.5 baths.
  • Utilize the bonus room, nestled behind french doors, as an office, study, or media room, while the remaining shared living spaces are open to one another to encourage family time.
  • An island in the kitchen increases space for meal prep and a walk-in pantry is accessible from the mudroom. Lined with windows, the dining space provides access to the covered veranda.
  • Find peace and quiet in the owner's suite, which is located next to the laundry room. The ensuite features a separate tub and shower, toilet room, and sizable walk-in closet.
  • Each of the secondary bedrooms include a walk-in closet with easy access to a compartmentalized bath.

Floor Plans

  • Main Level

  • Main Level- Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,172 sq. ft.
  • 1st Floor: 2,172 sq. ft.
  • Porch, Rear: 217 sq. ft.
  • Porch, Front: 95 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 51' 0"
  • Depth: 71' 5"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
