One Level Tudor Home Plan

Plan 55138BR

  • 2,342

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Decorative wood trim, stone and stucco enhance this one level Tudor home plan.
  • The outside may look like an Old World European home but the inside is thoroughly modern with its open floor plan.
  • Only one column separates the dining room with tray ceiling from the huge living room with fireplace.
  • Views extend into the kitchen as well, blending all the main rooms.
  • His and her bathrooms and walk-in closets give homeowners lots of privacy.
  • Use the swing room as a study or an extra bedroom.
  • Related Plan: See house plan 55137BR for a different exterior.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

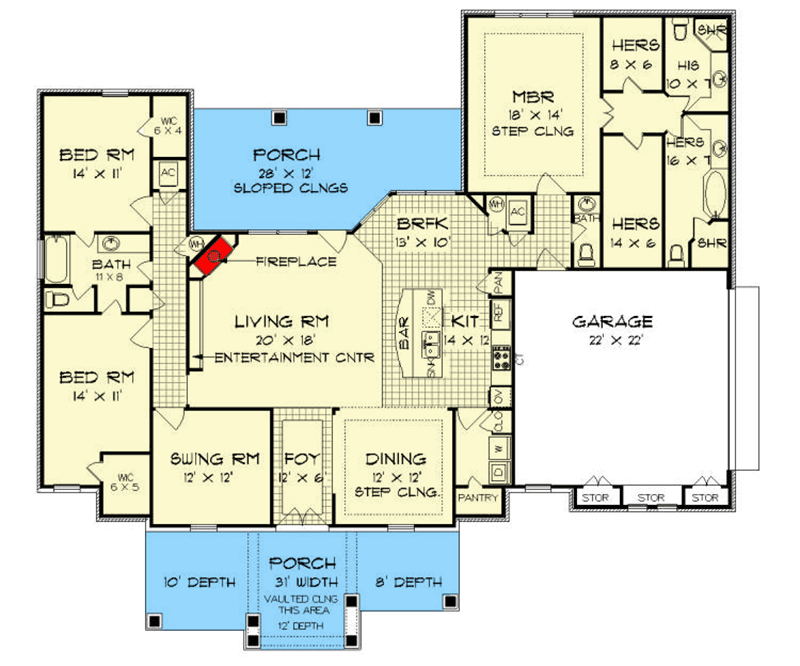

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Level Tudor Home Plan - 55138BR floor plan - Main Level

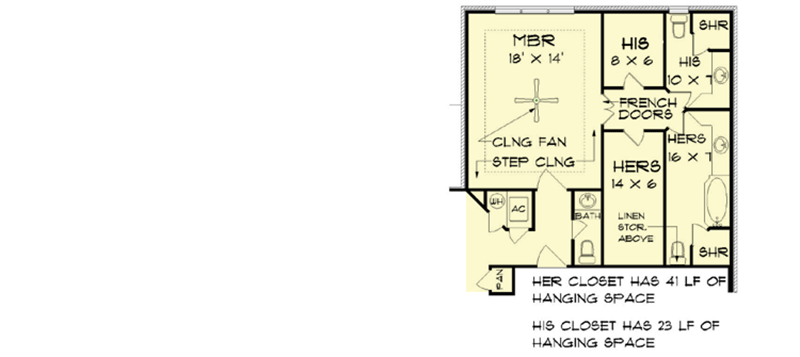

Optional Main Level Layout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Level Tudor Home Plan - 55138BR floor plan - Optional Main Level Layout

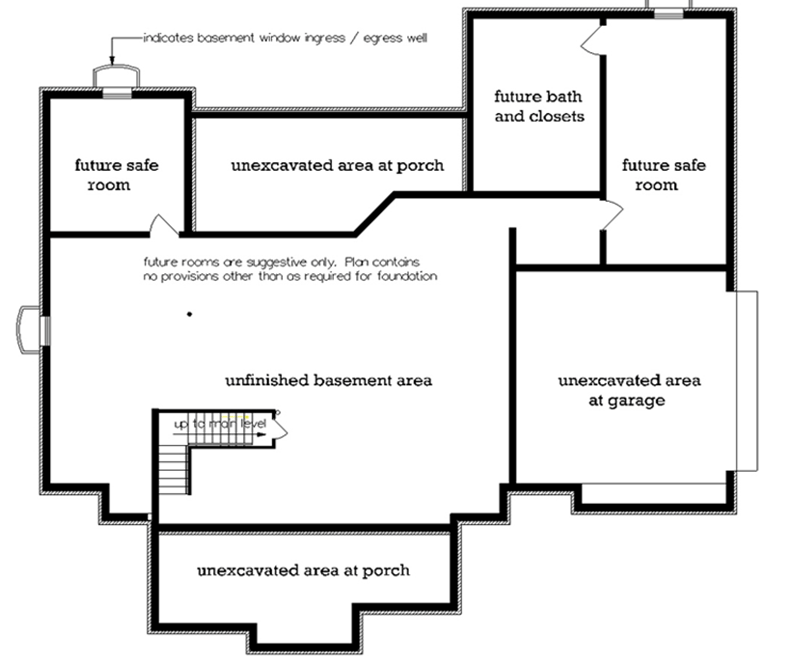

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Level Tudor Home Plan - 55138BR floor plan - Unfinished Basement

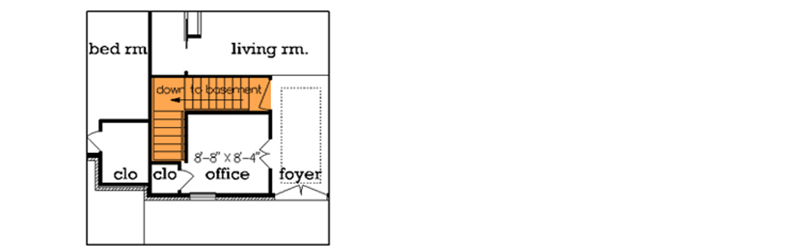

Main Level - Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One Level Tudor Home Plan - 55138BR floor plan - Main Level - Basement Stairs

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,342 sq. ft.
  • 1st Floor: 2,342 sq. ft.
  • Storage: 32 sq. ft.
  • Porch, Combined: 610 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 0"

Garage

  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

One Level Tudor Home Plan

  • 2,342

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 4 Sets $1,185
  • 5 Sets $1,230
  • 8 Sets $1,340
  • 5 Sets + PDF $1,355
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • Decorative wood trim, stone and stucco enhance this one level Tudor home plan.
  • The outside may look like an Old World European home but the inside is thoroughly modern with its open floor plan.
  • Only one column separates the dining room with tray ceiling from the huge living room with fireplace.
  • Views extend into the kitchen as well, blending all the main rooms.
  • His and her bathrooms and walk-in closets give homeowners lots of privacy.
  • Use the swing room as a study or an extra bedroom.
  • Related Plan: See house plan 55137BR for a different exterior.
