Plan 42201DB

One Level Tuscan House Plan

1,568 3 2.5 1 2
Pageloader

One Level Tuscan House Plan

Plan 42201DB

  • 1,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Eye-catching stonework adorns the exterior of this one level Tuscan house plan.
  • Choose from a 2 car or optional 3 car garage with storage in back of both.
  • The home is divided, with the wonderful open main living area on the right and the bedroom wing on the left.
  • Add an optional covered patio off the dining room with sliding glass doors to step outside.
  • The master bedroom features a tray ceiling, large walk-in closet and a private bathroom with double sinks.

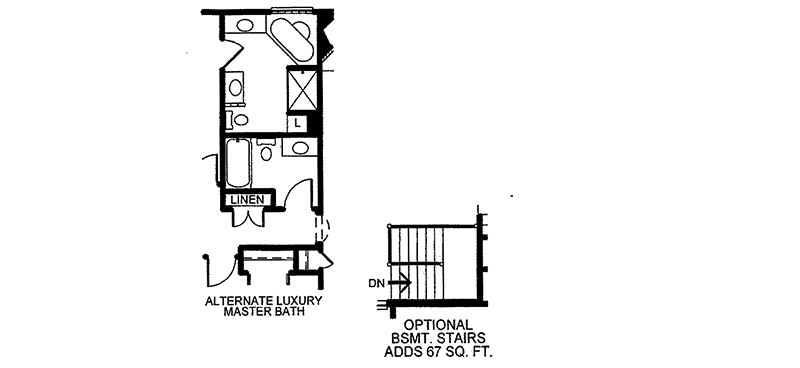

  • Add an optional luxury master bathroom with a corner soaking tub.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

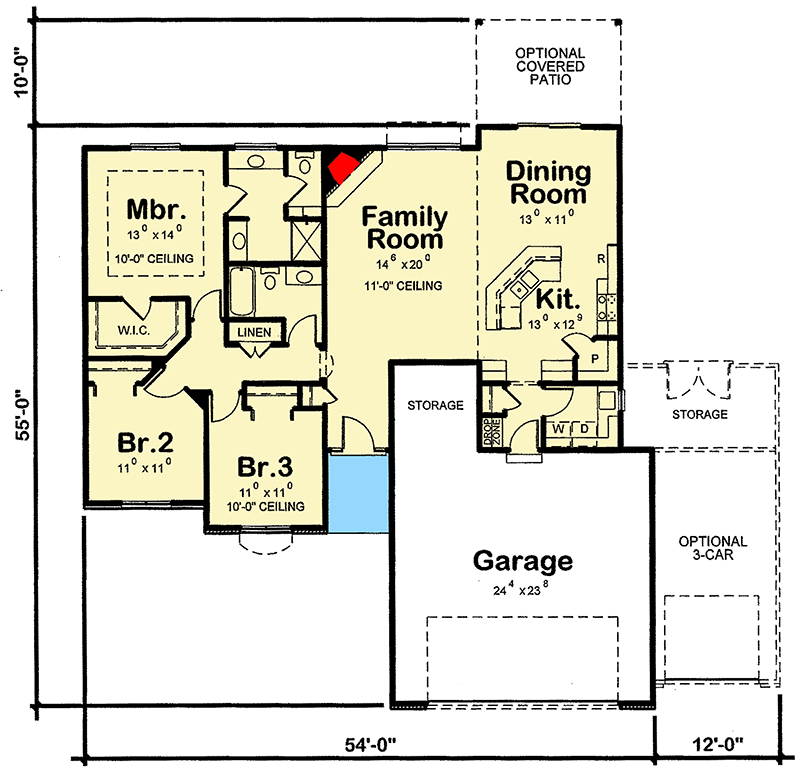

Floor Plan

Plan details

Architectural Style

Plan Collections



One Level Tuscan House Plan

  • 1,568

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $610
  • PDF - single-use $935
  • 5 Sets $1,060
  • 8 Sets $1,130
  • PDF - multi-use $1,435
  • CAD $1,636
  • CAD - multi-use $2,136
  • View all purchase option online

About This Plan

  • Eye-catching stonework adorns the exterior of this one level Tuscan house plan.
  • Choose from a 2 car or optional 3 car garage with storage in back of both.
  • The home is divided, with the wonderful open main living area on the right and the bedroom wing on the left.
  • Add an optional covered patio off the dining room with sliding glass doors to step outside.
  • The master bedroom features a tray ceiling, large walk-in closet and a private bathroom with double sinks.
  • Add an optional luxury master bathroom with a corner soaking tub.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,568 sq. ft.
  • 1st Floor: 1,568 sq. ft.
  • Porch, Front: 46 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 55' 0"

Garage

  • Type: Attached
  • Area: 668 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
