Plan 62773DJ
One-Of-A-Kind Vacation House Plan
Heated S.F.
2,391
Beds
4
Baths
2
Stories
2
Cars
2
Videos
What's Included
Plan Details
  • This exciting house plan is perfectly suited for your vacation property and is highlighted by a detached 2-car garage with breezeway and wrap around rear porch. Inside, you are greeted by a soaring 2-story-high, cathedral ceiling in the great room.
  • A trio of tall windows complement both side walls of the great room and the rear wall offers two sets of French doors, offering views to the wrap around porch. The kitchen, with expansive work island, lies beneath its own beamed ceiling and is open to the great room.
  • Away from the living areas, the main floor’s bedroom features a walk-in closet.  Upstairs, Bedrooms 2, 3 and 4 each enjoy its own walk-in closet and shares a hall bath. An open bunk loft that overlooks the great room compliments this one-of-a-kind vacation house plan.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Of-A-Kind Vacation House Plan

  • 2,391

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

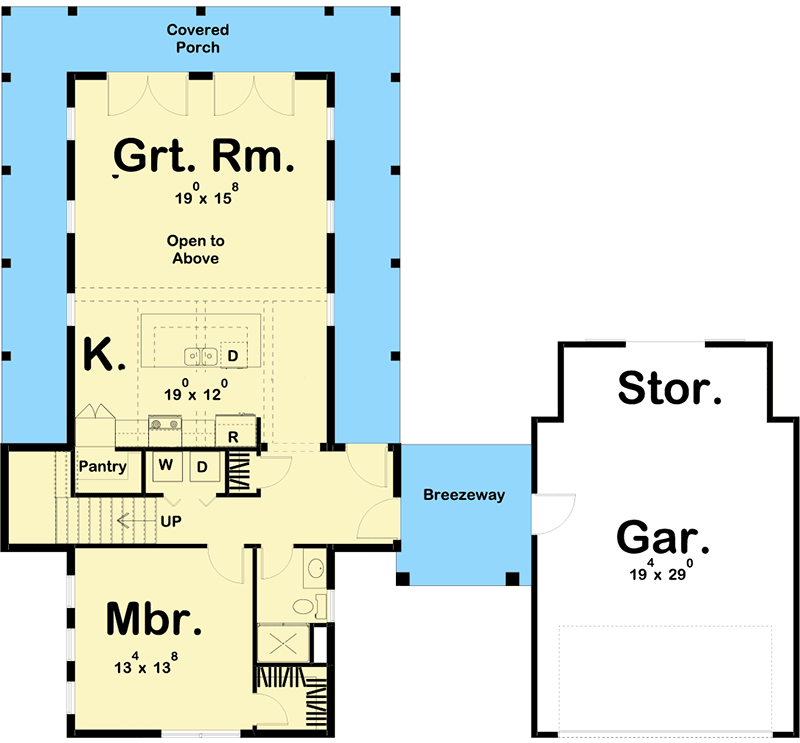

Floor Plan

  • Main Level

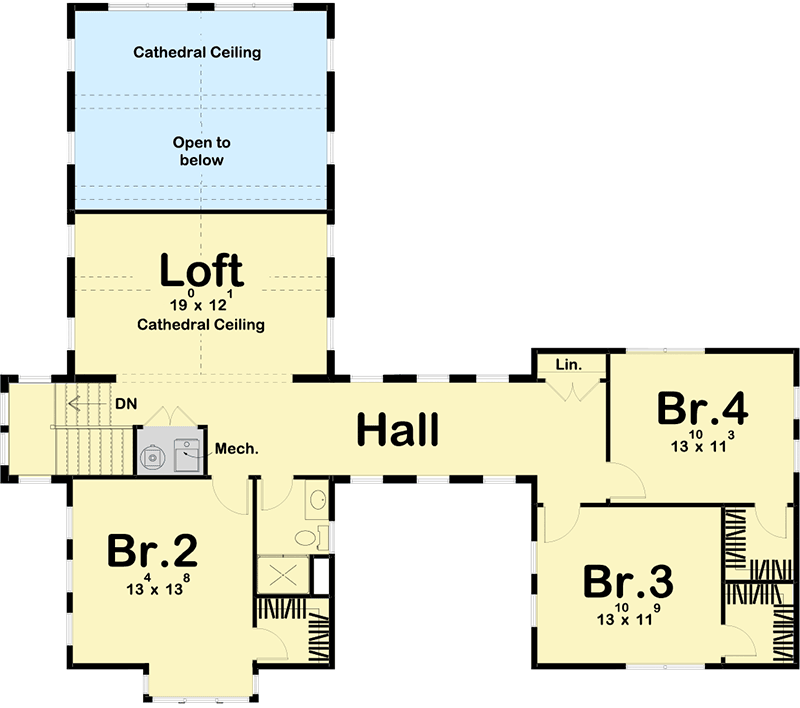

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,391 sq. ft.
  • 1st Floor: 1,080 sq. ft.
  • 2nd Floor: 1,311 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 55' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 691 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
