Plan 580037DFT

Exclusive

One or Two Bedroom Farmhouse Cottage with Sleeping Loft Upstairs - Under 1200 Sq Ft

Heated S.F.
1,192
Beds
1 - 2
Baths
2
Stories
2

Floor Plan

Plan 580037DFT

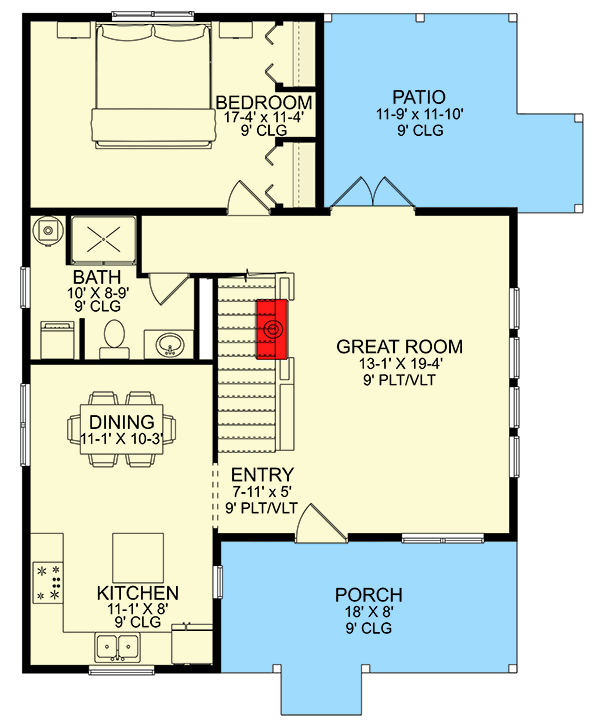

Main Level
Main Level

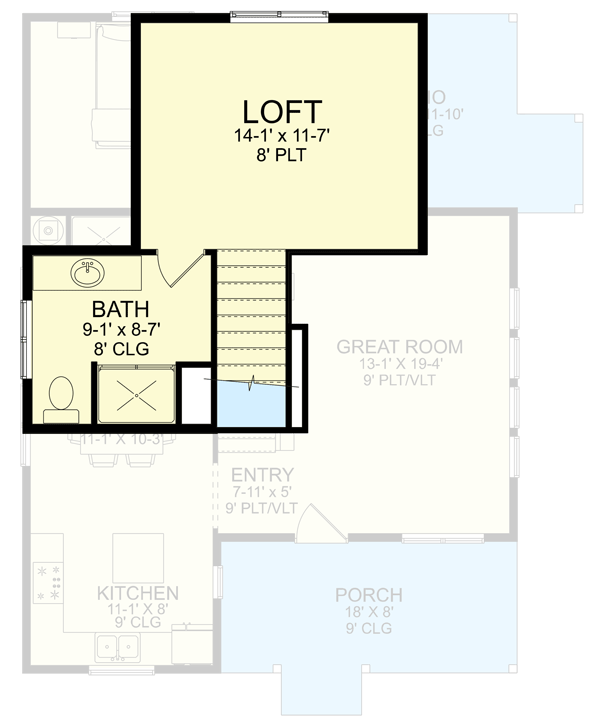

2nd Floor
2nd Floor

Plan 580037DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580037DFT: One or Two Bedroom Farmhouse Cottage with Sleeping Loft Upstairs - Under 1200 Sq Ft - Floor Plan - Main Level - Cottage, Country, Farmhouse, Modern Farmhouse, Traditional

2nd Floor

Plan 580037DFT: One or Two Bedroom Farmhouse Cottage with Sleeping Loft Upstairs - Under 1200 Sq Ft - Floor Plan - 2nd Floor - Cottage, Country, Farmhouse, Modern Farmhouse, Traditional

Plan Details

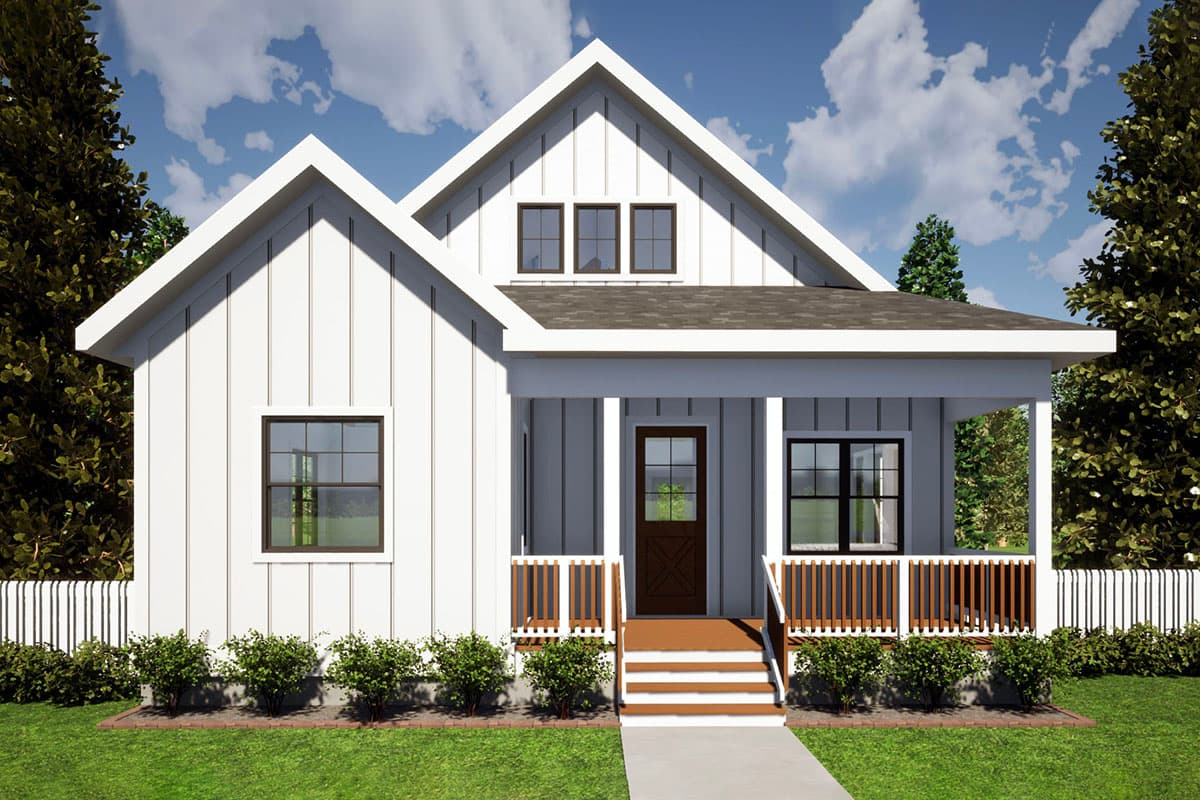

  • Board and batten siding on the exterior of this 1-Bedroom Cottage adds texture and character, while the inviting front porch welcomes you home.

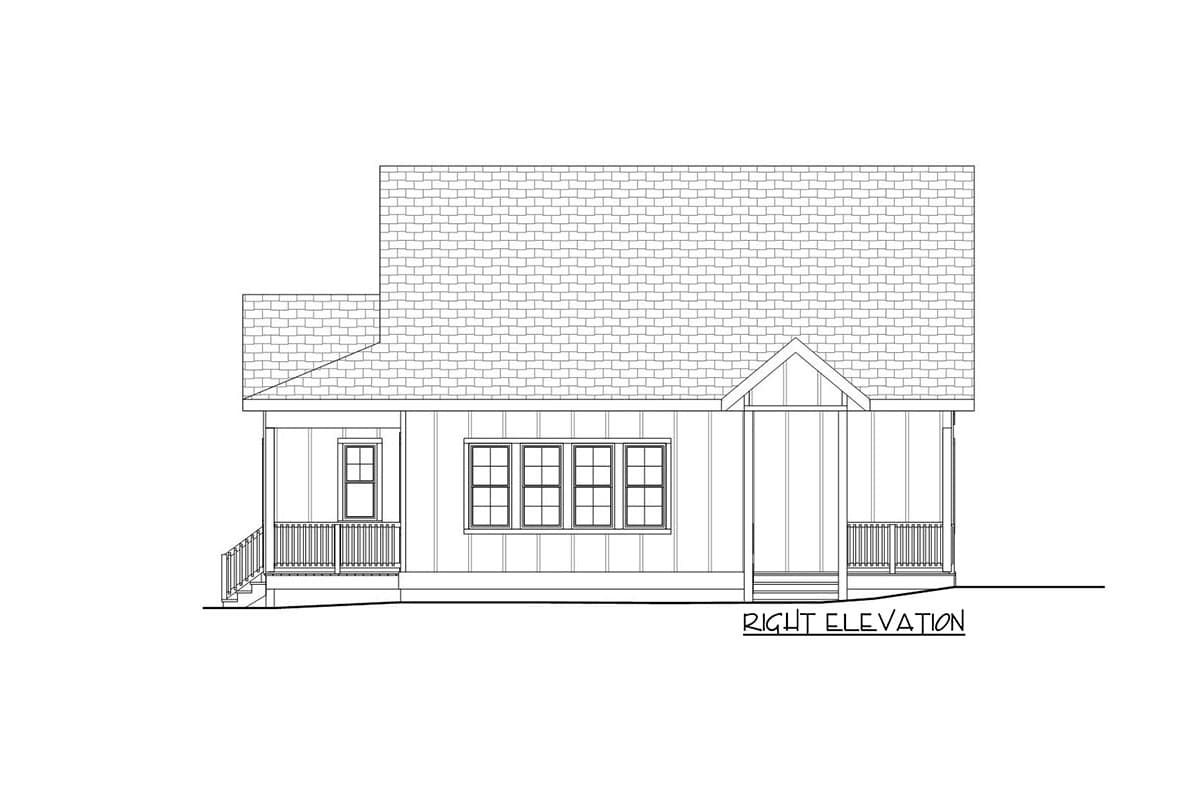

  • The entry guides you directly into the great room that features four side-by-side windows along the right wall.
  • French doors open to a 11'9" by 11'10" patio, perfect for grilling or dining outdoors.
  • The eat-in kitchen features a prep island and window above the double-bowl sink.
  • The bedroom is located on the main level and includes two closets. Across the hall, a 3/4 bath includes a stackable laundry unit, while a loft and bathroom can be found upstairs with full bath can serve as a second bedroom.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

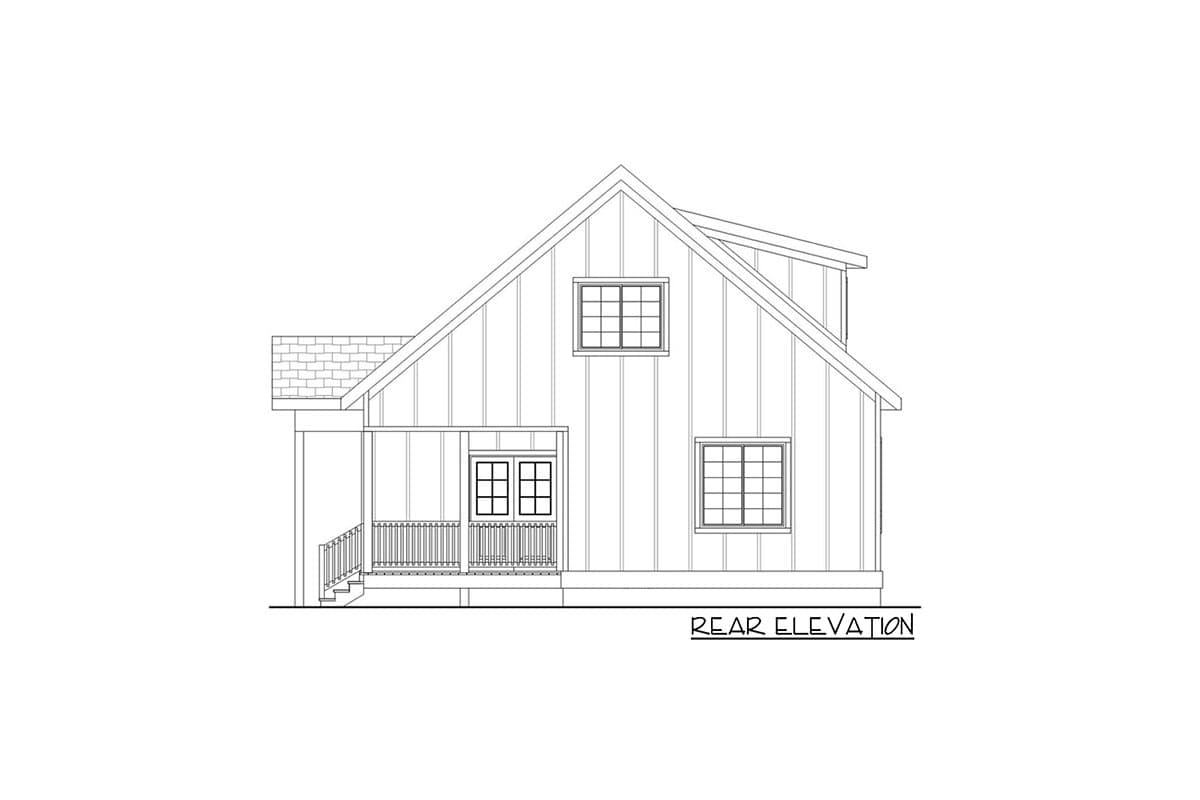

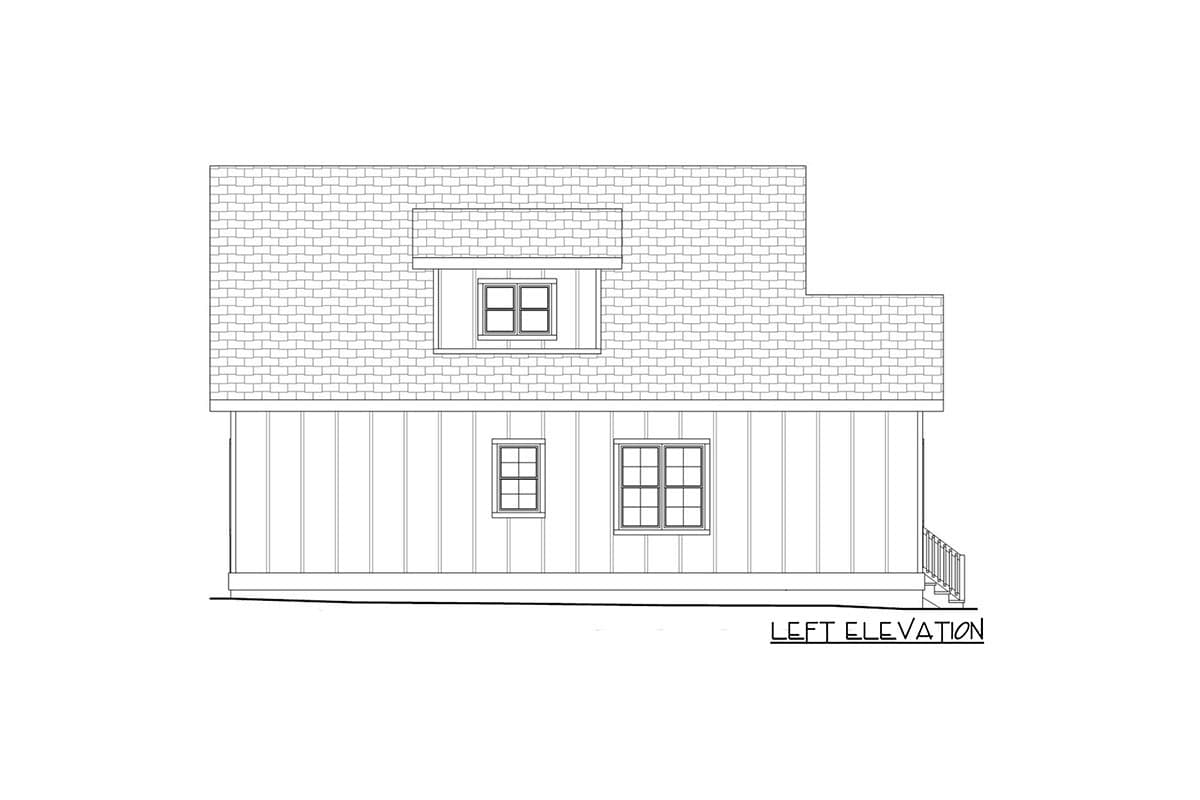

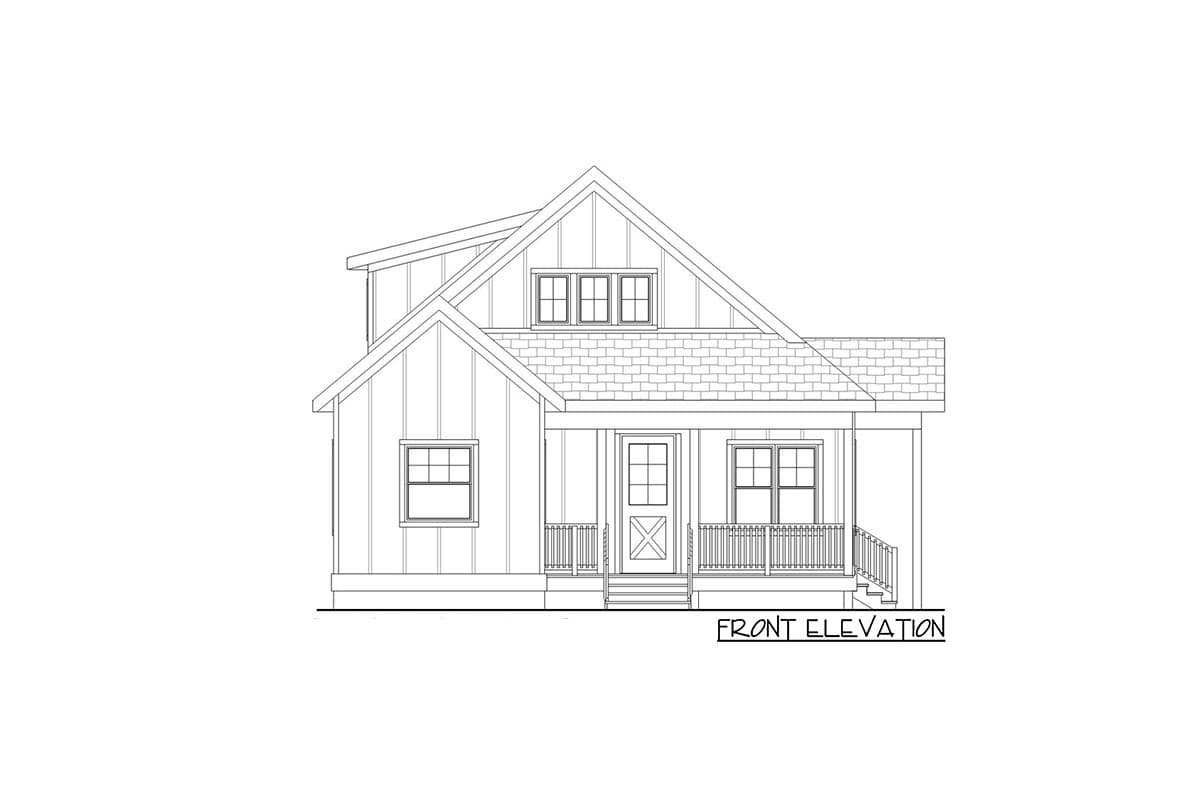

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,192 sq. ft.

1st Floor

917 sq. ft.

2nd Floor

275 sq. ft.

Covered Patio

283 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

40' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Closed Floor Plans

Exclusive
