One-Story 3-Bed Southern House Plan

Plan 860005MCD

  • 1,826

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Arched windows and a lovely hip roof add to the curb appeal.
  • While the standard ceiling height is 10', ceilings rise to 11' in the long foyer and living room.
  • Step right out onto the rear porch from the dining room where there's plenty of room for a grill.
  • The split bedroom configuration gives you a private master suite set off by itself.
  • A cozy pocket office keeps computer equipment out of the living room.
  • All bedrooms come with walk-in closets.

This set of working drawings contains the following components

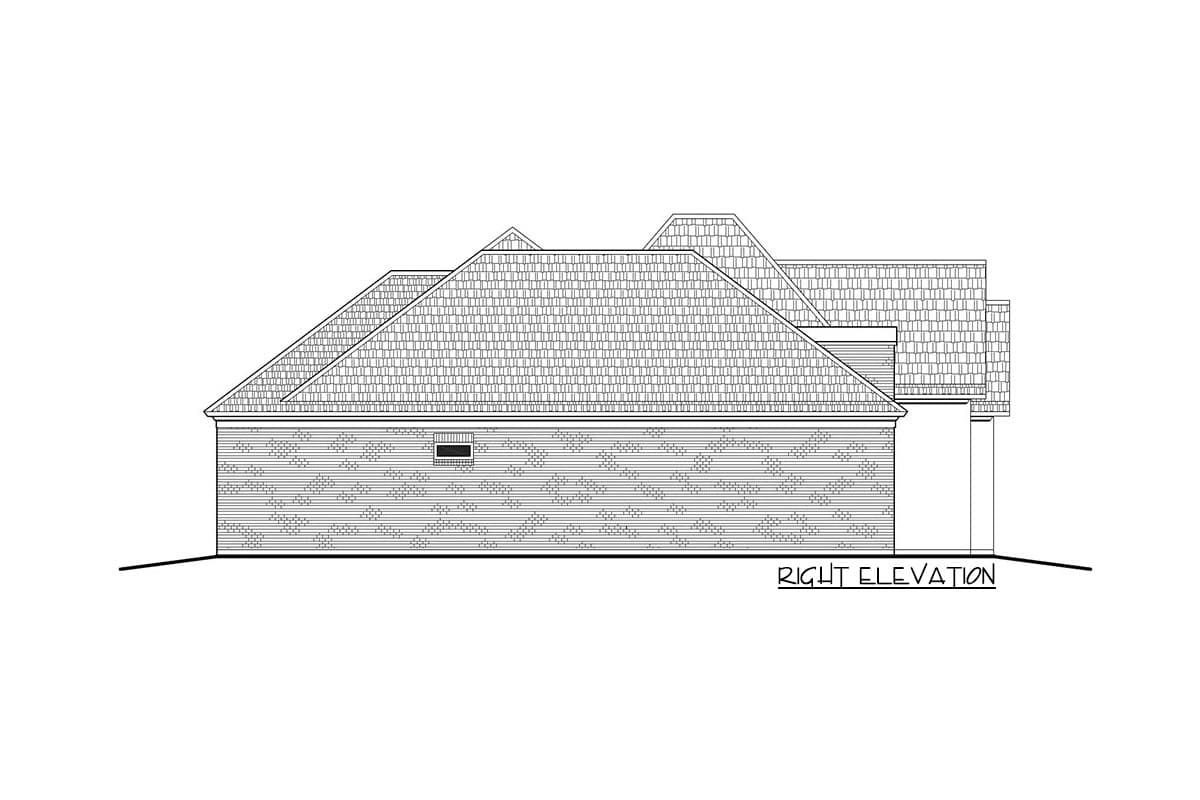

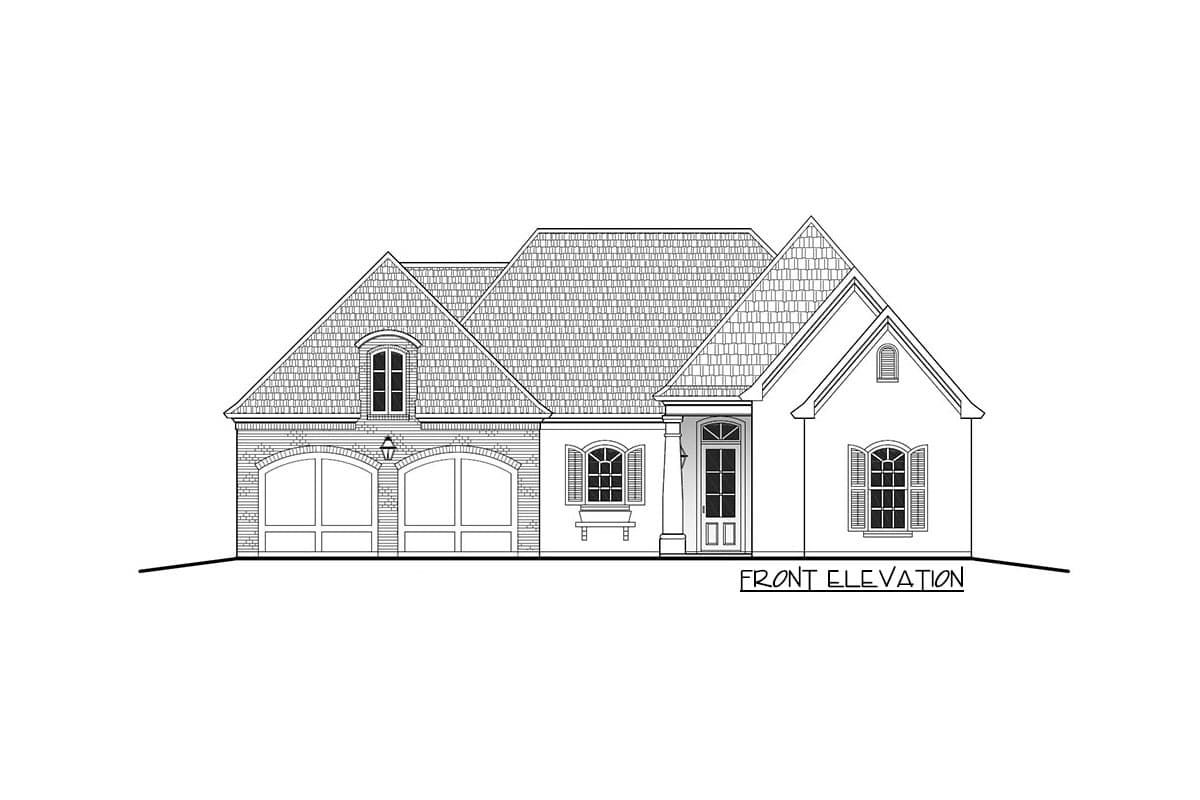

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

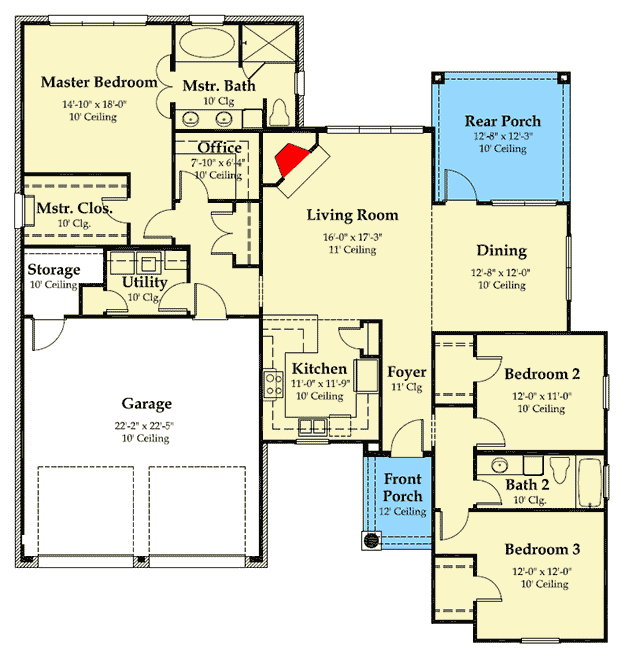

One-Story 3-Bed Southern House Plan - 860005MCD floor plan - Main Level

One-Story 3-Bed Southern House Plan

  • 1,826

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,826 sq. ft.
  • 1st Floor: 1,826 sq. ft.

Dimensions

  • Width: 55' 6"
  • Depth: 58' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 547 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
