Plan 72406DA
One-Story 4-Bed House Plan with Vaulted Great Room - 1970 Sq Ft
Heated S.F.
1,970
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

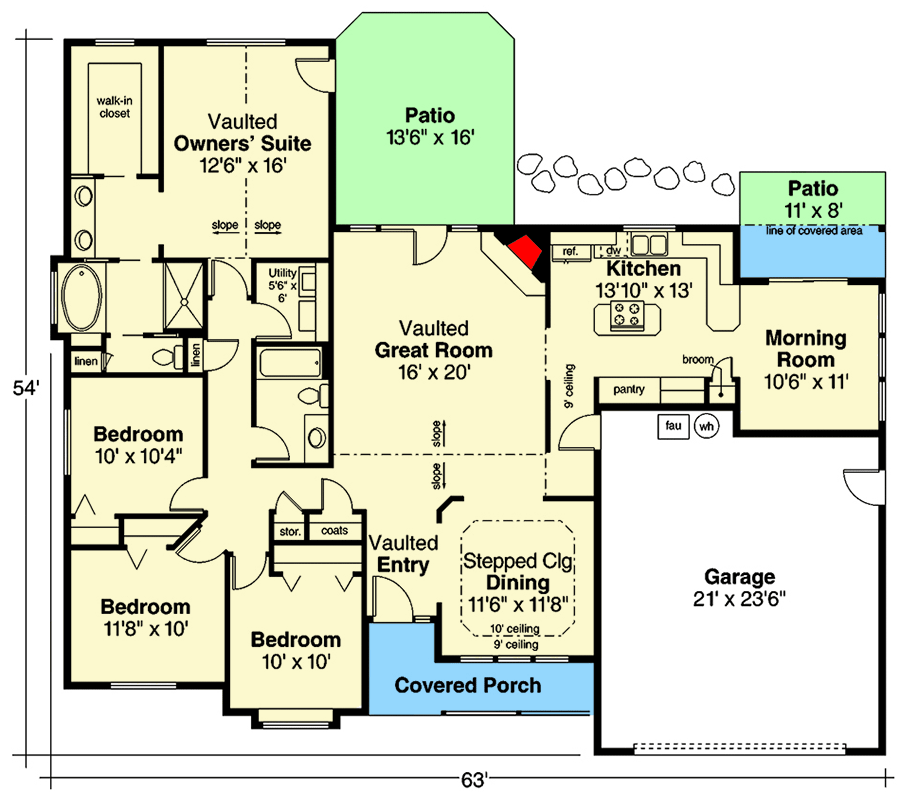

One-Story 4-Bed House Plan with Vaulted Great Room - 1970 Sq Ft - 72406DA floor plan - Main Level
Basement Stairs Location
Reverse Floor Plan

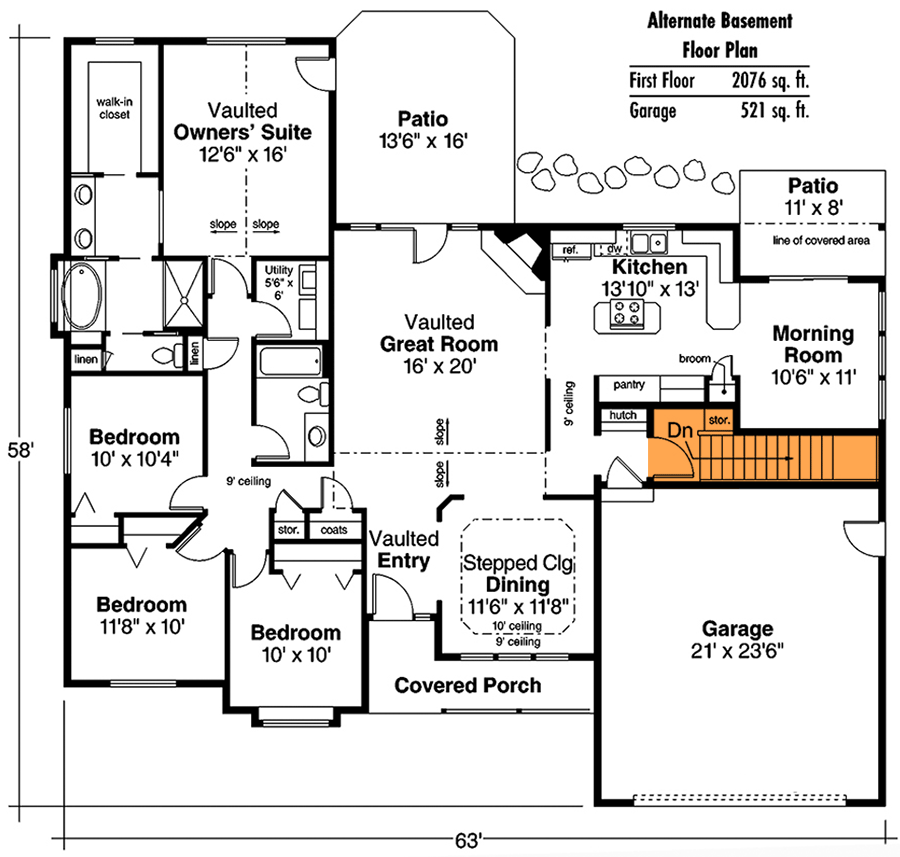

One-Story 4-Bed House Plan with Vaulted Great Room - 1970 Sq Ft - 72406DA floor plan - Basement Stairs Location
Plan Details
  • This 4 bed, 2 bath house plan gives you 1970 square feet of single level living. The exterior is a blend of lap siding and brick.
  • Step through the inviting covered porch in the vaulted entry. To the right, there is a dining room adorned with a stepped ceiling while straight ahead, you'll find a vaulted great room with a cozy corner fireplace forming the heart of this home.
  • The open-concept design gracefully melds informal gatherings with a sense of space separation. The kitchen offers ample counter space, a center island with a cooktop, and a discreet wall pantry. Adjacent to the kitchen, a morning room is bathed in natural light.
  • All four bedrooms are on the left side of the floor plan. The vaulted owner's suite boasts a private bath with twin sinks, a separate soaking tub and shower, and an expansive walk-in closet. Direct access to the back patio completes this retreat.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story 4-Bed House Plan with Vaulted Great Room - 1970 Sq Ft

  • 1,970

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 1,970 sq. ft.
  • 1st Floor: 1,970 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 54' 0"
  • Max ridge height: 20' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
