Plan 280016JWD

One-Story Craftsman Ranch Home Plan

Heated S.F.
1,669
Beds
3
Baths
2
Stories
1
Cars
2

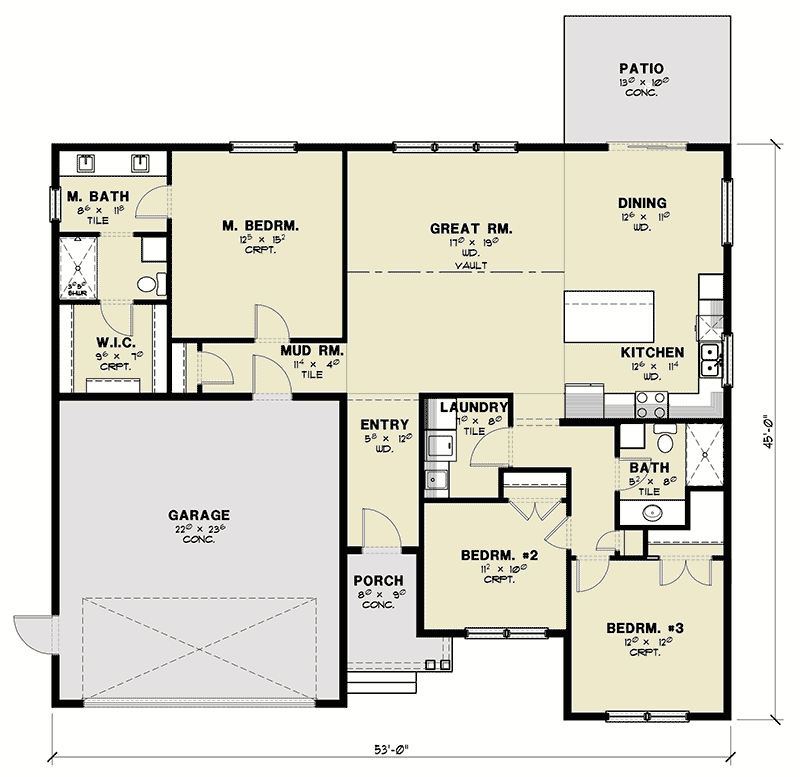

Floor Plan

Plan 280016JWD

Main Level
Main Level

Plan 280016JWD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 280016JWD: One-Story Craftsman Ranch Home Plan - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • Three gables and a covered entry porch welcome you to this one-story, 3-bed Craftsman ranch home plan.
  • The entry leads you the open floor plan and the great room with vaulted ceiling.
  • For a kitchen of its size, you get a large island with lots of work space and room for casual seating.
  • Eat in the dining area or outside on the back patio accessed with sliding doors.
  • The master bedroom is set off from the other bedrooms maximizing your privacy.
  • Laundry is in the middle of the home making it convenient to all.

What's Included

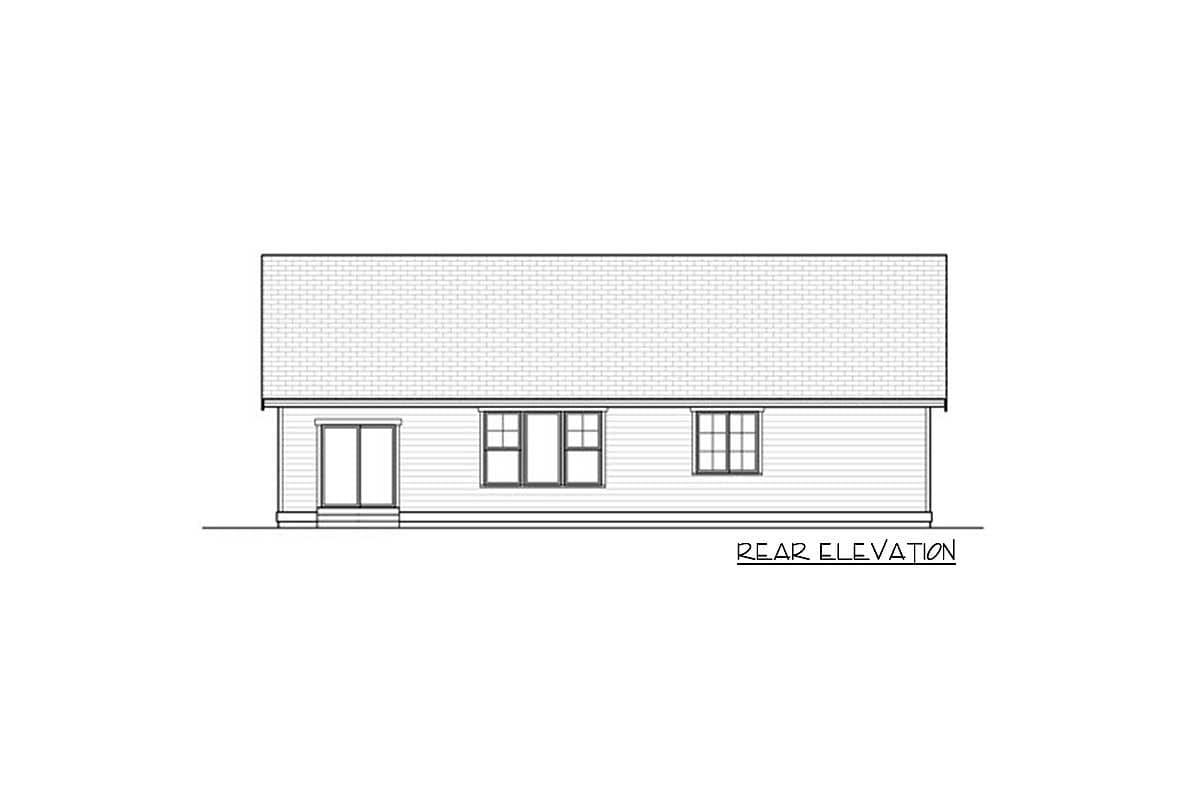

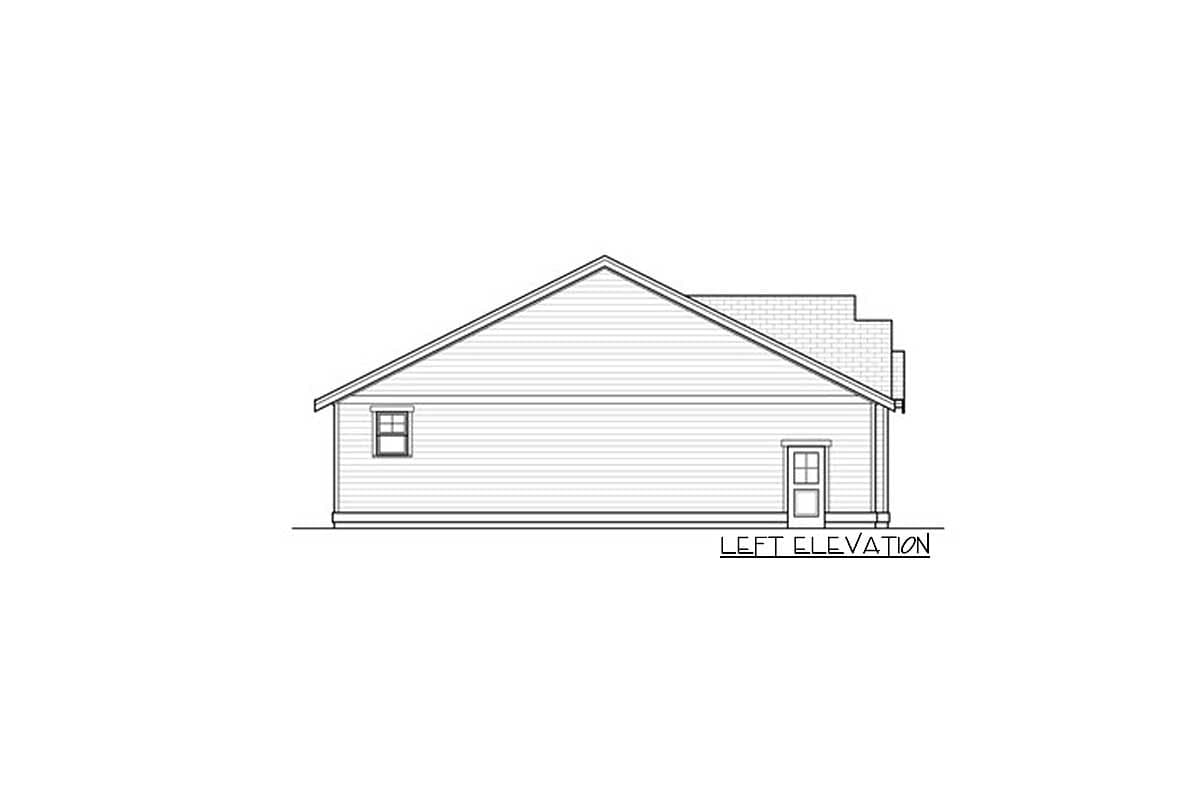

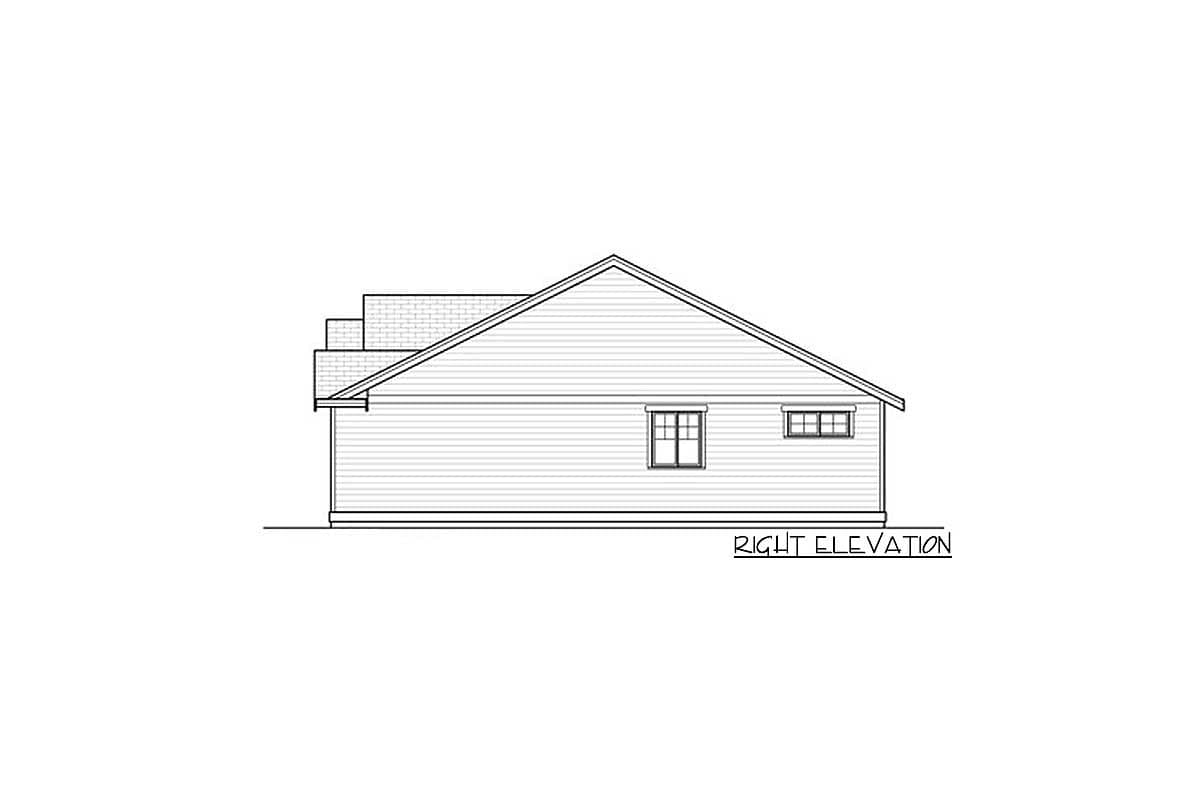

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
