Plan 444226GDN
One-story Craftsman with 2-car Angled Garage with Bonus Above
Heated S.F.
2,432
Beds
3
Baths
2.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • This one-story Craftsman design features a courtyard entry garage and is adorned with arched gable brackets, tapered columns, and stone.
  • Step in off the vaulted covered entry and you'll find an open configuration that promotes easy living with a cozy great room, island kitchen, spacious dining room, and a relaxing rear porch.
  • There is a large pantry and an island with two sinks and casual seating in the kitchen.
  • The master suite occupies the entire right side of the home and has a massive walk-in closet and a 5-fixture bath. Across the home, two bedrooms are ideal for children or guests.
  • The mudroom offers valuable storage space while the utility room is steps away.
  • Stairs take you to a bonus room that gives you 402 square feet of expansion space if needed.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-story Craftsman with 2-car Angled Garage with Bonus Above

  • 2,432

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

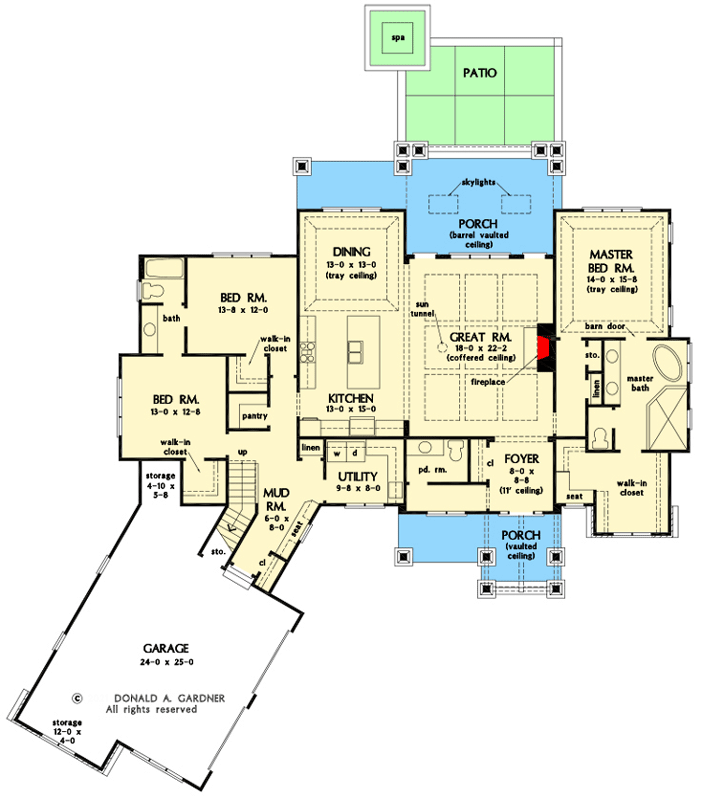

  • Main Level

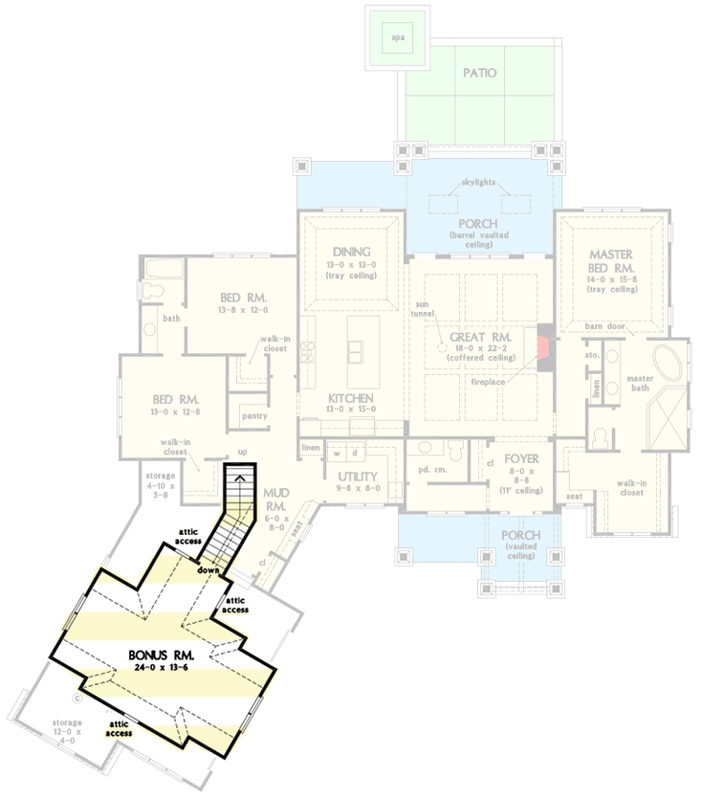

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 2,432 sq. ft.
  • 1st Floor: 2,432 sq. ft.

Dimensions

  • Width: 84' 4"
  • Depth: 80' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
