Plan 42592DB One-Story Home Plan for the Narrow Lot

1,327 2 1 1 2
Print
Compare
...

One-Story Home Plan for the Narrow Lot

Plan 42592DB

  • 1,327

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • At just 28' wide, this one-story home plan was designed with your narrow or in-fill lot in mind.
  • The left side of the home is open front-to-back. The kitchen comes with two options: an island design with corner walk-in pantry or peninsula design with window out the back.
  • The family room comes with a fireplace option.
  • Notice the bench as you come in from the garage, as well as a coat closet and drop zone. And the laundry room behind a pocket door so you’re not looking a dirty clothes.
  • Related Plan: Get an alternate exterior with house plan 42593DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

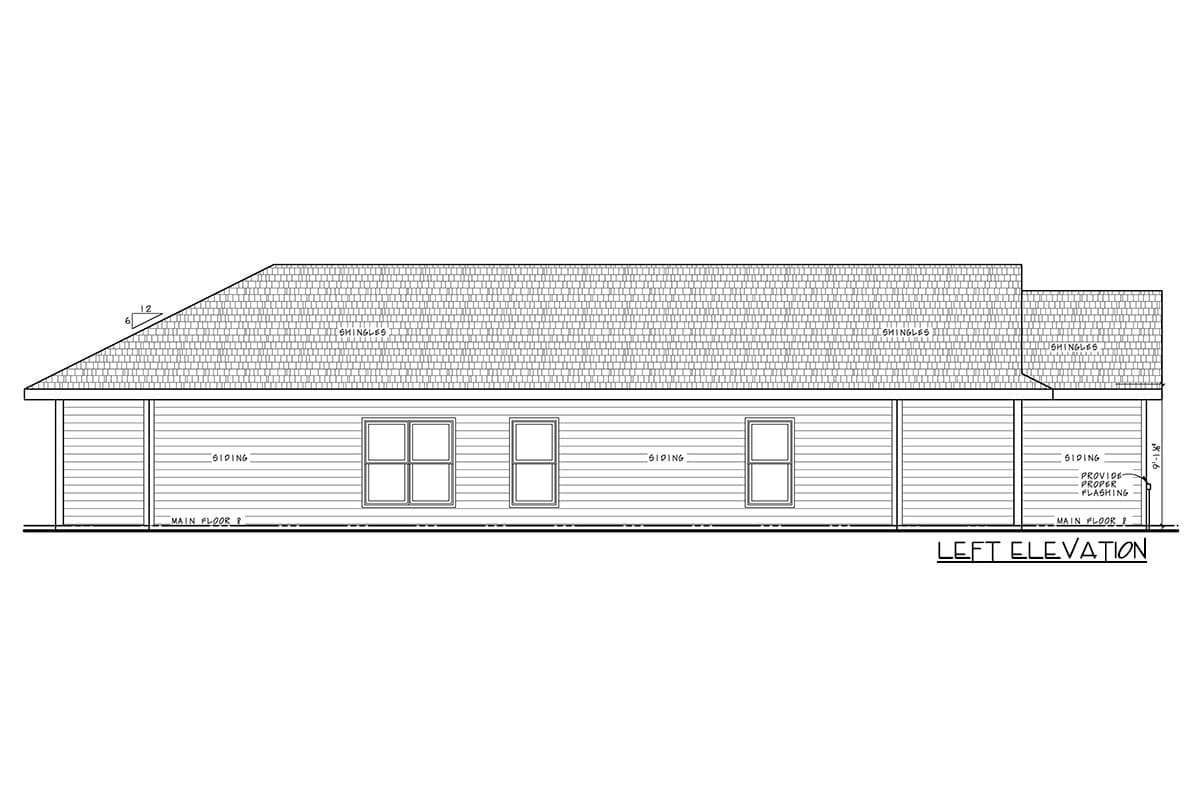

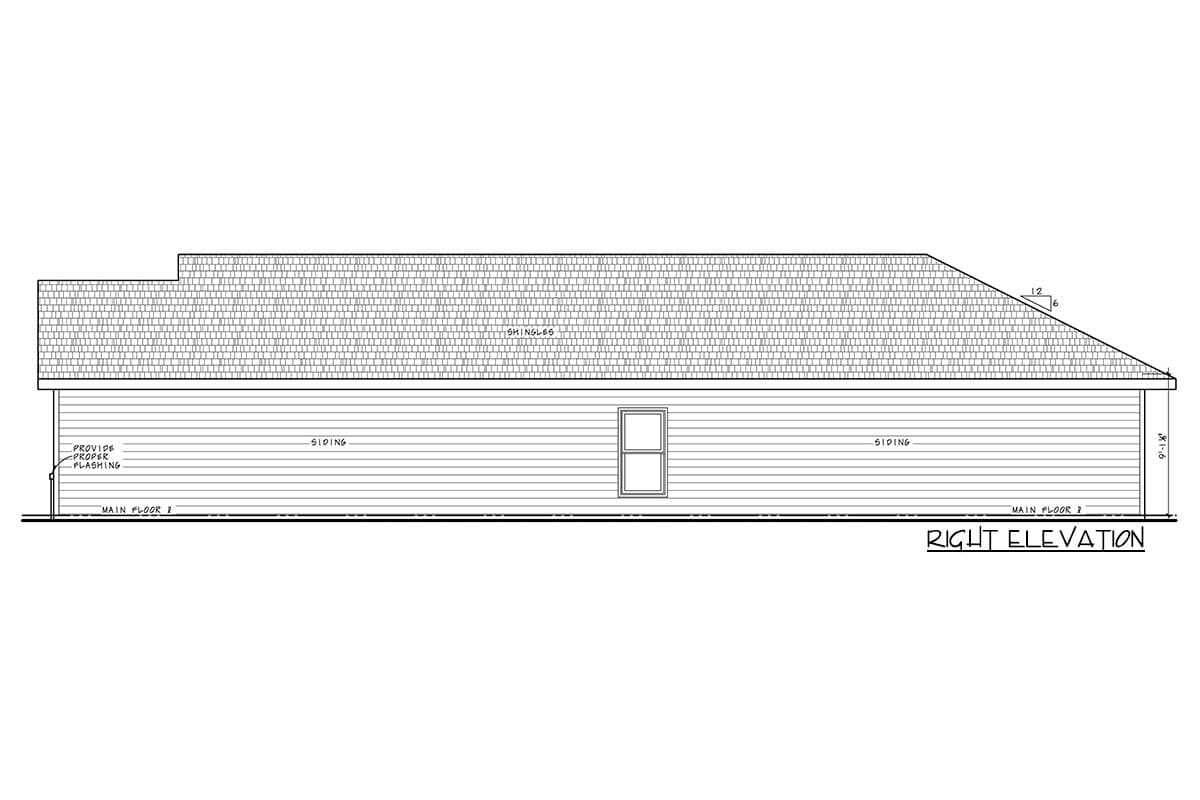

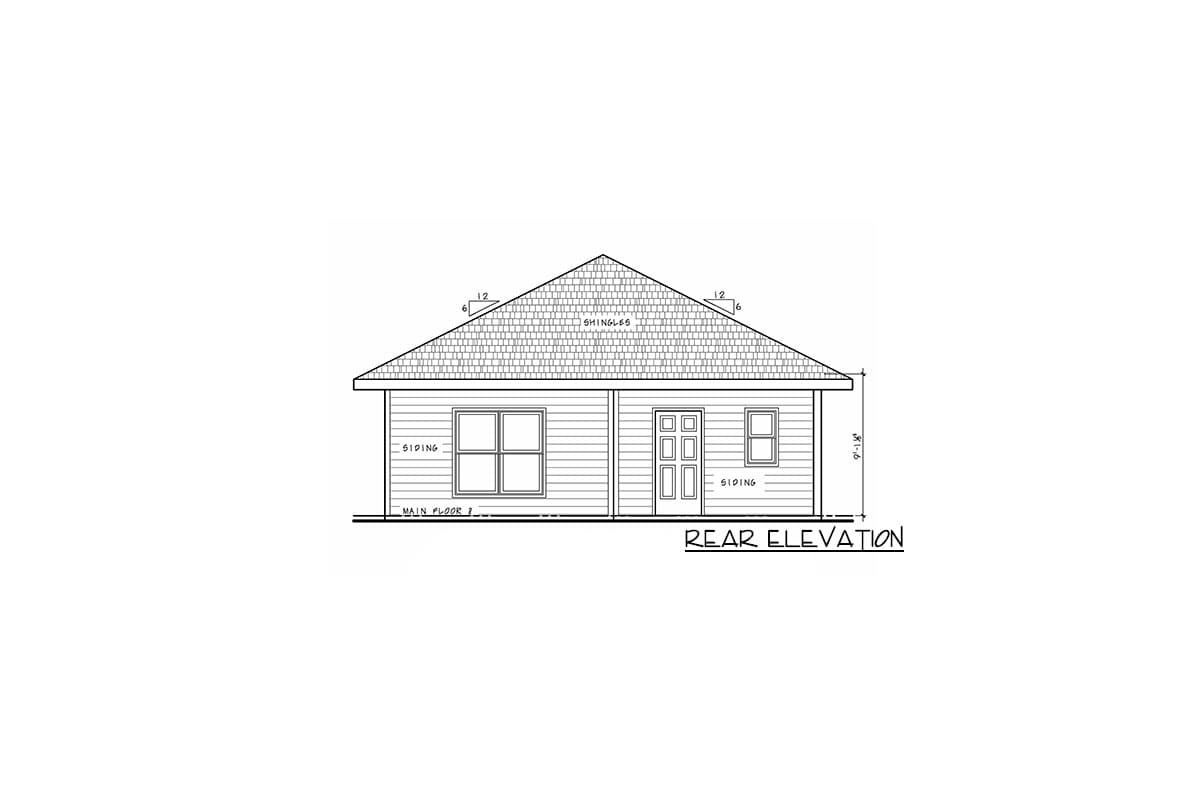

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Main Level

Reverse Floor Plan

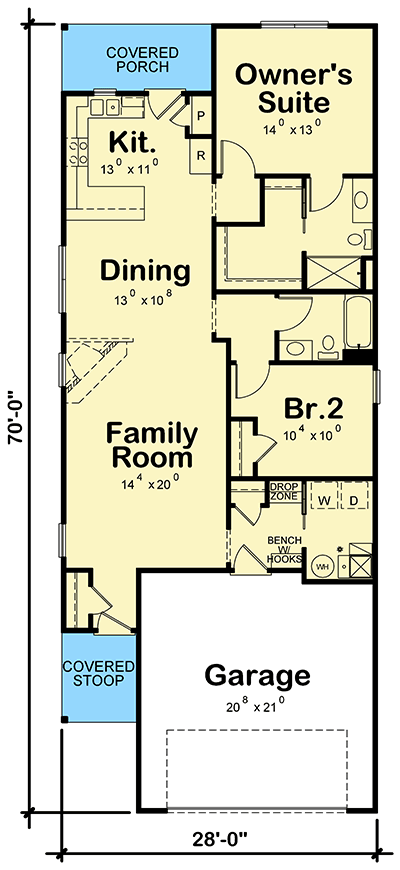

One-Story Home Plan for the Narrow Lot - 42592DB floor plan - Main Level

Optional Layout

Reverse Floor Plan
One-Story Home Plan for the Narrow Lot - 42592DB floor plan - Optional Layout

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,327 sq. ft.
  • 1st Floor: 1,327 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 70' 0"
  • Max ridge height: 17' 2"

Garage

  • Type: Attached
  • Area: 447 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features



One-Story Home Plan for the Narrow Lot

  • 1,327

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $600
  • PDF - Single-Build $915
  • PDF - Unlimited Build $1,415
  • CAD - Single-Build $1,601
  • CAD - Unlimited Build $2,101
  • View all purchase option online

About This Plan

  • At just 28' wide, this one-story home plan was designed with your narrow or in-fill lot in mind.
  • The left side of the home is open front-to-back. The kitchen comes with two options: an island design with corner walk-in pantry or peninsula design with window out the back.
  • The family room comes with a fireplace option.
  • Notice the bench as you come in from the garage, as well as a coat closet and drop zone. And the laundry room behind a pocket door so you’re not looking a dirty clothes.
  • Related Plan: Get an alternate exterior with house plan 42593DB.

Floor Plans

  • Main Level

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,327 sq. ft.
  • 1st Floor: 1,327 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 70' 0"
  • Max ridge height: 17' 2"

Garage

  • Type: Attached
  • Area: 447 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
