Plan 42593DB

One-Story House Plan for the Narrow Lot

Heated S.F.
1,327
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 42593DB

Main Level
Main Level
Optional Layout
Optional Layout

Plan 42593DB

M-F 9am-5pm EST |

1-203-761-8500

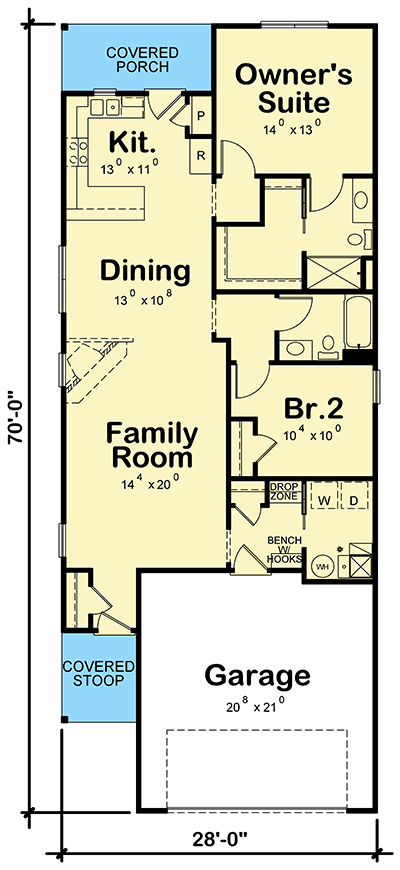

Main Level

Plan 42593DB: One-Story House Plan for the Narrow Lot - Floor Plan - Main Level - Traditional

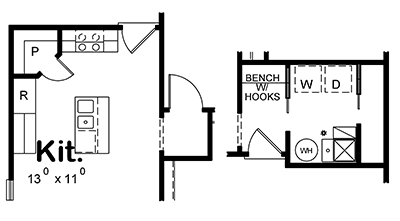

Optional Layout

Plan 42593DB: One-Story House Plan for the Narrow Lot - Floor Plan - Optional Layout - Traditional

Plan Details

  • At just 28' wide, this one-story house plan was designed with your narrow or in-fill lot in mind.
  • The left side of the home is open front-to-back. The kitchen comes with two options: an island design with corner walk-in pantry or peninsula design with window out the back.
  • The family room comes with a fireplace option.
  • Notice the bench as you come in from the garage, as well as a coat closet and drop zone. And the laundry room behind a pocket door so you’re not looking a dirty clothes.
  • Related Plan: Get an alternate exterior with house plan 42592DB.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,327 sq. ft.

1st Floor

1,327 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

70' 0"

Max Ridge Height

17' 2"

Garage

Type

Attached

Area

447 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
