Plan 490055NAH
One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook
Heated S.F.
2,770
Beds
3-5
Baths
3.5 - 5.5
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

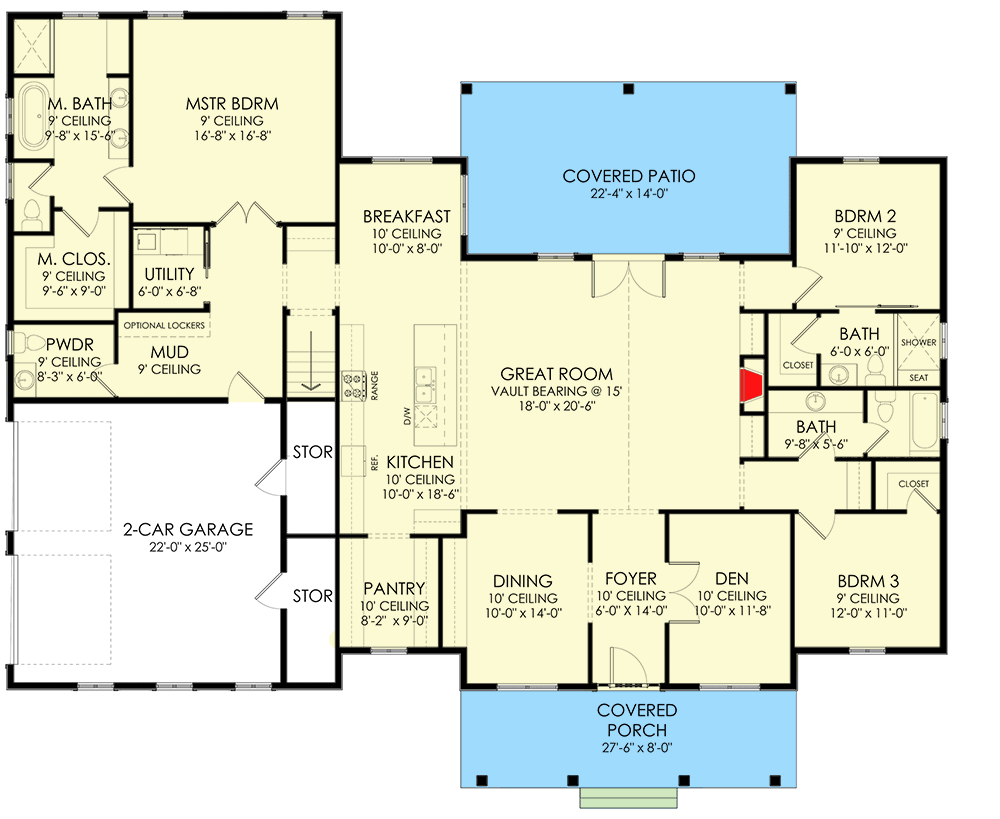

Main Level
Reverse Floor Plan
One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook - 490055NAH floor plan - Main Level
Optional Main Level on Slab/Crawl
Reverse Floor Plan

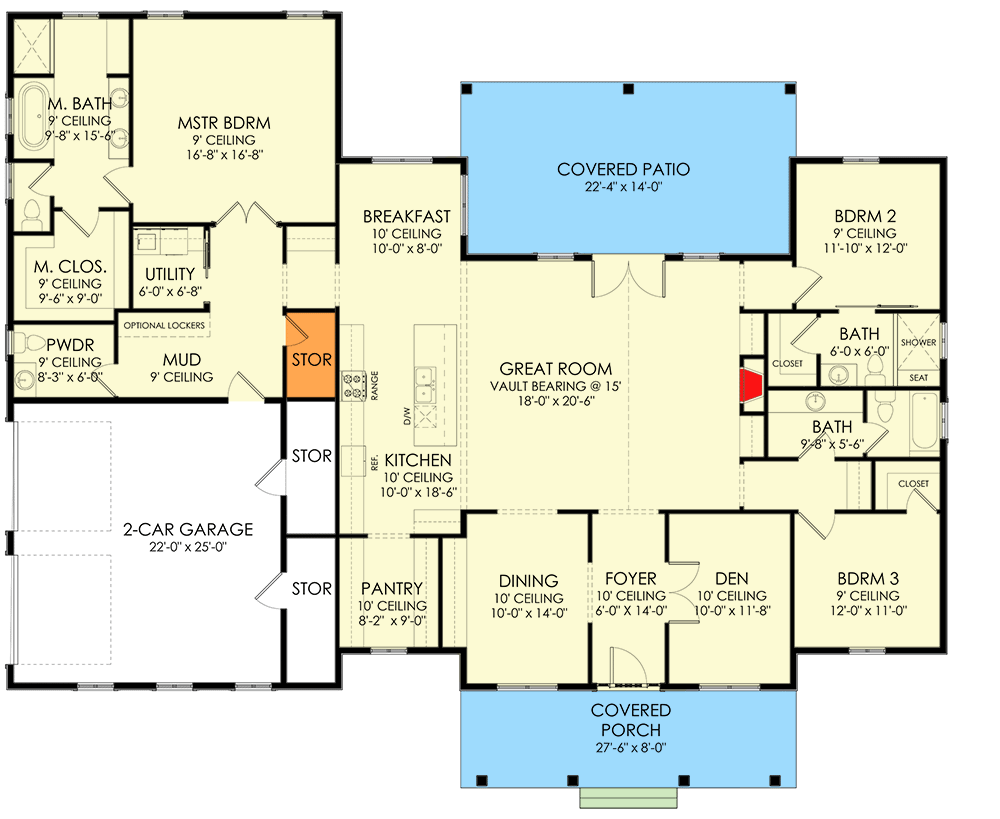

One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook - 490055NAH floor plan - Optional Main Level on Slab/Crawl

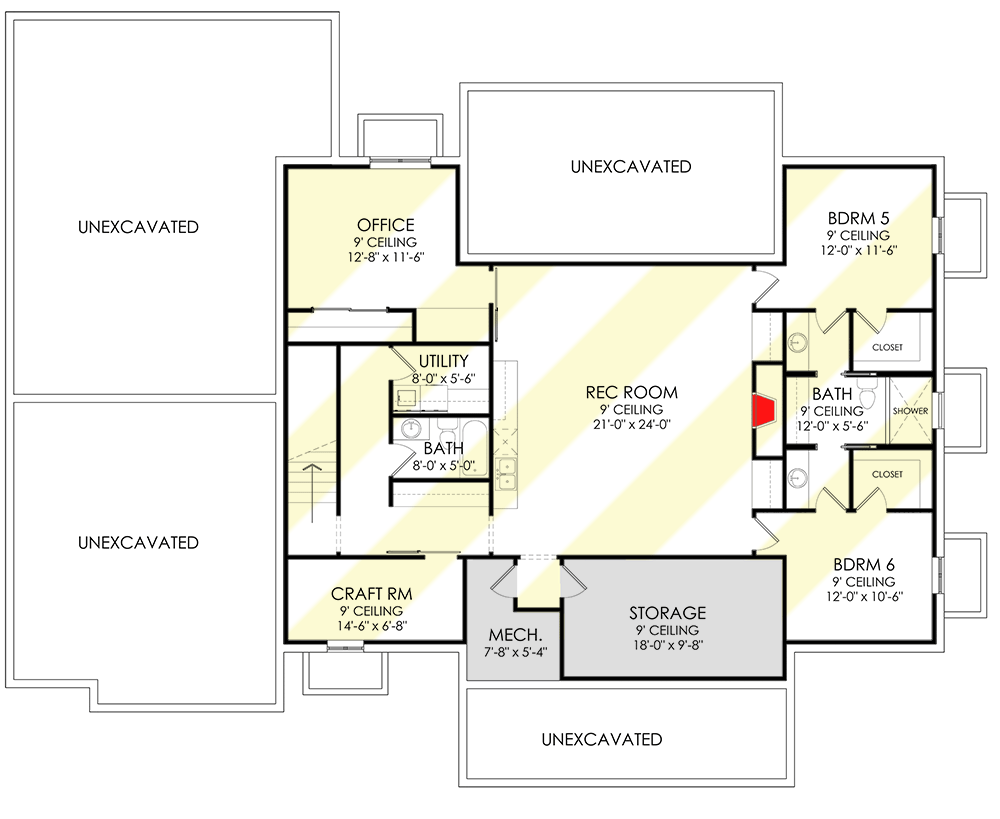

Optional Lower Level
Reverse Floor Plan
One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook - 490055NAH floor plan - Optional Lower Level

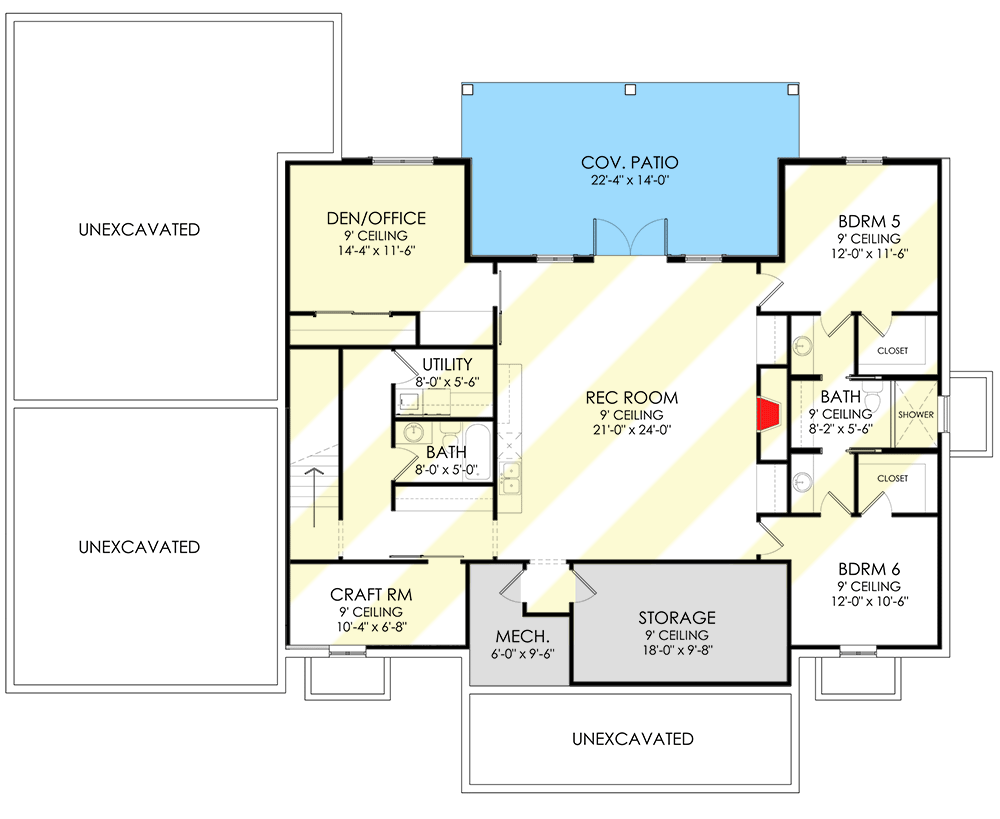

Optional Walkout Level
Reverse Floor Plan
One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook - 490055NAH floor plan - Optional Walkout Level
Plan Details
  • This one-story house plan has an 8'-deep covered porch in the front and a 14'-deep patio in the rear. The exterior has an attractive board and batten siding with wood beams surrounding the covered porch and wood work over the garage windows.
  • Upon entering, you'll be welcomed to the foyer that leads to the great room, dining room and den. The great room has a fireplace and a set of double doors looking out to the backyard. An open-floor layout, the kitchen offers unobstructed view to the great room and the backyard.
  • Further into the home, you'll find the master bedroom, with it's accompanying bathroom and walk-in closet, with standing shower, tub, and double vanities.
  • This home offers basement expansion (when finished as shown, you get an additional 1,680 square feet of heated living area) with a recreation room, craft room, another office, 2 more bedrooms with walk-in closets and Jack-and-Jill bathroom, and plenty of storage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-story House Plan with a Formal Dining Room and an Informal Breakfast Nook

  • 2,770

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 5.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Main Level on Slab/Crawl

  • Optional Lower Level

  • Optional Walkout Level

Plan Details

Square Footage Breakdown

  • Total: 2,770 sq. ft.
  • 1st Floor: 2,770 sq. ft.

Dimensions

  • Width: 77' 4"
  • Depth: 57' 8"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 660 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
