One-Story House Plan with Bayed Master Suite - 1570 Sq Ft
Heated S.F.
1,570
Beds
3-4
Baths
2 - 3
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

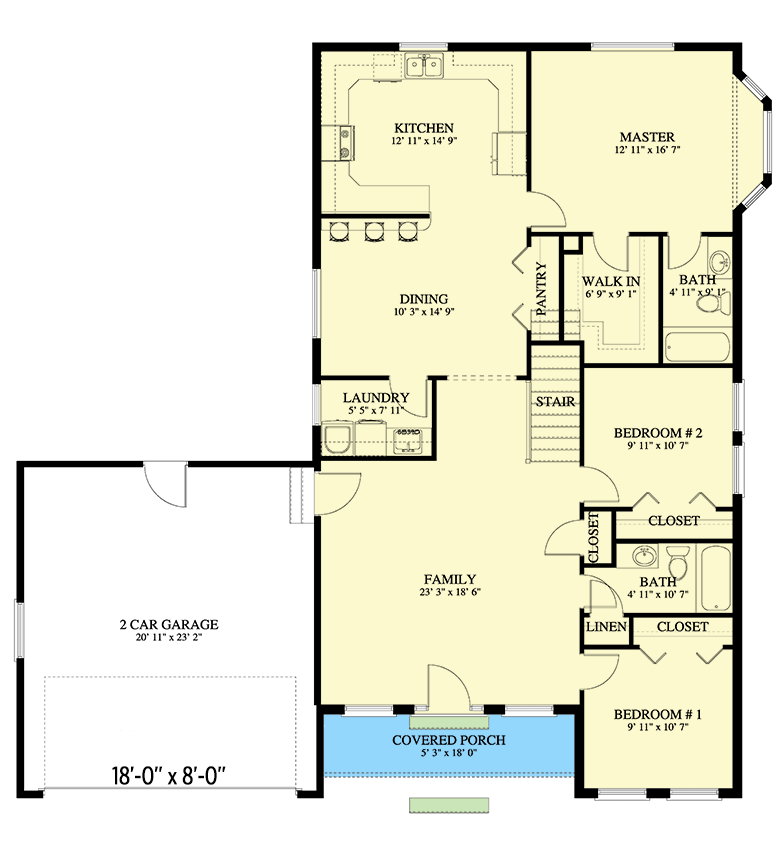

One-Story House Plan with Bayed Master Suite - 1570 Sq Ft - 61469UT floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

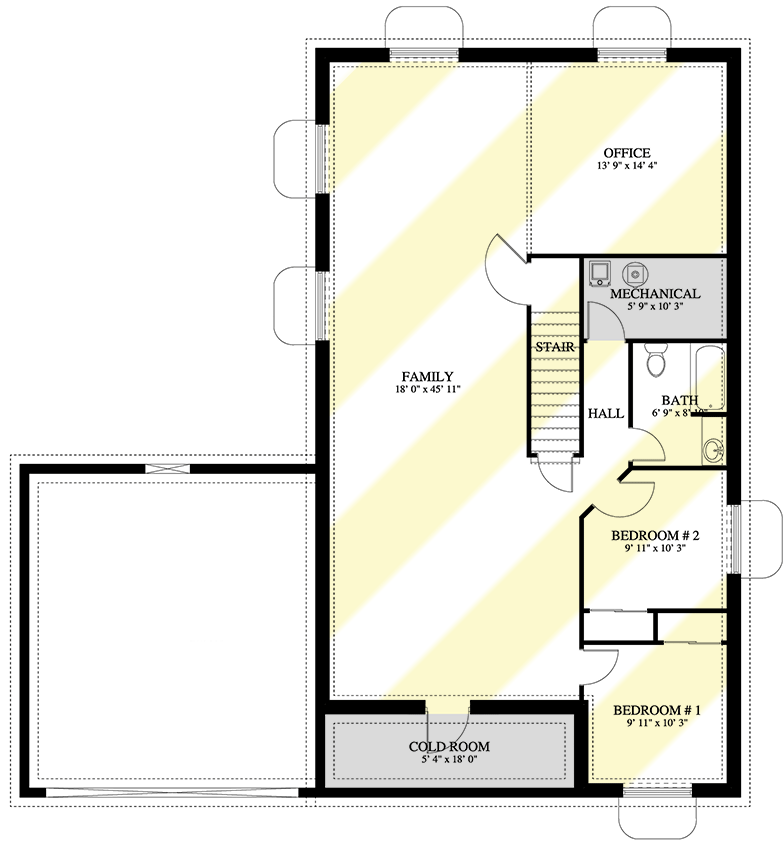

One-Story House Plan with Bayed Master Suite - 1570 Sq Ft - 61469UT floor plan - Optional Lower Level
Plan Details
  • This one-story house plan gives you 1570 square feet of heated living with three bedrooms including the master suite with bayed window.
  • Enter the home from the 5'3"-deep covered porch and find yourself in a large family room with closet on the left and the dining room and kitchen towards the back.
  • Bedrooms line the right side of the home. Beds 2 and 3 share a bath. A dedicated laundry room with sink is located around the corner from the garage entry.
  • Expand to the basement and gain a bedroom with bath and a home office.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
