Plan 710187BTZ

One-Story House Plan with Elegant Brick Exterior

Heated S.F.
1,506
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 710187BTZ

Main Level
Main Level
Optional Basement Stairs
Optional Basement Stairs

Plan 710187BTZ

M-F 9am-5pm EST |

1-203-761-8500

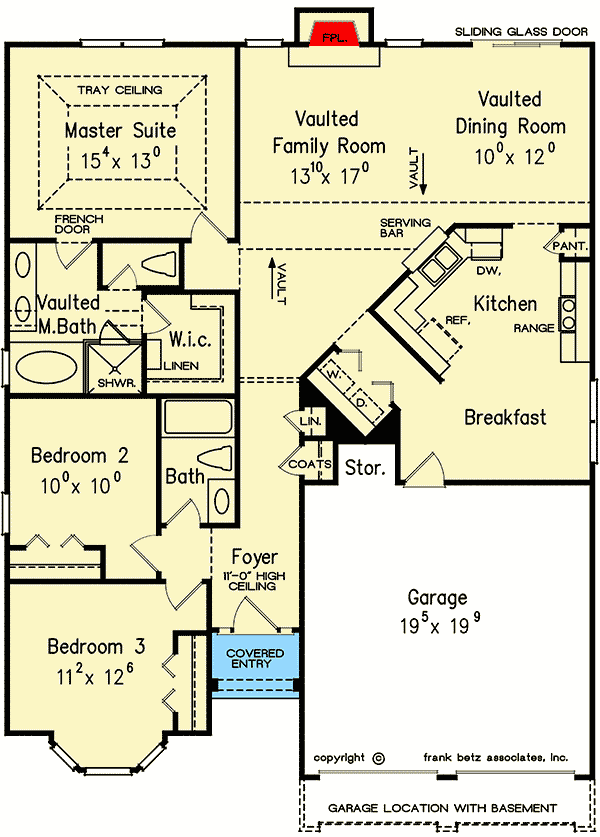

Main Level

Plan 710187BTZ: One-Story House Plan with Elegant Brick Exterior - Floor Plan - Main Level - Southern, Traditional

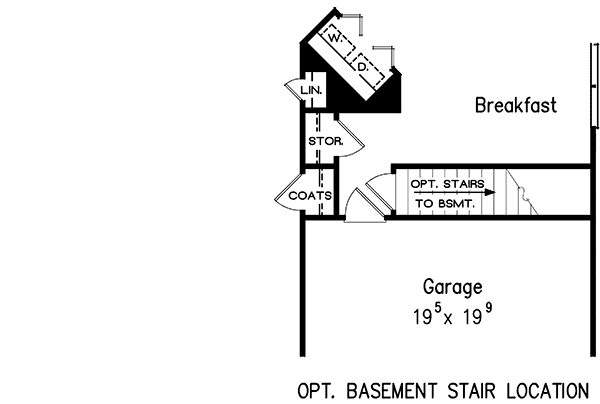

Optional Basement Stairs

Plan 710187BTZ: One-Story House Plan with Elegant Brick Exterior - Floor Plan - Optional Basement Stairs - Southern, Traditional

Plan Details

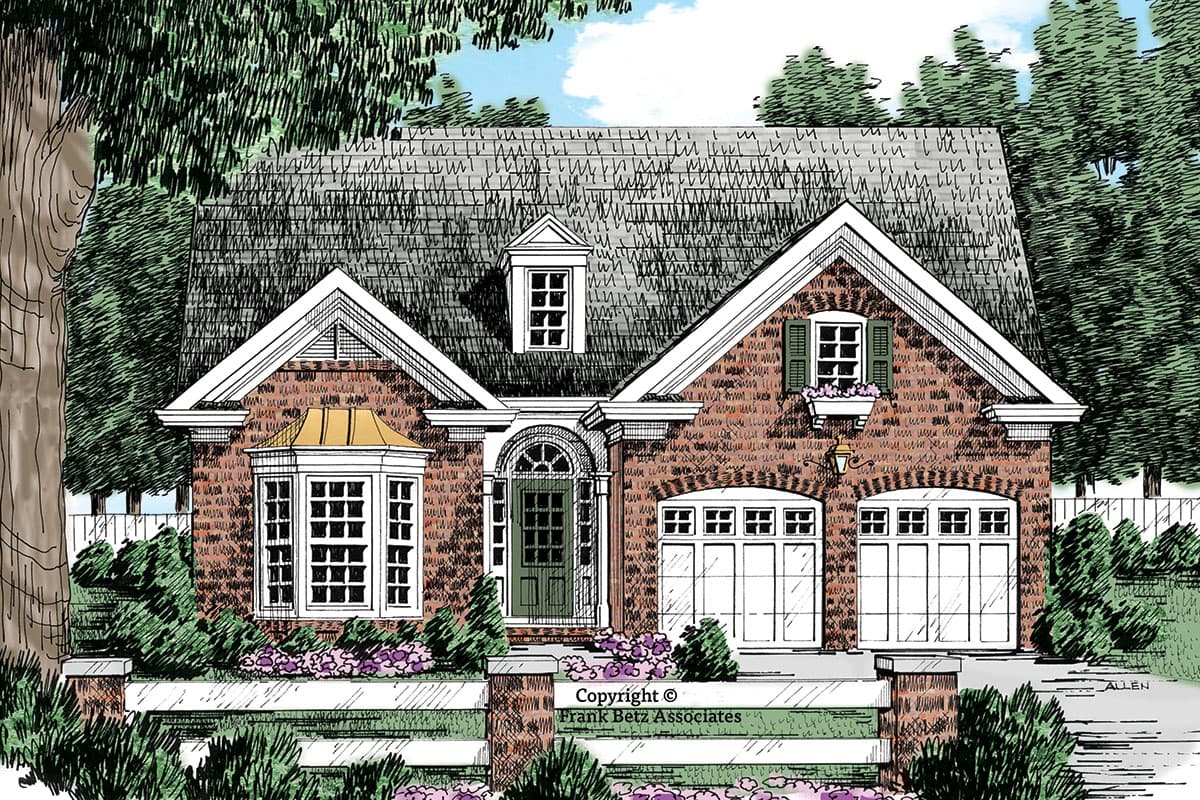

  • This one story has plan has a brick façade with elegant arched accents on the entry and garage, a cooper-topped bow window, and a single gable.
  • A petite floor plan offers all the comforts of a much larger home without wasting space or functionality.
  • Two family bedrooms sit to the front of the design and share a full hall bath. The master suite enjoys a rear view, tray ceiling, walk-in closet and private bath.
  • Vaulted ceilings add height and elegance to the family room, featuring a fireplace, and the dining room.
  • The unique shape of the kitchen maintains efficient planning and still provides space for more causal meals in the breakfast space.

What's Included

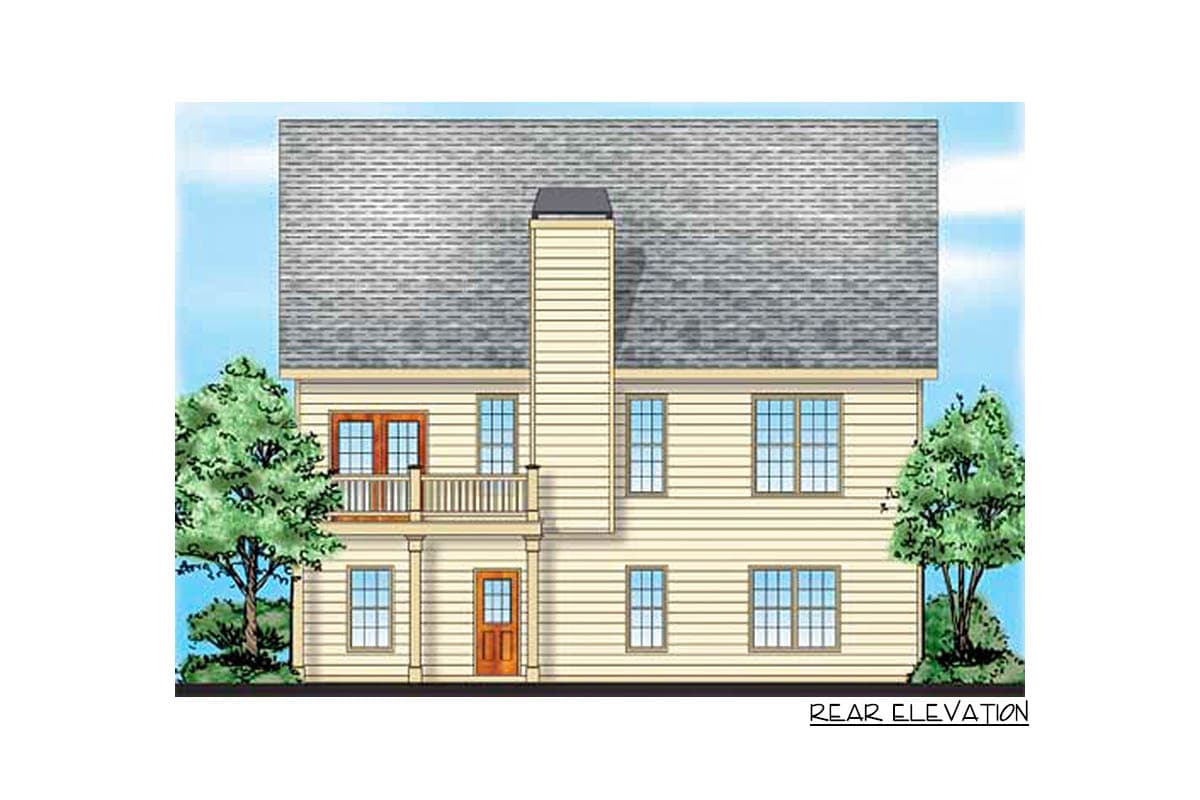

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,506 sq. ft.

1st Floor

1,506 sq. ft.

Basement Unfinished

1,506 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

52' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

405 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,506 sq. ft.

1st Floor

1,506 sq. ft.

Basement Unfinished

1,506 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

40' 0"

Depth

52' 4"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

405 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
