One-Story House Plan with Gabled Front Entry

Plan 82259KA

  • 1,720

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

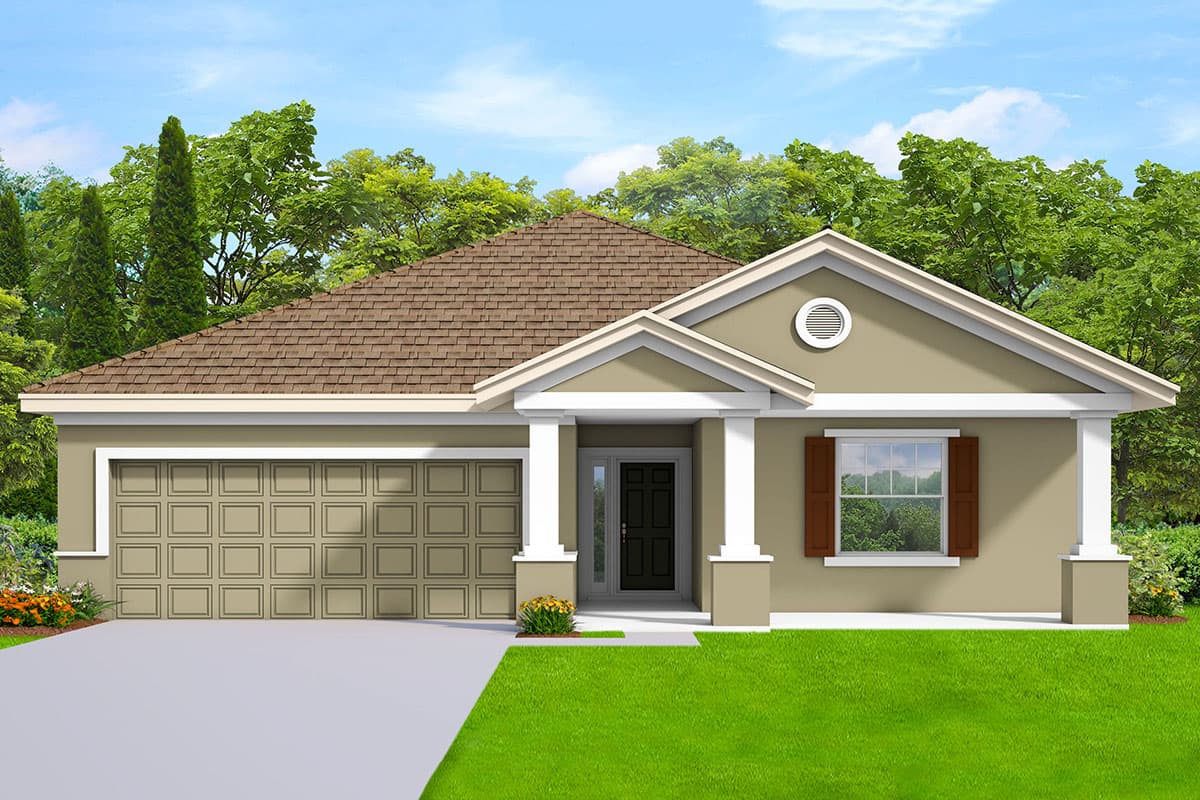

  • This 3-bed house plan offers you one-level living and a split bedroom layout and comes in two alternate exteriors. Nesting gables give you an attractive covered entry and covered porch combination.
  • Two bedrooms share are located at the front of the home and share a bath. A linen closet is located steps away.
  • Two separate areas are joined at the kitchen:  the breakfast area and the dining and great room. Sliding doors open from the great room to your back patio.
  • A roomy master suite has a walk-in bathroom and a 5-fixture bath.
  • Related Plans: Get an alternate elevation with house plan 82257KA and 52258KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

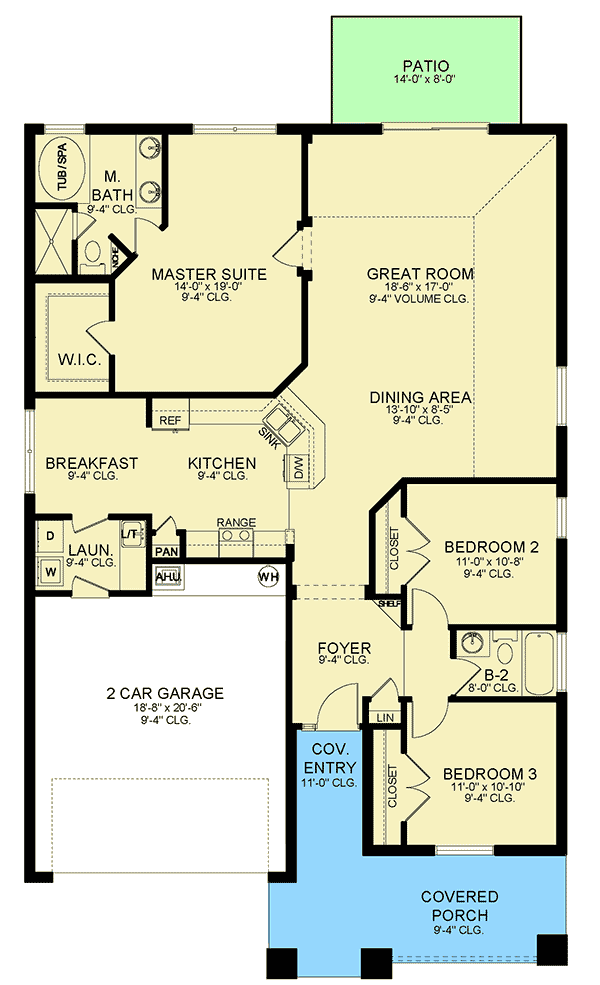

One-Story House Plan with Gabled Front Entry - 82259KA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,720 sq. ft.
  • 1st Floor: 1,720 sq. ft.
  • Porch, Front: 227 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 63' 0"
  • Max ridge height: 19' 9"

Garage

  • Type: Attached
  • Area: 442 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Special features

One-Story House Plan with Gabled Front Entry

  • 1,720

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,720 sq. ft.
  • 1st Floor: 1,720 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 63' 0"
  • Max ridge height: 19' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 442 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
