One-Story House Plan with Second Story-Expansion

Heated S.F.
2,490
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2

Floor Plan

Plan 710191BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710191BTZ

M-F 9am-5pm EST |

1-203-761-8500

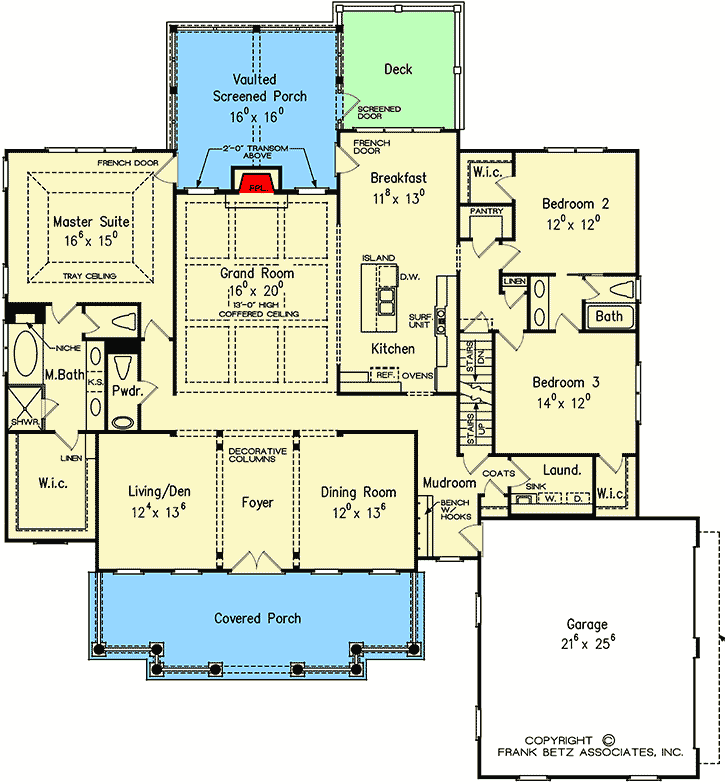

Main Level

Plan 710191BTZ: One-Story House Plan with Second Story-Expansion - Floor Plan - Main Level - Southern, Traditional

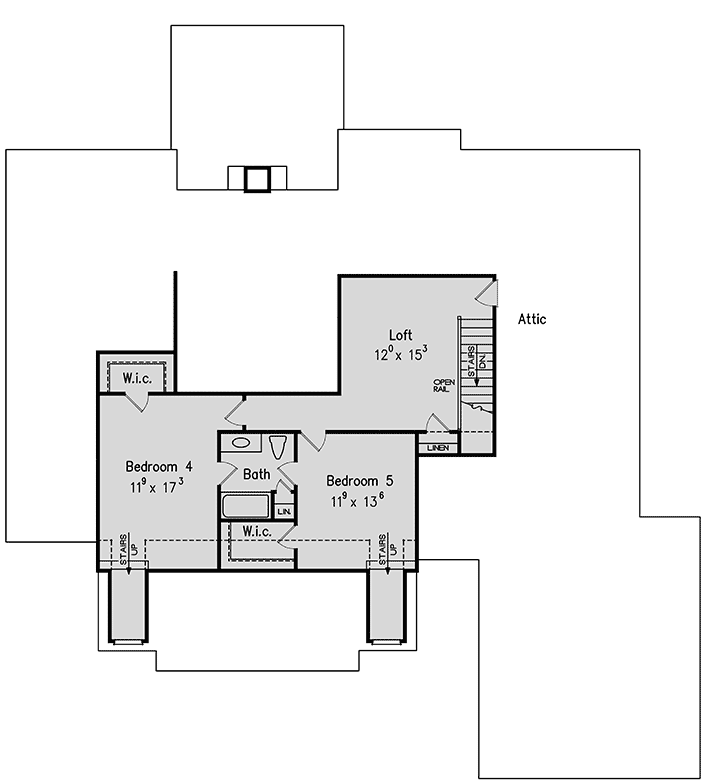

2nd Floor

Plan 710191BTZ: One-Story House Plan with Second Story-Expansion - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This roomy one-story house plan offers second-story expansion.
  • Upon entering the home through the covered porch, decorative columns grace the end of the foyer and distinguish it from the adjacent living and dining rooms.
  • At the center of the home the grand room, completely open to the kitchen, features a coffered ceiling and fireplace.
  • French doors from the breakfast room and master bedroom provide entry to the vaulted, screened porch.
  • Situated for privacy on the far left side of the home, the master suite showcases a tray ceiling and a huge walk-in closet. On the opposite side, two family bedrooms share a full bath.
  • Build out the optional upstairs and get two more bedrooms with a Jack-and-Jill bath and a loft.

What's Included

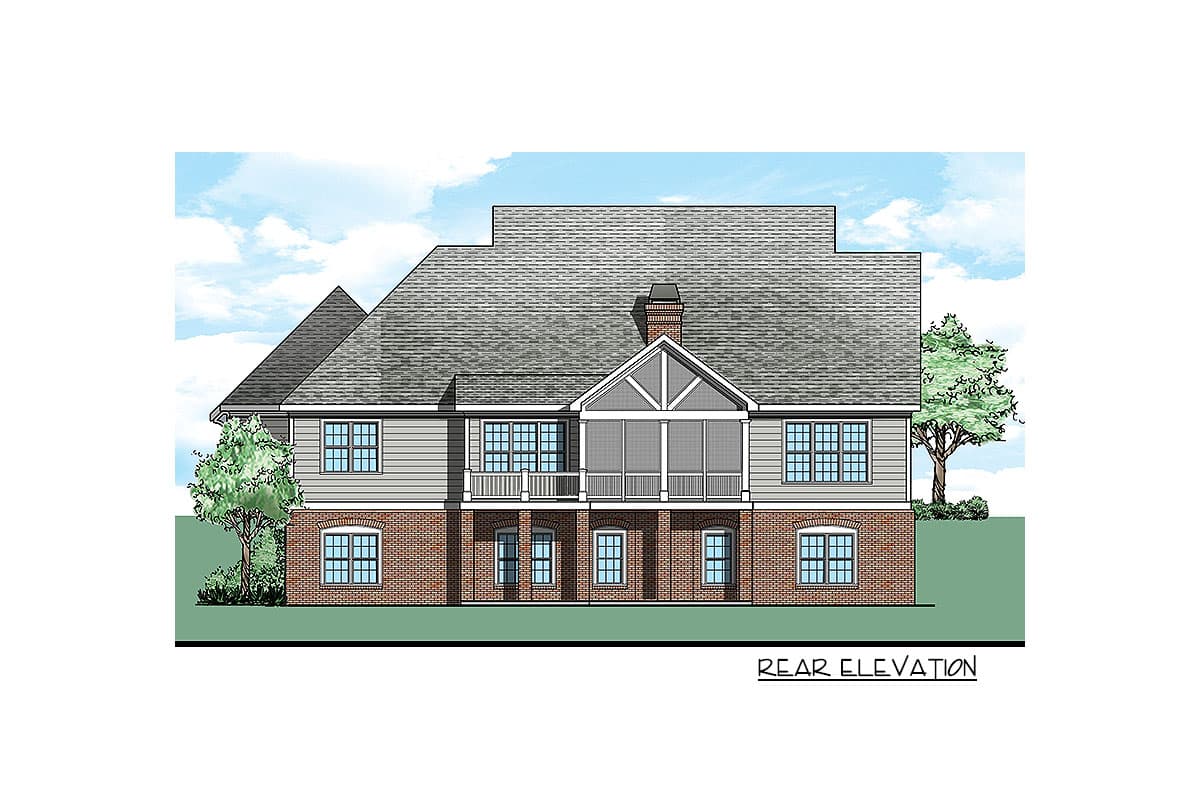

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,490 sq. ft.

1st Floor

2,490 sq. ft.

Basement Unfinished

2,490 sq. ft.

Bonus

846 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 0"

Depth

74' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

566 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,490 sq. ft.

1st Floor

2,490 sq. ft.

Basement Unfinished

2,490 sq. ft.

Bonus

846 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 0"

Depth

74' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

566 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom
