One-Story House Plan with Vaulted Rear Covered Patio

Plan 72917DA

  • 3,413

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This contemporary Craftsman house plan has a tall, grand foyer that leads right into a great room with a fireplace.
  • Between the great room and dining/kitchen area, a music room gives you a place to entertain guests on a grand piano.
  • The kitchen has a large island with additional prep space, a desk for meal planning, and a deep walk-in pantry.
  • Through the dining room is a media room with built-in entertainment center.
  • Off the great room is a hallway which leads to an office, two bedrooms with their own private baths, large utility room, functional mudroom, and a side-entry garage with storage.
  • On the other side of the great room is a second office, exercise room, and the owners’ suite.
  • The owners’ suite has a private exit to a covered patio, walk-in closet, and a spa tub.

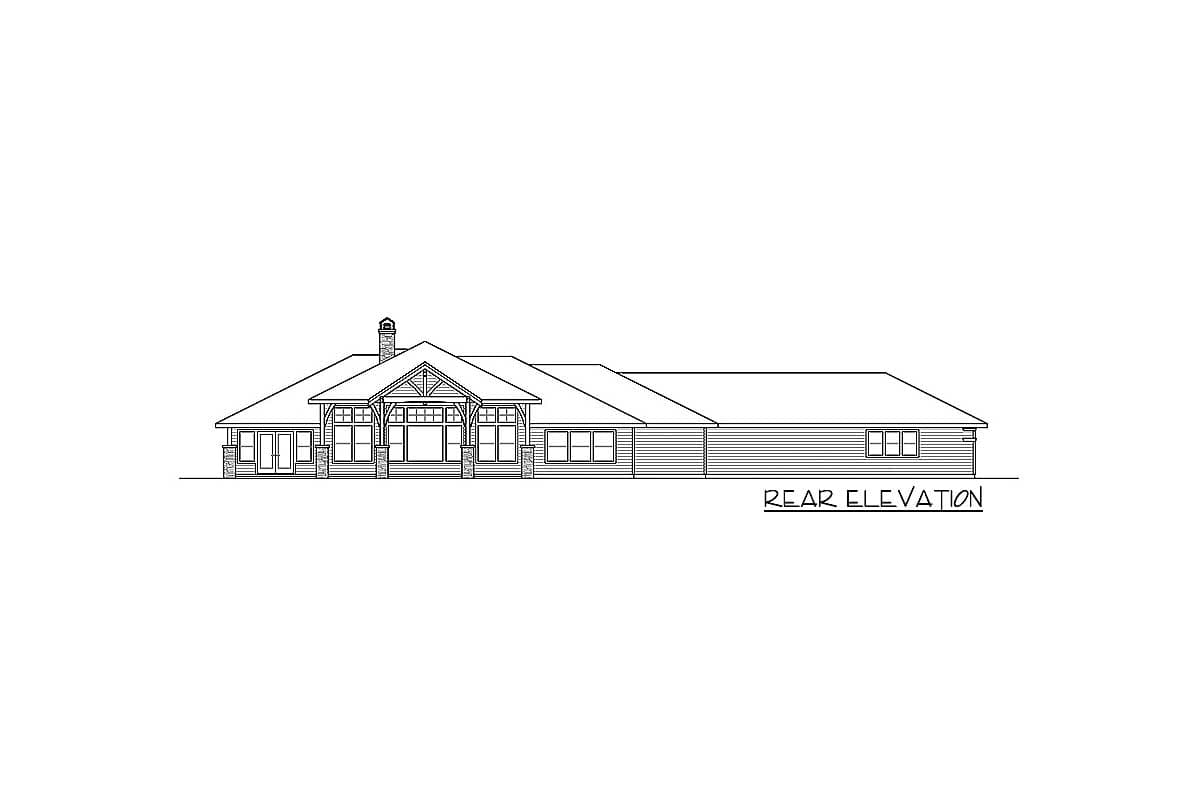

  • The back of the house has a vaulted covered patio, perfect for outdoor entertaining.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

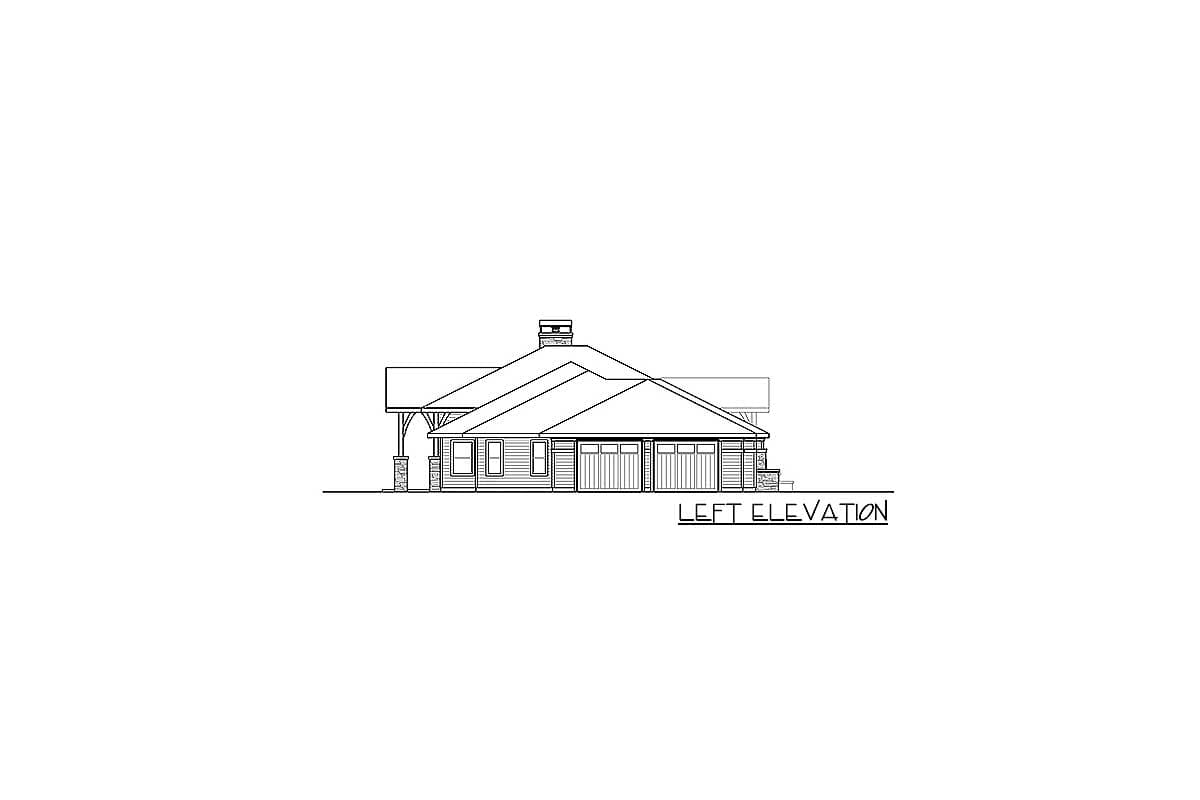

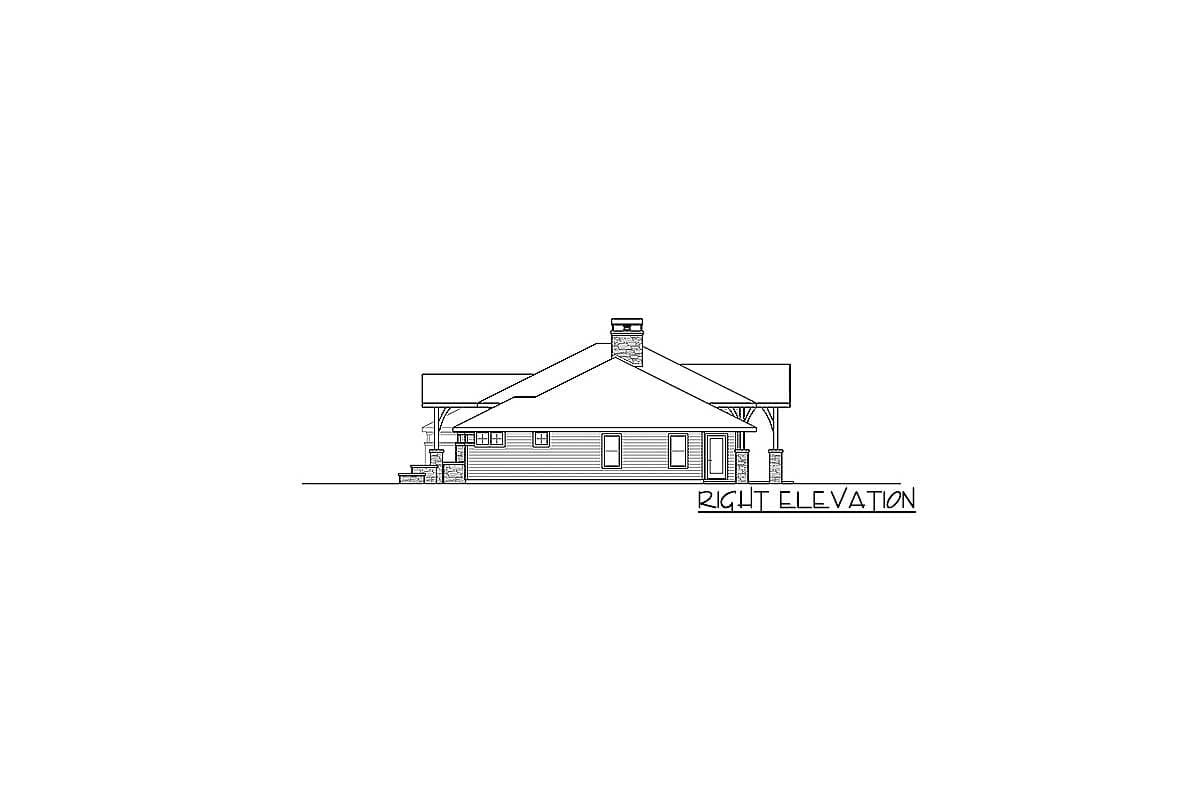

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

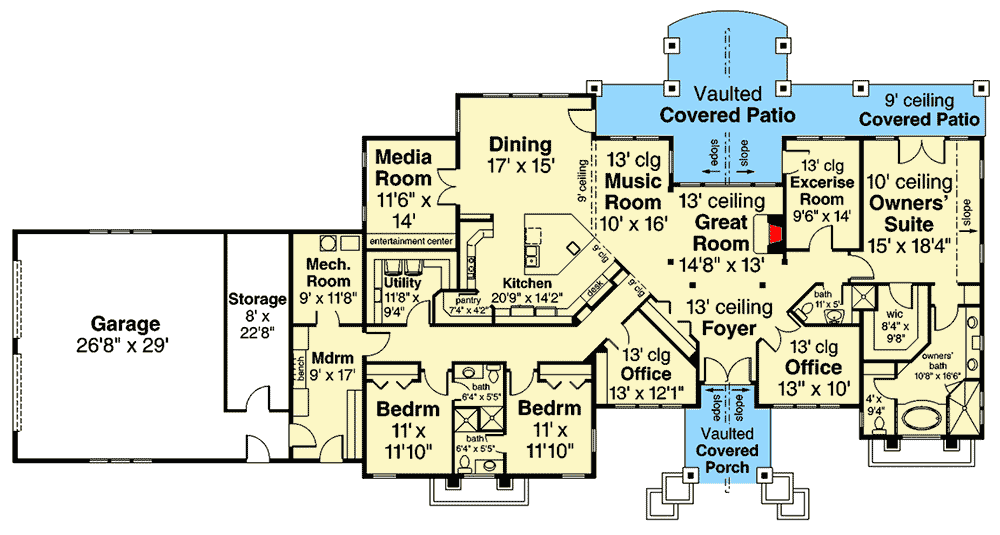

One-Story House Plan with Vaulted Rear Covered Patio - 72917DA floor plan - Main Level

One-Story House Plan with Vaulted Rear Covered Patio

  • 3,413

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,413 sq. ft.
  • 1st Floor: 3,413 sq. ft.

Dimensions

  • Width: 125' 0"
  • Depth: 57' 2"
  • Max ridge height: 22' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1065 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
