One-story New Acadian House Plan with Brick and Board and Batten Exterior

Plan 56485SM

  • 3,175

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • A false dormer sits directly above the pair of French doors on the 33'6" by 8' entry porch on this 4-bed, one-story new Acadian house plan. The exterior gives you a blend of brick and board and batten and a touch of clapboard on the 3-car side-load garage.
  • 19' ceilings welcome you in the foyer which is open to the dining room on your left and to the family room straight ahead. There, windows line the back wall and overlook the back porch. A fireplace anchors the left wall and the kitchen is on the right, separated by wood beams on brick.
  • The kitchen has a large island (4''6" by 9') that se6'6ats up to 5 people. A butler's pantry connects to the dining room and a large walk-in pantry (6'3" by 6'8') giving you great storage.
  • Behind the garage you'll find a game room with French doors that open tot he back porch and Bed 4 with a walk-in closet. Across the home, the master bedroom has two walk-in closets and a luxurious bathroom. Two more beds are located in front and share a Jack and Jill bath.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

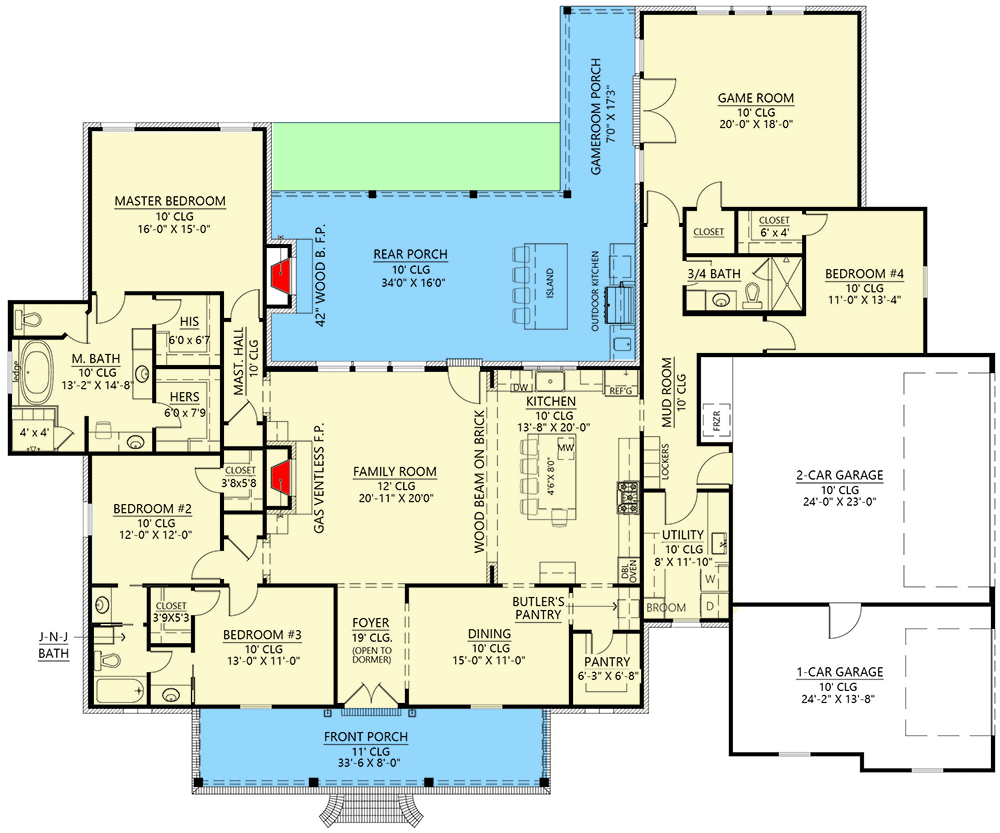

One-story New Acadian House Plan with Brick and Board and Batten Exterior - 56485SM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,175 sq. ft.
  • 1st Floor: 3,175 sq. ft.
  • Porch, Rear: 663 sq. ft.
  • Porch, Front: 268 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 3"
  • Depth: 73' 8"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

One-story New Acadian House Plan with Brick and Board and Batten Exterior

  • 3,175

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,445
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $2,045
  • CAD Unlimited + PDF $2,845
  • View all purchase option online

About This Plan

  • A false dormer sits directly above the pair of French doors on the 33'6" by 8' entry porch on this 4-bed, one-story new Acadian house plan. The exterior gives you a blend of brick and board and batten and a touch of clapboard on the 3-car side-load garage.
  • 19' ceilings welcome you in the foyer which is open to the dining room on your left and to the family room straight ahead. There, windows line the back wall and overlook the back porch. A fireplace anchors the left wall and the kitchen is on the right, separated by wood beams on brick.
  • The kitchen has a large island (4''6" by 9') that se6'6ats up to 5 people. A butler's pantry connects to the dining room and a large walk-in pantry (6'3" by 6'8') giving you great storage.
  • Behind the garage you'll find a game room with French doors that open tot he back porch and Bed 4 with a walk-in closet. Across the home, the master bedroom has two walk-in closets and a luxurious bathroom. Two more beds are located in front and share a Jack and Jill bath.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,175 sq. ft.
  • 1st Floor: 3,175 sq. ft.
  • Porch, Rear: 663 sq. ft.
  • Porch, Front: 268 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 3"
  • Depth: 73' 8"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 56485SM
