Plan 52359WM
One-Story New American Cottage House Plan with 3 Beds - 1521 Sq Ft
Heated S.F.
1,521
Beds
3
Baths
2
Stories
1
Cars
2
Plan Details
  • This split bedroom New American house plan cottage gives you 3 beds, 2 baths and 1,521 square feet of heated living space.
  • A 2-car garage gives you 440 square feet of parking space and accesses the home by the mud room pantry space.
  • Two beds are clustered together off the foyer and share a bath while the master bedroom is privately located in the back-left corner of the home.
  • The vaulted living room, kitchen and dining area are all connected with the latter space have rear porch access.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller version in reverse orientation with house plan 52342WM (1,400 sq. ft.).
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story New American Cottage House Plan with 3 Beds - 1521 Sq Ft

  • 1,521

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

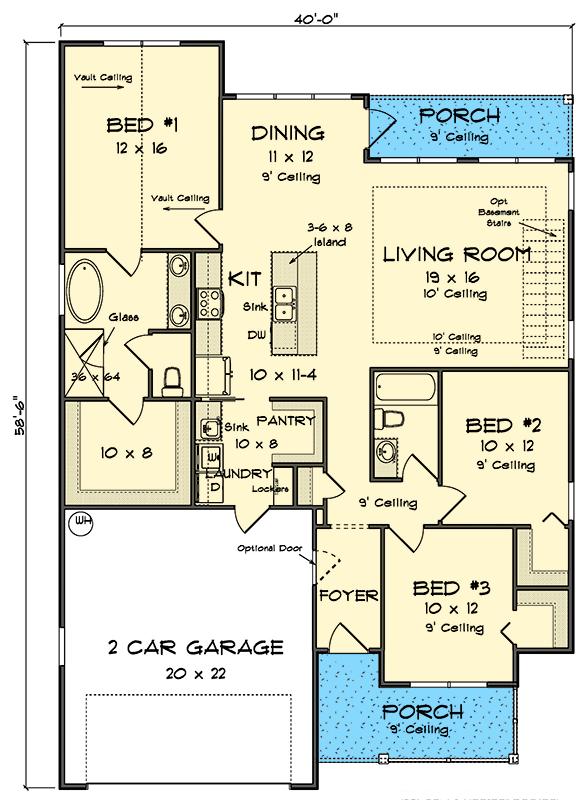

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,521 sq. ft.
  • 1st Floor: 1,521 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 58' 6"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
