Plan 42668DB
One Story New American Home Plan with Lower Level Family Room and Wine Cellar - 2506 Sq Ft
Heated S.F.
2,506
Beds
3 - 4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 42668DB

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 42668DB

1-800-854-7852

1-262-521-4596

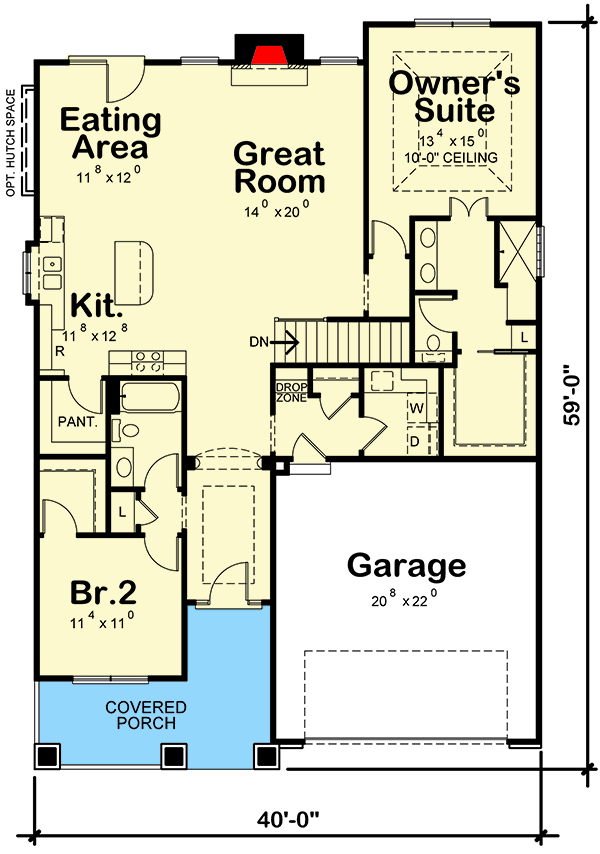

Main Level
floor plan image Main Level

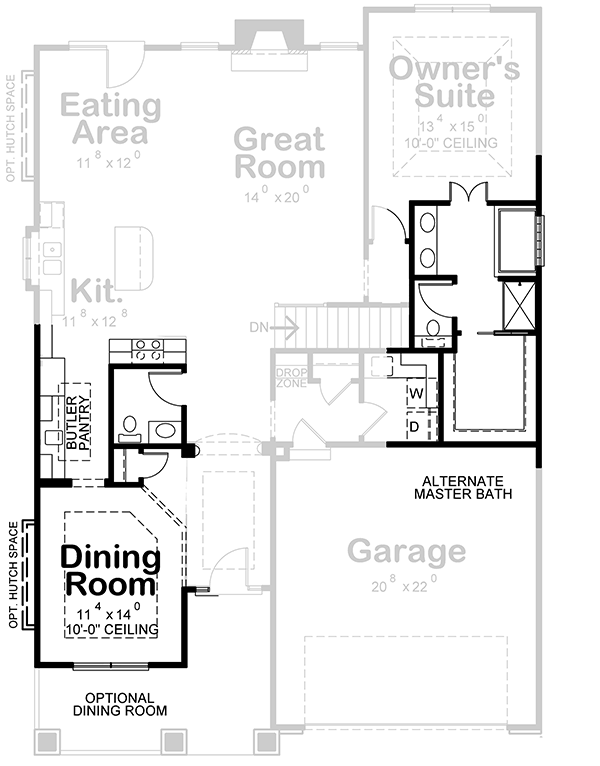

2nd Floor
floor plan image 2nd Floor

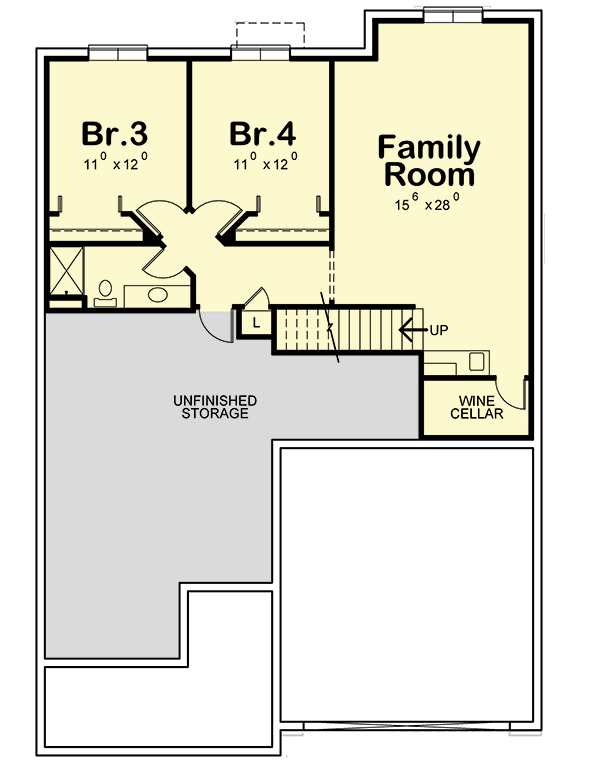

Lower Level
floor plan image Lower Level
Plan Details

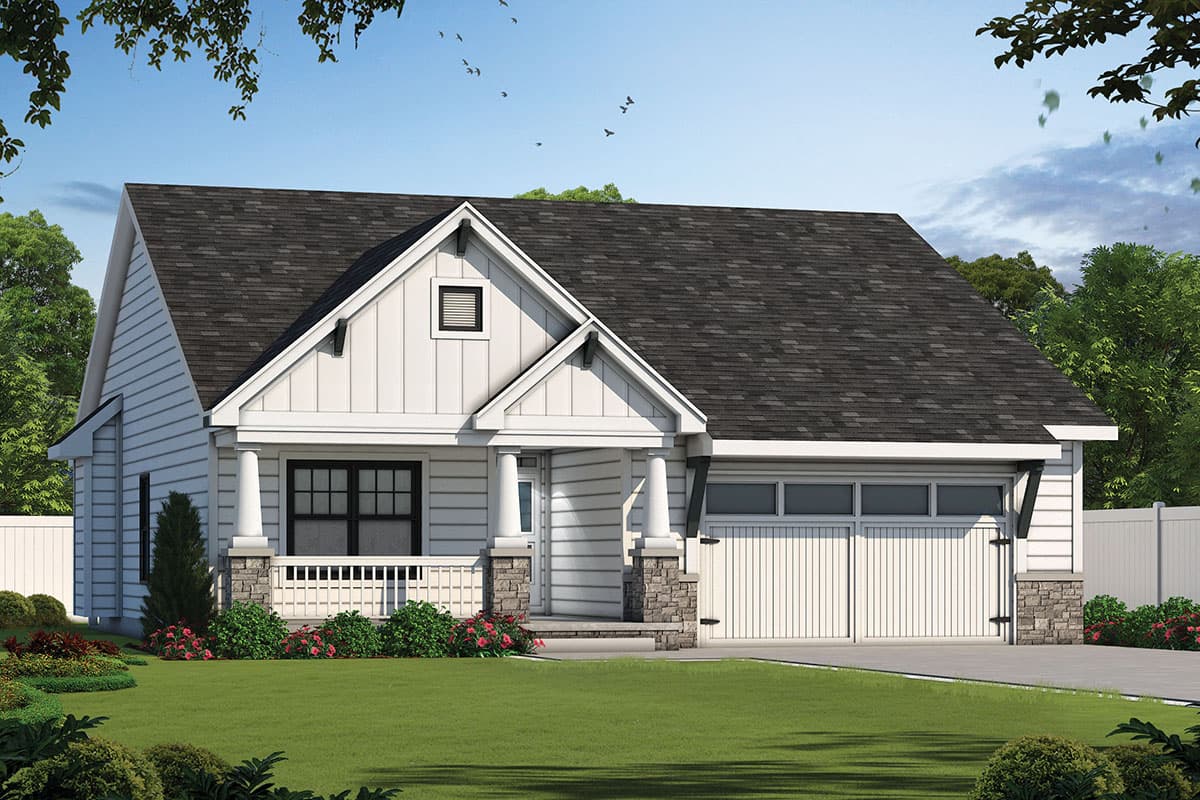

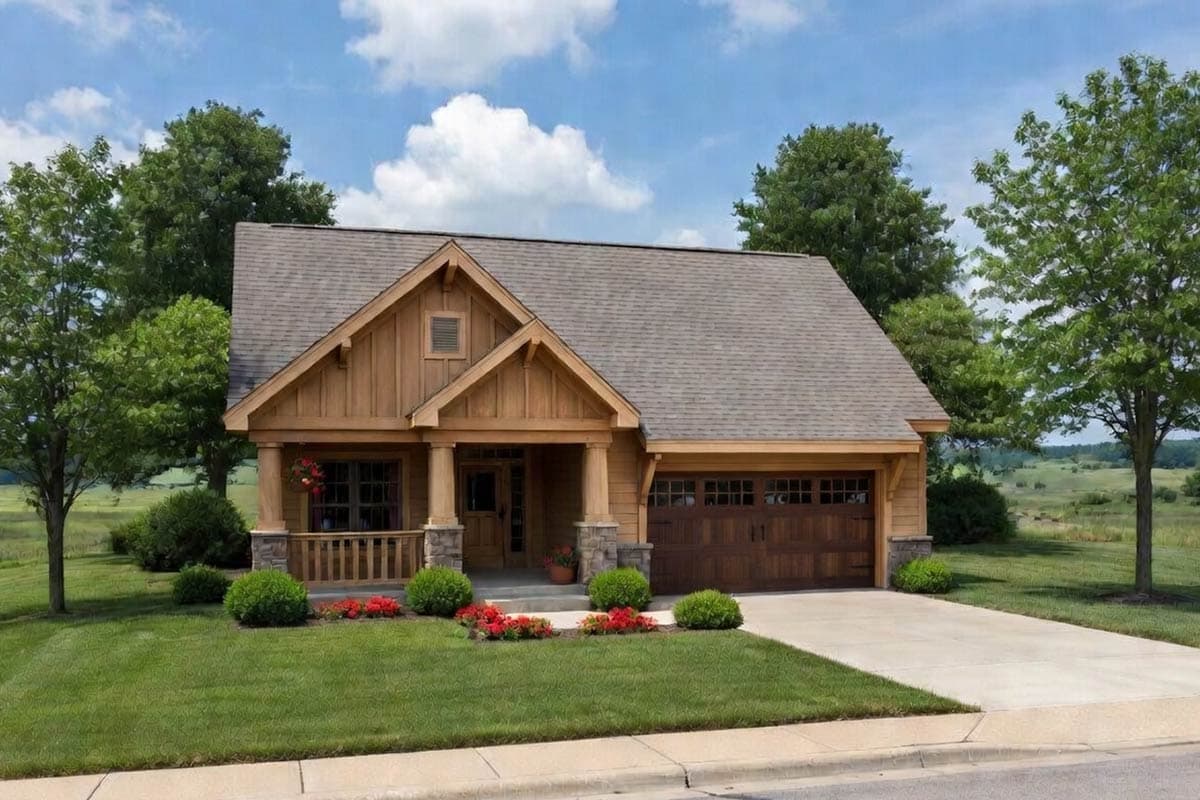

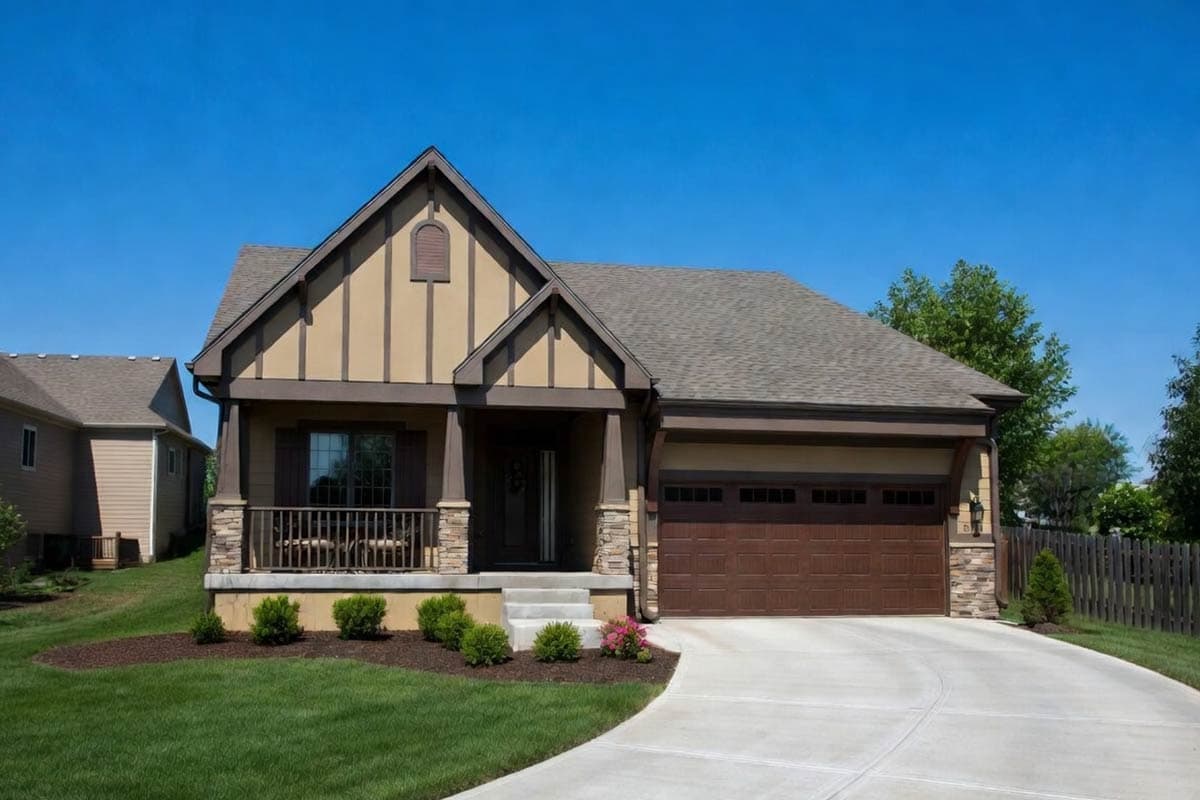

  • This New American house plan has a clapboard exterior with board and batten in the gables of the covered front porch. Stone accents add to the curb appeal as you pull up to this 2-bed home with a 2-car front-facing garage.
  • Inside, the home has an open floor plan. The kitchen enjoys a small island with seating for two and a walk-in pantry.
  • The owner's suite has a lovely tray vaulted ceiling plus a big bathroom and walk-in closet. Bed 2 can be turned into a dining room connected to the kitchen by a walk-through pantry.
  • Take the stairs to the lower level and you'll find the family room and wine cellar plus two bedrooms and storage space.
  • Related Plans: Eliminate the finished basement with house plan 42340DB. Get 3 beds on the main floor with house plan 42303DB and 42359DB.
What's Included
  • General Notes

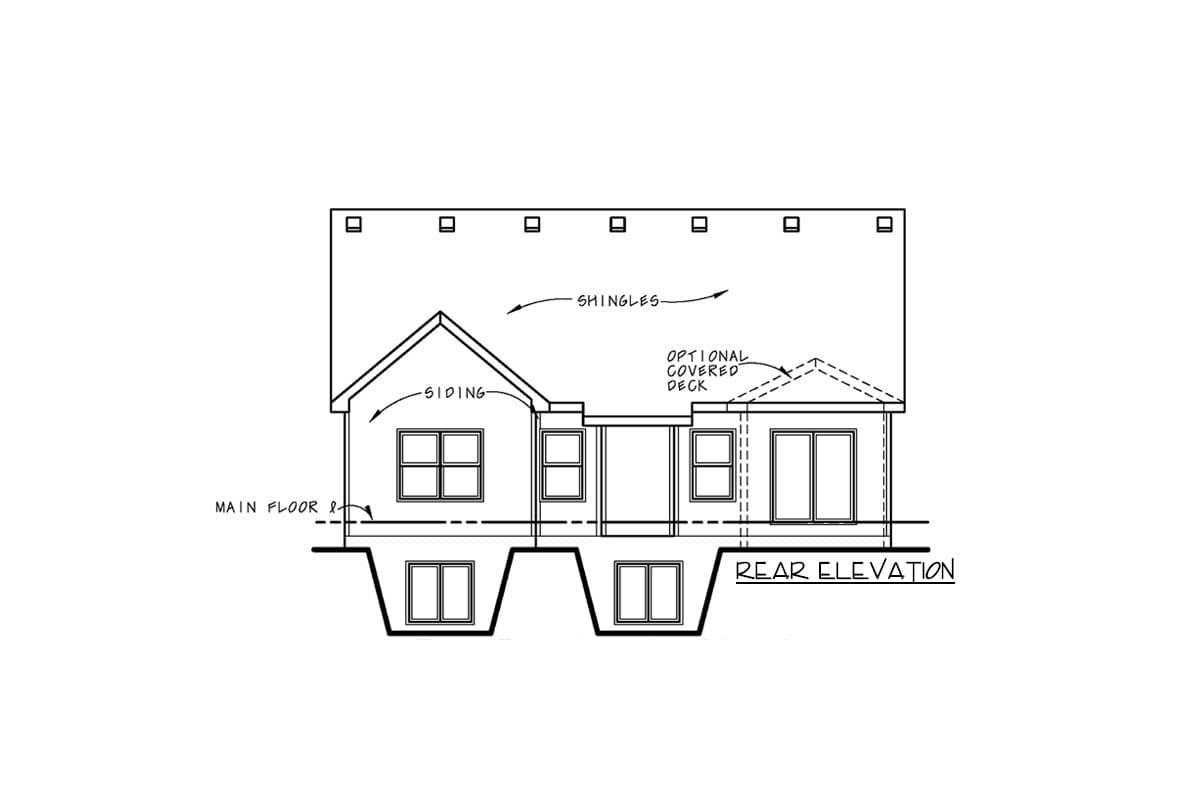

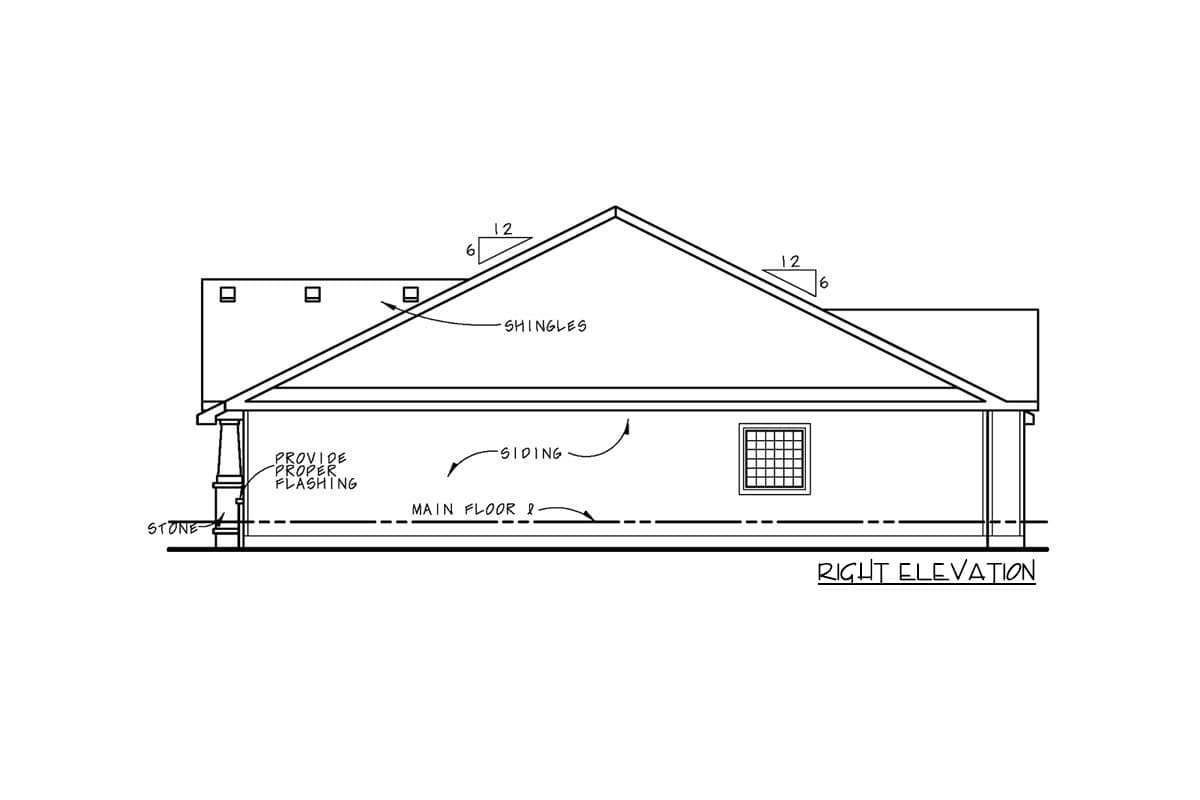

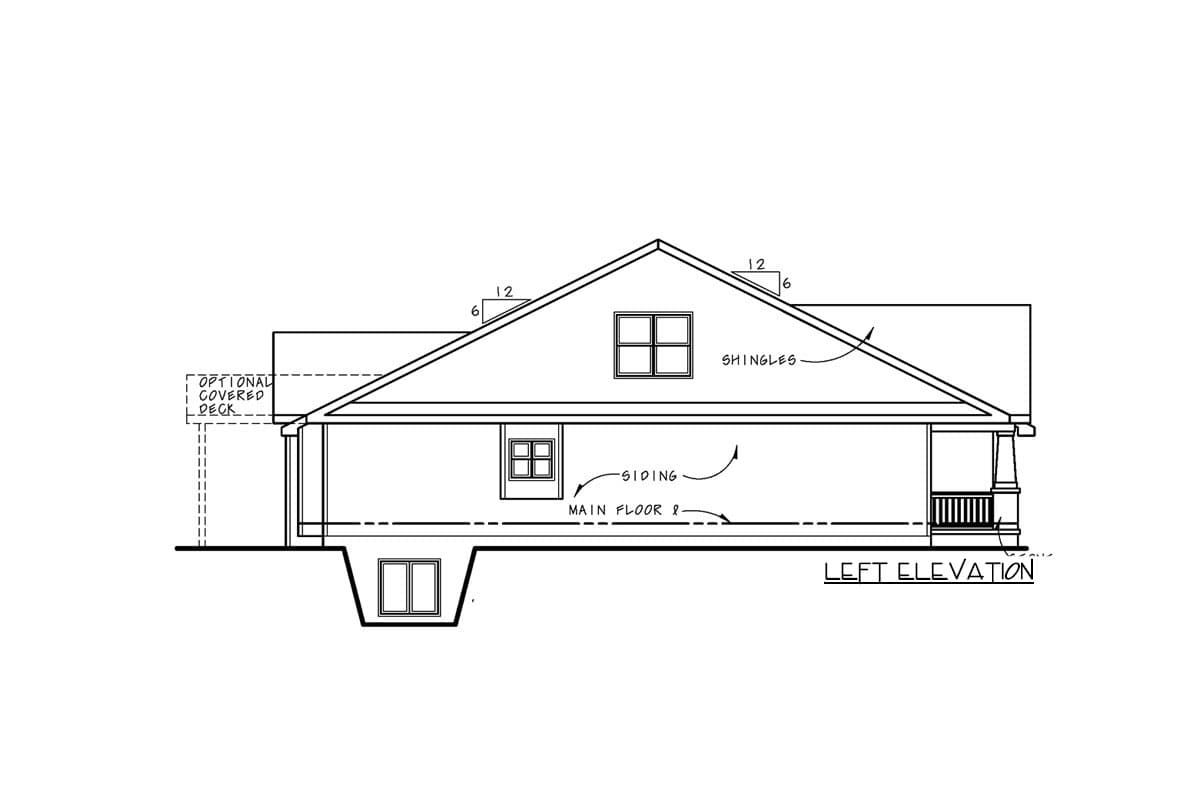

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

Lower Level

910 sq. ft.

1st Floor

1,596 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

59' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

2,506 sq. ft.

Lower Level

910 sq. ft.

1st Floor

1,596 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

59' 0"

Max Ridge Height

23' 9"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick
