One-Story New American House Plan with a Home Office - 1828 Sq Ft
Heated S.F.
1,828
Beds
3
Baths
2.5
Stories
1
Cars
2

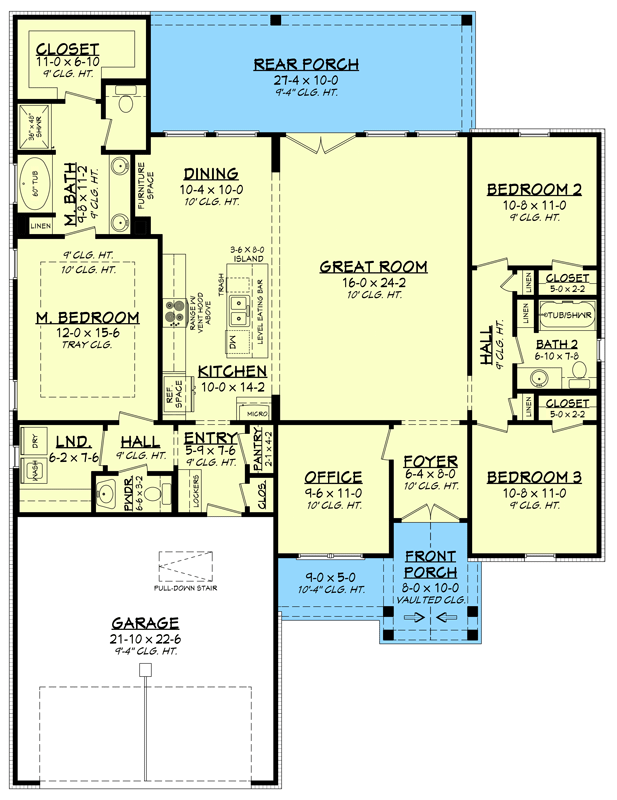

Floor Plan

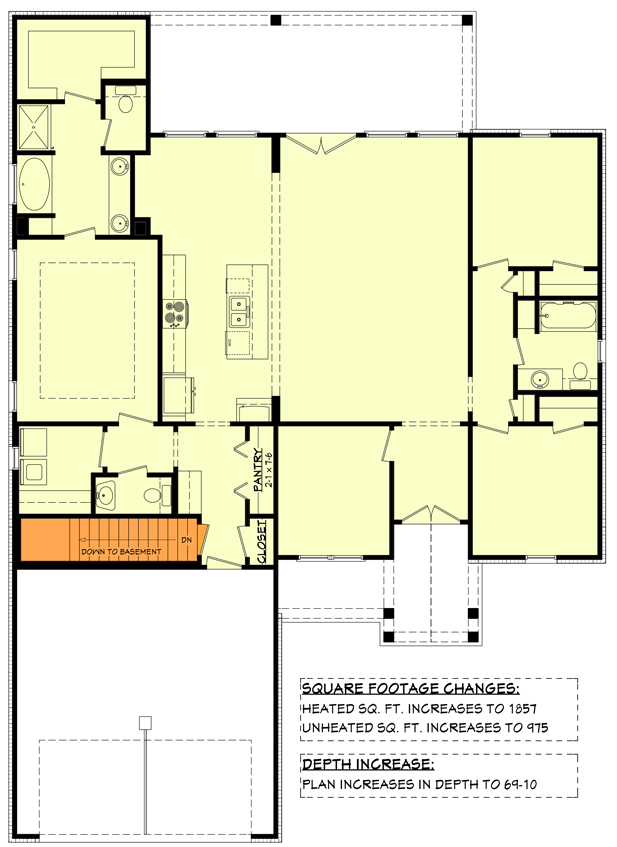

Basement Stair Location
Reverse Floor Plan
One-Story New American House Plan with a Home Office - 1828 Sq Ft - 51893HZ floor plan - Basement Stair Location
Plan Details
  • This one-story New American house plan has a front porch perfect for a pair of rocking chairs on the porch adjacent to timbered covered entry.
  • French doors welcome you inside, where a door on the left conceals the private work-from-home office.
  • The great room is 24'2" deep, has views to the back and direct access through a pair of doors to the 10'-deep rear porch.
  • A large kitchen island (3'8" by 8') gives you seating, dual sinks and prep space and provides separation from the great room. The family entry - with lockers and pantry - is conveniently located nearby.
  • The master suite occupies nearly the entire left side of the home. Laundry is a couple steps away. Across the home, two bedrooms share a bathroom.
  • Related Plans: Get alternate versions with house plans 51910HZ51892HZ, 51792HZ and 11797HZ.
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

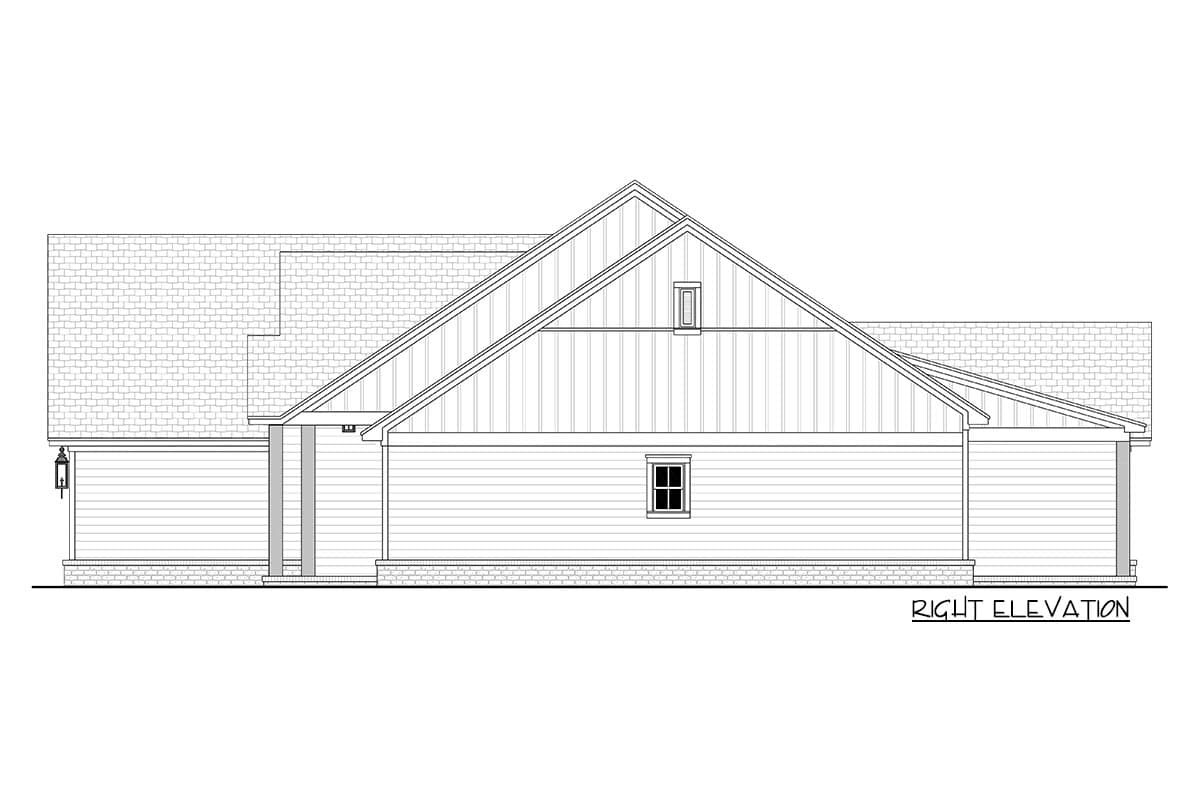

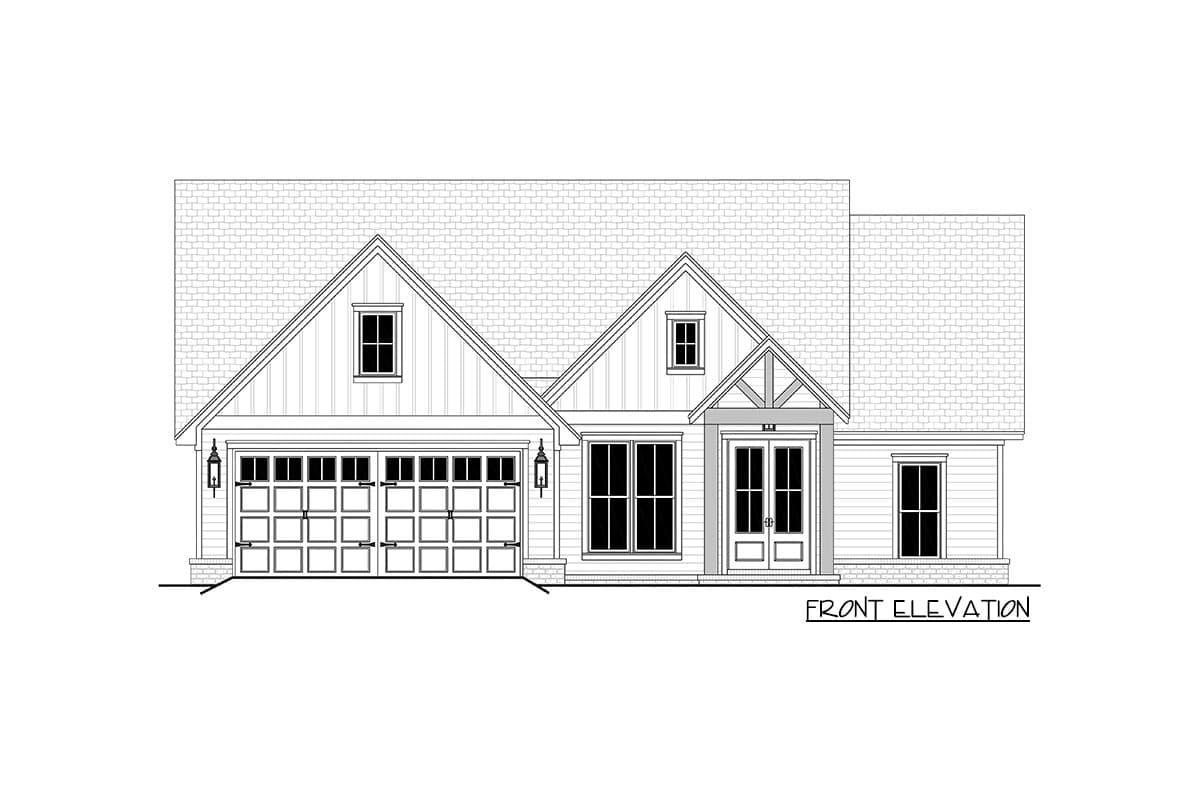

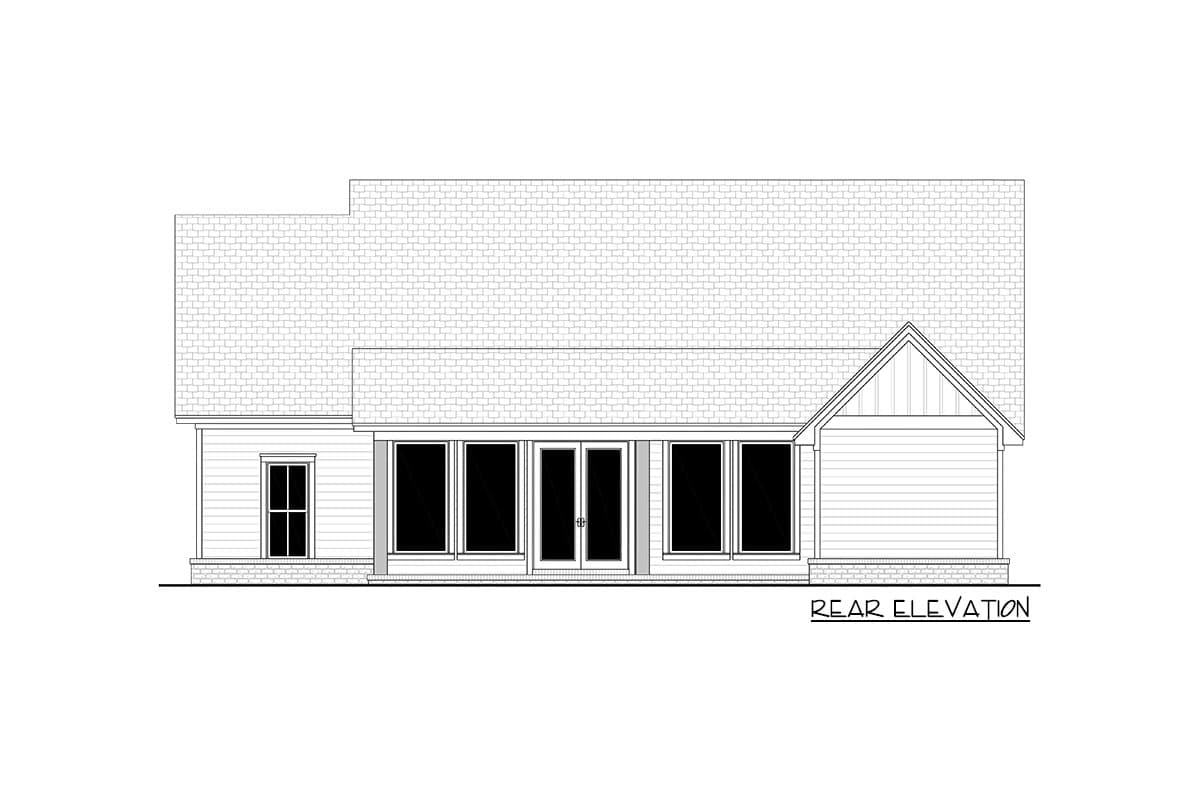

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story New American House Plan with a Home Office - 1828 Sq Ft

  • 1,828

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 1,828 sq. ft.
  • 1st Floor: 1,828 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 65' 6"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 513 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3.5 On 12; 12 on
  • Framing Type: Stick
