4-Bed Country Craftsman House Plan with Flex Room

Plan 51910HZ

  • 1,982

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

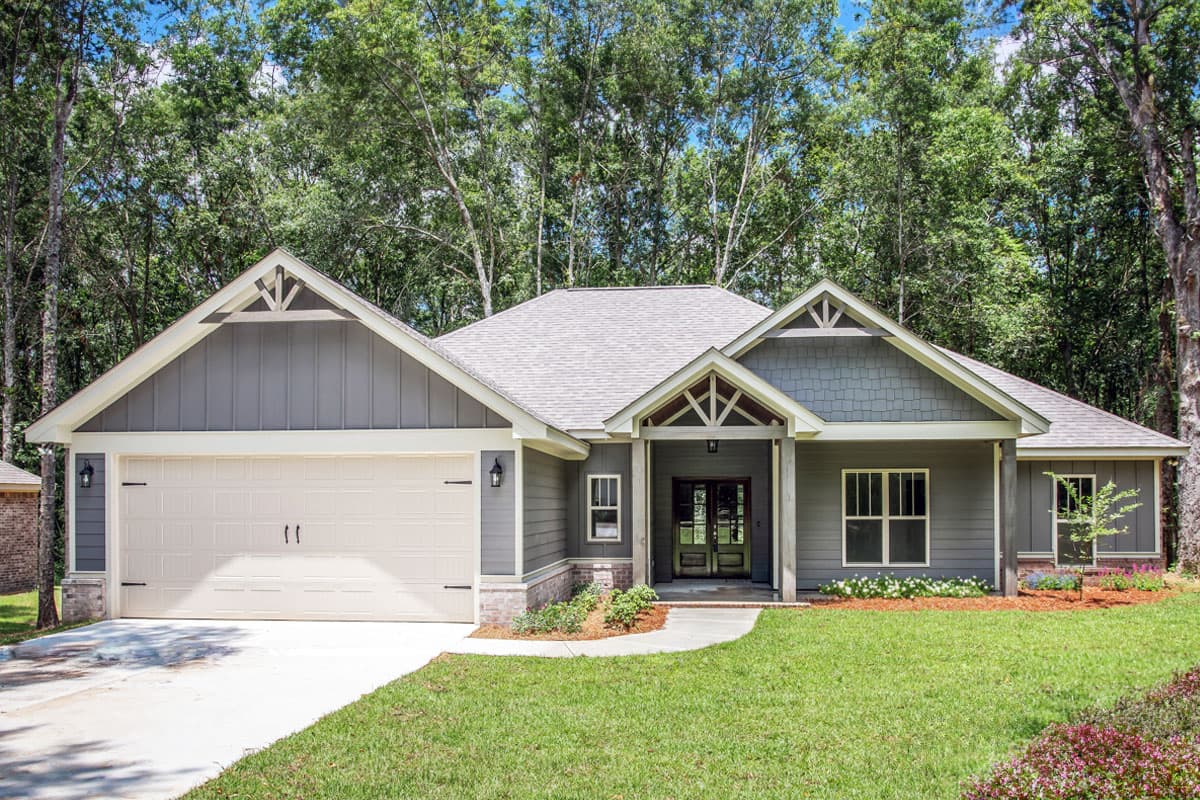

  • Timber-framed gables decorate the exterior of this 4-bedroom Country Craftsman house plan that delivers a flex space that can be used as a bedroom, office, or study.
  • A trio of windows in the great room overlooks the rear porch and the seamless flow into the kitchen helps to unite the primary gathering spaces in this home.
  • Retreat to the master bedroom for peace and quiet and discover a barn door that leads to the 5-fixture bathroom with two walk-in closets.
  • The mudroom's built-in lockers serves as a drop zone and is surrounded by a walk-in pantry, powder bath, and laundry room.
  • Related Plans: Get similar layouts with house plans 51905HZ (2,092 sq.ft.), 51893HZ (1,828 sq.ft.), 51782HZ (2,053 sq.ft.)

This house plan gives you the following details:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

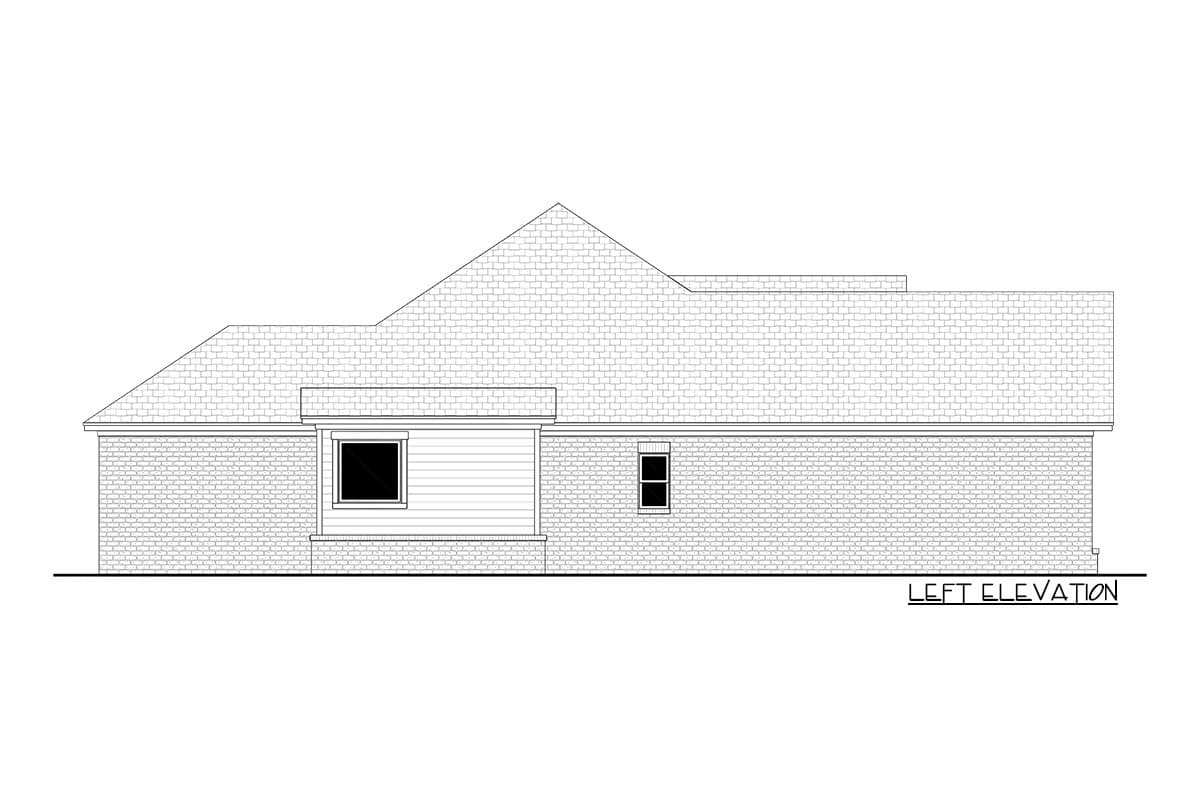

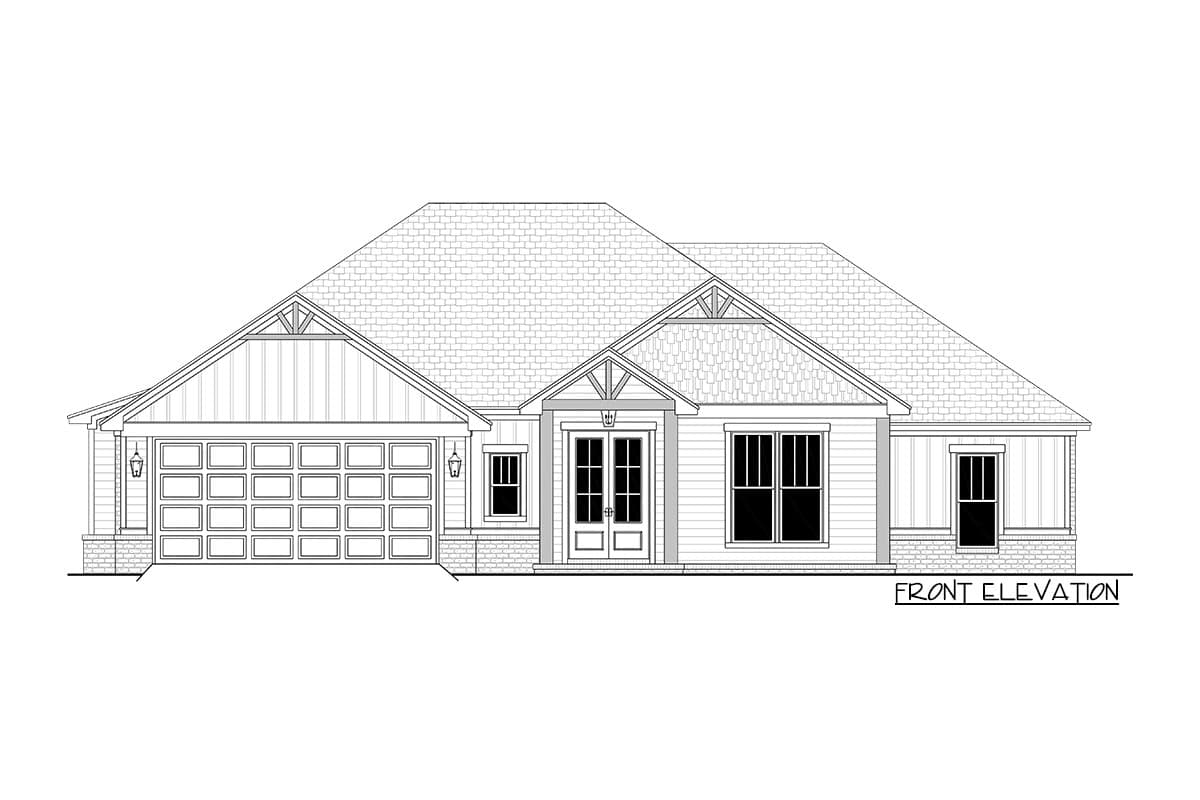

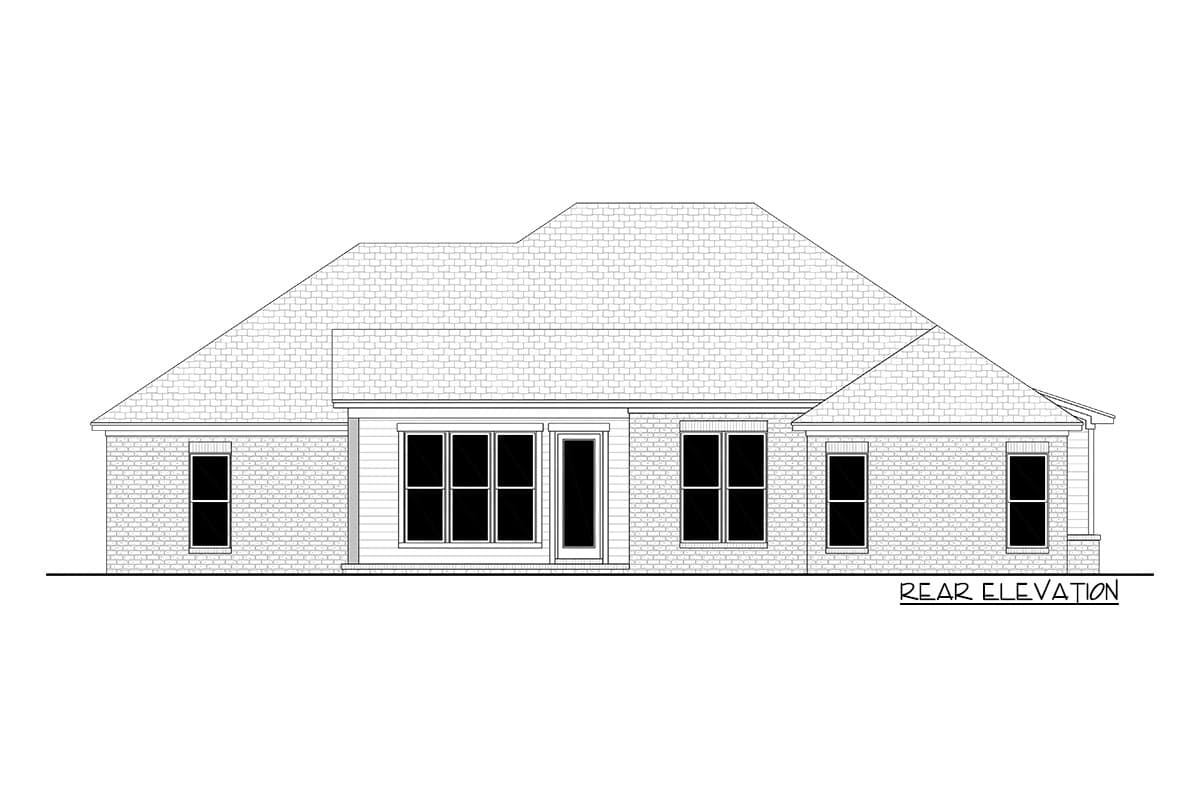

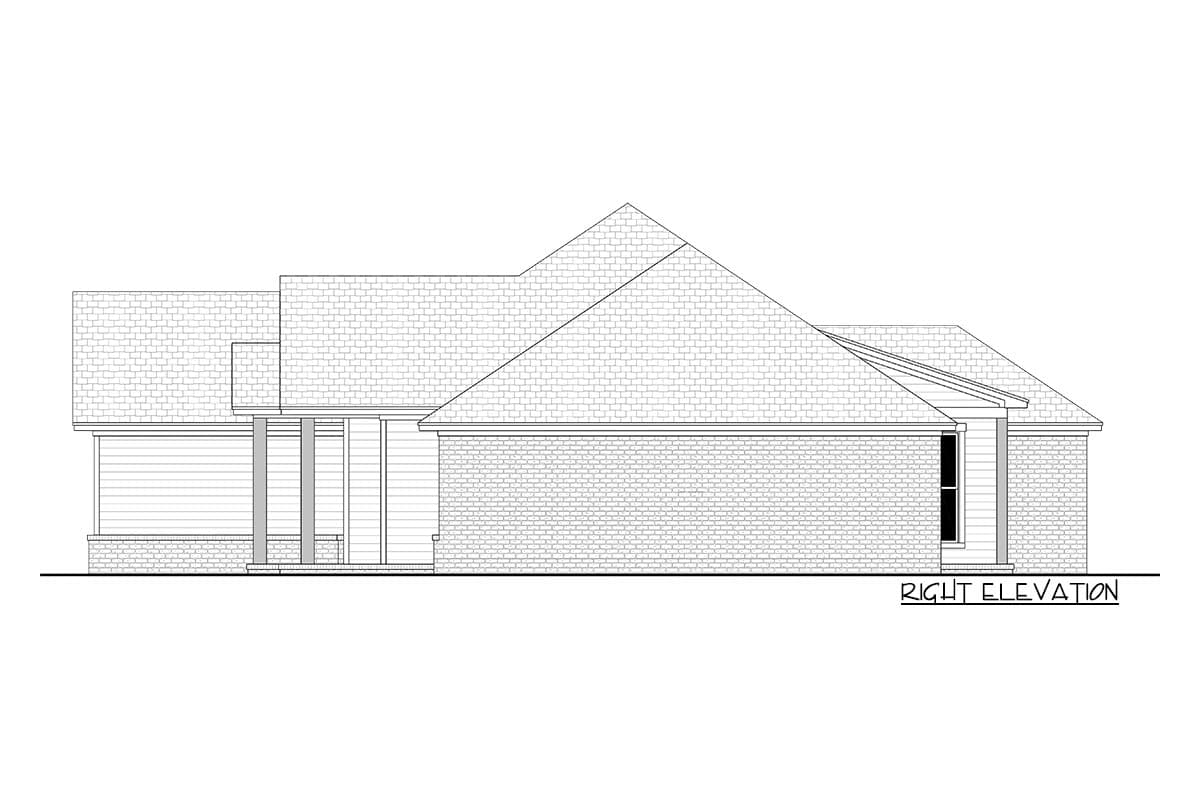

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

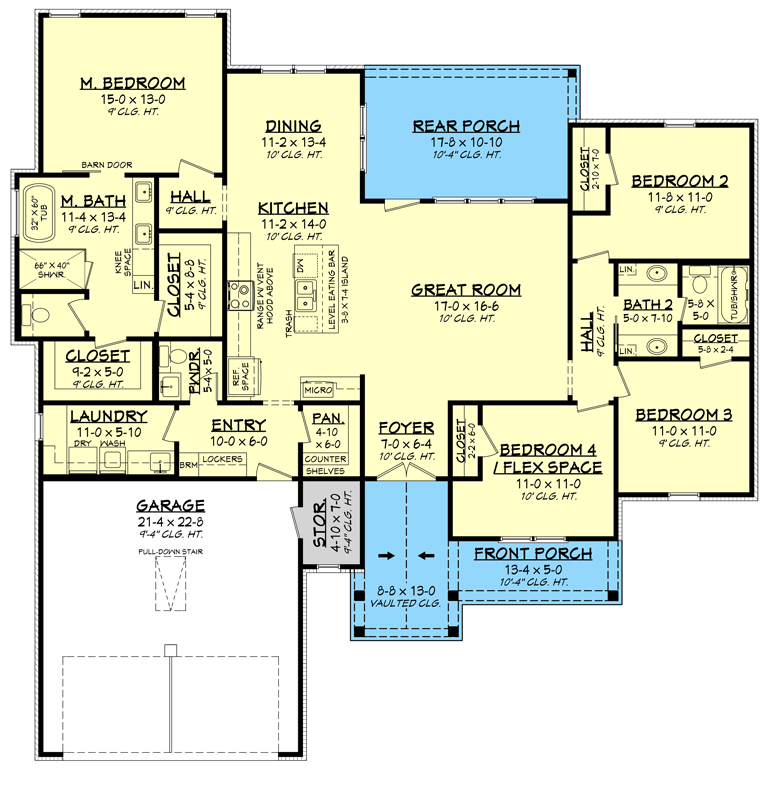

4-Bed Country Craftsman House Plan with Flex Room - 51910HZ floor plan - Main Level

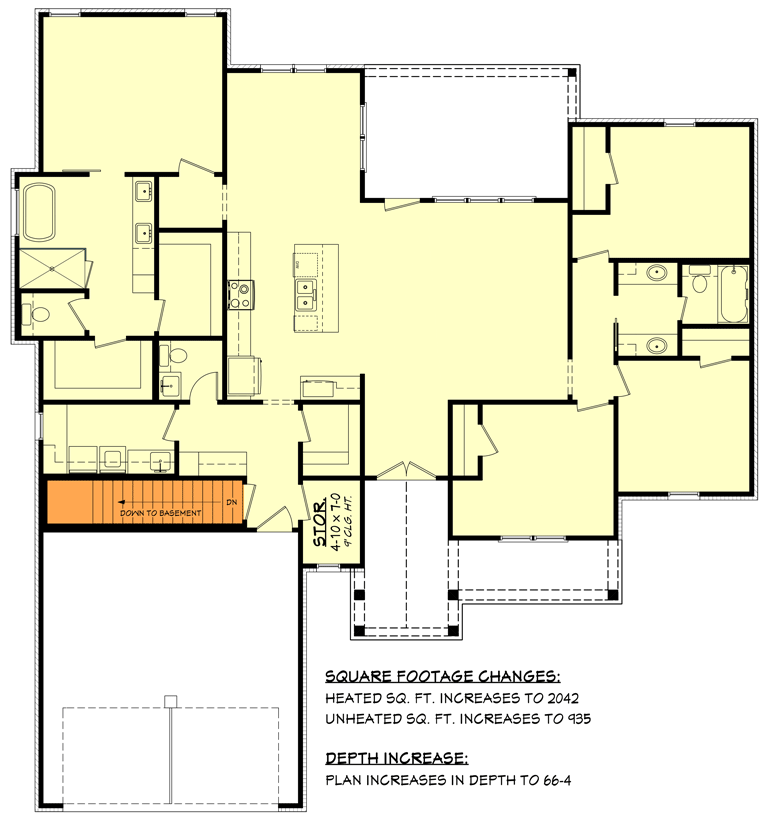

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Country Craftsman House Plan with Flex Room - 51910HZ floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,982 sq. ft.
  • 1st Floor: 1,982 sq. ft.
  • Storage: 38 sq. ft.
  • Porch, Combined: 356 sq. ft.
  • Porch, Rear: 187 sq. ft.
  • Porch, Front: 169 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 8"
  • Depth: 62' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Bedroom 4 Flat 11' 0" 11' 0" 10' 0"
Great Room Flat 17' 0" 16' 6" 10' 0"
Kitchen Flat 11' 2" 14' 0" 10' 0"
Dinette Flat 11' 2" 13' 4" 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed Country Craftsman House Plan with Flex Room

  • 1,982

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,245
  • 5 Sets +PDF Single-Build $1,495
  • PDF - Unlimited Build $1,945
  • CAD + PDF - Unlimited Build $2,245
  • View all purchase option online

About This Plan

  • Timber-framed gables decorate the exterior of this 4-bedroom Country Craftsman house plan that delivers a flex space that can be used as a bedroom, office, or study.
  • A trio of windows in the great room overlooks the rear porch and the seamless flow into the kitchen helps to unite the primary gathering spaces in this home.
  • Retreat to the master bedroom for peace and quiet and discover a barn door that leads to the 5-fixture bathroom with two walk-in closets.
  • The mudroom's built-in lockers serves as a drop zone and is surrounded by a walk-in pantry, powder bath, and laundry room.
  • Related Plans: Get similar layouts with house plans 51905HZ (2,092 sq.ft.), 51893HZ (1,828 sq.ft.), 51782HZ (2,053 sq.ft.)

Floor Plans

  • Main Level

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,982 sq. ft.
  • 1st Floor: 1,982 sq. ft.
  • Storage: 38 sq. ft.
  • Porch, Combined: 356 sq. ft.
  • Porch, Rear: 187 sq. ft.
  • Porch, Front: 169 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 8"
  • Depth: 62' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
