Plan 51864HZ One-Story New American House Plan with Home Office and Outdoor Kitchen

2,243 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

One-Story New American House Plan with Home Office and Outdoor Kitchen

Plan 51864HZ

  • 2,243

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

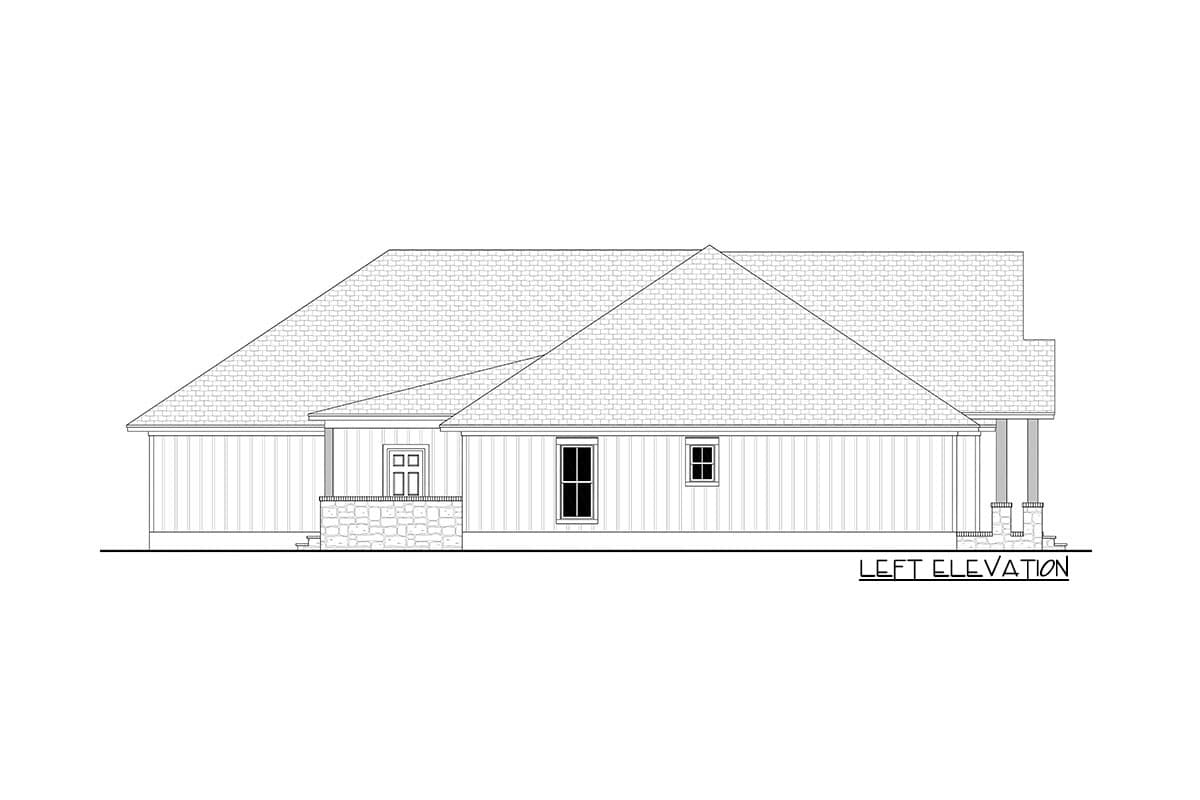

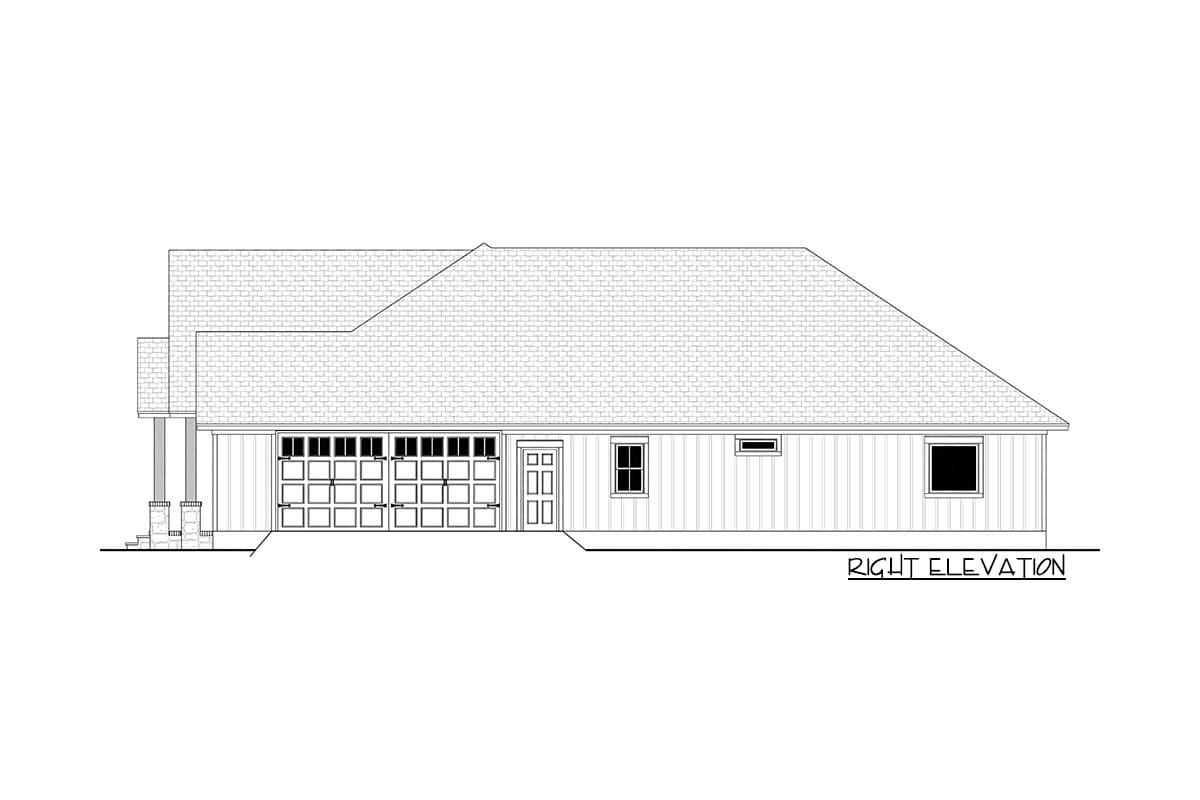

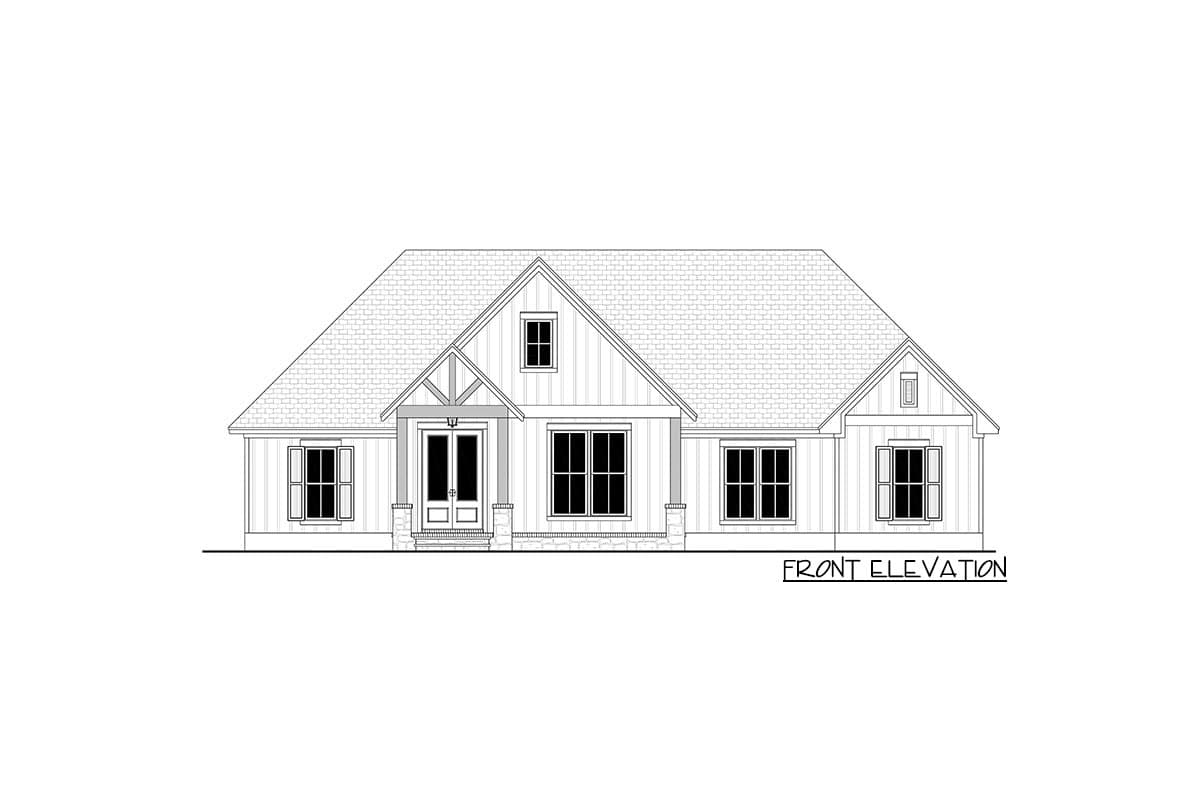

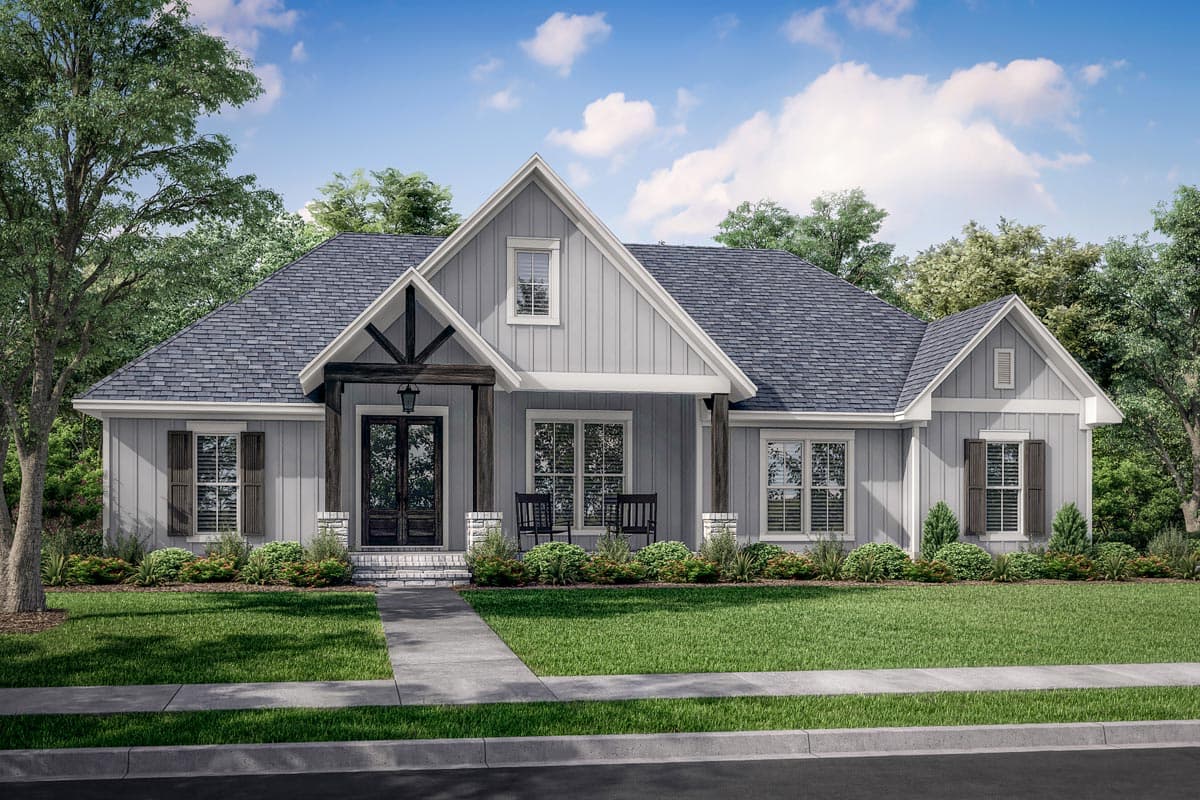

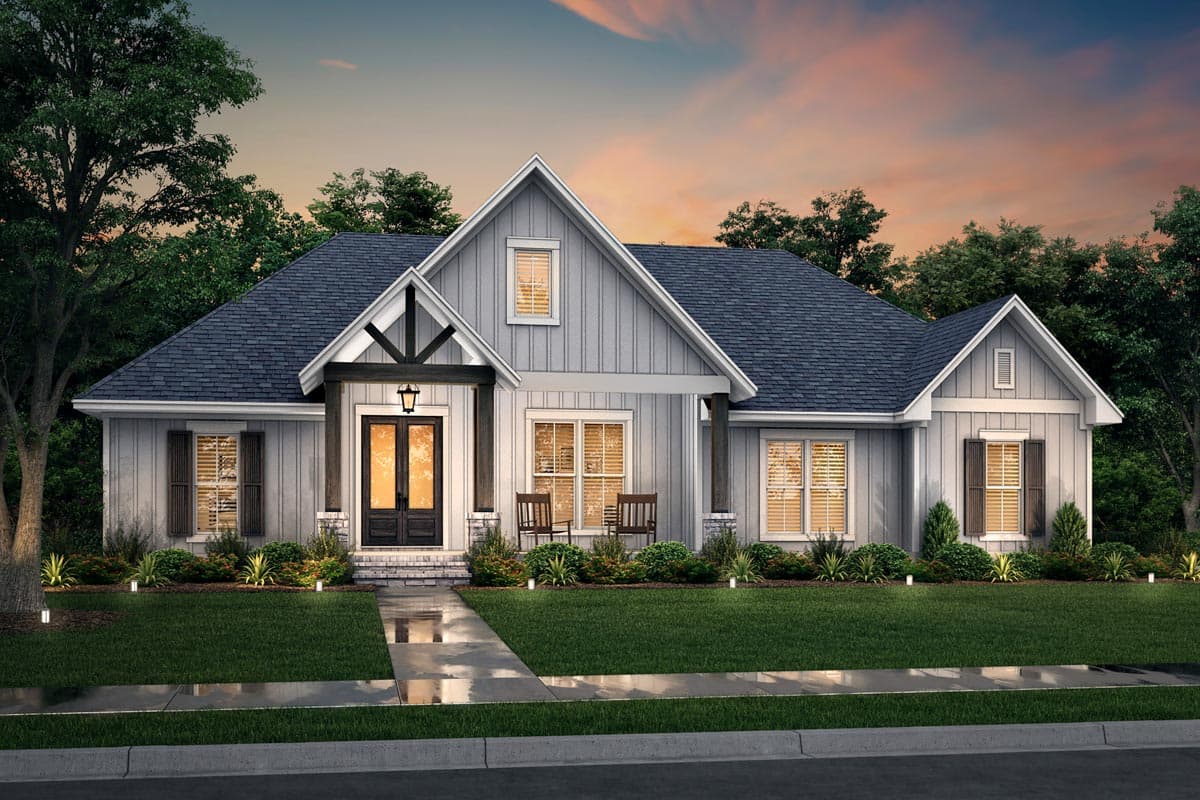

  • An 10'4"-deep front porch welcomes you to this country Craftsman house plan with a split bedroom layout. A board and batten exterior with timber accents give it great curb appeal.
  • French doors open to the vaulted great room. A fireplace on the right wall is flanked by built-ins and the entire space is open to the kitchen and dining, each with 10' flat ceilings. The kitchen has an island (5'6" by 7'10") with an eating bar and a large walk-in pantry (4'2" by 7'6") with shelves and a counter to help keep things organized.

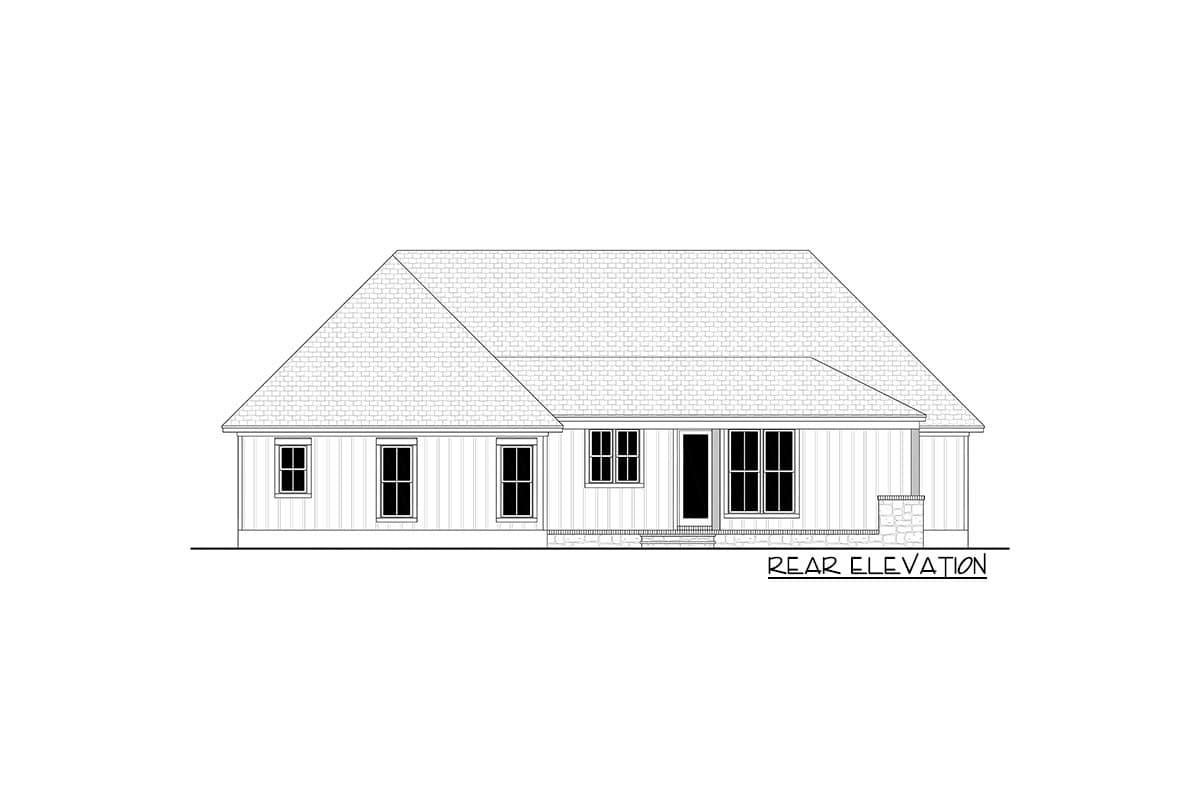

  • A single door on the back wall takes you to the rear porch with an optional outdoor kitchen. A door opens to the hallway by the home office.
  • The main suite has a barn door that hides the bathroom from the bedroom. A large walk-in closet has direct access to the laundry room. Two bedrooms across the home share a bath.
  • If you choose one of the basement options, the stairs run left to right just inside the home from the garage entrance.
  • Related Plan: Get a version with a bonus room with house plan 51796HZ.

This plan has 12 pages as follows:


Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross section & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

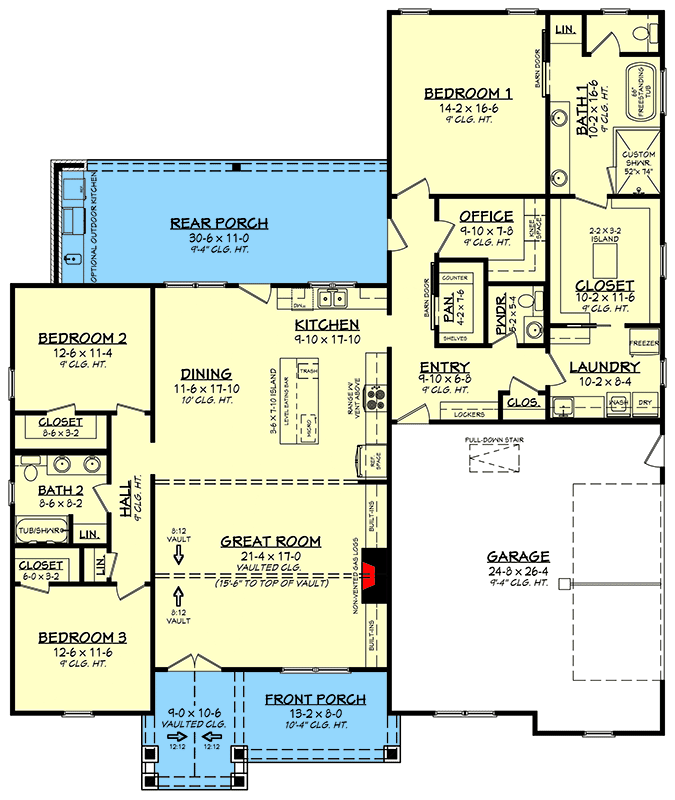

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-Story New American House Plan with Home Office and Outdoor Kitchen - 51864HZ floor plan - Main Level

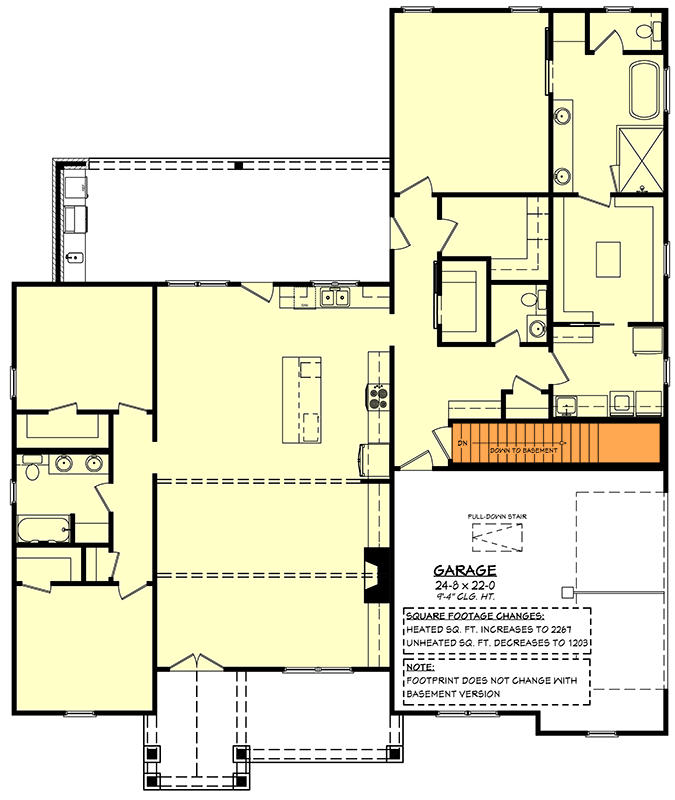

Main Level - Basement Stairs Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-Story New American House Plan with Home Office and Outdoor Kitchen - 51864HZ floor plan - Main Level - Basement Stairs Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,243 sq. ft.
  • 1st Floor: 2,243 sq. ft.
  • Porch, Rear: 336 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 71' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 690 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

One-Story New American House Plan with Home Office and Outdoor Kitchen

  • 2,243

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets +PDF Single-Build $1,545
  • PDF - Unlimited Build $1,995
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • An 10'4"-deep front porch welcomes you to this country Craftsman house plan with a split bedroom layout. A board and batten exterior with timber accents give it great curb appeal.
  • French doors open to the vaulted great room. A fireplace on the right wall is flanked by built-ins and the entire space is open to the kitchen and dining, each with 10' flat ceilings. The kitchen has an island (5'6" by 7'10") with an eating bar and a large walk-in pantry (4'2" by 7'6") with shelves and a counter to help keep things organized.
  • A single door on the back wall takes you to the rear porch with an optional outdoor kitchen. A door opens to the hallway by the home office.
  • The main suite has a barn door that hides the bathroom from the bedroom. A large walk-in closet has direct access to the laundry room. Two bedrooms across the home share a bath.
  • If you choose one of the basement options, the stairs run left to right just inside the home from the garage entrance.
  • Related Plan: Get a version with a bonus room with house plan 51796HZ.

Floor Plans

  • Main Level

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,243 sq. ft.
  • 1st Floor: 2,243 sq. ft.
  • Porch, Rear: 336 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 71' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 690 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 51864HZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/51864HZ
|
