Plan 720058DA One-story New American House Plan with Pocket Home Office and a Dog Room

One-story New American House Plan with Pocket Home Office and a Dog Room

Plan 720058DA

  • 2,426

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This one-story New American house plan has Craftsman charm and a great blend of materials on the facade including shingles, board and batten, stone and timbers. A vaulted covered entry welcomes you to the front door.
  • To the right of the foyer is a comfortable guest room with a full bathroom steps away. Down the entry hallway, pocket doors separate off a small pocket office ideal for working from home a couple of days a week or space for homework.
  • The great room fills the back of the floor plan and is richly windowed. A double sliding glass door opens the room up to the outdoors and large covered deck with outdoor fireplace and kitchen.
  • The owners' suite fills the back, right side of the home. Its vaulted ceilings give the space a grand feeling along with the nicely appointed private bathroom.
  • A unique feature of this floor plan is the dog room complete with shower and space for beds. This room connects directly to the owners' suite walk-in closet or utility room.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

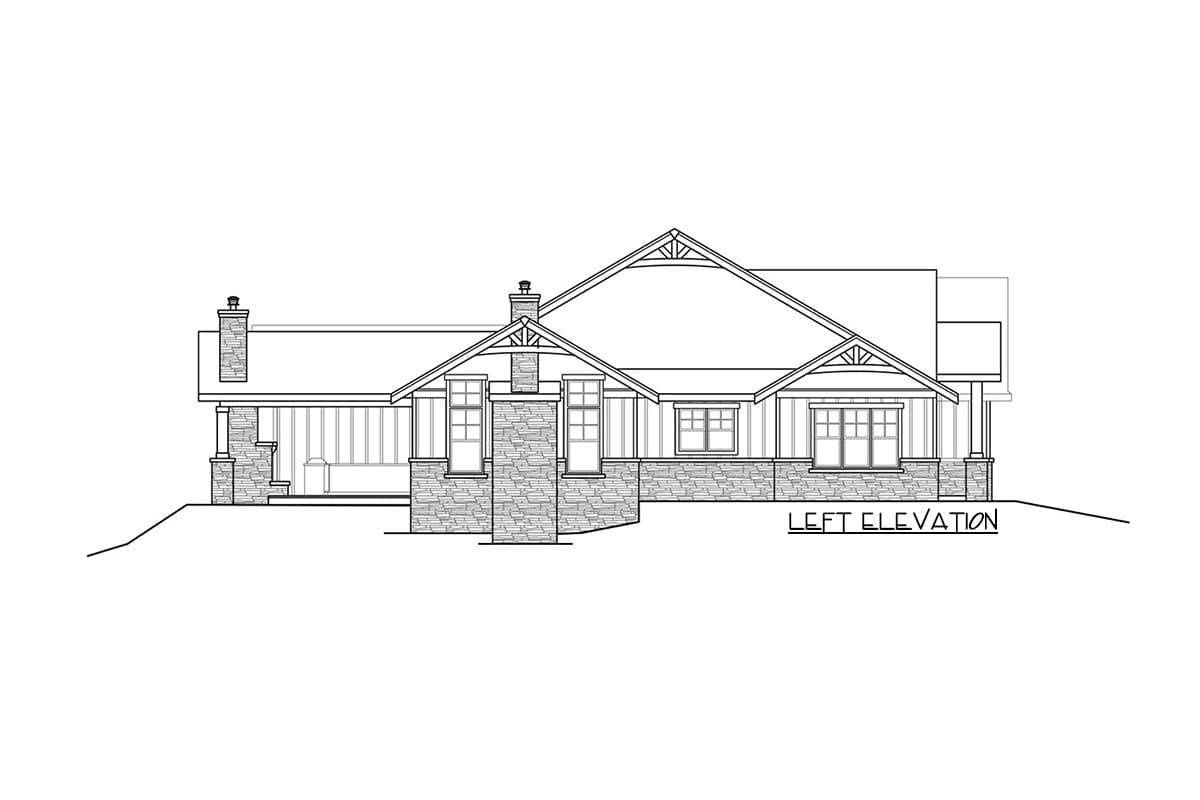

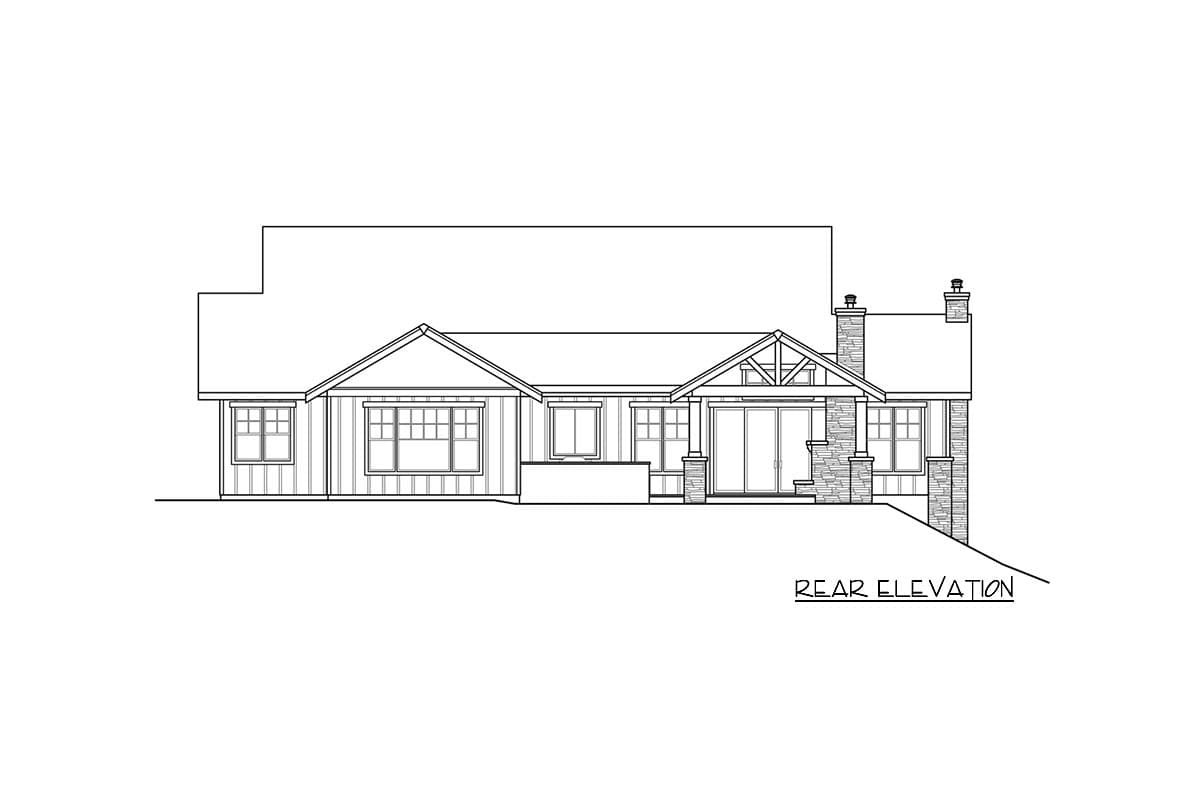

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

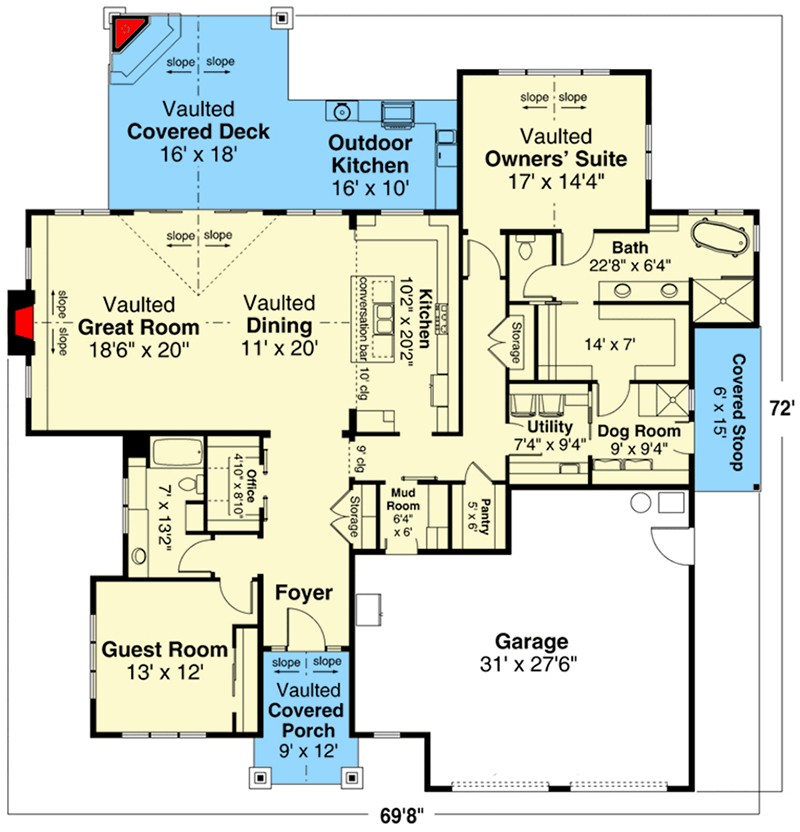

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
One-story New American House Plan with Pocket Home Office and a Dog Room - 720058DA floor plan - Main Level

Plan details

One-story New American House Plan with Pocket Home Office and a Dog Room

  • 2,426

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • This one-story New American house plan has Craftsman charm and a great blend of materials on the facade including shingles, board and batten, stone and timbers. A vaulted covered entry welcomes you to the front door.
  • To the right of the foyer is a comfortable guest room with a full bathroom steps away. Down the entry hallway, pocket doors separate off a small pocket office ideal for working from home a couple of days a week or space for homework.
  • The great room fills the back of the floor plan and is richly windowed. A double sliding glass door opens the room up to the outdoors and large covered deck with outdoor fireplace and kitchen.
  • The owners' suite fills the back, right side of the home. Its vaulted ceilings give the space a grand feeling along with the nicely appointed private bathroom.
  • A unique feature of this floor plan is the dog room complete with shower and space for beds. This room connects directly to the owners' suite walk-in closet or utility room.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,426 sq. ft.
  • 1st Floor: 2,426 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 69' 8"
  • Depth: 72' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 766 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss
