Plan 710386BTZ
One-story New American House Plan with Upstairs Expansion
Heated S.F.
2,042
Beds
3-4
Baths
2.5 - 3.5
Stories
1-2
Cars
2
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS

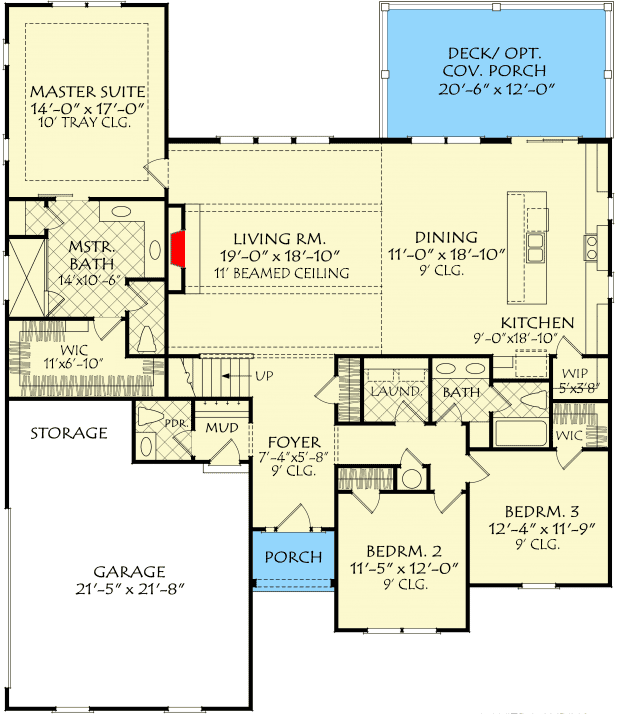

Main Level
Reverse Floor Plan
One-story New American House Plan with Upstairs Expansion - 710386BTZ floor plan - Main Level

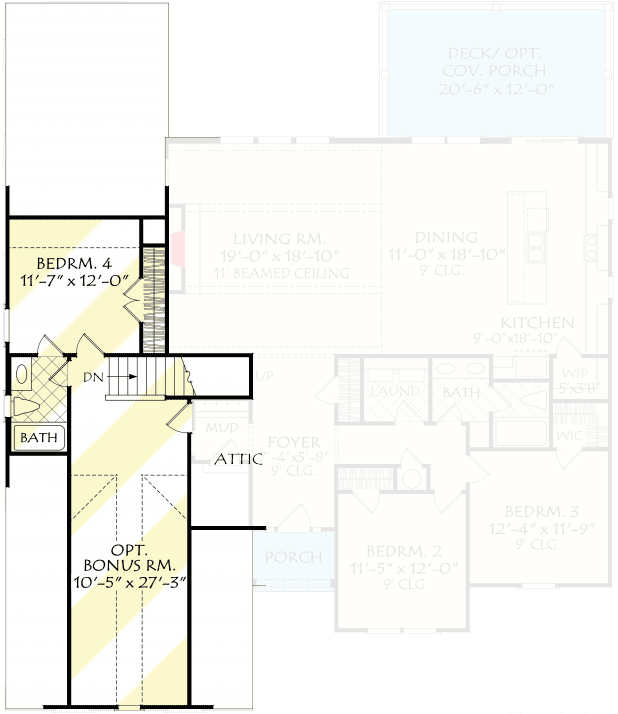

Optional Second Level
Reverse Floor Plan
One-story New American House Plan with Upstairs Expansion - 710386BTZ floor plan - Optional Second Level
Optional Master Bath Layout
Reverse Floor Plan
One-story New American House Plan with Upstairs Expansion - 710386BTZ floor plan - Optional Master Bath Layout
Plan Details

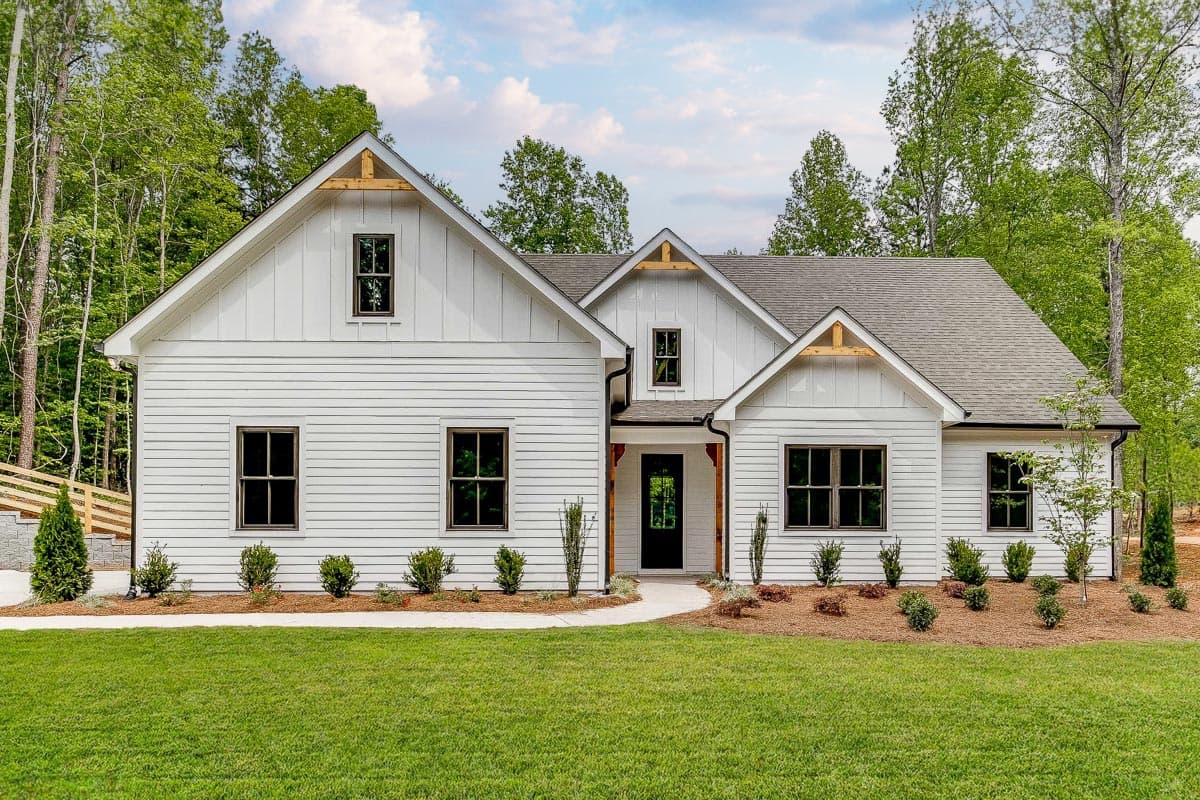

  • Multiple gables, mixed use of siding and dark stained accents accentuate the facade of this one-story New American house plan. The central gable and covered entry are the focal points of the elevation and provide a warm and inviting feeling to the home.
  • The main floor is open concept, light filled and spacious. The living, dining and kitchen are connected and open and anchor design. A warming fireplace and a large window grouping accent the room. The kitchen is fully equipped and has a large island, and will surely be the gathering point.
  • The master suite is secluded and private. It features a tray ceiling and a rear view. The master bath has a large walk-in closet and large shower. There are two additional bedrooms and a compartmentalized hall bath.
  • The upper level is optional and includes an additional bedroom, bathroom and multi-purpose bonus room over the garage.
What's Included

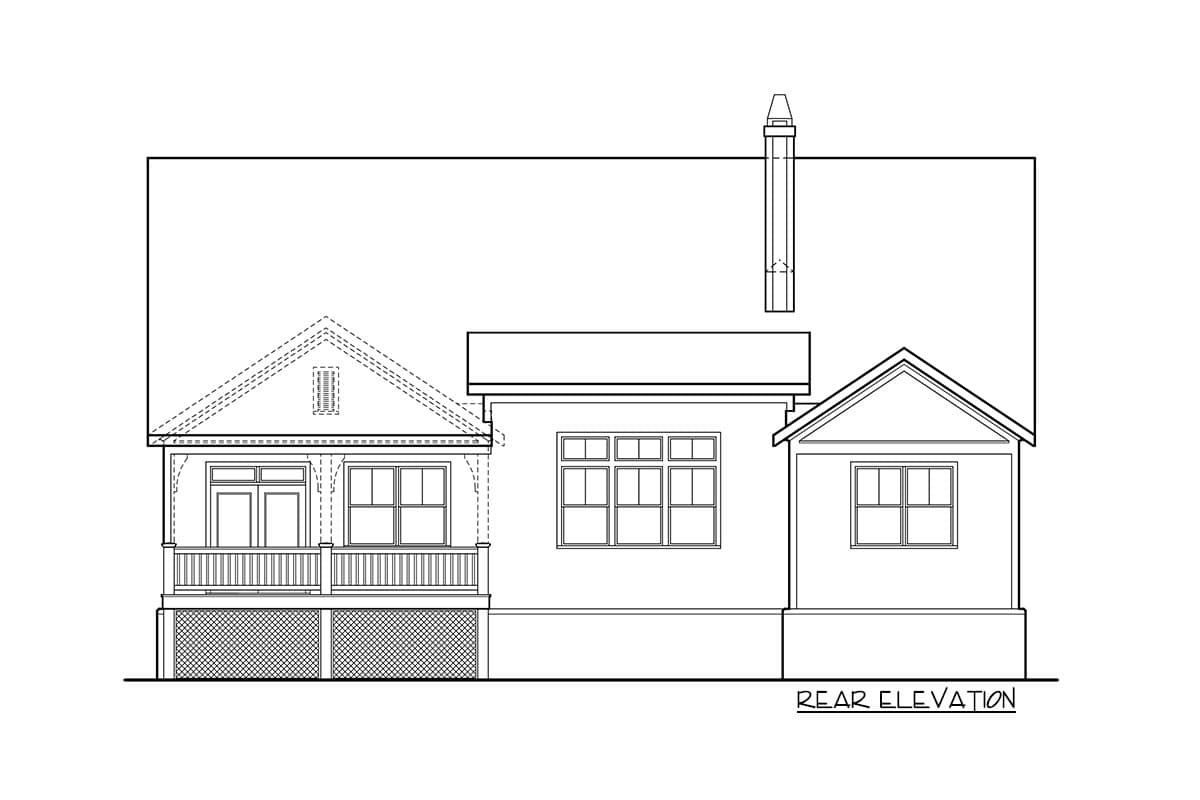

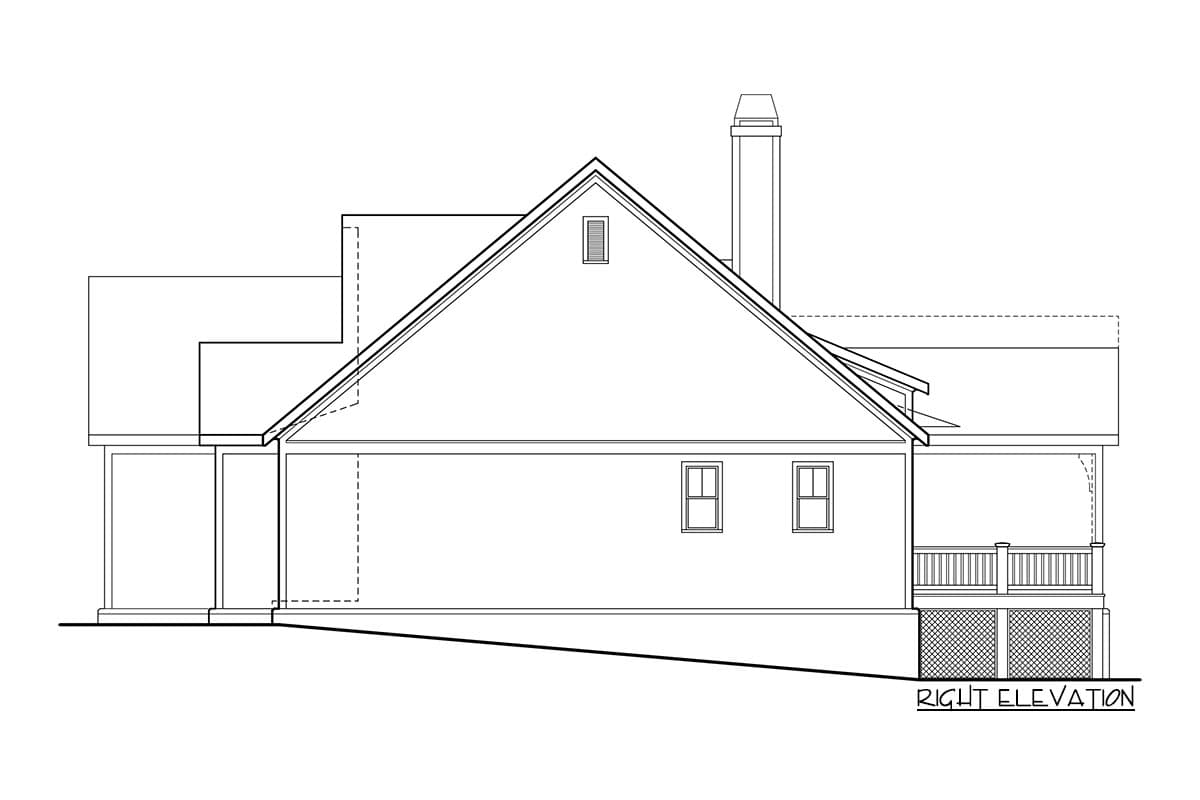

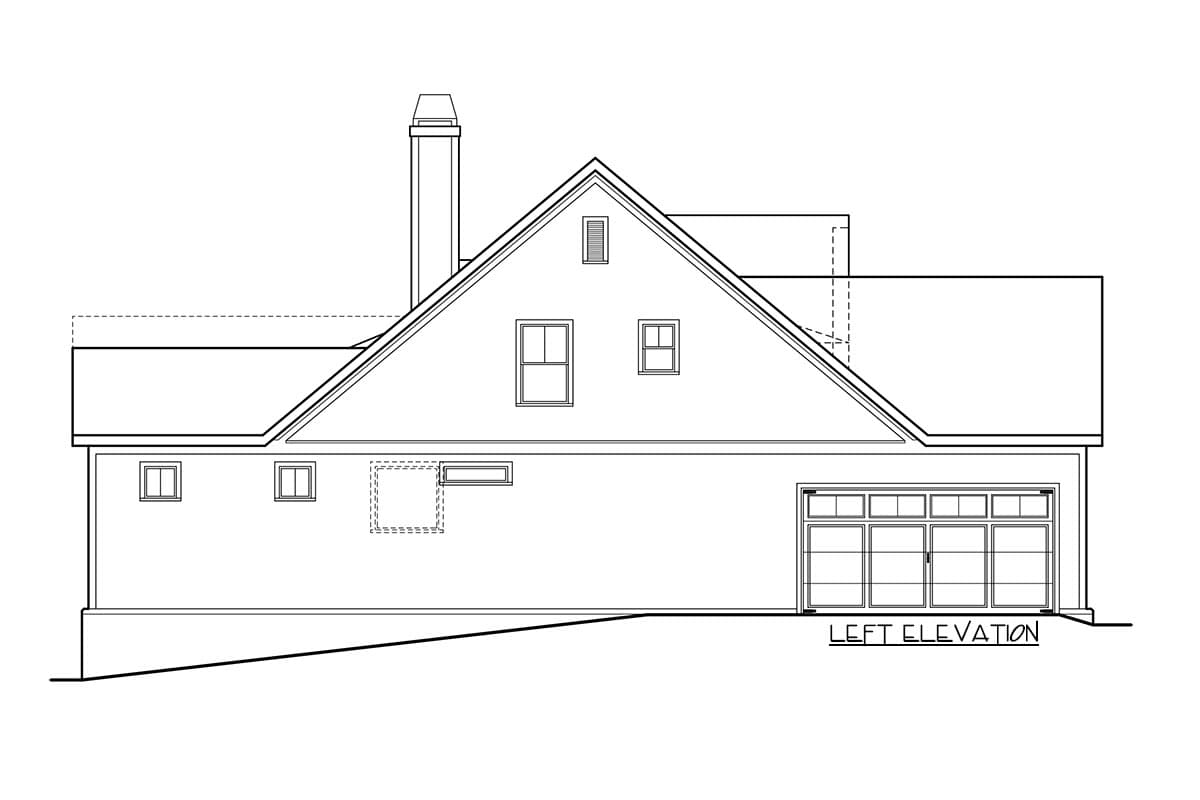

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-story New American House Plan with Upstairs Expansion

  • 2,042

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Second Level

  • Optional Master Bath Layout

Plan Details

Square Footage Breakdown

  • Total: 2,042 sq. ft.
  • 1st Floor: 2,042 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 63' 0"
  • Max ridge height: 27' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 546 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
