Plan 64521SC

Exclusive

One Story New American House Plan with Vaulted Great Room and Two Covered Patios - 2678 Sq Ft
Heated S.F.
2,678
Beds
2 - 4
Baths
2.5
Stories
1
Cars
3
Tour
Floor Plan

Plan 64521SC

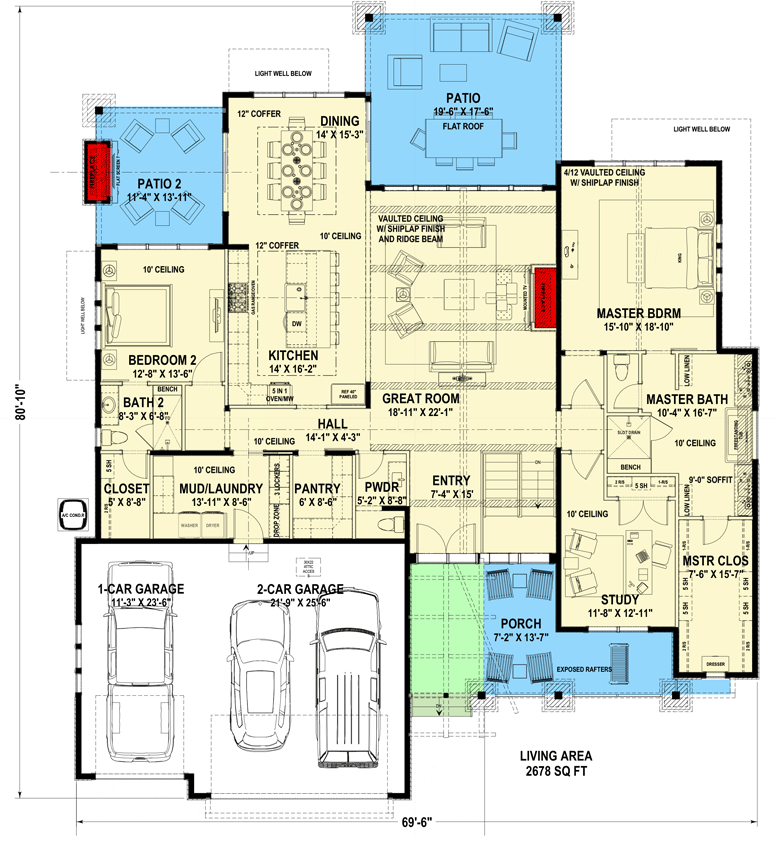

Main Level
slide image 0

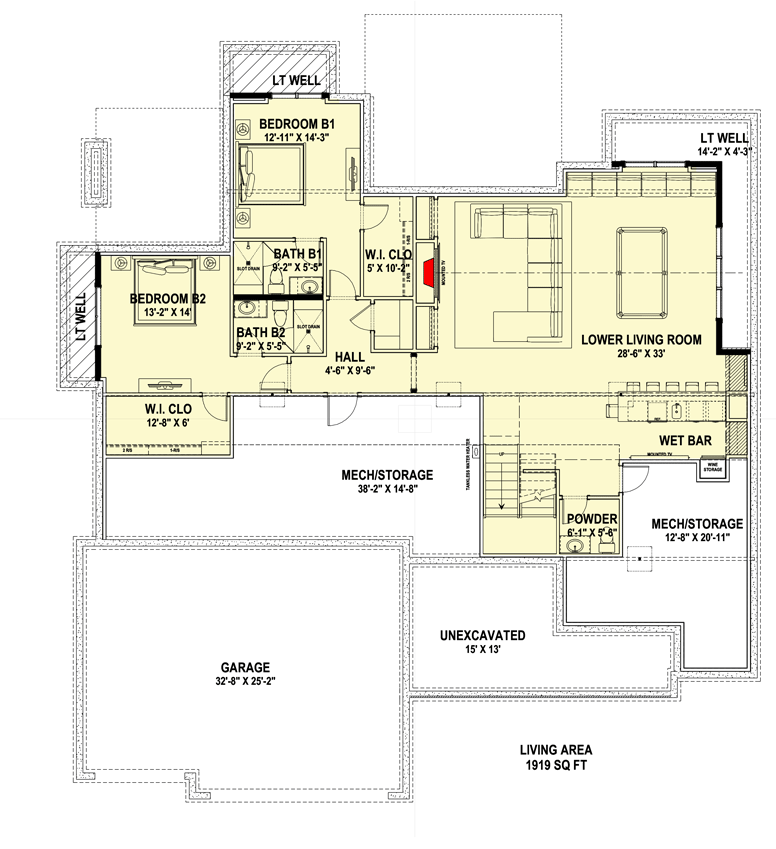

Optional Finished Lower Level
slide image 1

Plan 64521SC

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Optional Finished Lower Level
floor plan image Optional Finished Lower Level
Plan Details
  • This one-story New American house plan has amazing curb appeal with its multiple gabled, mixed material exterior. Deep eaves, decorative brackets and a deep front porch add to the appeal.
  • Step through a pair of French doors and find yourself in the vaulted foyer with your views - and the vault (20' high) - extending into the great room to the back wall. A fireplace is located on the right wall and windows line the back giving you great views.
  • An open floor plan gives you unobstructed views from behind the massive kitchen island to the fireplace and to the dining room as well. Talking dining, you can move your meals outside to one of two covered patios accessible from the dining room.
  • A vaulted ceiling in the master bedroom makes this space feel extra roomy and the 5-fixture bath and deep walk-in closet give you the comforts you'd expect in a high quaolity design.
  • A second bedroom is located across the home and has its own private bathroom and walk-in closet.
  • Rounding out the main floor is a study which gives you a quiet space you can work from home in and the mudroom accessible from the garage entrance.
  • The optional finished lower level gives you two more bedrooms as well as a full bar and entertainment space. There's also plentiful storage.
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

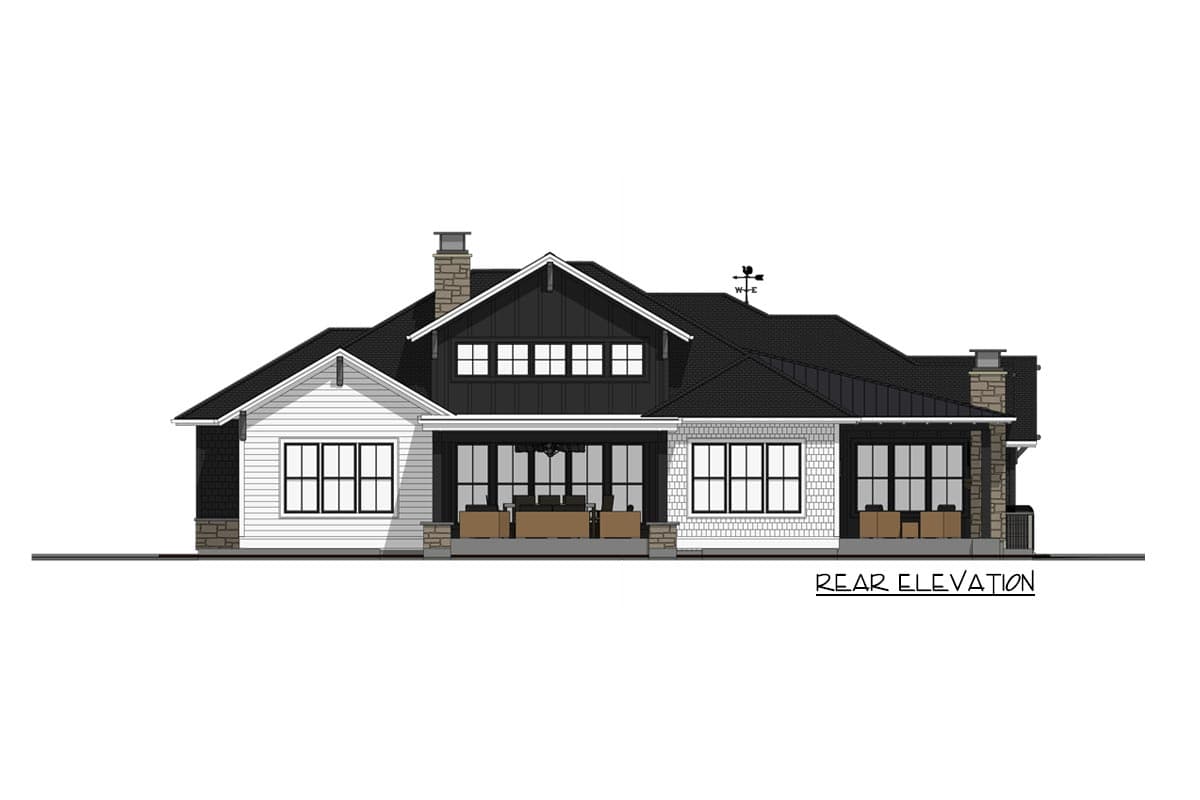

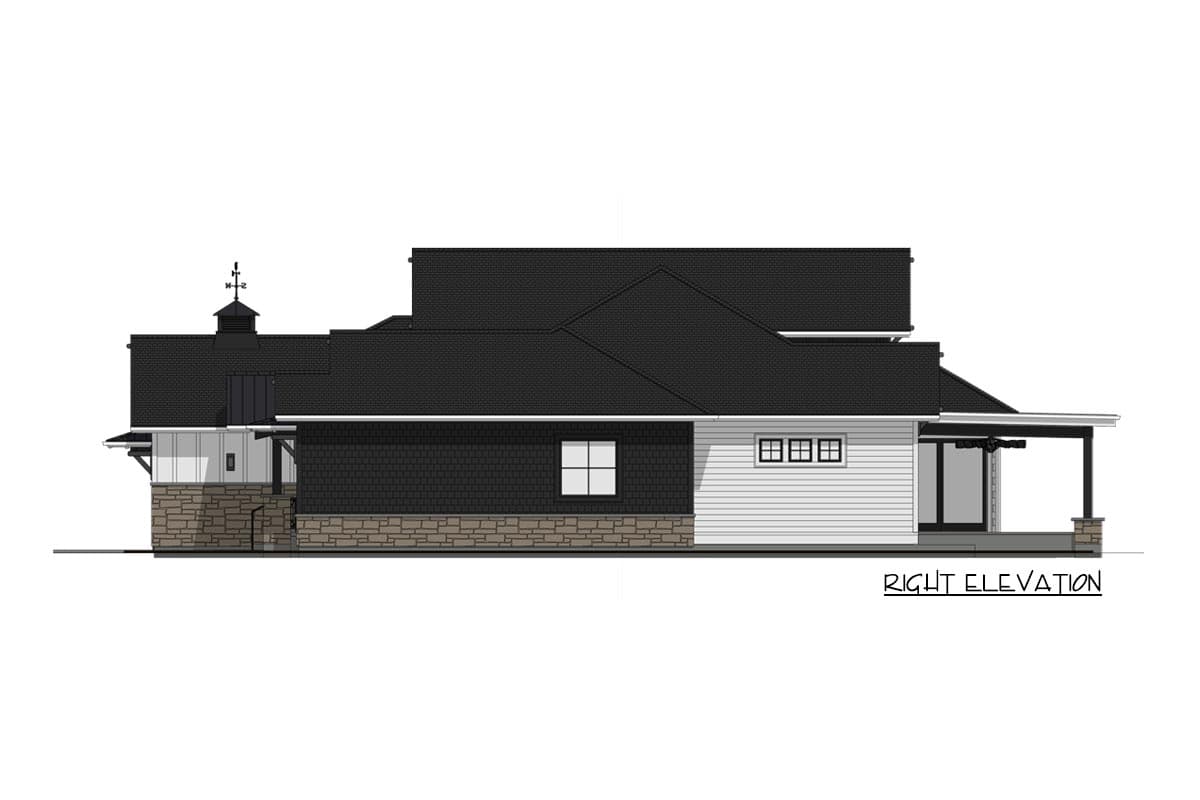

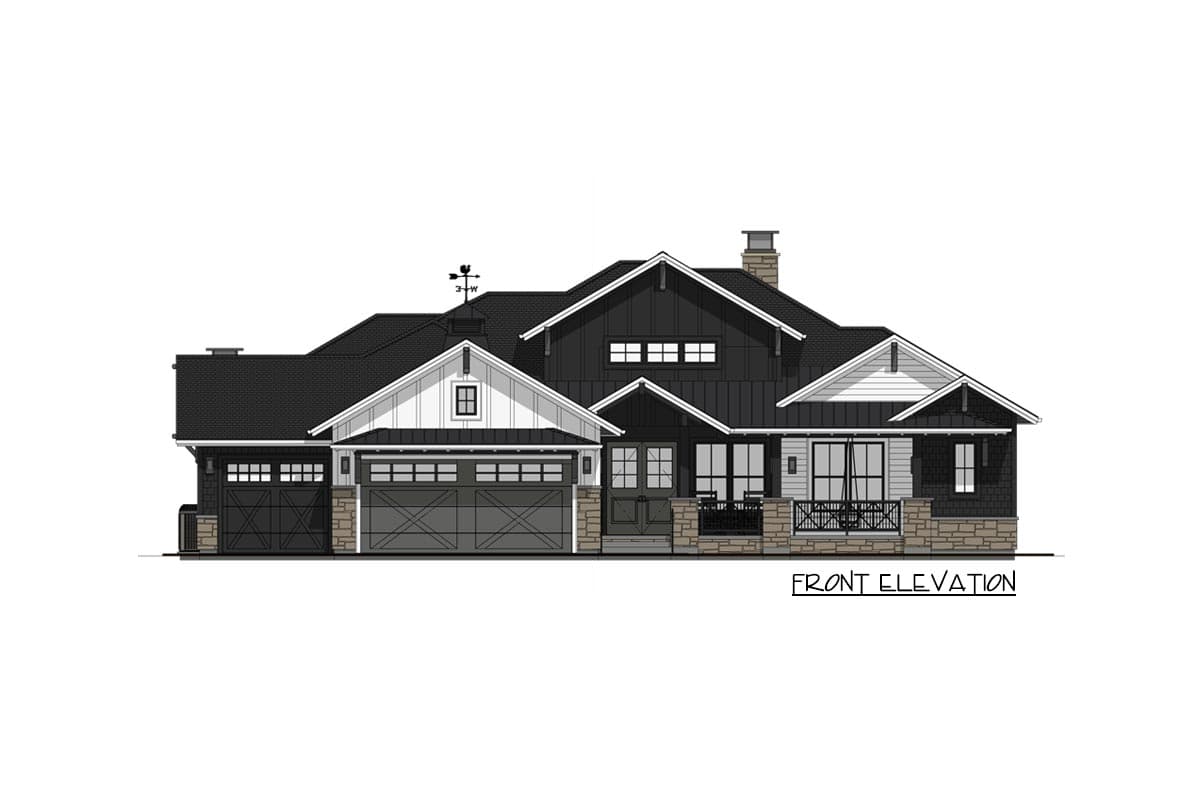

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

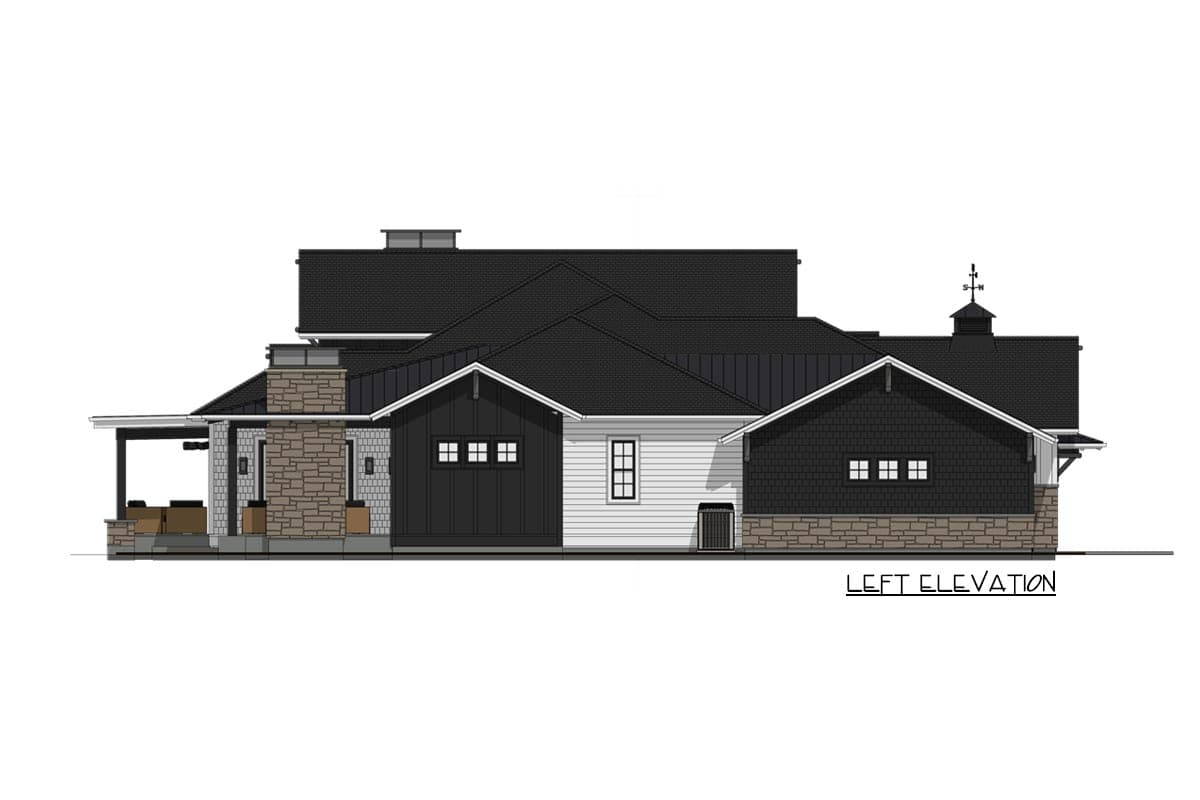

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,678 sq. ft.

1st Floor

2,678 sq. ft.

Basement Unfinished

850 sq. ft.

Optional Lower Level

1,919 sq. ft.

Porch, Front

290 sq. ft.

Porch, Rear

175 sq. ft.

Covered Patio

345 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 6"

Depth

80' 10"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

860 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Framing Type

Stick And Truss

Architectural Style

New American
