One-Story Ranch House Plan with Finished Lower Level - 2651 Sq Ft
Heated S.F.
2,651
Beds
3-4
Baths
3
Stories
1
Flyer
What's Included
Floor Plan
PRINT PLANS

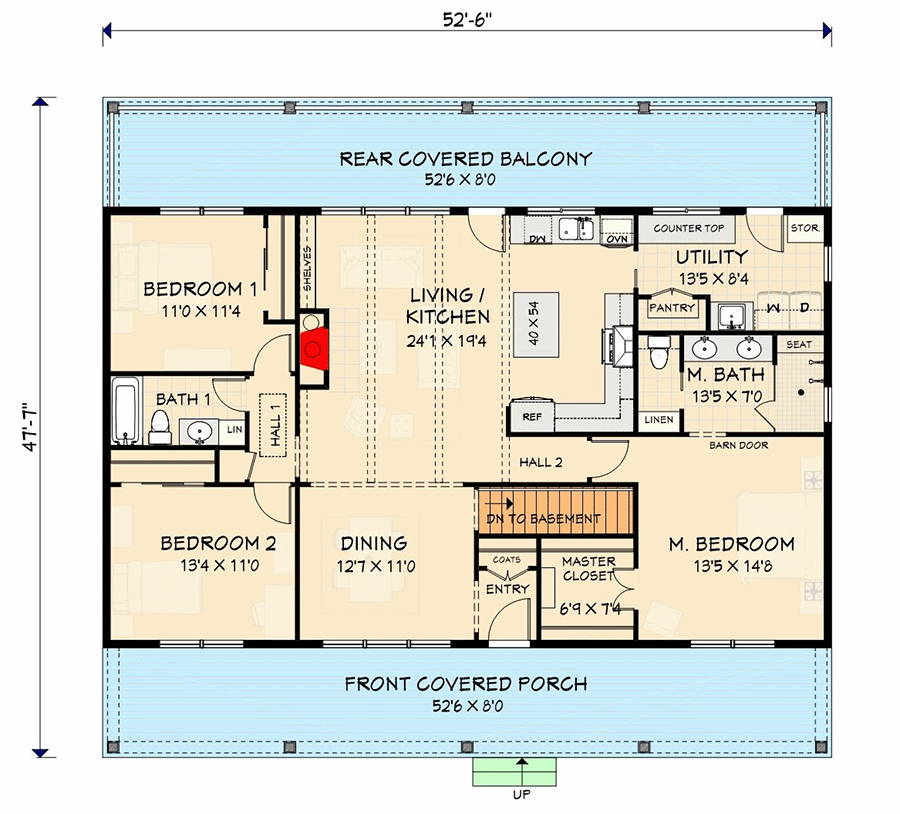

Main Level
Reverse Floor Plan
One-Story Ranch House Plan with Finished Lower Level - 2651 Sq Ft - 28949JJ floor plan - Main Level

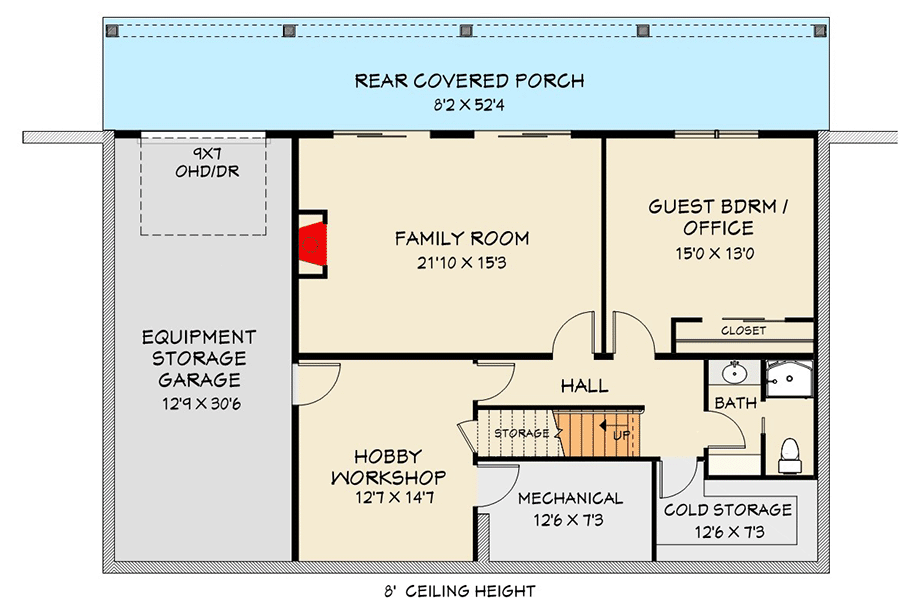

Lower Level - Walkout Foundation
Reverse Floor Plan
One-Story Ranch House Plan with Finished Lower Level - 2651 Sq Ft - 28949JJ floor plan - Lower Level - Walkout Foundation

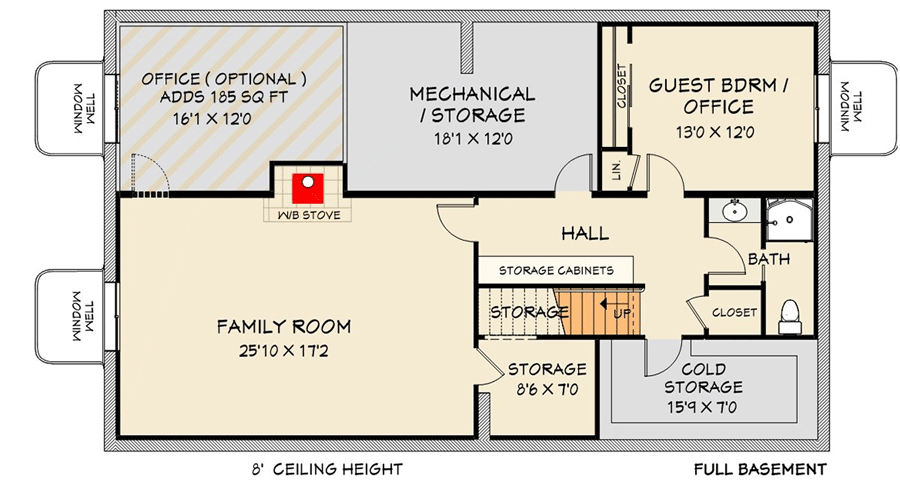

Lower Level - Basement Foundation
Reverse Floor Plan
One-Story Ranch House Plan with Finished Lower Level - 2651 Sq Ft - 28949JJ floor plan - Lower Level - Basement Foundation
Plan Details
  • This one-story ranch house plan gives you 3 beds and 2 baths on the main floor and a flex room and more in the finished lower level. Combined, the home plan delivers 2,651 square feet of heated living.
  • The lower level is configured differently between the basement foundation and the walkout foundation.
  • The full basement foundation offers an optionally finished flexible office space, adding 185 sq ft of additional heated space.
  • Front and back 8'-deep porches span the full width of the home giving you two great fresh air spaces to enjoy.
  • The living, dining and kitchen areas are all combined into one huge room with access to the porch at the center of the back wall.
  • The kitchen has an island with casual seating and a convenient pantry located by the utility room.
  • A split bedroom layout maximizes your privacy. The master suite has a huge walk-in closet. On the other side of the house two bedrooms share a full bathroom.
  • Related Plans: Get smaller versions of this plan on a crawlspace or slab foundation without the basement living area with house plan 28939JJ (1,662 sq. ft.) and add a garage with house plan 28940JJ (1,663 sq. ft.).
What's Included
  • Cover Sheet
  • Fully dimensioned floor plan
  • Elevations
  • Cross Sections/ Garage elevations when available
  • Foundation Plan
  • Roof Plan
  • Lighting layout
  • 3D Interior Drawings
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
