One-Story Transitional House Plan with Open Concept Layout - 2016 Sq Ft
Heated S.F.
2,016
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This one-story Transitional House Plan gives you 4 beds, 2 baths and 2016 square feet of heated living space.
  • An open concept core gives you a family room with fireplace open to the island kitchen and dining area. The back wall looks out across the back porch which is accessible from the family room.
  • The kitchen island's countertop stretches past the cabinetry to provide a spot for casual meals and a walk-in pantry is just steps away.

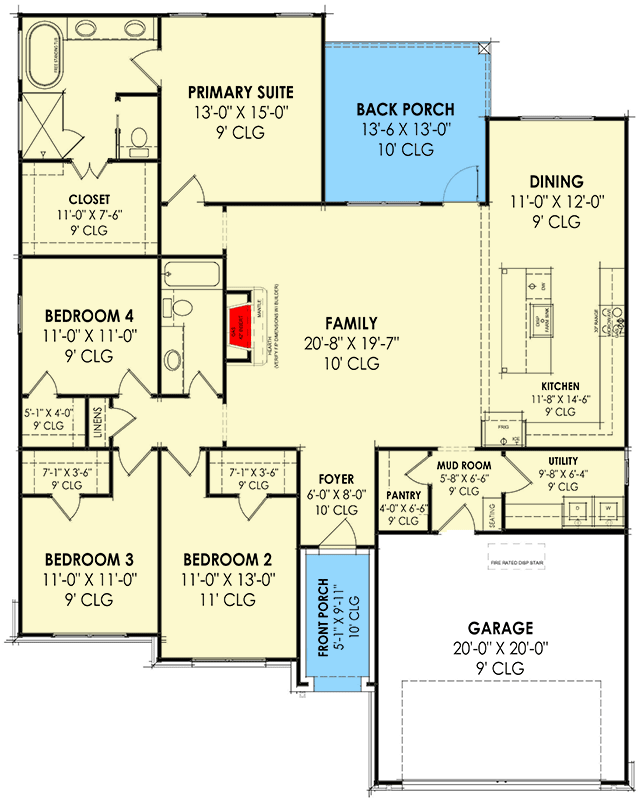

  • Four bedrooms wrap around the left side of the design with the primary suite tucked towards the rear and paired with a 5-fixture bathroom and walk-in closet.
  • Store your outerwear, shoes, and bags in the mudroom which is located next to the double garage and laundry room.
  • Related Plans: Get an alternate exterior with house plans 818089JSS (1,987 sq. ft.) and 818018JSS (1,912 sq. ft.).
What's Included
  • Foundation plan
  • Detailed floorplans
  • Roof plan

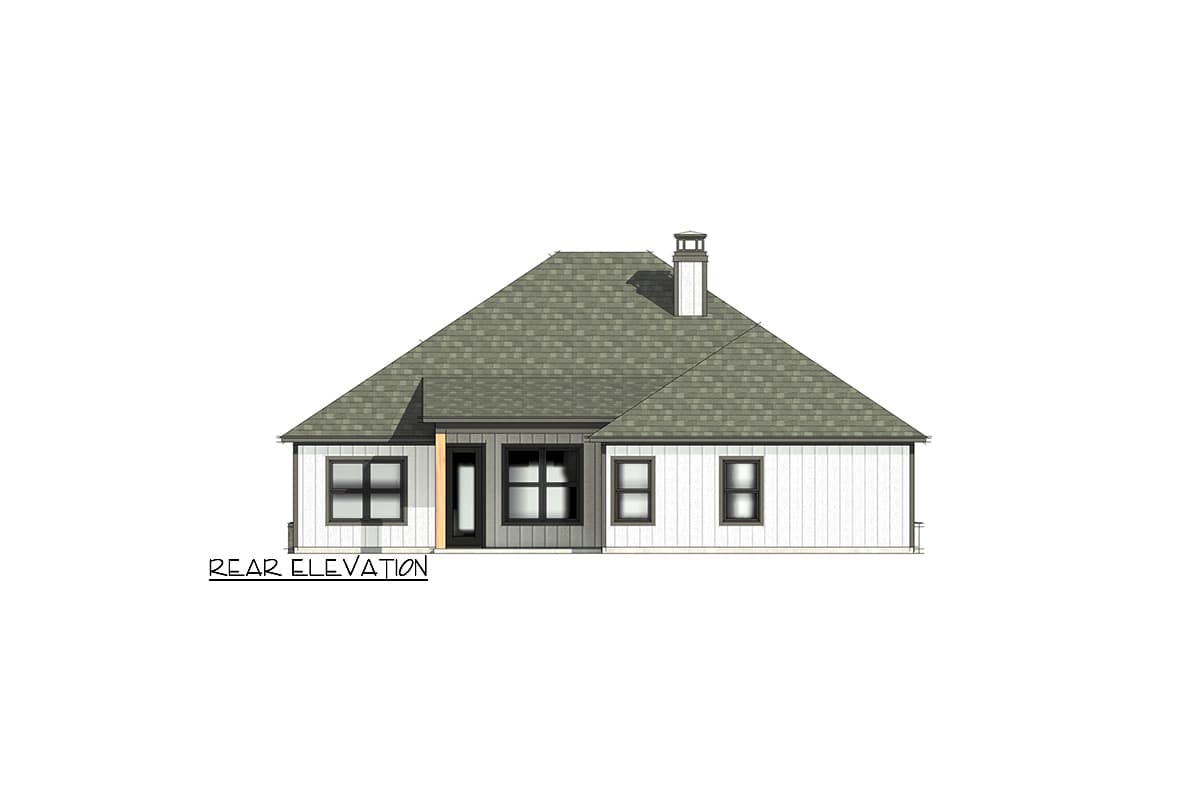

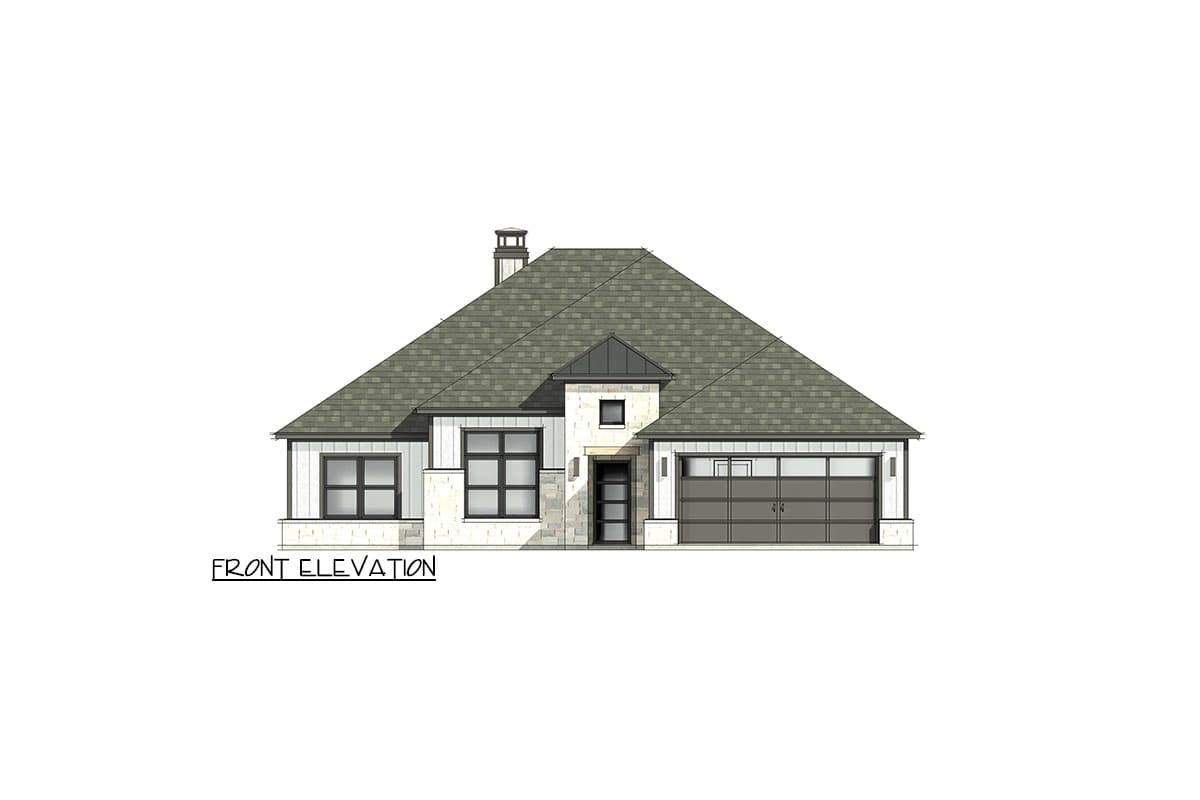

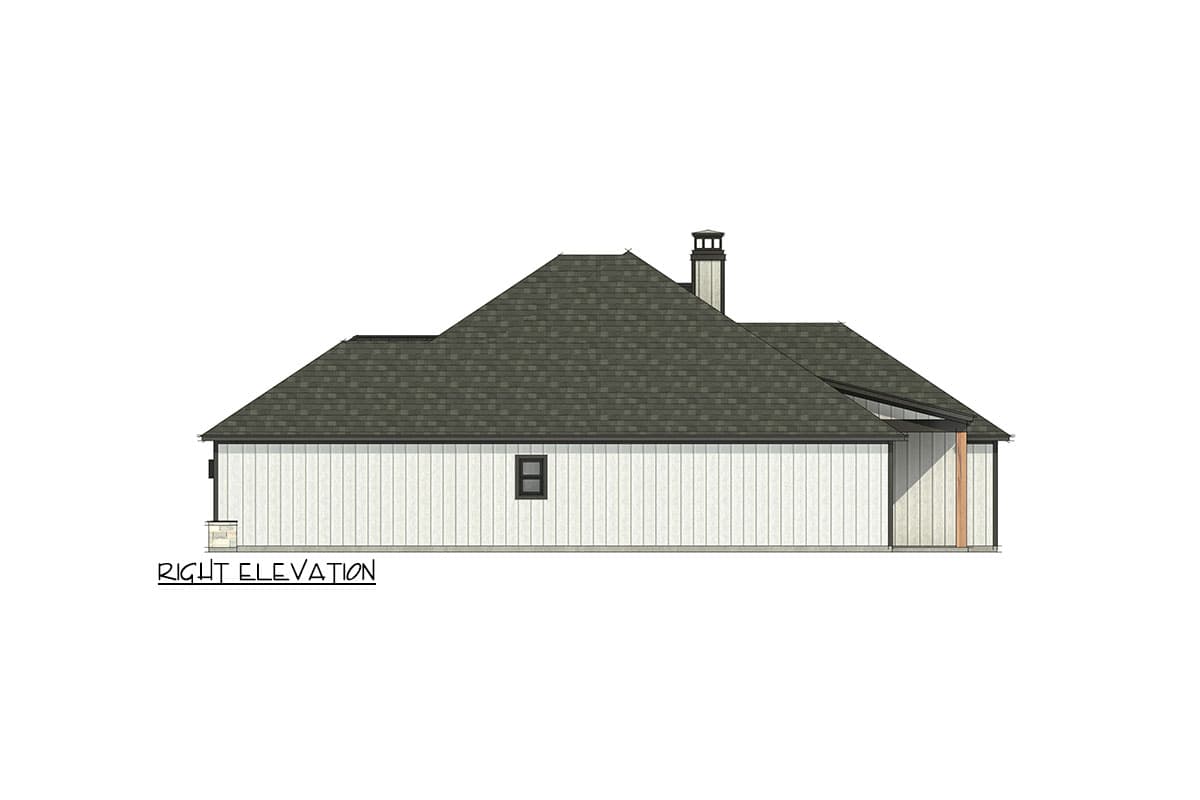

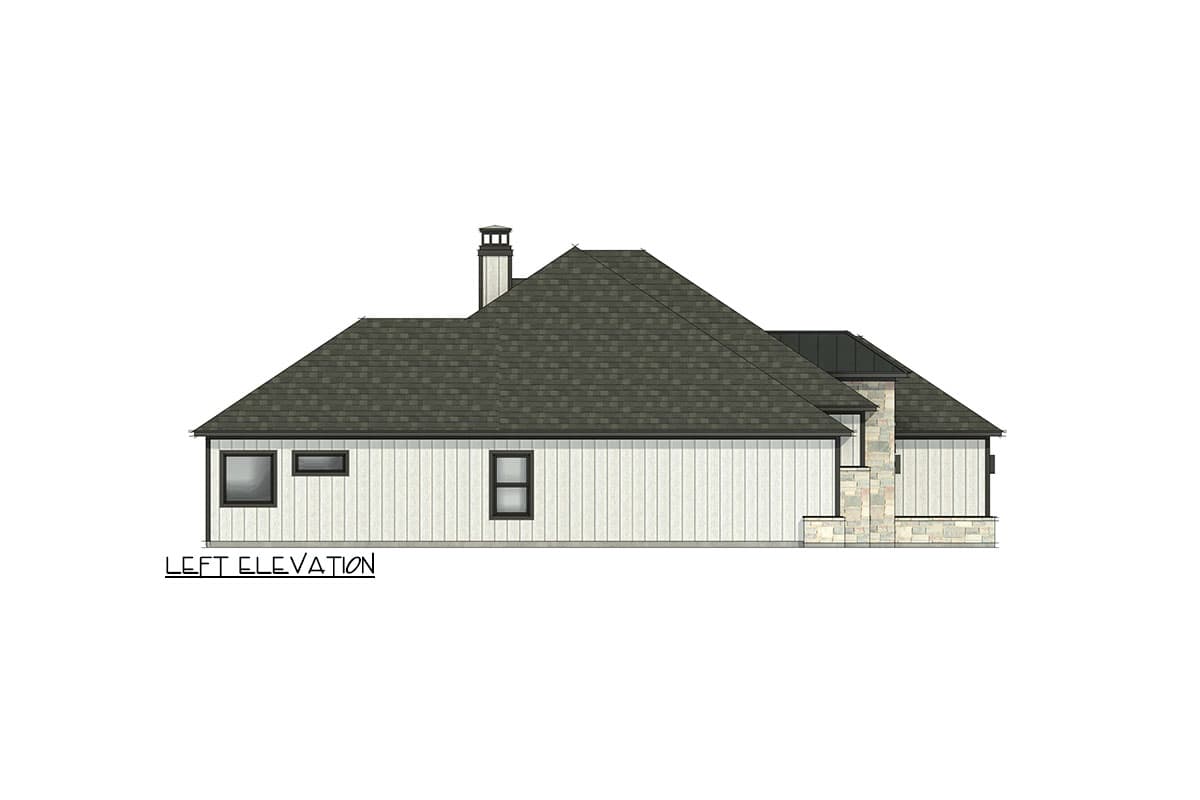

  • Four elevations
  • Electrical schematic
  • Cross section(s)
  • Rafter plan and ceiling joist plans (Beam, joist, and rafters to be sized locally by an engineer or framer)
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

One-Story Transitional House Plan with Open Concept Layout - 2016 Sq Ft

  • 2,016

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,016 sq. ft.
  • 1st Floor: 2,016 sq. ft.

Dimensions

  • Width: 50' 5"
  • Depth: 63' 0"
  • Max ridge height: 23' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 425 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
