Plan 51868HZ
Open 3-Bed New American Farmhouse with 3-Car Garage
Heated S.F.
2,125
Beds
3
Baths
2.5
Stories
1
Cars
3
Tour
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

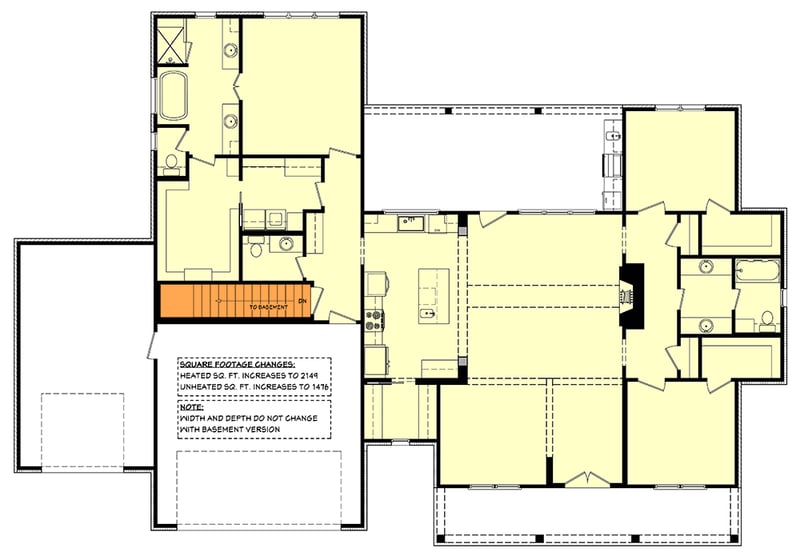

Open 3-Bed New American Farmhouse with 3-Car Garage - 51868HZ floor plan - Main Level

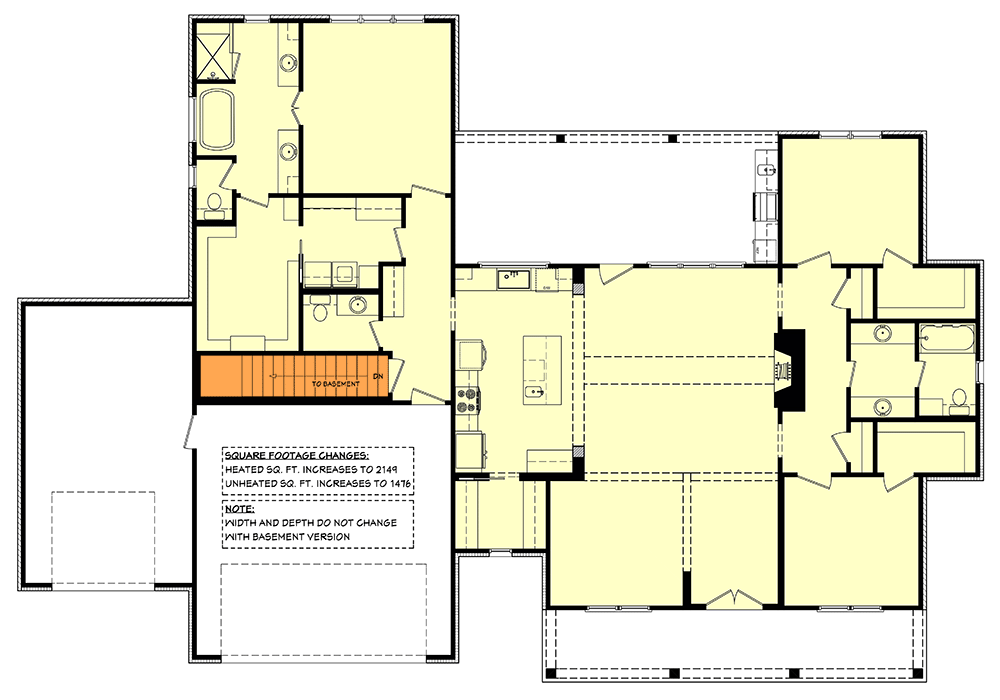

Main Level - Basement Stairs Location
Reverse Floor Plan
Open 3-Bed New American Farmhouse with 3-Car Garage - 51868HZ floor plan - Main Level - Basement Stairs Location
Plan Details

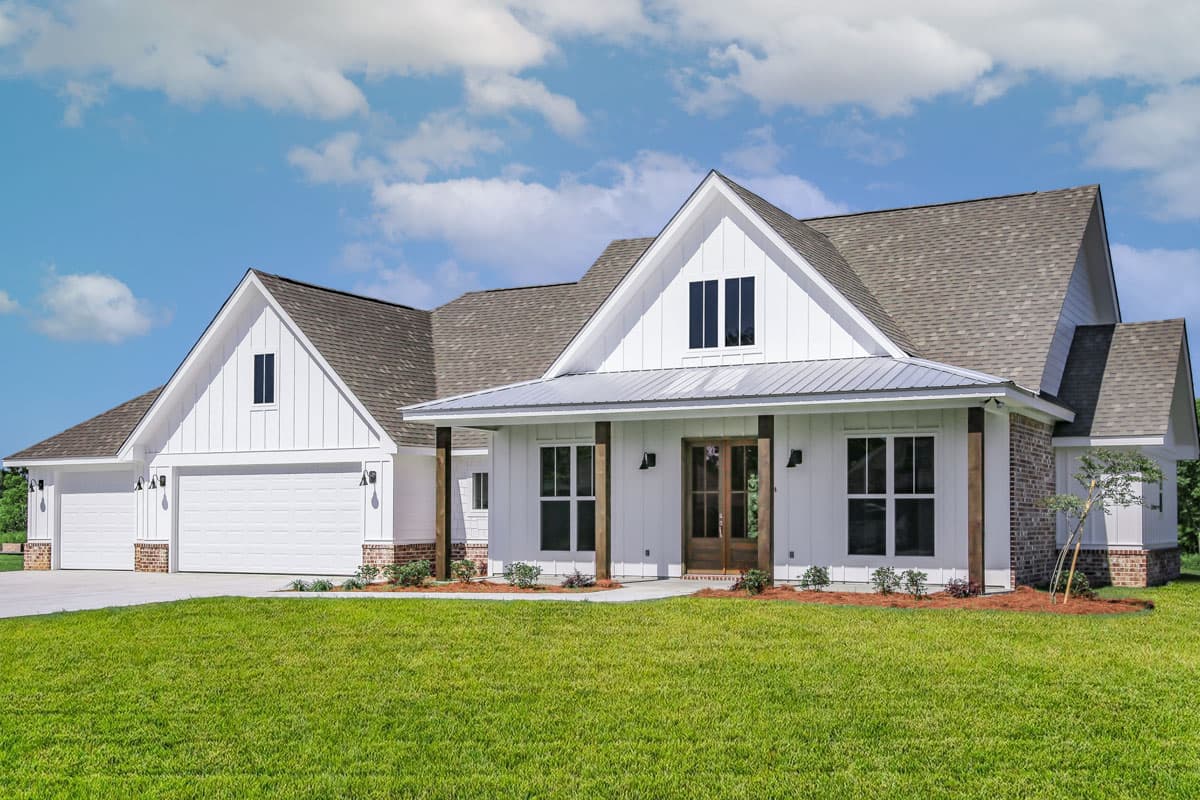

  • This open 3-bed New American farmhouse plan gives comes with a 3-car garage has great curb appeal. Access the pair of front doors from the 6'-deep front porch step inside.

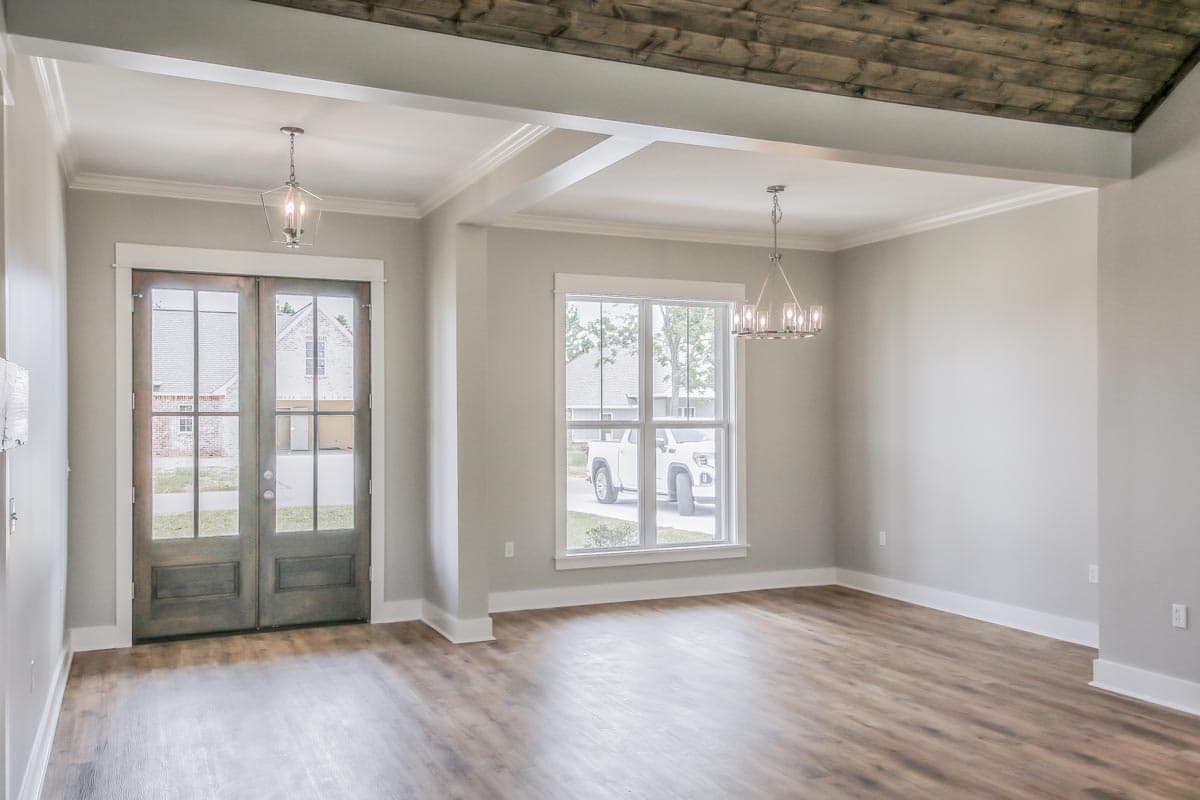

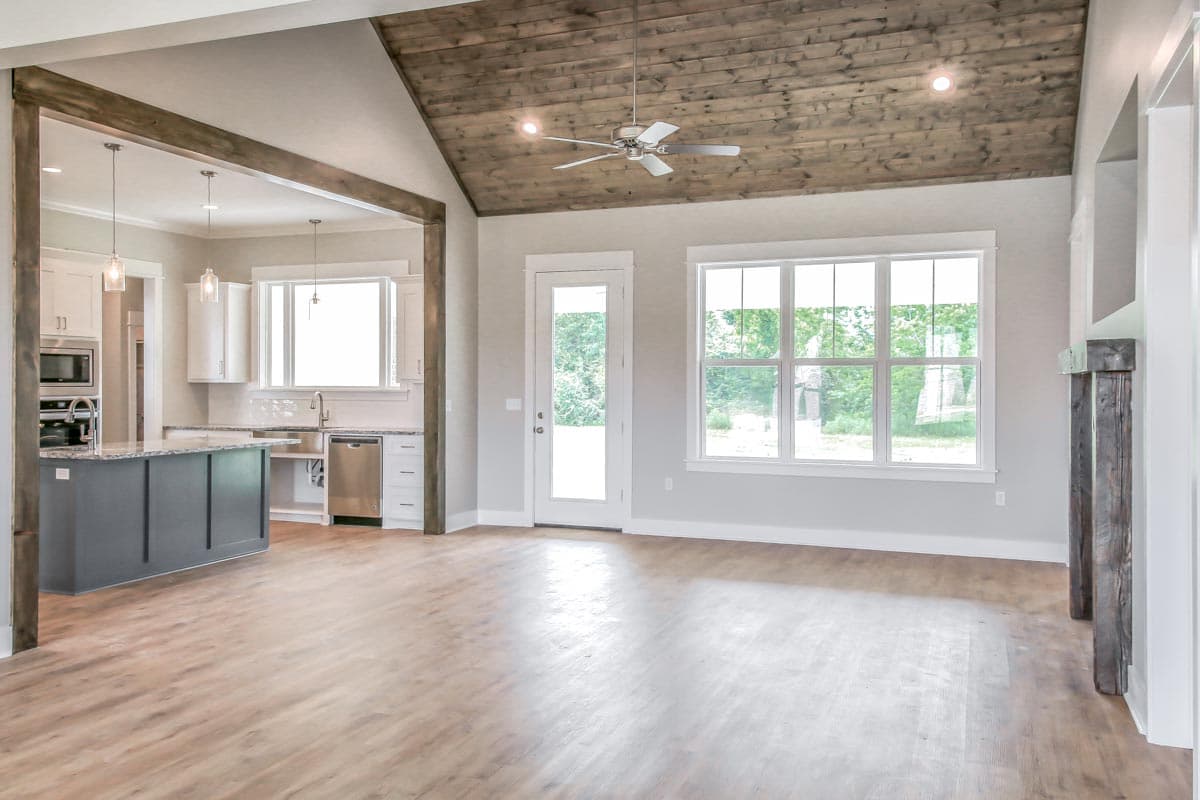

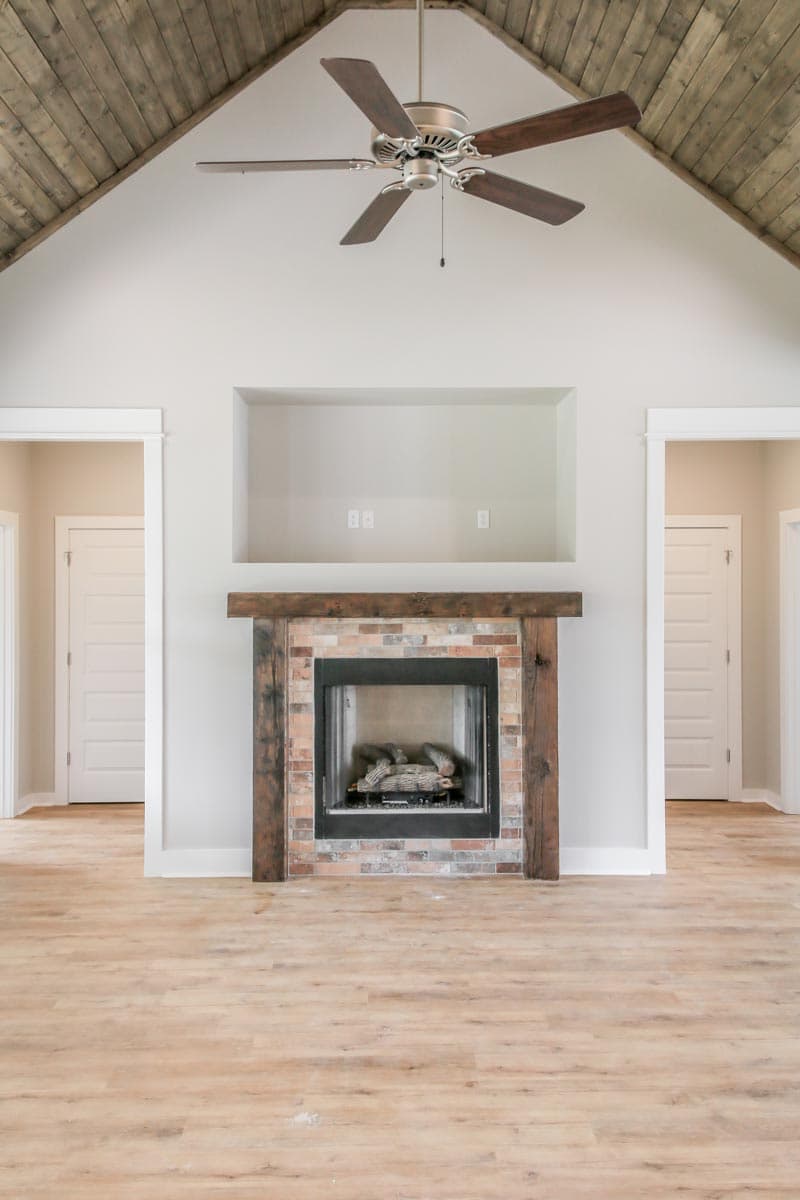

  • Ahead, you have views of the great room with a vaulted 15'10" ceiling and to the porch beyond. To your left lies the dining room.

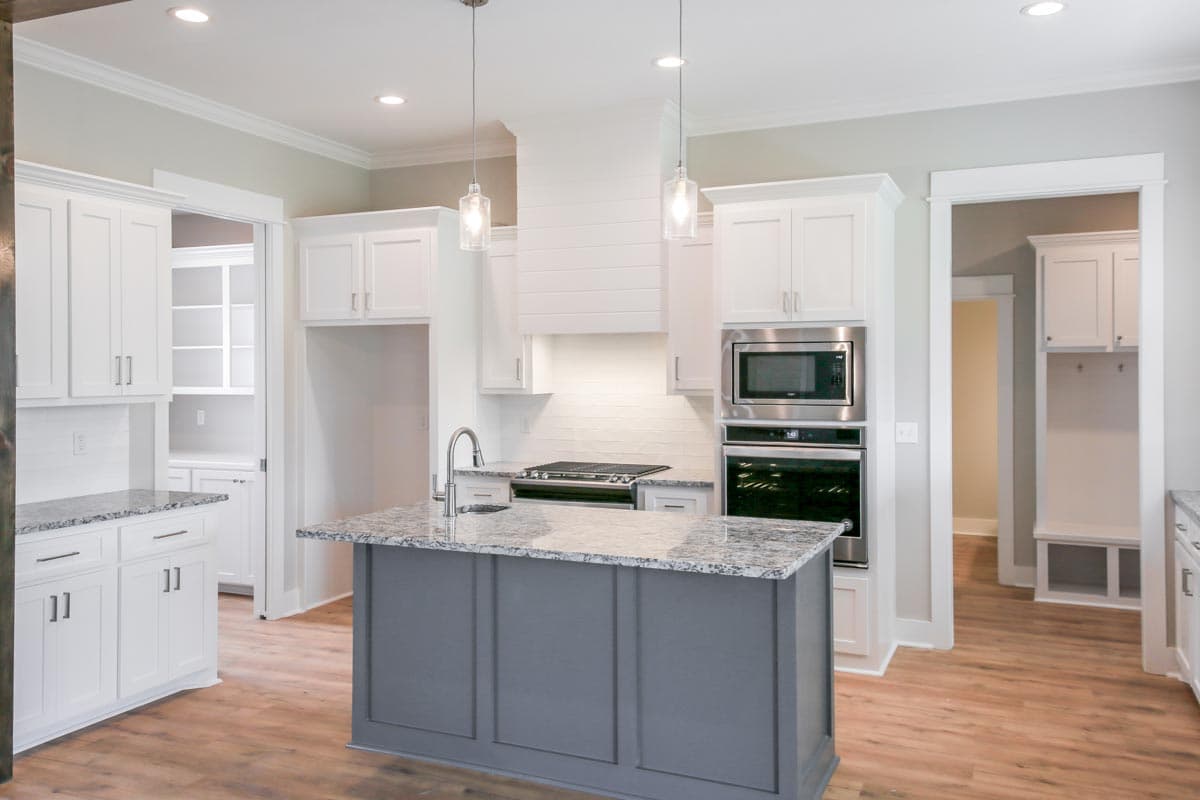

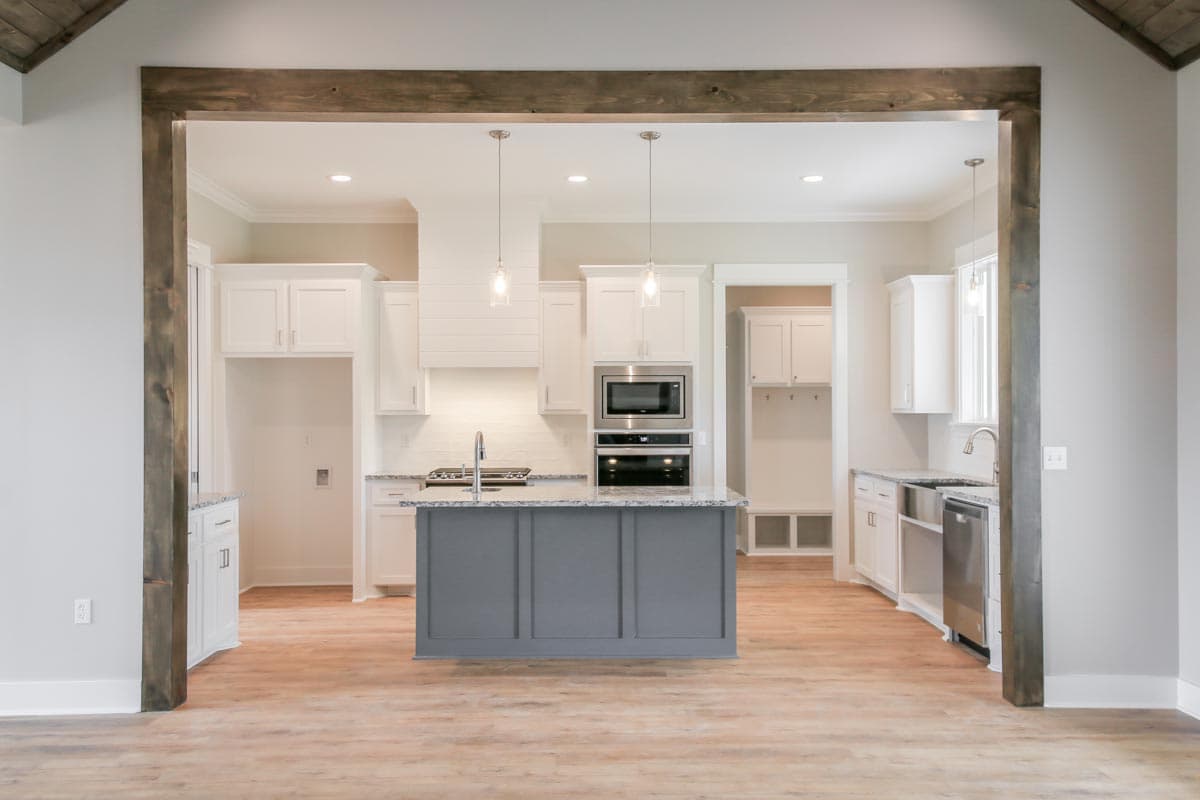

  • The kitchen is set off from the great room by a wide opening with timber edge details on each end. The kitchen island has seating on one side and work space on the other. A sliding door opens to the roomy walk-in pantry.
  • The luxurious main bedroom suite has an oversized closet with laundry access. Across the home, two bedrooms with walk-in closets share a bath.
  • Entertain outside on the rear porch with an optional outdoor kitchen.
What's Included
This house plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details

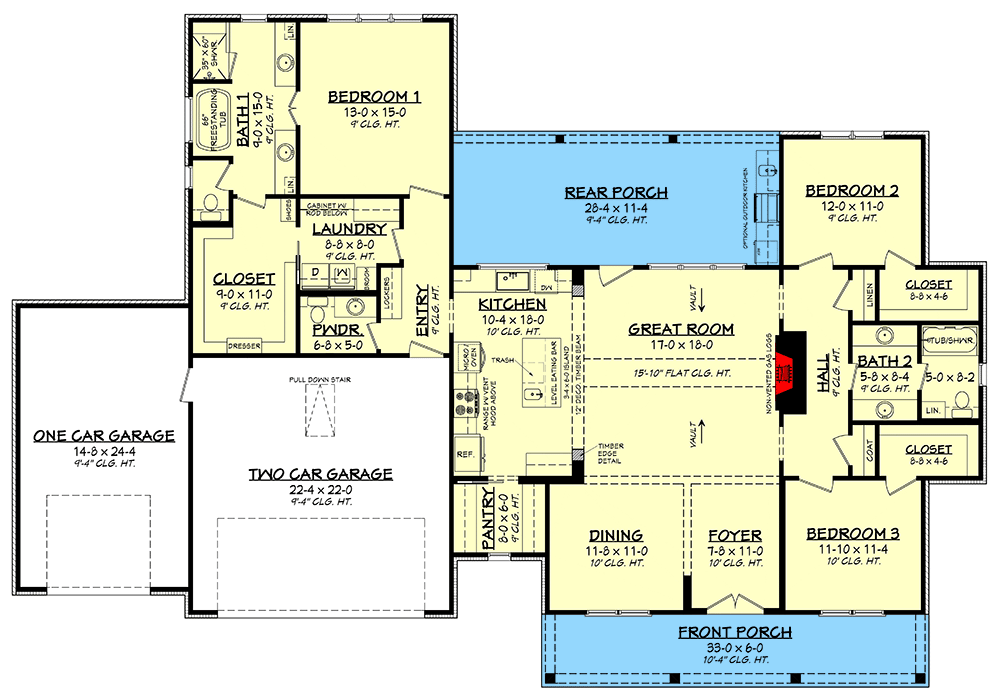

Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

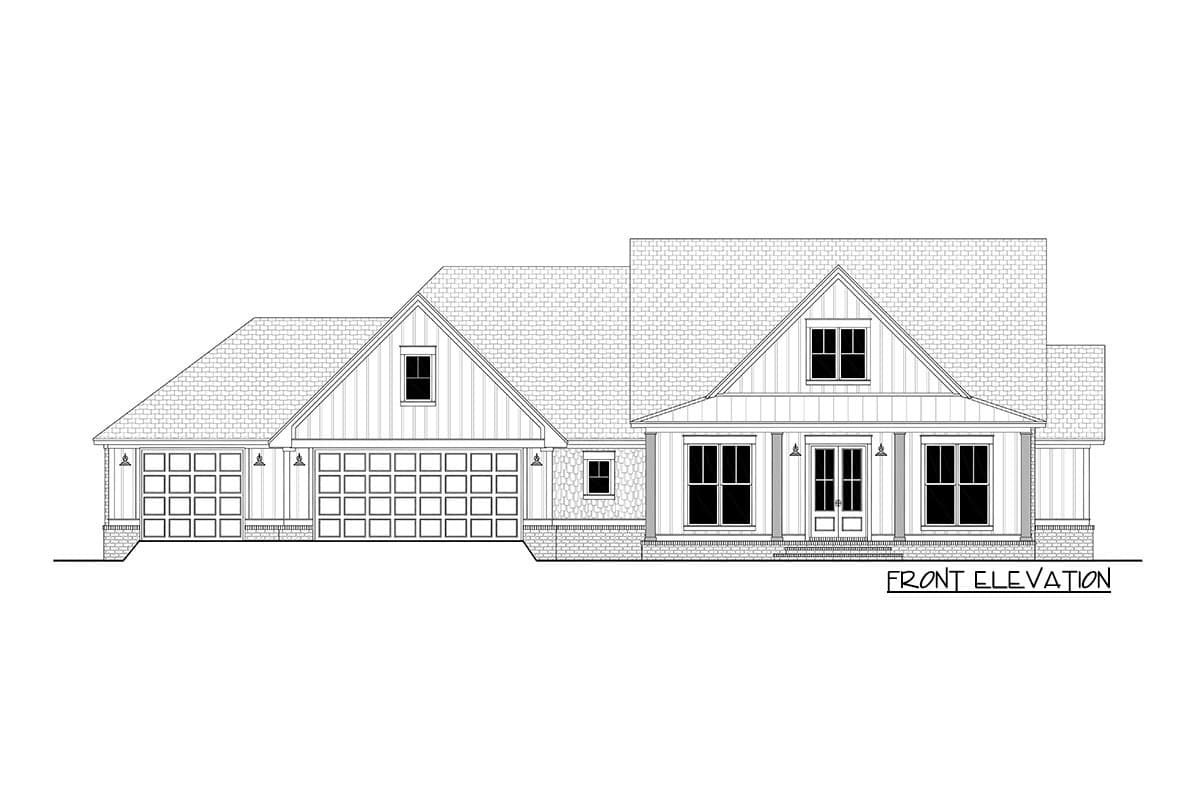

Page 4  Exterior views with additional notes and details

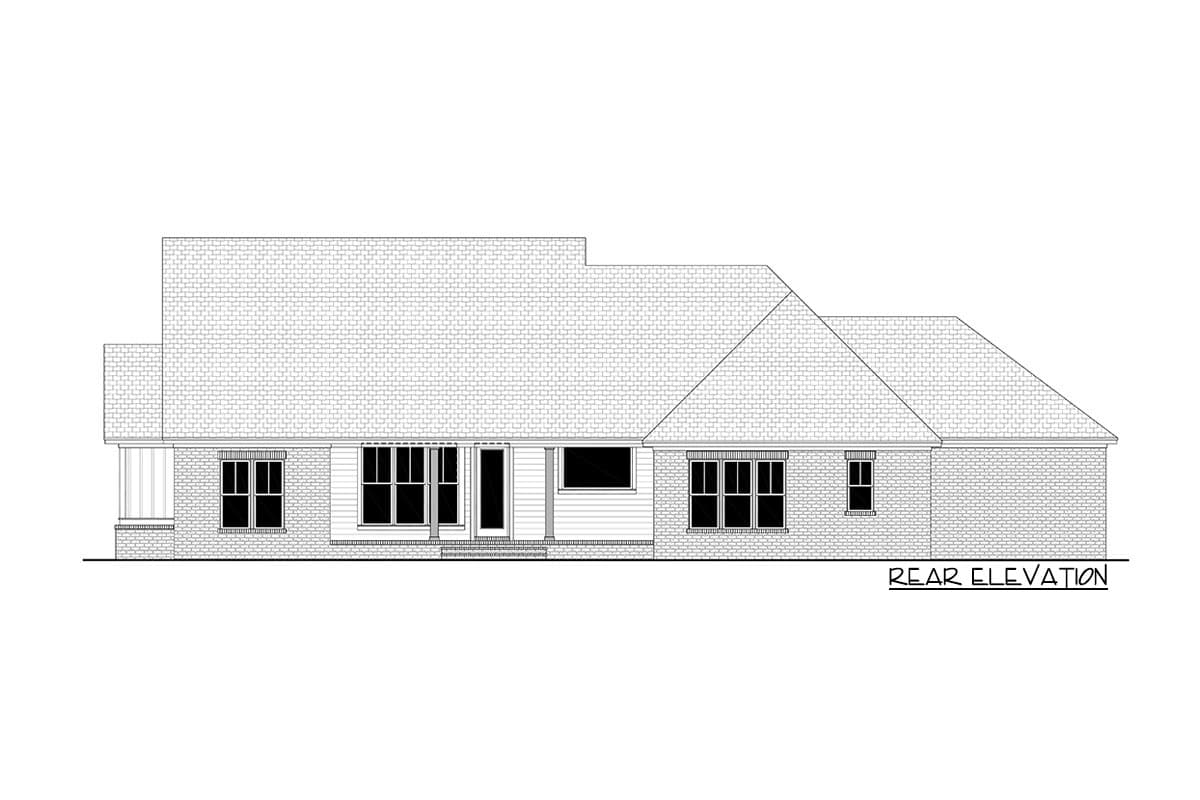

Page 5  Exterior views with additional notes and details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information


These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open 3-Bed New American Farmhouse with 3-Car Garage

  • 2,125

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Main Level - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,125 sq. ft.
  • 1st Floor: 2,125 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 57' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 883 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
