Open Concept 4-Bed Acadian House Plan

Plan 56406SM

  • 2,604

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This open concept Acadian house plan gives you 4 bedrooms, a breakfast and a formal dining room, and 3 baths.
  • The open floorplan features great views to the rear of the property from the family room with fireplace and the breakfast area.
  • The kitchen has plenty of counter space and a large island for food preparation and seating for up to 5. Just off the kitchen is the laundry which boosts a broom closet and expansive counter for folding clothes and a good size pantry.
  • The rear porch is spacious and has an outdoor kitchen which is perfect for entertaining family and friends.
  • The master bedroom is separated from the house with its own hallway and stunning master bath with a barrel ceiling over the entry way and tub. It also features separate vanities and separate closet entries as well.
  • Beds 2 and 3 are spacious and have the popular Jack and Jill bath and walk-in closets. Bed 4 has a full bath and provides great flexibility for an older child, a mother in law suite or guest room.
  • Related Plan: Get an alternate exterior with house plan 56405SM for an alternate elevation.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

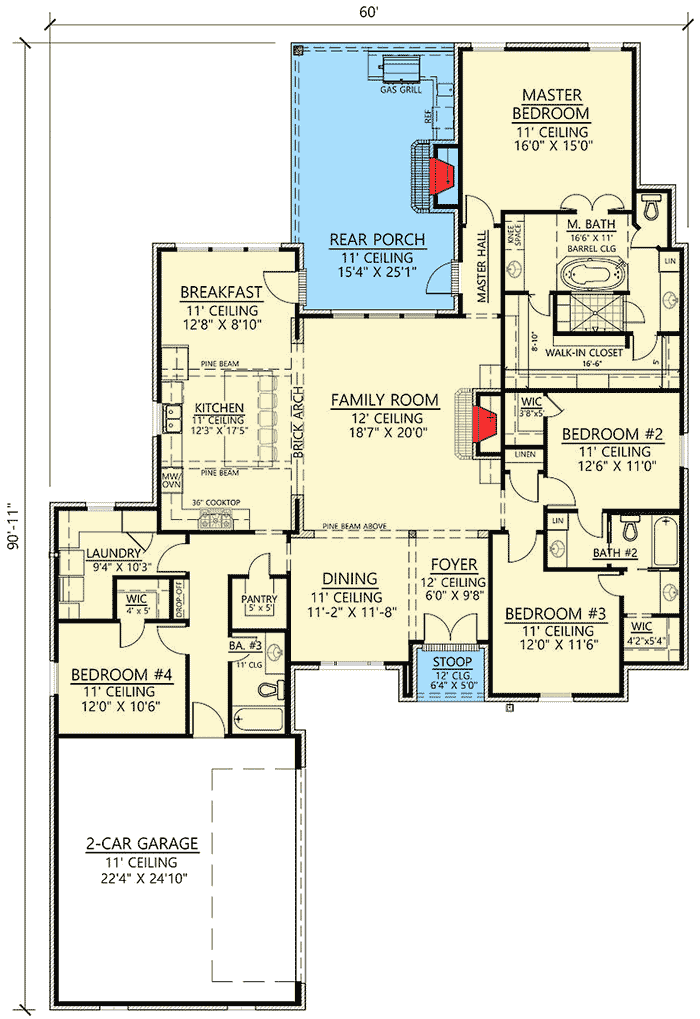

Open Concept 4-Bed Acadian House Plan - 56406SM floor plan - Main Level

Open Concept 4-Bed Acadian House Plan

  • 2,604

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,604 sq. ft.
  • 1st Floor: 2,604 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 90' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
