Plan 246017DLR
EXCLUSIVE
Open Concept 4-Bed House Plan for a Narrow Lot - 2156 Sq Ft
Heated S.F.
2,156
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This open concept house plan - just 40'-wide - is ideal for a narrow lot and gives you 4 beds, 2.5 baths and 2156 square feet of heated living.
  • This Architectural Designs exclusive house plan gives you a living room with fireplace which is open to the dining room and kitchen.
  • The main floor master suite has a slider that opens to the rear patio and a bathroom with two vanities and a walk-in shower.
  • A large laundry/mud room is off the extra-deep garage.
  • Upstairs, 3 bedrooms, share a bath and a loft area with room for built in desk area.
What's Included
  • Floor plans
  • Foundation plan
  • Floor framing plan
  • Roof framing plan
  • Cross Sections

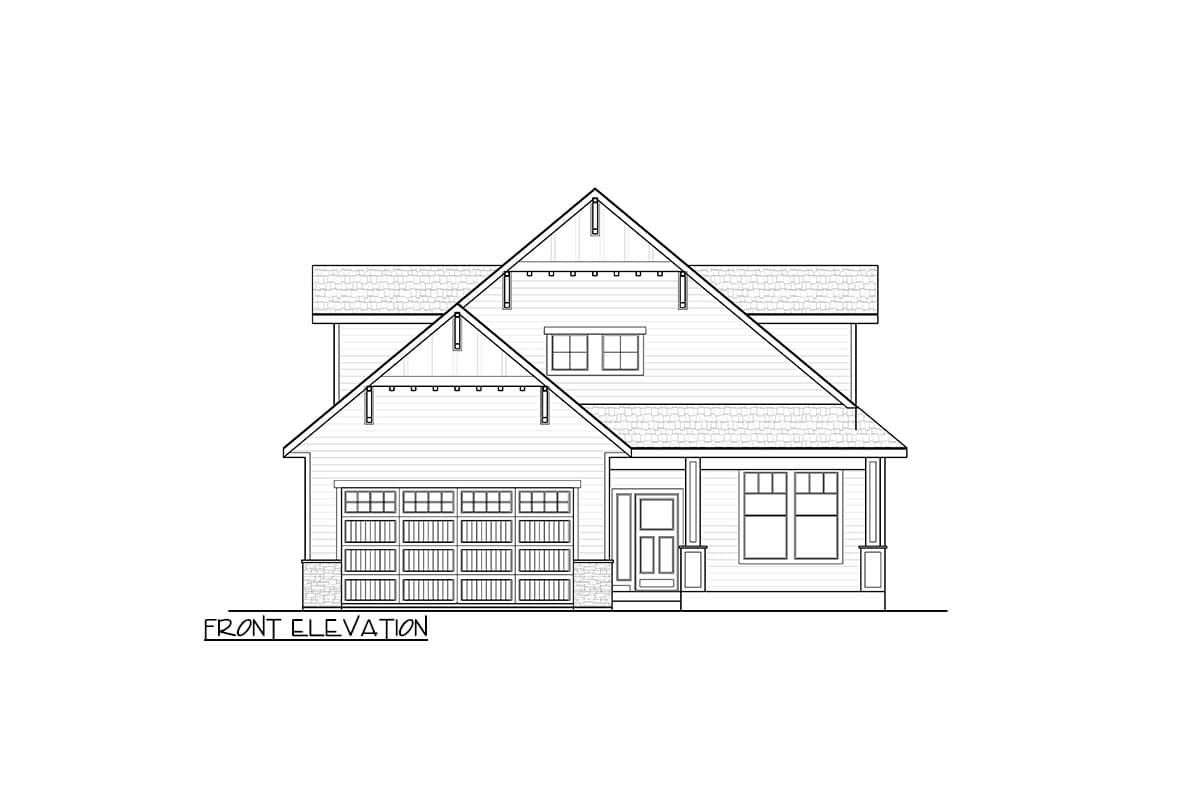

  • Exterior Elevations
  • Exterior Elevations
  • Electrical Plan and notes
  • Detail Page
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Concept 4-Bed House Plan for a Narrow Lot - 2156 Sq Ft

  • 2,156

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

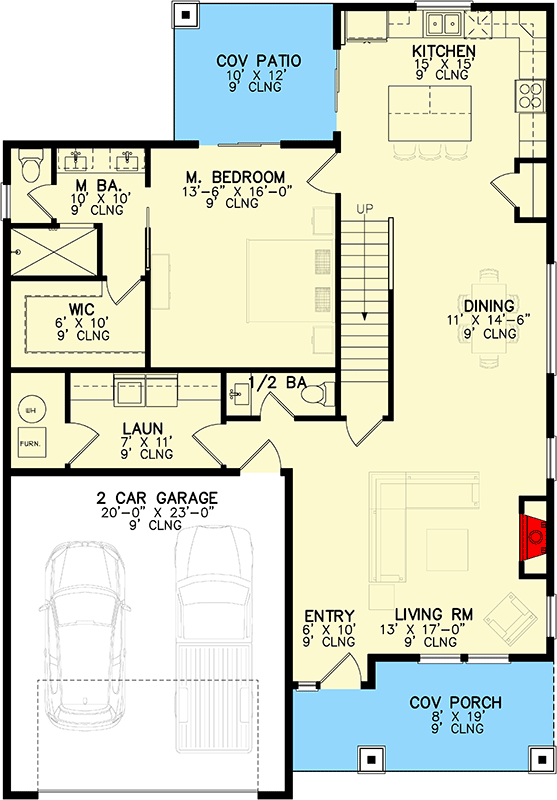

  • Main Level

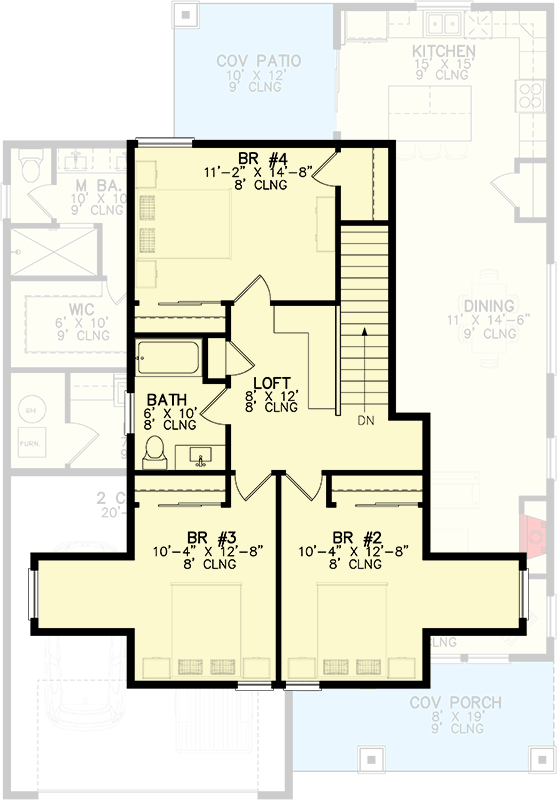

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,156 sq. ft.
  • 1st Floor: 1,409 sq. ft.
  • 2nd Floor: 486 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 57' 10"
  • Max ridge height: 29' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Open Concept 4-Bed House Plan for a Narrow Lot - 2156 Sq Ft

  • 2,156

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Open Concept 4-Bed House Plan for a Narrow Lot - 2156 Sq Ft

  • 2,156

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,156 sq. ft.
  • 1st Floor: 1,409 sq. ft.
  • 2nd Floor: 486 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 57' 10"
  • Max ridge height: 29' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
