Open Contemporary Plan

Plan 3059D

  • 2,404

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

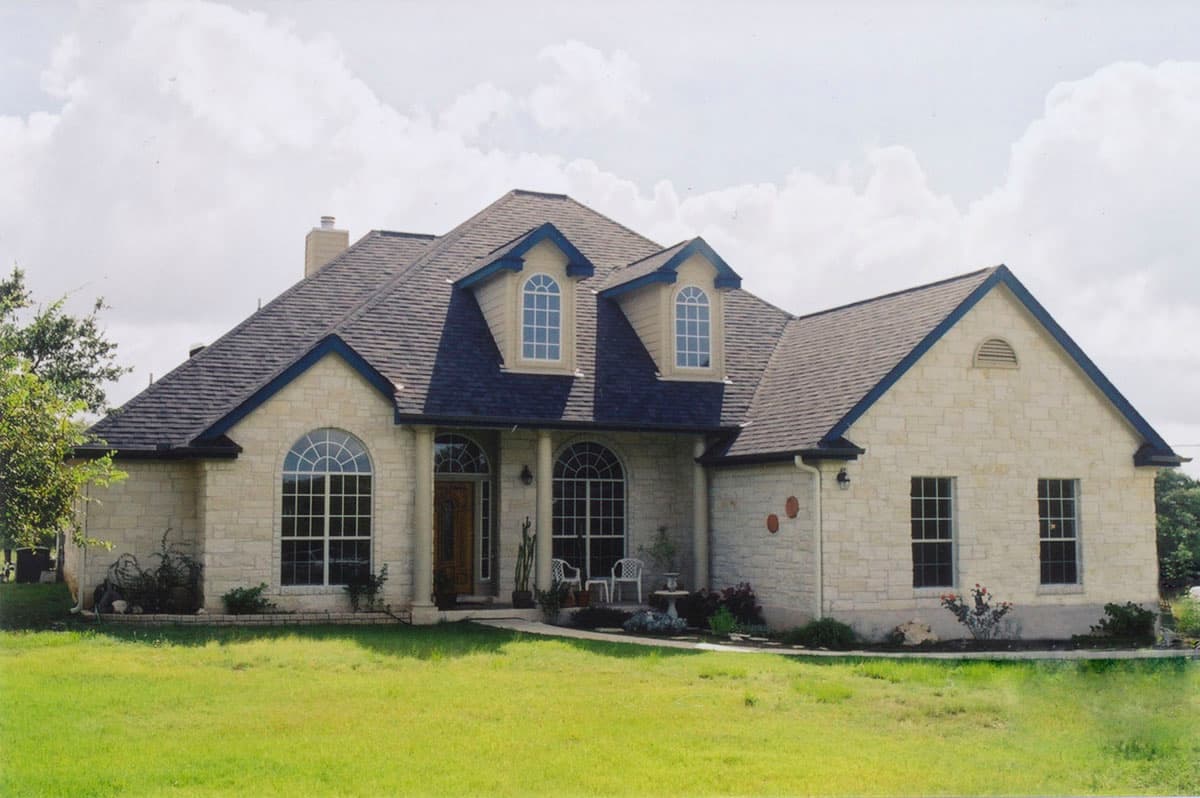

  • The front elevation of this single-level home presents a traditional face to the world. Inside, the open floor plan reflects today?s desired features.
  • Inside, a formal but open dining room is defined by a tray ceiling and columns. On the other side is the front-facing study with its vaulted ceiling and arched window.
  • Bordered by an angled window wall in back, the living room, kitchen and morning room comprise a spacious place for family activities. The kitchen contains a walk-in pantry and two islands, a smaller one for food preparation and a larger, angled one with a snack bar. There are two entrances to the covered deck in back.
  • The master suite also opens to the deck. A tray ceiling in the bedroom follows the line of a bay window. Two walk-in closets are found in the compartmented bath, which also contains a garden tub, a separate shower and two sinks separated by corner knee space.
  • Three family bedrooms on the other side of the house share a four-fixture bath in the hall.
  • Related Plans: For a photo of a related design, see house plan 31134D and 31150D. Need an extra half bath? See house plans 3079D and 31004D. Gain a family room with 3178D and 3077D. Need a guest bedroom? See 31057D. Want a media room? See 3036D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Open Contemporary Plan - 3059D floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,404 sq. ft.
  • 1st Floor: 2,404 sq. ft.
  • Deck: 429 sq. ft.
  • Porch, Front: 132 sq. ft.
  • Basement Unfinished: 2,404 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 7"
  • Depth: 62' 10"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Open Contemporary Plan

  • 2,404

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,445
  • CAD - Single-Build $2,445
  • View all purchase option online

About This Plan

  • The front elevation of this single-level home presents a traditional face to the world. Inside, the open floor plan reflects today?s desired features.
  • Inside, a formal but open dining room is defined by a tray ceiling and columns. On the other side is the front-facing study with its vaulted ceiling and arched window.
  • Bordered by an angled window wall in back, the living room, kitchen and morning room comprise a spacious place for family activities. The kitchen contains a walk-in pantry and two islands, a smaller one for food preparation and a larger, angled one with a snack bar. There are two entrances to the covered deck in back.
  • The master suite also opens to the deck. A tray ceiling in the bedroom follows the line of a bay window. Two walk-in closets are found in the compartmented bath, which also contains a garden tub, a separate shower and two sinks separated by corner knee space.
  • Three family bedrooms on the other side of the house share a four-fixture bath in the hall.
  • Related Plans: For a photo of a related design, see house plan 31134D and 31150D. Need an extra half bath? See house plans 3079D and 31004D. Gain a family room with 3178D and 3077D. Need a guest bedroom? See 31057D. Want a media room? See 3036D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,404 sq. ft.
  • 1st Floor: 2,404 sq. ft.
  • Deck: 429 sq. ft.
  • Porch, Front: 132 sq. ft.
  • Basement Unfinished: 2,404 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 7"
  • Depth: 62' 10"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 3059D
