Open Craftsman Floor Plan

Plan 2314JD

  • 2,925

    HEATED S.F.

  • 4

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 3

    CAR GARAGE

About this Plan

  • Related Plan: Need a basement? See house plan 23093JD and gain a lower level media and rec room, kitchenette and full bath.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

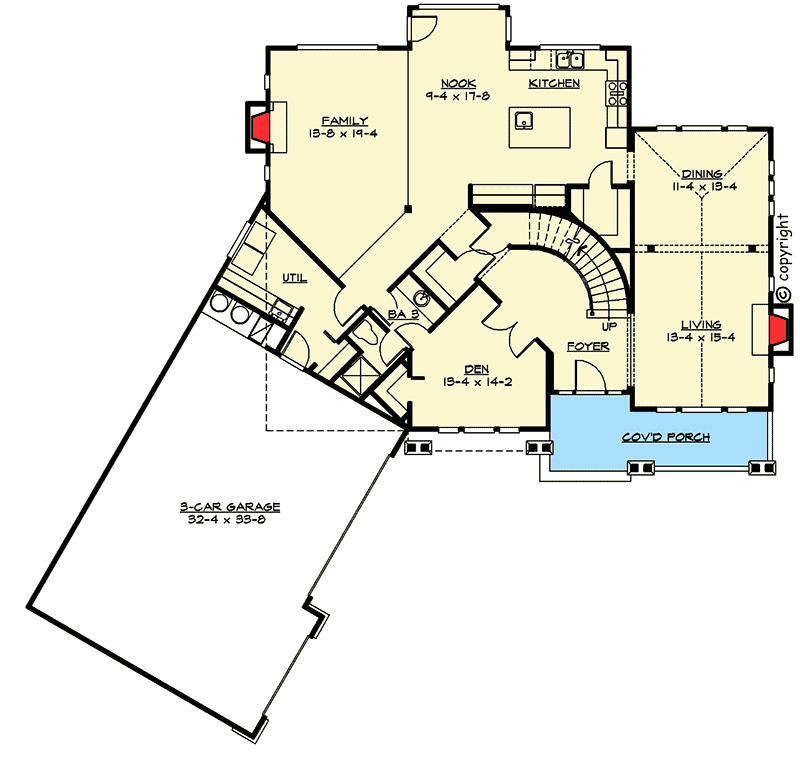

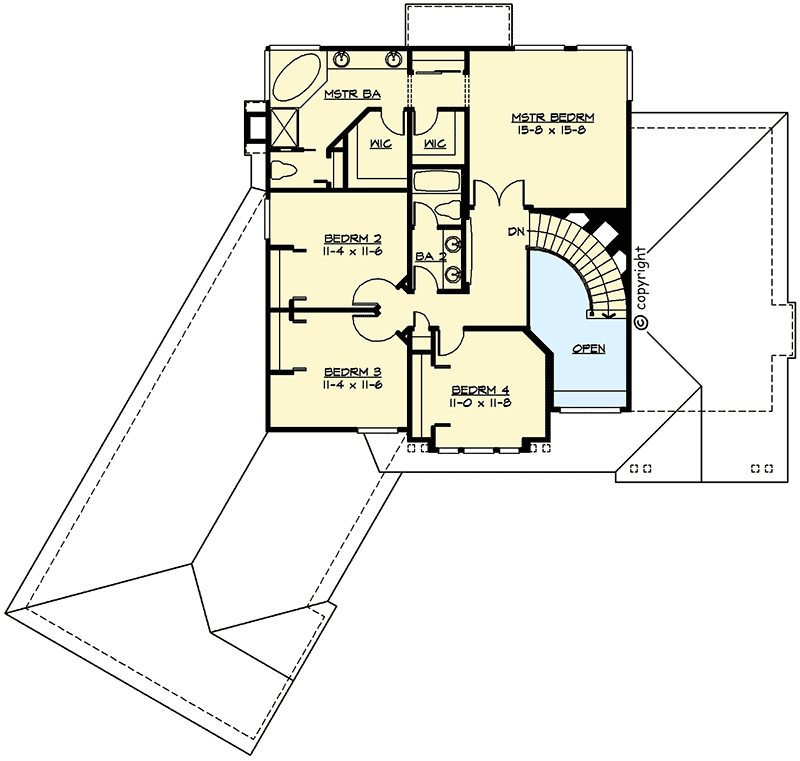

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,925 sq. ft.
  • 1st Floor: 1,733 sq. ft.
  • 2nd Floor: 1,192 sq. ft.
  • Porch, Front: 130 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Dimensions

  • Width: 74' 0"
  • Depth: 73' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 880 sq. ft.
  • Details: 3 Cars
  • Location: Courtyard

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style
