Plan 39062ST
Open Floor Plan
Heated S.F.
2,824
Beds
4
Baths
2.5+
Stories
2
Cars
2
What's Included
Plan Details

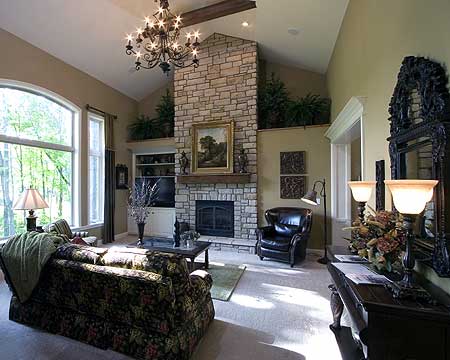

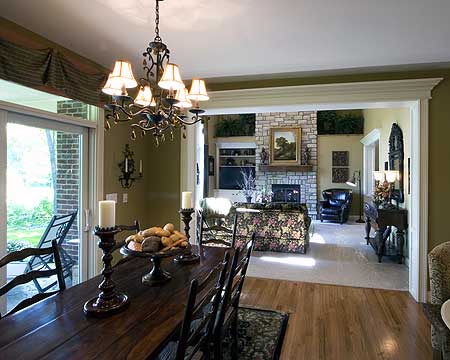

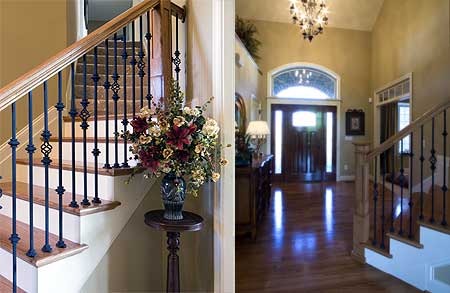

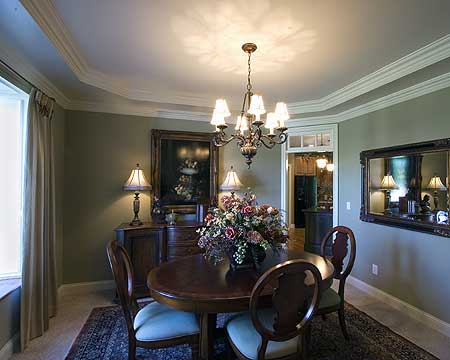

  • A spacious open foyer introduces an elegantly turned staircase and a great room with a wall of stacked windows. The formal dining room with boxed bay window lies to the left.

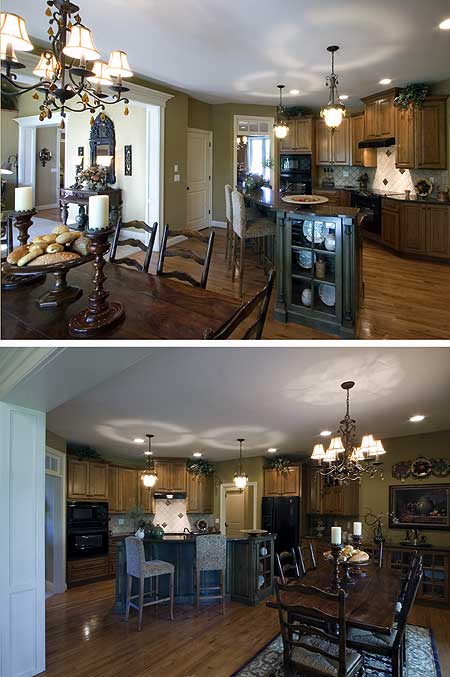

  • Open to the breakfast room and the beamed great room, the kitchen is defined by a large island with sink allowing views for the family cook.

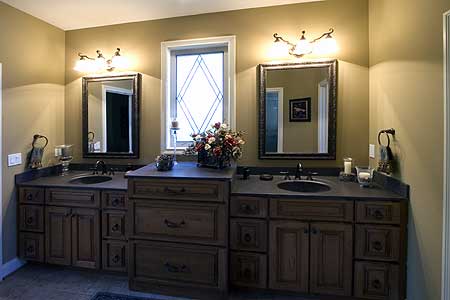

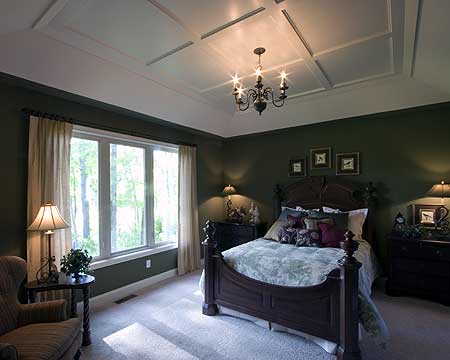

  • The master bedroom suite pampers the owners with a sloped ceiling treatment, large double bowl vanity and extra large walk-in closet.
  • Offering a spectacular view to the great room below, the second floor loft with window seat also creates a shared computer or study area.

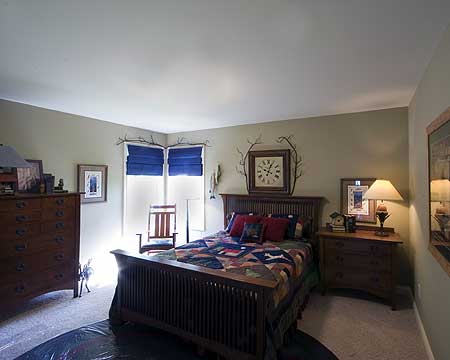

  • Two additional bedrooms, a hall bath and optional bonus room complete this spectacular family home plan.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Floor Plan

  • 2,824

    Heated s.f.

  • 4

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,824 sq. ft.
  • 1st Floor: 1,864 sq. ft.
  • 2nd Floor: 960 sq. ft.

Dimensions

  • Width: 62' 8"
  • Depth: 49' 0"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Open Floor Plan

  • 2,824

    Heated s.f.

  • 4

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Open Floor Plan

  • 2,824

    Heated s.f.

  • 4

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,824 sq. ft.
  • 1st Floor: 1,864 sq. ft.
  • 2nd Floor: 960 sq. ft.

Dimensions

  • Width: 62' 8"
  • Depth: 49' 0"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

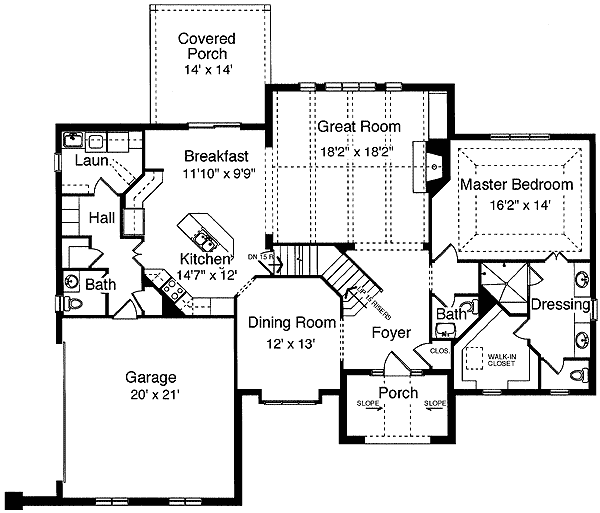

    Main Level

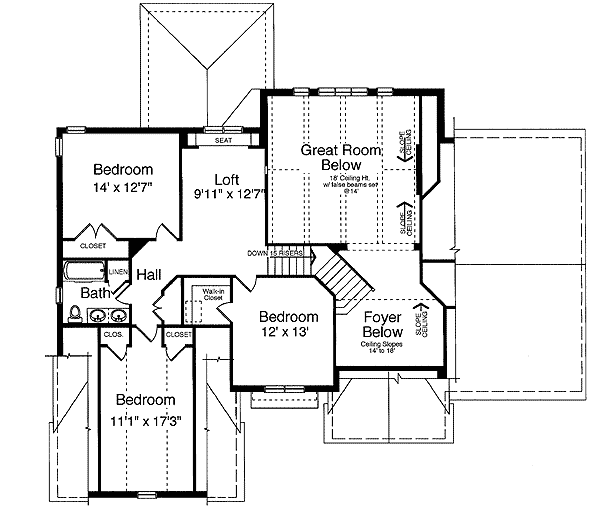

    2nd Floor
