Plan 89802AH
Open Floor Plan
Heated S.F.
2,223
Beds
4
Baths
2.5
Stories
2
Cars
3
Videos
What's Included
Plan Details
  • Clean rooflines and massive columns define this two-story Northwest home where you'll love the open design.
  • As you enter the home, the office lies just to the right while the main living area beckons you into the home from directly ahead.
  • The kitchen features an island that flows into the casual dining space and great room to the left.
  • Upstairs, the master suite features a step ceiling, spacious walk-in closet and private bath while three additional bedrooms have direct access to the full bath and laundry area just off the hallway.
  • A three-stall garage with extra storage and completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Floor Plan

  • 2,223

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

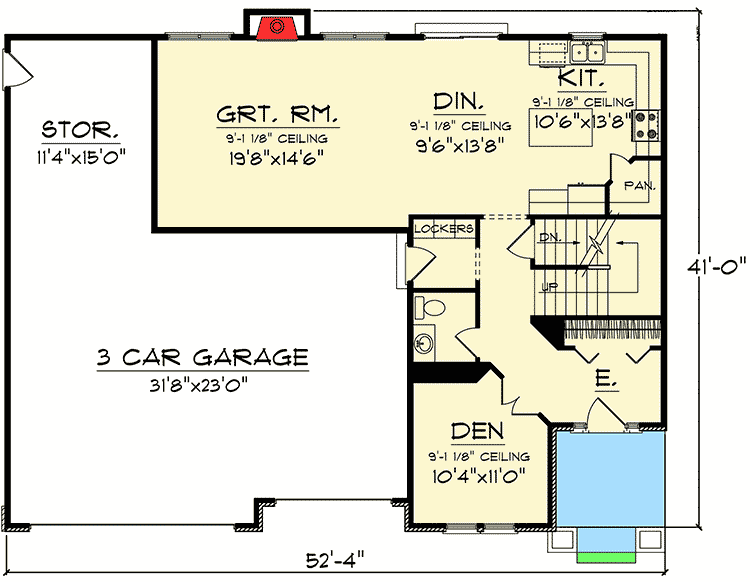

  • Main Level

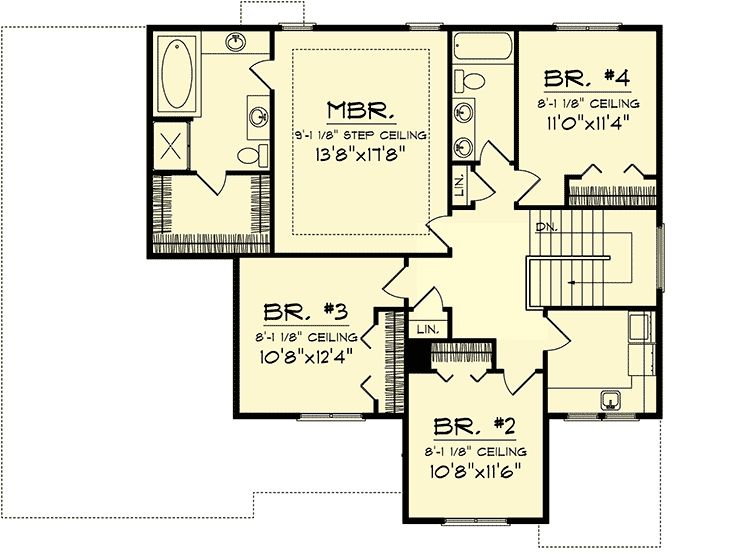

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,223 sq. ft.
  • 1st Floor: 1,036 sq. ft.
  • 2nd Floor: 1,187 sq. ft.

Dimensions

  • Width: 52' 4"
  • Depth: 41' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 908 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
