Plan 89802AH

Open Floor Plan

Heated S.F.
2,223
Beds
4
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 89802AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 89802AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

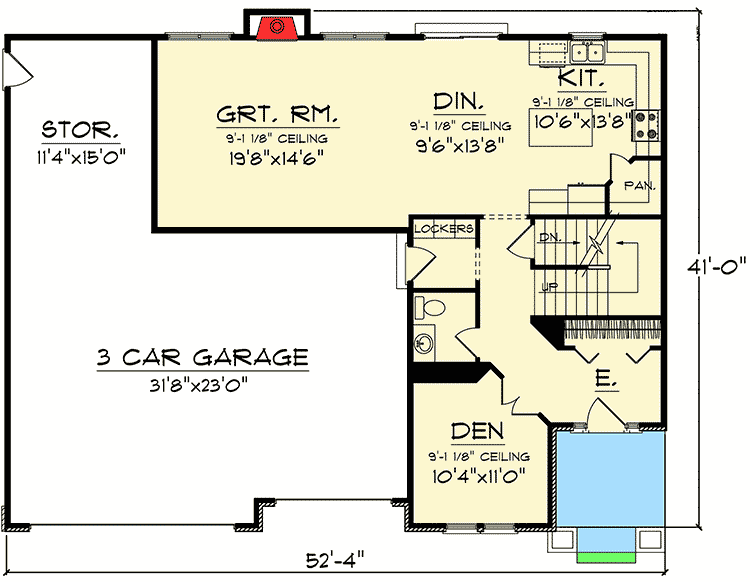

Plan 89802AH: Open Floor Plan - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

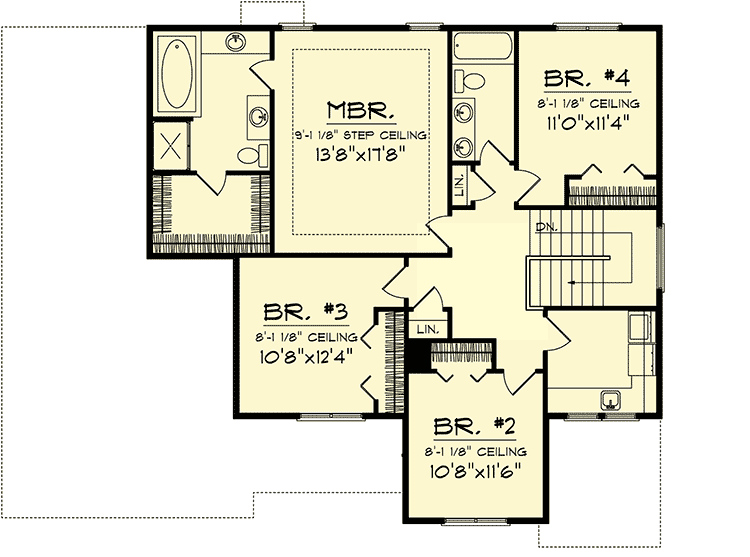

Plan 89802AH: Open Floor Plan - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Clean rooflines and massive columns define this two-story Northwest home where you'll love the open design.
  • As you enter the home, the office lies just to the right while the main living area beckons you into the home from directly ahead.
  • The kitchen features an island that flows into the casual dining space and great room to the left.
  • Upstairs, the master suite features a step ceiling, spacious walk-in closet and private bath while three additional bedrooms have direct access to the full bath and laundry area just off the hallway.
  • A three-stall garage with extra storage and completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,223 sq. ft.

1st Floor

1,036 sq. ft.

2nd Floor

1,187 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 4"

Depth

41' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

908 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Home Office

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections
